Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
PDUs
Overview

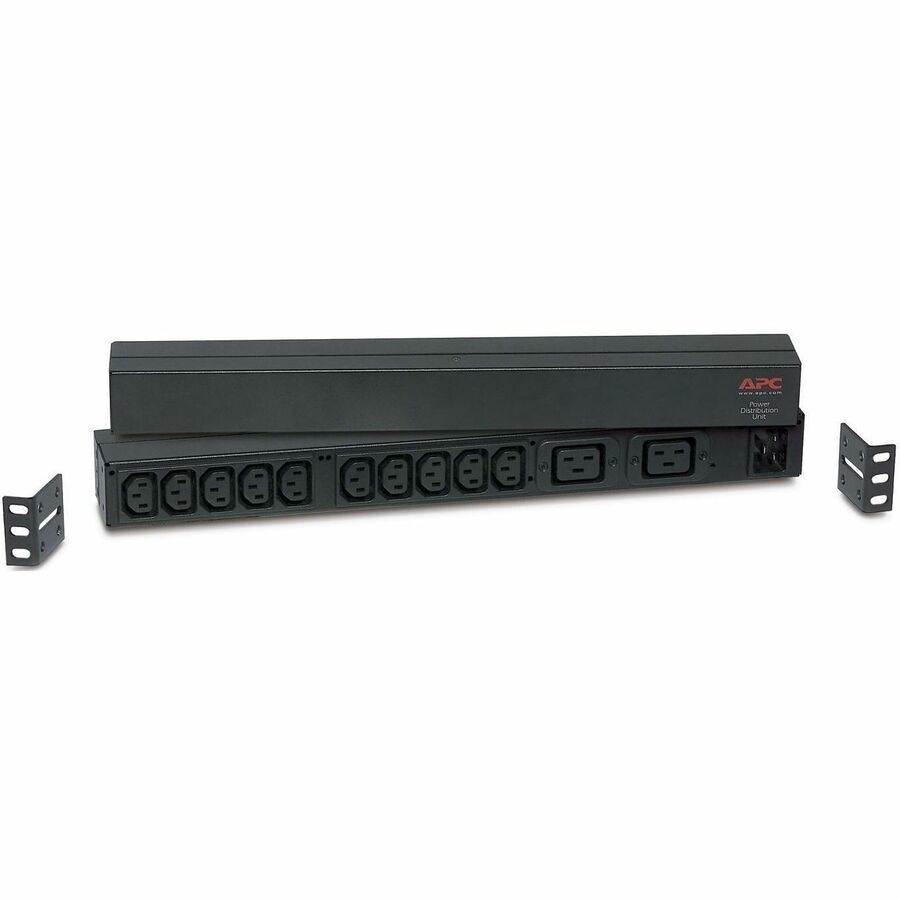

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.
Warranty
Limited Warranty: 2 Year
Highlights
Features 10 C13 and 2 C19 outlets for comprehensive power distribution
Horizontal mounting to fit various rack configurations
Supports up to 16A, 208 and 230V power distribution
Includes toolless mounting kit for quick setup
Specifications
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
113°F (45°C)
Minimum Storage Temperature
-13°F (-25°C)
Maximum Storage Temperature
149°F (65°C)
Minimum Operating Humidity
0%
Maximum Operating Humidity
95%
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP9559
Brand Name
APC
Product Line
NetShelter
Product Name
NetShelter 12-Outlets PDU
Packaged Quantity
1 Each
Product Type
PDU
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Horizontal
Mount Type
Rack-mountable
Rack Height
1U
Cord Length
8.17 ft
Height
1.7"
Width
17.6"
Depth
2.2"
Weight (Approximate)
2.16 lb
Power Description
Input Voltage
120 V, 208 V, 230 V
Input Voltage Range
90 V AC - 250 V AC
Output Voltage
120 V AC, 208 V AC, 230 V AC
Input Current
16 A
Input Frequency
60 Hz
Technical Information
PDU Type
Basic
Plug/Connector Type
IEC 60320 C20
Plug/Connector Detail
1 x IEC 60320 C20
Receptacle Type
IEC 60320 C13, IEC 60320 C19
Receptacle Detail
10 x IEC 60320 C13, 2 x IEC 60320 C19
Load Capacity (VA)
3680 W
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
NetShelter 12-Outlets PDU
User Manual
Rack Mounting Brackets
Country of Origin
Philippines
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
