Switched - NEMA L14-30P - 7 x IEC 60320 C13, 1 x IEC 60320 C19, 16 x NEMA 5-20R - 120 V AC, 230 V AC - 5760 W - 10 ft Cord Length - 0U - Horizontal/Vertical - Rack-mountable - Tower
SKU
AP8970
Category
PDUs
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AP8970
Category
PDUs
Overview
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Warranty
Limited Warranty: 2 Year
Highlights

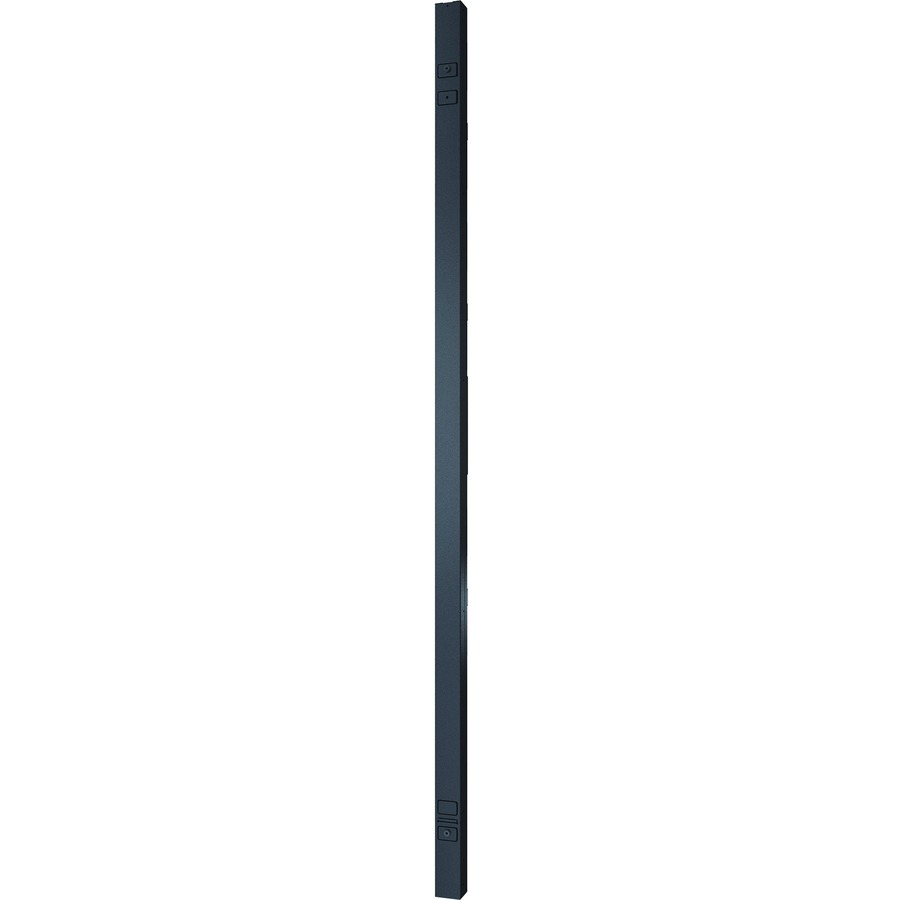

Vertical Mounting Capabilities - Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8970
Brand Name
APC by Schneider Electric
Product Name
Switched Rack PDU
Product Type
PDU
Management
Management
Web
SNMP
Telnet
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Horizontal/Vertical
Mount Type
Rack-mountable
Form Factor
Tower
Rack Height
0U
Cord Length
10 ft
Height
72"
Width
2.2"
Depth
1.8"
Weight (Approximate)
17.91 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Input Voltage Range
120 V AC - 230 V AC
Output Voltage
120 V AC, 208 V AC
Power Rating (VA)
5760 VA
Input Current
30 A
Technical Information
PDU Type
Switched
Plug/Connector Type
NEMA L14-30P
Receptacle Type
IEC 60320 C13, IEC 60320 C19, NEMA 5-20R
Receptacle Detail
7 x IEC 60320 C13, 1 x IEC 60320 C19, 16 x NEMA 5-20R
Protection Type
Overload Protection
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Switched Rack PDU
Installation guide
Rack mounting brackets
Safety guide
Serial configuration cable
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
