1 Celeron N5095 Quad-core (4 Core) - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 4 x Total Bays - 4 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, ... - 4 GB Flash Memory Capacity - Tower
$714.18
Special order — expected back in stock the week of Sep 7–13.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

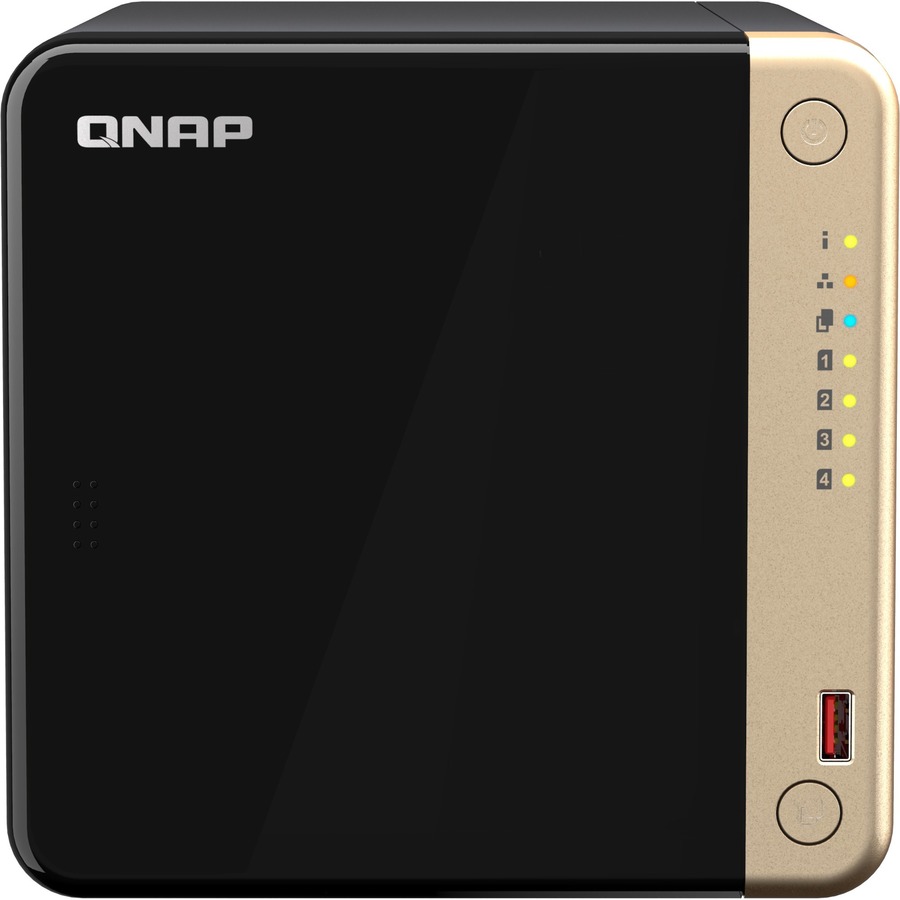

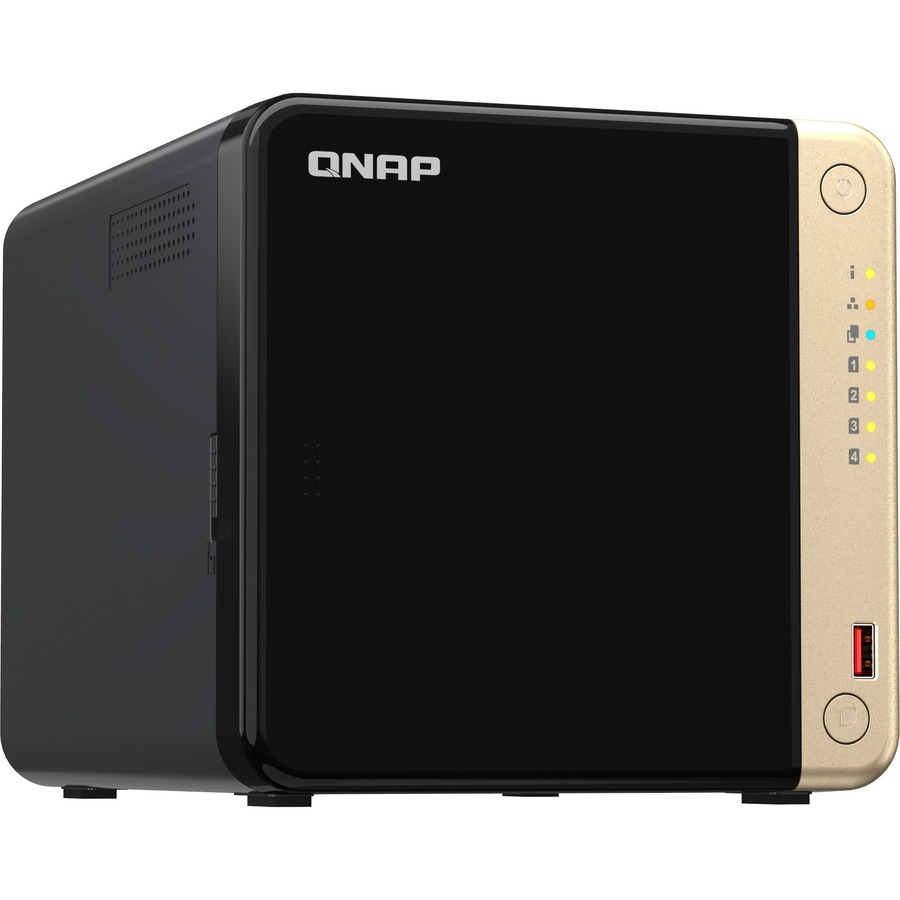

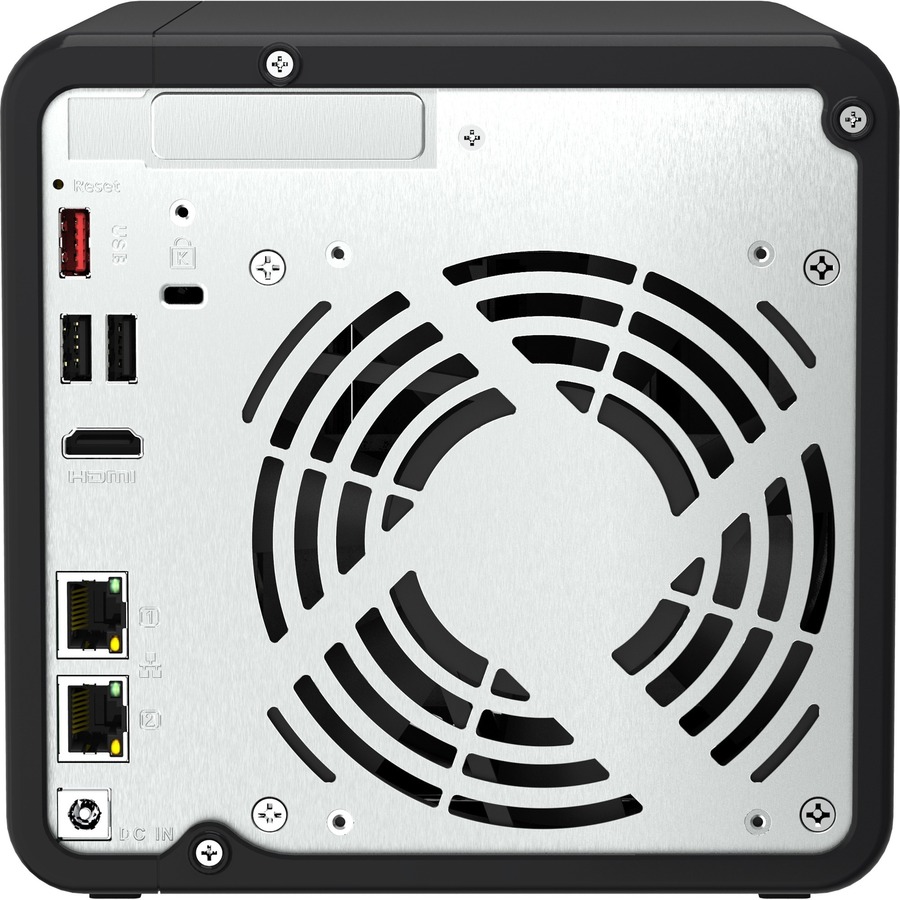

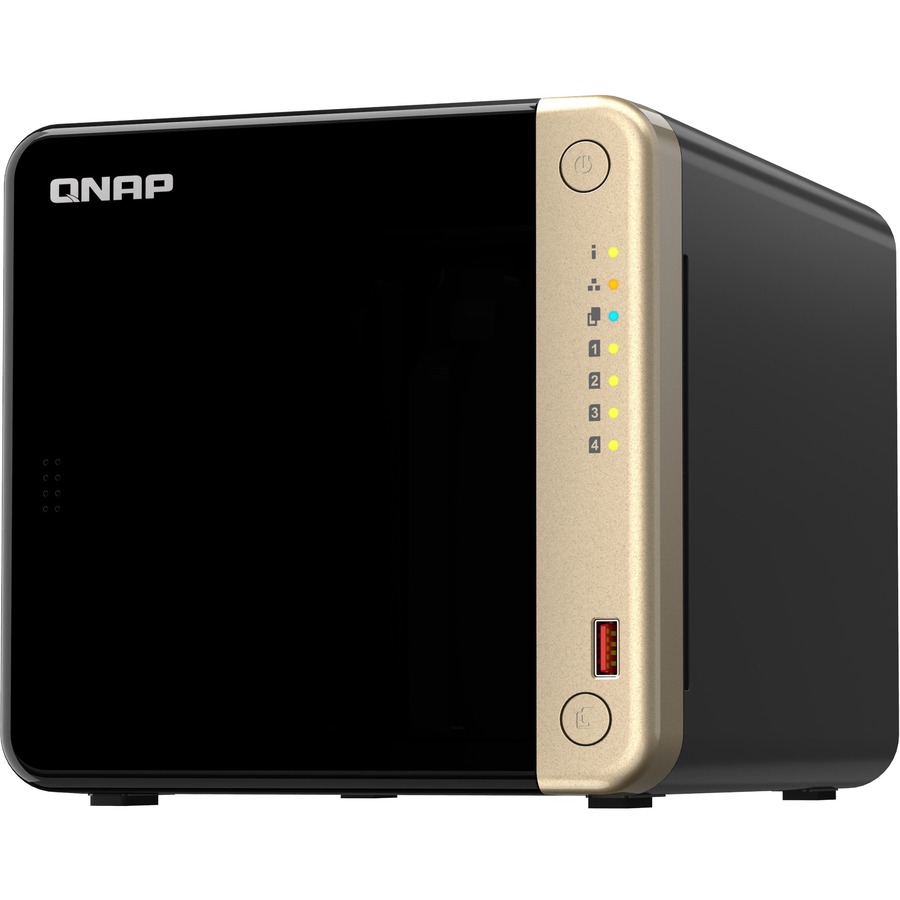

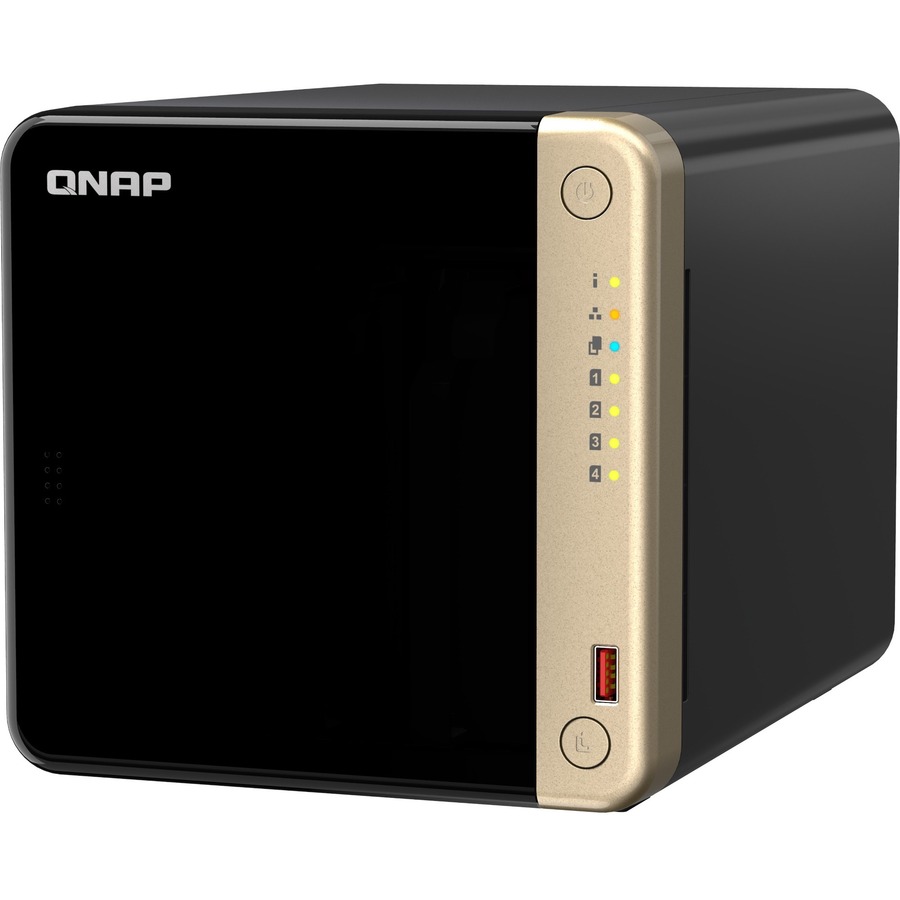

TS-464 | Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications
Powered by an Intel® Celeron® N5095, quad-core processor (burst up to 2.9GHz), the TS-464 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-464 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-464 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
2.5GbE connectivity Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
M.2 SSD caching Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
PCIe expandability Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
License-free virtualized environment Host multiple containerized apps to run a wide range of applications and services.
Drives Auto-Tiering Qtier auto-tiering technology and SSD caching enable constant storage optimization.
4K HDMI 4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
Quad-core high performance
The TS-464 is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.
Accelerate AI-powered image recognition and caching with TPU and PCIe expansion
The TS-464 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-464 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier technology can also be used to empower the TS-464 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.
Additional Warranty Information: The TS-464 is backed by a 3-year warranty at no additional cost. Limited Warranty: 3 Year
| Controllers | |
|---|---|
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| General Information | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-464-8G-US |
| Brand Name | QNAP |
| Product Line | Turbo NAS |
| Product Series | TS-x64 |
| Product Model | TS-464-8G |
| Product Name | Turbo NAS TS-464-8G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 3.0 x2 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Management & Protocols | |
| Protocols | IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SSL/TLS, FXP, WEBDAV, LDAP, DDNS, DNS, SNMPv2, SNMPv3, PPTP, L2TP, NFSv4 |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 6.6" |
| Width | 6.7" |
| Depth | 8.9" |
| Form Factor | Tower |
| Weight (Approximate) | 4.98 lb |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Processor & Chipset | |
| Number of Processors Installed | 1 |
| Processor Type | Celeron |
| Processor Model | N5095 |
| Processor Core | Quad-core (4 Core) |
| Software | |
| Operating System | QTS 5.0.1 |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 4 GB |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | The TS-464 is backed by a 3-year warranty at no additional cost. |
| Miscellaneous | |
| Package Contents |
|
