1 x Intel Celeron J6412 Quad-core (4 Core) 2 GHz - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - 8 GB RAM - Serial ATA/600 Controller - RAID Supported - 0, 1, JBOD RAID Levels - 2 x Total Bays - 2 x 2.5"/3.5" Bay - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, ... - 4 GB Flash Memory Capacity - Tower
$612.94
In stock: 2
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TS-253E | Dual 2.5GbE, 8GB RAM, and long-term availability
The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports 2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

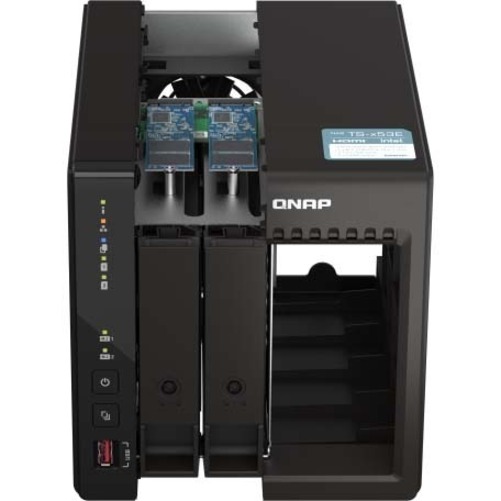

Dual M.2 2280 PCIe slots Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard System performance and multitasking is optimized with 8GB RAM.
Long-term model The TS-253E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity Supports USB expansion enclosures.
Available Models | TS-253E-8G
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz, 8 GB on board
Intel quad-core processor burst up to 2.6 GHz with AES-NI encryption
Processor
Intel® Celeron® J6412 quad-core processor (burst up to 2.6GHz)
RAM
Onboard 8GB (non-expandable)
Encryption
The Intel® AES-NI encryption engine boosts encryption performance while maintaining the confidentiality of NAS data.
USB ports
2 x USB 3.2 Gen2
2 x USB 2.0
Long-term availability
The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
Record/monitor your environment
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-253E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
| Additional Warranty Information | The TS-253E is backed by a 3-year warranty at no additional cost. |
|---|---|
| Package Contents |
|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TS-253E-8G-US |
| Protocols | IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SSL/TLS, FXP, WEBDAV, LDAP, DDNS, DNS, SNMPv2, SNMPv3, PPTP, L2TP, NFSv4 |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 2.82 lb |
| Operating System | QTS 5.0.1 |
| Form Factor | Tower |
| Manufacturer | QNAP Systems |
| Product Model | TS-253E-8G |
| Product Name | Turbo NAS TS-253E-8G SAN/NAS Storage System |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| Product Line | Turbo NAS |
| RAID Levels | 0, 1, JBOD |
| Controller Type | Serial ATA/600 |
| Brand Name | QNAP |
| Processor Model | J6412 |
| Height | 6.6" |
| Width | 4" |
| Depth | 8.9" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 4 GB |
| Processor Manufacturer | Intel |
| Number of Processors Installed | 1 |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 2 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | 0 |
| Number of 2.5"/3.5" Bays | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
