Up to 2381MB/s - 6x NVMe - SoftRAID Premium (3 Year) Included - RAID 0/1/4/5/1+0 (10)/JBOD - Thunderbolt - 2x USB-A 10Gb/s - 2.5GbE - SD 4.0 Reader - HDMI 2.1 - 3 Year Limited Warranty
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Other World Computing through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Ultra-Performance and Convenience for Production Workflows
While our base model Gemini is great for everyday content creators, you are worlds beyond ordinary. Your workflow is at the extreme edge of resolutions, codecs, and framerates. We understand your need to push into an 'other world' of capability, and pros like you are the reason we created the Gemini Ultra.
Powered by up to six NVMe SSDs, you'll have the horsepower to handle the most demanding photography, video, and editing tasks you face. Edit ultra-high resolution files on the fly, ingest several media cards in parallel and render dailies without a hitch, and rip through 8K footage with up to 2381MB/s real world speed.
Beyond performance, with Gemini Ultra's seven connectivity ports, you will experience an incredible level of versatility. Use your favorite accessories and charge small mobile devices via two USB ports. Daisy chains up to five Thunderbolt devices so that you can create additional backups. Offload media cards faster and easier with the frontside UHS-II slot or external card readers via Thunderbolt or USB-C. Transfer files and work up to 2.5x faster over wired networks and enjoy increased productivity when working with NAS devices with 2.5Gb/s Ethernet. Add an external monitor with up to 8K resolution via HDMI.
Ultra-fast
NVMe SSDs and Thunderbolt combine to deliver up to 2381MB/s real world speed
Innergize enabled
A complete health, performance, and field update management tool when using OWC Atlas SD memory cards with Gemini's SD reader
Advanced SoftRAID options
Use the world's most user-friendly fully featured software RAID package to manage your advanced RAID 0, 1, or 5 arrays
See more
HDMI port for connecting up to an 8K display
Connect more

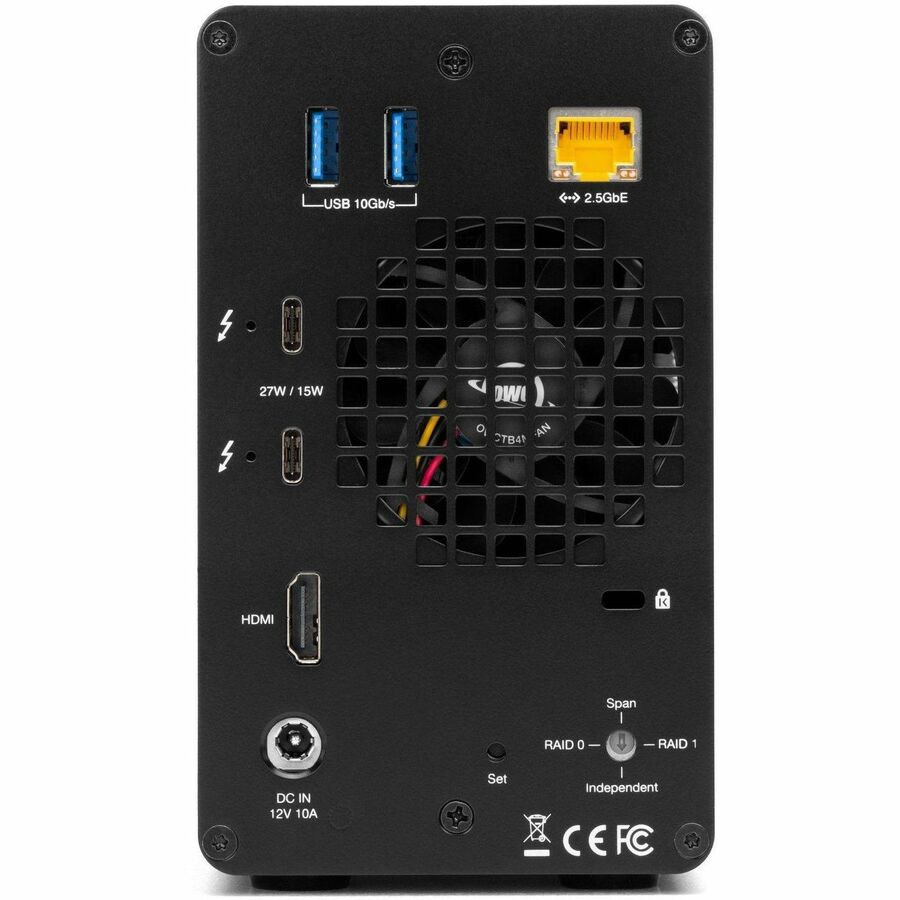

Seven ports for using your favorite accessories
Expand
Second Thunderbolt 40Gb/s port for daisy-chaining, adding a USB-C device, adding another display, or charging Thunderbolt (USB-C) devices
Faster network transfer
Transfer files up to 2.5x faster than standard Ethernet
Whisper quiet
Heat-dissipating aluminum with low noise cooling fan
Ingest easier

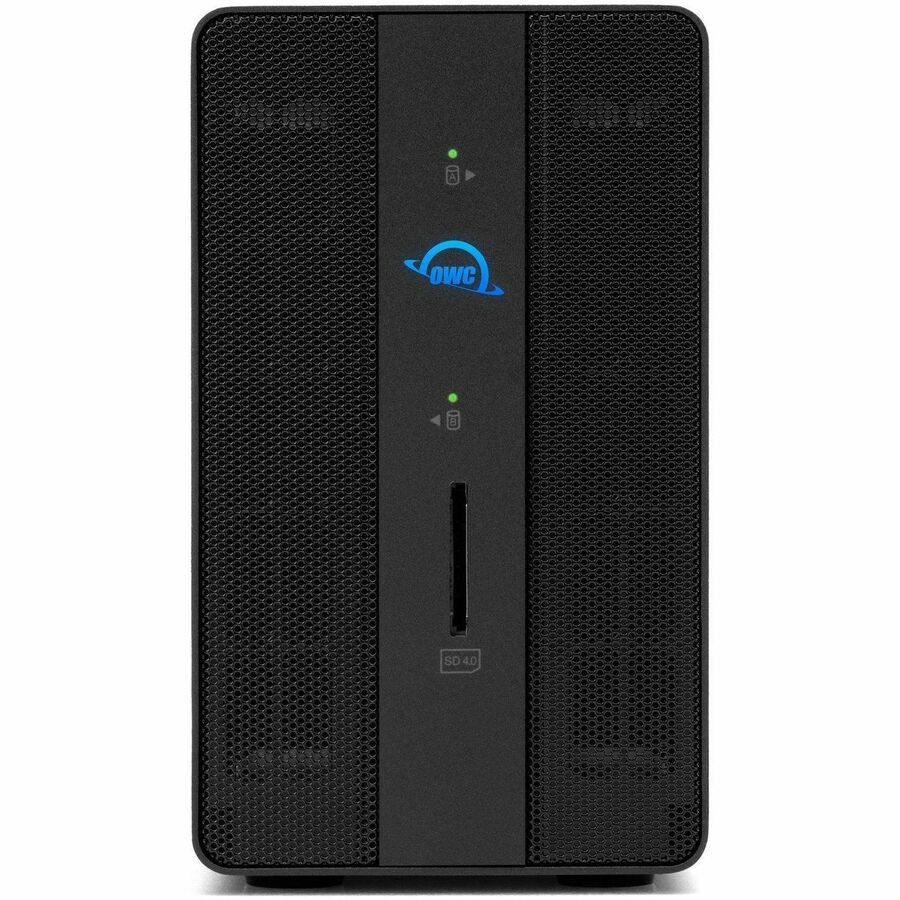

Frontside SD4.0 UHS-II memory card reader
Informative
Separate front panel LEDs for instant drive status
More from the Manufacturer
Thunderbolt 40Gb/s NVMe RAID storage and seven port docking solution for DITs, professional filmmakers, and post-production firms
Ultra-fast: NVMe SSDs and Thunderbolt combine to deliver up to 2381MB/s real world speeds
Connect faster to your NAS: Transfer files up to 2.5x faster than standard Ethernet
RAID 5 speed and protection: Advanced SoftRAID options (RAID 0, 1, 4, 5, 10, JBOD)
Easy camera backups: frontside SD 4.0 UHS-II card reader
Versatile : two Thunderbolt ports so you can daisy chain up to five additional Thunderbolt devices
A hub of options: (2) USB 3.2 (10Gb/s) Type-A ports
See work in progress: HDMI 2.1 for adding up to an 8K monitor
Innergize™ Enabled: custom OWC software for complete health, performance, and field upgrade management when using OWC Atlas Memory Cards with OWC Atlas Card Readers and card reader-equipped products
Dante compatible: easy Plug and Play - no software needed - into networks designed for bit perfect audio with super low latency and sample accurate synchronization
Ultra-Performance and Convenience for Production Workflows
While our base model Gemini is great for everyday content creators, you are worlds beyond ordinary. Your workflow is at the extreme edge of resolutions, codecs, and framerates. We understand your need to push into an ‘other world’ of capability, and pros like you are the reason we created the Gemini Ultra.
Powered by up to six NVMe SSDs, you’ll have the horsepower to handle the most demanding photography, video, and editing tasks you face. Edit ultra-high resolution files on the fly, ingest several media cards in parallel and render dailies without a hitch, and rip through 8K footage with up to 2381MB/s real world speed.
Beyond performance, with Gemini Ultra’s seven connectivity ports, you will experience an incredible level of versatility. Use your favorite accessories and charge small mobile devices via two USB ports. Daisy chains up to five Thunderbolt devices so that you can create additional backups. Offload media cards faster and easier with the frontside UHS-II slot or external card readers via Thunderbolt or USB-C. Transfer files and work up to 2.5x faster over wired networks and enjoy increased productivity when working with NAS devices with 2.5Gb/s Ethernet. Add an external monitor with up to 8K resolution via HDMI.
Put Ultra X2 to Work
Make your dream of becoming an editing powerhouse a reality by utilizing the performance of NVMe SSDs. With dual drives preset in SoftRAID RAID 0, you’ll have 1446MB/s
of bandwidth to handle demanding media workflows such as 8K video and 6K multicam sequences using advanced 10 bit and 12 bit codecs, high framerate footage, and ultra-high resolution RAW pictures. Plus, you’ll have all the advanced drive health monitoring benefits of SoftRAID so you can work worry-free. You can also use SoftRAID to change to RAID 1 data protection with speeds up to 721MB/s.
Put Ultra X6 to Work
Level up to the ultimate production grade workflow storage and docking convenience solution on the market. This dual drive model adds higher capacity and RAID configuration possibilities – like RAID 0 for speed or RAID 5 for data protection – to empower you with advanced performance. And SoftRAID is there helping you manage it all easily.
Reclaim Your Desktop
With multi-drive media dumps, controllers, A/V outputs, and a mess of device cables, it can be hard enough to find space for your notebook let alone room to work. Cure your clutter woes by reclaiming your workspace with Gemini Ultra’s centralized design. The latest technology advances in storage, ethernet speed, connection speeds, and display support deliver the professional results your work demands while neatly consolidating all your devices.
Innergize Your Workflow with Highest Performance and Reliability
OWC Innergize™ is the first stage of the Capture to Completion™ ecosystem of OWC products designed to seamlessly propel professional photographers, videographers, and content creators to the highest level of workflow performance and reliability. This OWC custom-designed app is a complete health, performance, and field upgrade management tool when using OWC Atlas memory cards with OWC Atlas readers and reader equipped products.
Work with Maximum Confidence and Reliability
Health
Over time and use cycles, flash memory does wear out. Innergize verifies and reports the percentage of use life remaining. Now you can work with full confidence your OWC flash memory product will deliver the reliability you can trust.
Sanitize
Writes, deletes, and formatting all take their toll on memory cards. Innergize cleans and restores the flash memory performance of OWC memory cards so you can get the best results on every use.
Field Upgrade
When new cameras or firmware updates to existing cameras are introduced, they may not work properly with flash memory cards and drives. Innergize gives OWC memory card users the ability to quickly upgrade their firmware in the field for full compatibility, additional performance enhancements, and bug fixes for optimal reliability.
The Most Powerful RAID Tool on the Planet.
SoftRAID is the world’s fastest and most flexible application to configure, maintain, and protect your RAID volumes on Mac and PC. OWC enclosures include 3 Years of SoftRAID Premium.
High-Performance RAID 0/1/4/5/1+0 (10) volumes
Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure — provided on your computer and remotely
Seamless Cross-Platform Sharing with support for Apple-formatted APFS and HFS+ SoftRAID volumes between Mac and Windows at no additional cost
35+ Years of Experience of Pro Support to provide peace-of-mind with setup help, ongoing questions, or urgent disk issues
And many more unique features.
Learn more about SoftRAID
M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
Disconnect in One Click
Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.
Stabilize Thunderbolt and USB-C Cables
Active workspaces expose gear to bumps, shoves, or even the random tail wag from a pet. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with confidence even in the highest traffic environments.
OWC Thunderbolt Cable Included
OWC Gemini comes with a certified 0.7M OWC Thunderbolt Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt (USB-C) Cables are the perfect choice.
Limited Warranty: 3 Year
About OWC For more than 35 years, OWC has had a simple goal. To create innovative DIY solutions to give you the most from your technology. At OWC, we feel that technology can be instrumental in changing the world for the better if it’s done right. Whether you use it to communicate, create, or safeguard, we believe that technology should be simple, affordable, and easy to use. It should just work and do what you need it to do. At OWC, it is our mission to deliver that seamless level of experience to you with every solution that we make, and in every interaction that we have. We are working to build a better world through our solutions, and it is our mission to create solutions that improve the lives of everyone that touches them. At OWC we promise to: Respect your time. Whether that is through our solutions that aim to get the tech out of the way and keep it out so you can focus on what’s important to you or through our service getting you the advice or help you need. Maximize your budget. That means in the short term in having fair prices, but most importantly in the long term by focusing on quality solutions that are built to last. Our solutions aren’t the cheapest because we know how much of a pain it is to swap out parts in your set up and we know how much you rely on your OWC gear. Support you. Every solution is backed and supported by knowledgeable representatives, not just before the sale, but during and after. You can always call, email or chat with OWC over the lifetime of the product. And that support is always free (outside of the few noted exceptions). Educate. It’s a fast moving world out there. We geek out on the tech so you don't have to. Our solutions help make complicated tasks fast and easy, our install videos demystify and our blog helps you do more with what you have and wade through the marketing-speak. Give it our all. All components in our solutions go through a strict qualification process to make sure they will perform as needed. External drive solutions are additionally tested after assembly, with some tests taking hours or even days to certify that they will go the distance. Channel you. Our solutions are tested using many different workflows so we can ensure when you plug it in, it just works. Complete the circle. There are many, many different options out there and while our hardware and software solutions are designed to work together, they are also designed to work within your setup. What We Do We empower our customers to take their technology further and ensure the investment that they made a couple years ago doesn’t have to be thrown out the door and recycled for something new. How It All Started “I started OWC because it was difficult for me to get to a local store to upgrade my own Apple. On top of that, it was very very expensive to do so and it drove me to number one do my own updgrades, but share that information and offer these upgrades so that others can benefit the same.” Environmental Sustainability We have worked tirelessly to build sustainable practices into all levels of our business operations. Join Our Team At OWC we strive to empower our customers through groundbreaking advancements in upgrades and solutions for Mac, PC, and mobile devices. With an emphasis on superior service, quality, value, and environmental responsibility, we are committed to the creation of technology that inspires the imagination and a world where everything is possible.
| Controllers | |
|---|---|
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 4, 5, 10, JBOD |
| General Information | |
| Manufacturer | Other World Computing |
| Manufacturer Part Number | OWCTB3GMA6X12 |
| Brand Name | OWC |
| Product Line | Gemini Ultra X6 |
| Product Name | Gemini Ultra X6 Thunderbolt Dock and External Storage Solution |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5"/3.5" Bays | 2 |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe 3.0 |
| Host Interface | Thunderbolt 3 |
| HDMI | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 3 Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 5.8" |
| Width | 3.3" |
| Depth | 9.4" |
| Form Factor | Desktop |
| Weight (Approximate) | 3.53 lb |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 120 W |
| Storage | |
| Number of Solid State Drive Supported | 6 |
| Number of Solid State Drive Installed | 6 |
| Total Solid State Drive Capacity Installed | 12 TB |
| Solid State Drive Configuration | 6 x 2TB |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
