Intel C622 Chip - 2 Processor Support - 1 TB RAM Support - TruDDR4 - 0, 1, 5, 10, 50, JBOD RAID Levels Up to 16 MB Graphic Card - Gigabit Ethernet - 4 x Total Bay(s) - 4 x LFF Bay(s) - Hot Swappable Bays - 1 x 750 W - Intel Optane Memory Ready
MSRP$3,949.00
$3,012.11
Save 24%Special order — expected back in stock the week of Sep 7–13.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

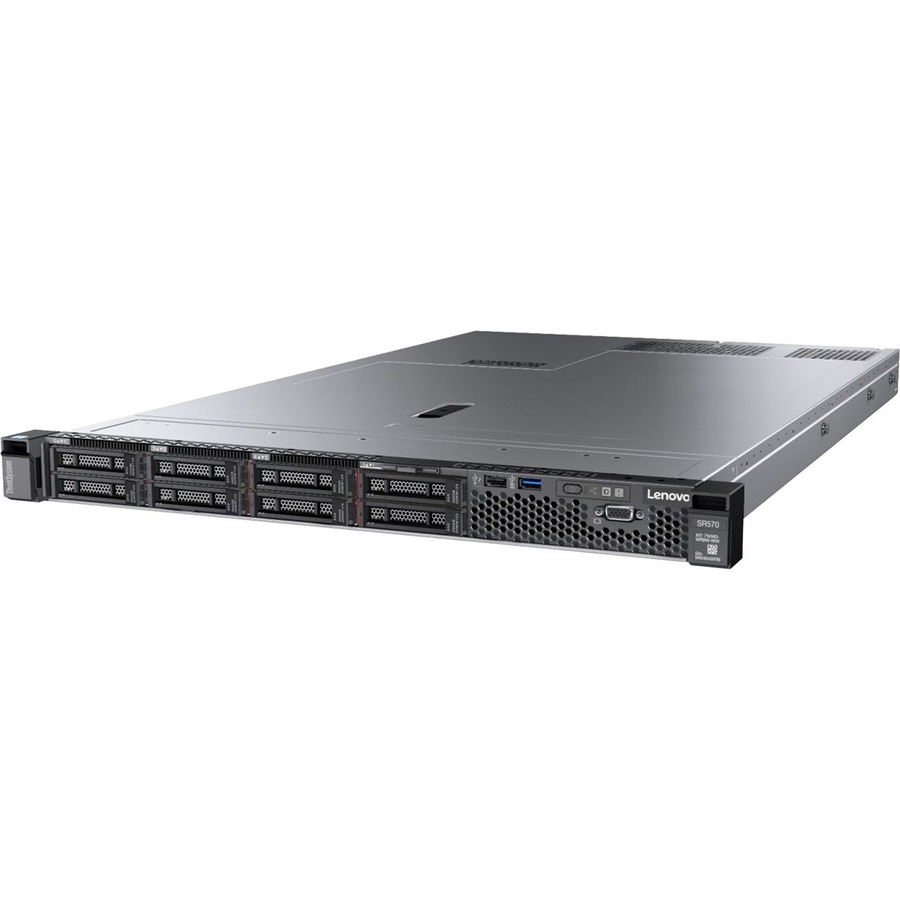

Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.
Additional Warranty Information: Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered Limited Warranty: 3 Year
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Lenovo ThinkSystem SR570 7Y03A06GNA Server
| Chipset | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | 530-8i |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, 50, JBOD |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y03A06GNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR570 |
| Product Model | 7Y03A06GNA |
| Product Name | ThinkSystem SR570 7Y03A06GNA Server |
| Product Type | Server |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Operating System | |
| Operating System Supported | Windows Server 2016, Windows Server 2019, Windows Server 2012 R2, Red Hat Enterprise linux 7.4, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 15 SP1, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 12 SP4 |
| Operating System | No |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 28.1" |
| Weight (Approximate) | 35.27 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 750 W |
| Hot Swappable Power Supply | Yes |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Bronze |
| Processor Generation | 2nd Gen |
| Processor Model | 3204 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.90 GHz |
| Cache | 8.25 MB |
| Storage | |
| Number of Hard Drives | No |
| Number of Solid State Drives | No |
| Optical Drive Type | No |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
