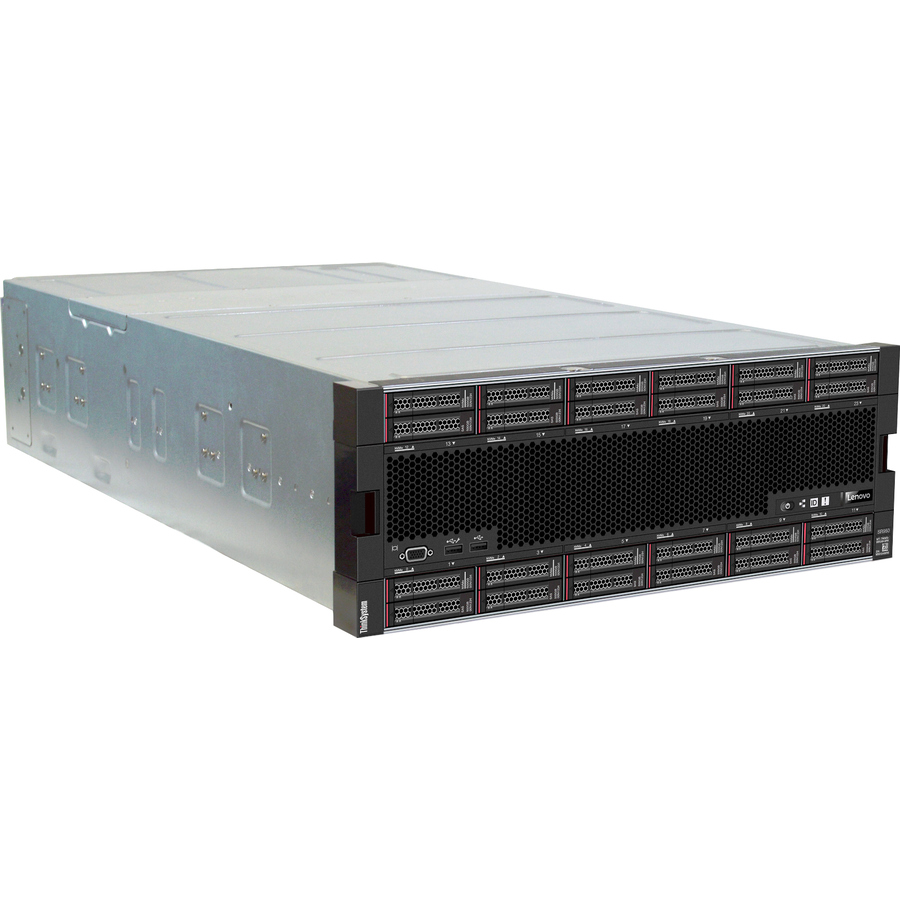

Lenovo ThinkSystem SR950 7X12A02UNA 4U Rack Server - 4 Xeon Gold 5220 2.20 GHz - 128 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller
Lenovo

Lenovo ThinkSystem SR950 7X12A02UNA 4U Rack Server - 4 Xeon Gold 5220 2.20 GHz - 128 GB RAM - 12Gb/s SAS, Serial ATA/600 Controller

Intel C624 Chip - 8 Processor Support - TruDDR4 - 0, 1, 5, 6, 10, 50, 60 RAID Levels Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1600 W

SKU
7X12A02UNA
Category
Servers

MSRP$35,999.00

$26,742.12

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
7X12A02UNA
Category
Servers

Overview

The Lenovo ThinkSystem SR950 is Lenovo's flagship server, suitable for mission-critical applications that need the most processing power possible in a single server. Now supporting second-generation Intel Xeon Scalable Family processors, the powerful 4U ThinkSystem SR950 can expand from two to as many as eight processors. The modular design of SR950 speeds upgrades and servicing with easy front or rear access to all major subsystems that ensures maximum performance and maximum server uptime.

Highlights

  • 8 processors supported for enhanced system performance, ensuring scalability and reliability for enterprise workloads
  • With 128 GB memory, run as many programs as needed without losing performance, ensuring fast and reliable multitasking
  • 2 x 1600 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations
  • Xeon Gold 2.20 GHz processor handles computing tasks effectively for better productivity
  • Rack form factor offers easy deployment and streamlined usage, enhancing operational efficiency in server environments
  • 2nd Gen server generation delivers improved performance for faster, more efficient computing
  • The TruDDR4 memory technology ensures smooth data transfer between components, delivering consistent and reliable performance
  • 10 Gigabit Ethernet optimizes business network performance, delivering high-speed connectivity for enterprise-grade applications
  • 1 Network (RJ-45) Ports allow Ethernet cables to transmit data and power simultaneously, reducing cabling complexity
  • 4 USB ports feature a refined design and safer connectivity, ensuring reliable, secure, and easy device connections every time

Specifications

Package Contents
  • ThinkSystem SR950 7X12A02UNA Server
  • Rail kit
  • Documentation flyer
  • 2.8m C13-C14 10A Power Cords
Product TypeServer
Cache24.75 MB
Error CheckingECC
Input Voltage120 V AC, 230 V AC
Manufacturer Part Number7X12A02UNA
Limited Warranty3 Year
Standard Memory128 GB
Weight (Approximate)129.41 lb
Form FactorRack
ManufacturerLenovo Group Limited
Product Model7X12A02UNA
Product NameThinkSystem SR950 7X12A02UNA Server
Processor Speed2.20 GHz
Processor TypeXeon Gold
Product LineThinkSystem
RAID Levels0, 1, 5, 6, 10, 50, 60
Security Features
  • Administrator and power-on password
  • Trusted Platform Module (TPM) supporting both TPM 1.2 and TPM 2.0
  • Optional Trusted Cryptographic Module (TCM) or Nationz TPM, available only in China
  • Self-encrypting drives with support for IBM Security Key Lifecycle Manager
Controller Type12Gb/s SAS, Serial ATA/600
Product SeriesSR950
Rack Height4U
Brand NameLenovo
Plug/Connector TypeC13/C14
Operating System SupportedWindows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SuSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3
Memory TechnologyTruDDR4
Processor Model5220
Height6.9"
Width17.6"
Depth33.5"
Processor CoreOctadeca-core (18 Core)
Environmentally FriendlyYes
Chipset ManufacturerIntel
Chipset ModelC624
Number of Power Supplies Supported4
Number of Power Supplies Installed2
Number of Internal 2.5" Bays8
Graphics Memory Capacity16 MB
Number of Processors Supported8
Number of Processors Installed4
Ethernet Technology10 Gigabit Ethernet
Number of Total Expansion Bays8
VGAYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Maximum Power Supply Wattage1600 W
Remote ManagementYes
Total Number of USB Ports4
Number of USB 2.0 Ports2
Number of USB 3.0 Ports2
Total Number of Expansion Slots11
Processor Generation2nd Gen
Energy StarYes
Number of Occupied Memory Slots4
Hot Swappable BaysYes
Controller Model930-16i
Number of SFF Bays8
Remote Management ControllerXClarity Controller (XCC)
Total Number of Memory Slots96
Energy Efficiency CertificationENERGY STAR 2.1
Energy Efficiency ComplianceEnergy-related Products Directive Lot 3 (ErP Lot 3)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
