Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - TruDDR5 - 0, 1, 5, 10, JBOD RAID Levels Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1100 W - Redundant Power Supply
$7,837.61
Special order — expected back in stock the week of Sep 7–13.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

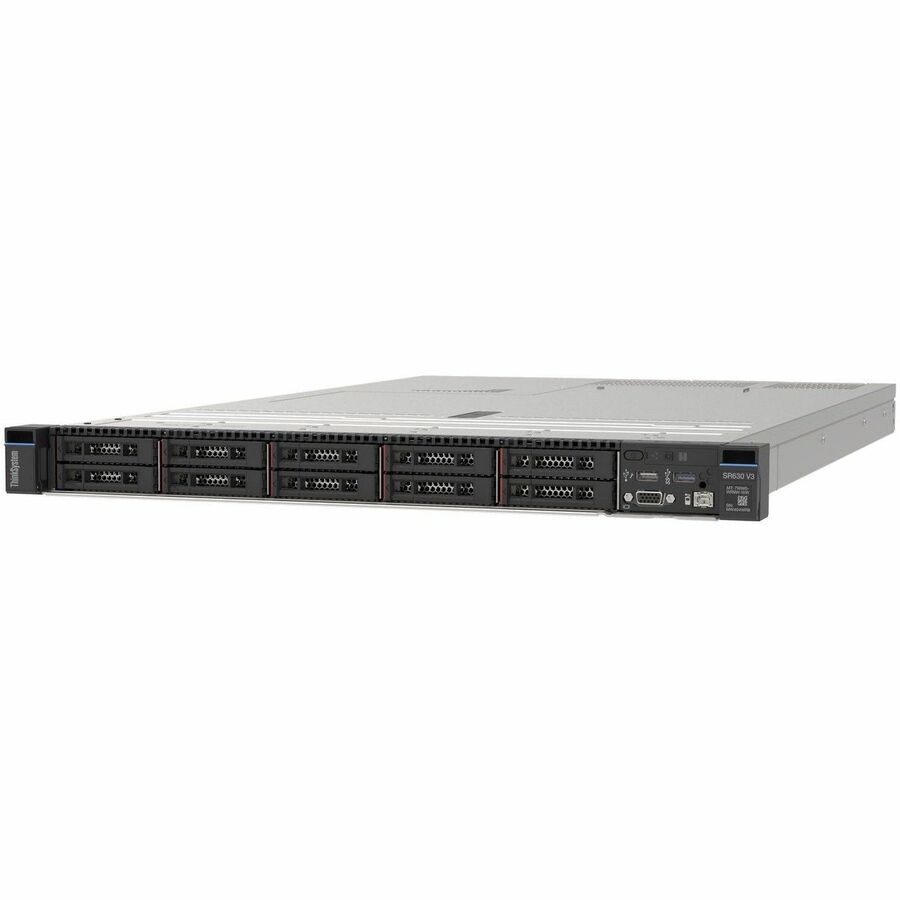

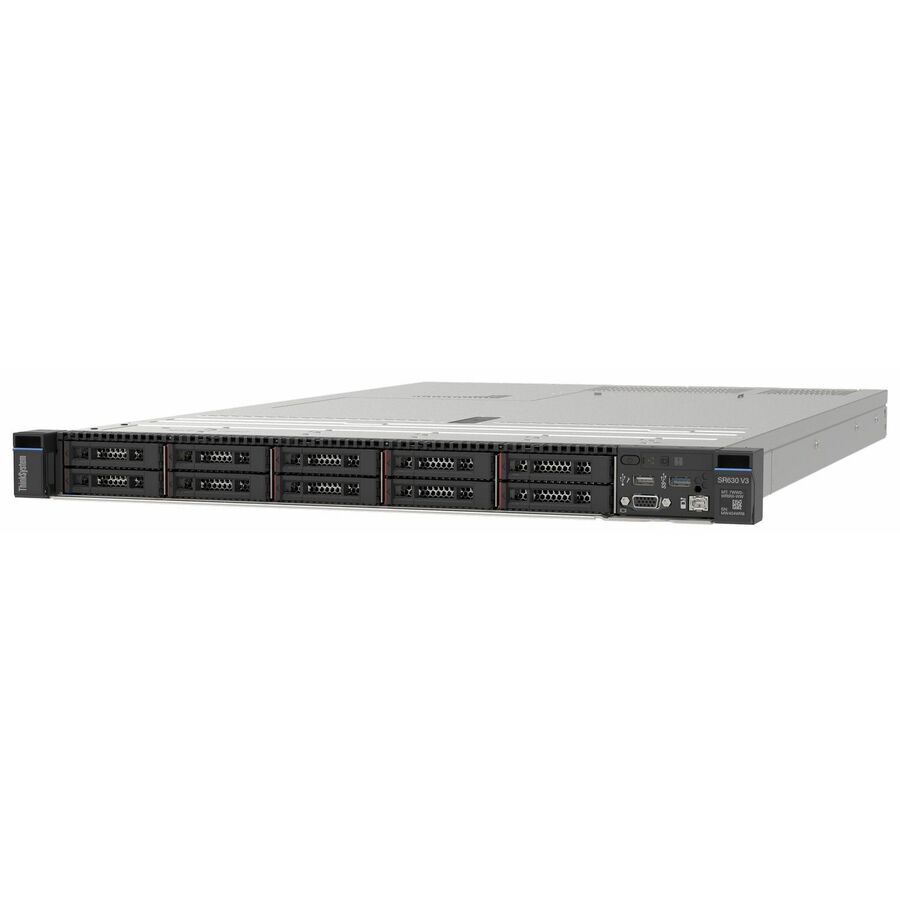

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Additional Warranty Information: Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). Limited Warranty: 3 Year
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
| Chipset | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | 5350-8i |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D731000NA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Product Model | 7D731000NA |
| Product Name | ThinkSystem SR630 V3 7D731000NA Server |
| Product Type | Server |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 1x PCIe x16 full-height half-length slot ; 1x PCIe x16 low-profile slot |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Platinum |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR5 |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 2 |
| Intel Optane Memory Ready | No |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Operating System | |
| Operating System Supported | Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, SUSE Linux Enterprise Server 15 SP5, Ubuntu 22.04 LTS x64, Red Hat Enterprise Linux 8.10, Red Hat Enterprise Linux 9.4, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 9.0, Red Hat Enterprise Linux 9.1, SUSE Linux Enterprise Server 15 SP4, Windows 10 x64, Windows 11, SUSE Linux Enterprise Server 15 SP6, Ubuntu 24.04 LTS x64, Ubuntu 20.04 LTS x64 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 30.4" |
| Weight (Approximate) | 45.86 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 1100 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 4th Gen |
| Processor Model | 4410T |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 2.70 GHz |
| Cache | 26.25 MB |
| Storage | |
| Number of Solid State Drives | 3 |
| Total Solid State Drive Capacity | 5.76 TB |
| Solid State Drive Interface | Serial ATA/600 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental Labeling Program (CELP), Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze), GREENGUARD |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
