SKU
4PU7A93175
Category
PDUs
Overview

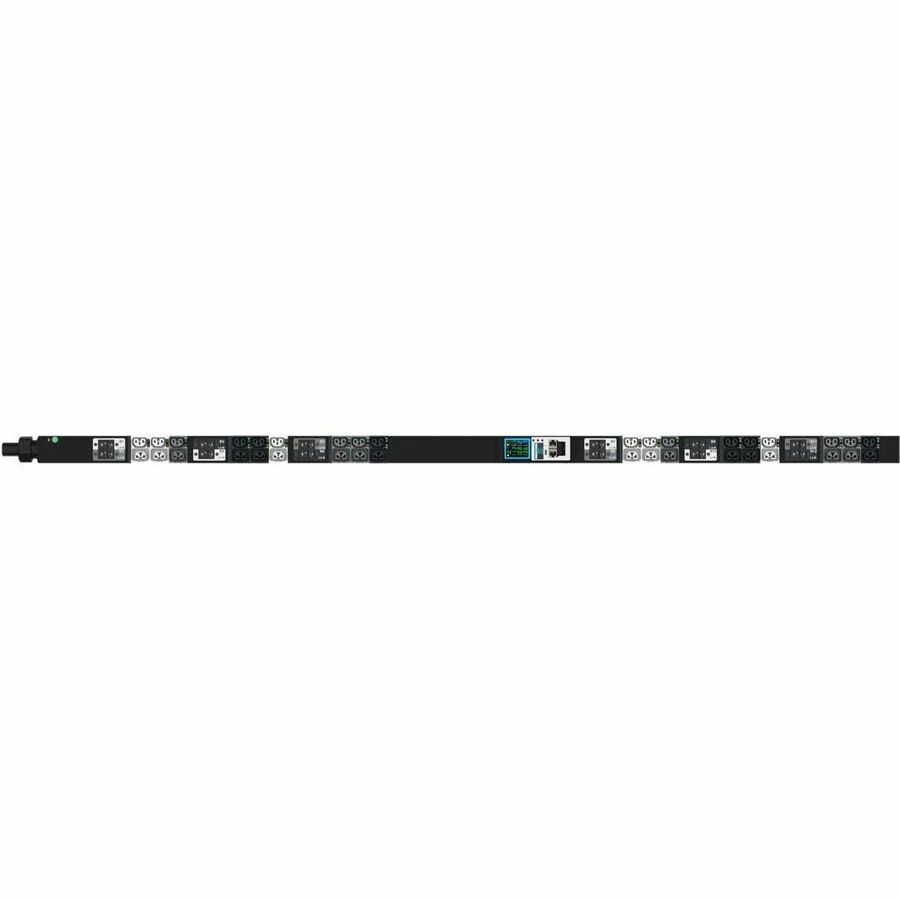

The Lenovo zero-U (0U) Basic and Switched and Monitored power distribution units (PDUs) are the ideal solutions when you need flexible, reliable, easy-to-deploy power distribution with branch circuit protection to minimize downtime. These rack-dense units distribute power to up to 48 outlets and 42 outlets. 0U PDUs are designed to be installed vertically in the rear channel of a Lenovo rack, thereby not consuming any horizontal rack space that otherwise be used by servers, storage and network switches (hence the term 0U).
Did you know?
With ever growing power densities in today's rack environments, it is all too easy to add load in the wrong place and trigger an overload event. The 0U Basic and Switched and Monitored PDU offerings can minimize this impact, providing the ability to quickly recover with resettable circuit breakers for each designated bank of receptacles, referred to as load groups. Breakers are color coded to the receptacles in a particular load group to aid in configuration, installation, and maintenance. Furthermore, the Basic PDUs offer a costeffective option to users who do not require intelligence. The Switched and Monitored PDUs also offer individual outlet remote monitoring and switching (on/off), which allow for remote power sequencing and further helping to prevent unintended PDU overloading.
Warranty
Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
PDU is reliable for power protection and management solutions
With switched PDU, remotely monitor, connect or disconnect data center loads
IEC 60320 C13/C15 receptacle type to ensure maximum usability and reliable power output
Three Phase phase PDU provides dependable power output with maximum efficiency
IEC 60309 4P 5W 6H IP67 Watertight plug/connector type for efficient connectivity and feasible power output
230 V AC input voltage for better reliance and maximum dependability
Specifications
Environmental Conditions
Minimum Operating Temperature
23°F (-5°C)
Maximum Operating Temperature
140°F (60°C)
Minimum Operating Humidity
5%
Maximum Operating Humidity
95%
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
4PU7A93175
Brand Name
Lenovo
Product Name
36-Outlets PDU
Product Type
PDU
Interfaces/Ports
Network (RJ-45)
Yes
Management
Management
HTTP
HTTPS
SSH
SNMP
LDAP/S
iPV4
iPV6
Virtual Serial
SNMP (v1, v2c, v3)
JSON-RPC
LDAP(S)
FTP/SFTP
RADIUS
Redfish DMTF RESTful API
Remote Outlet Switching
Yes
Physical Characteristics
Mounting Orientation
Vertical/Toolless
Mount Type
Rack-mountable
Rack Height
0U
Cord Length
10 ft
Width
2.3"
Depth
2.9"
Length
67.7"
Power Description
Input Voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC, 346 V AC - 415 V AC
Output Voltage Range
200 V AC - 240 V AC
Power Rating (VA)
43.50 kVA
Input Current
63 A
Technical Information
PDU Type
Switched, Monitored
Phase
Three Phase
Plug/Connector Type
IEC 60309 4P 5W 6H IP67 Watertight
Receptacle Type
IEC 60320 C13/C15, IEC 60320 C13/C15/C19
Receptacle Detail
18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19
Protection Type
Single Pole
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
36-Outlets PDU
Network Management Controller (NMC is Pre-installed)
Plugs and Wires
Safety Information Sheet
Quick Start Guide
Warranty Card
Application/Usage
Server, Switch, Server Rack/Cabinet, IT Equipment
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
