Lenovo 18-Outlets PDU
Switched, Monitored - IEC 60309 3P+E 100A - 18 x IEC 60320 C13/C19 - 230 V AC - Double Pole - Network (RJ-45) - 10 ft Cord Length - 1U - Horizontal/Vertical - Rack-mountable, Cabinet-mountable, Rail-mountable - Rack
- SKU
- 4PU7A77467
- Category
- PDUs
$5,198.86
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4PU7A77467
- Category
- PDUs
Overview
The 1U Switched and Monitored 3-Phase Power Distribution Units (PDUs) make it quick and simple to deploy, protect, and manage your high-availability rack environment. These space efficient and power dense PDUs were co-designed by Vertiv and Lenovo and come in the following 1U designs available to meet the requirements of your most power-demanding systems:
• 18x Combination outlets C13/C19 with 80A 3-phase Delta input
• 18x Combination outlets C13/C19 with 48A 3-phase Wye input (ETL certification)
• 12x Combination outlets C13/C19 with 60A 3-phase Delta input
• 12x Combination outlets C13/C19 with 32A 3-phase Wye input 1U
• 18x Combination outlets C13/C19 with 48A 3-phase Wye input (CE certification)

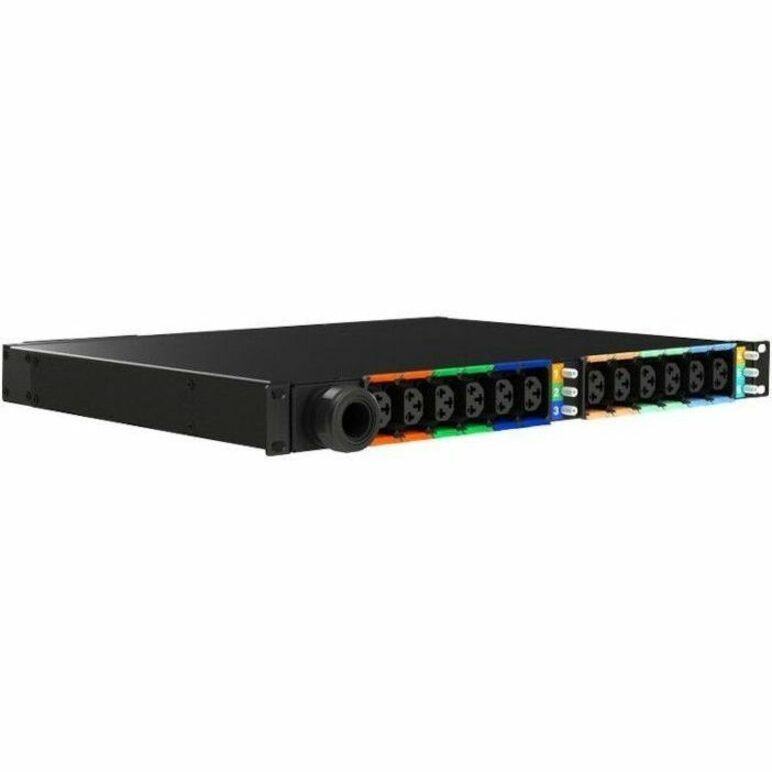

The outlets (receptacles) on the PDUs give administrators the ability to remotely turn on, turn off, or reboot power at each outlet to power cycle unresponsive IT equipment. Outlet level monitoring gives a comprehensive view of outlet power usage via remote network access. They provide on and off functionality to allow for power sequencing and to help prevent unintended overloading. The following figure shows the PDU with 18 rear-facing outlets.
Highlights
- 1U form factor allows for high-current deployments in a compact PDU. Can be installed vertically in the side pocket of a rack cabinet or horizontally at the rear of a rack space (1U rack unit)
- Combination C13/C19 outlets (receptacles) accommodate ever-changing rack power requirements with the flexibility to connect C14 or C20 plugs in the same outlet.
- Fully monitored and managed PDU including Residual Current Metering Type B
- Interchangeable Monitoring Device (IMD) is hot-swappable and includes ports for serial communication, environmental monitoring, and dual Gigabit Ethernet ports to simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. One of these ports can be used to connect the IMD to an existing network or both ports can be used at the same time to connect one IMD to another in a daisy-chain configuration.
- Easily identify circuits with color-coded P-Lock tabs, streamlining circuit and phase balancing with alternating outlets.
- The use of P-Lock tabs on the outlets reduce the chance of accidental removal of a power cord from the PDU (P-Lock compatible cord sets required for locking feature)
- Comprehensive power management and flexible configuration
- Supported protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
- Detailed data-logging for statistical analysis and diagnostics
- Easy-to-use interface to display input and output status
- Event notification through SNMP trap or email alerts
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Remote monitoring of connected devices and sensors
- Easily accessible breakers
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control
- Monitor power consumption at the outlet-level for a detailed view of power distributed to specific equipment
- Local and remote input monitoring with accuracy of +/- 1% (ANSI C12.1 and IEC 62053-21 Standards)
- Detailed data logging for statistical analysis and diagnostics
- Management using SNMP v1, SNMP v2c, and SNMP v3
Specifications
| Application/Usage | Data Center, Server, IT Equipment |
|---|---|
| Package Contents |
|
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | 4PU7A77467 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 35.05 lb |
| Features | Compact |
| Form Factor | Rack |
| Input Current | 80 A |
| Management |
|
| Manufacturer | Lenovo Group Limited |
| Product Name | 18-Outlets PDU |
| Mount Type | Rack-mountable, Cabinet-mountable, Rail-mountable |
| Protection Type | Double Pole |
| Rack Height | 1U |
| Brand Name | Lenovo |
| Plug/Connector Type | IEC 60309 3P+E 100A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Cord Length | 10 ft |
| Height | 1.7" |
| Width | 17.6" |
| Depth | 19" |
| Input Frequency | 60 Hz |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13/C19 |
| Output Voltage Range | 200 V AC - 240 V AC |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| Load Capacity (Watt) | 23 kW |
| UL Listed | Yes |
| PDU Type | Switched, Monitored |
| Remote Outlet Switching | Yes |
| Mounting Orientation | Horizontal/Vertical |
| Locking Receptacles | P-Lock |
| Receptacle Detail | 18 x IEC 60320 C13/C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
