Overview

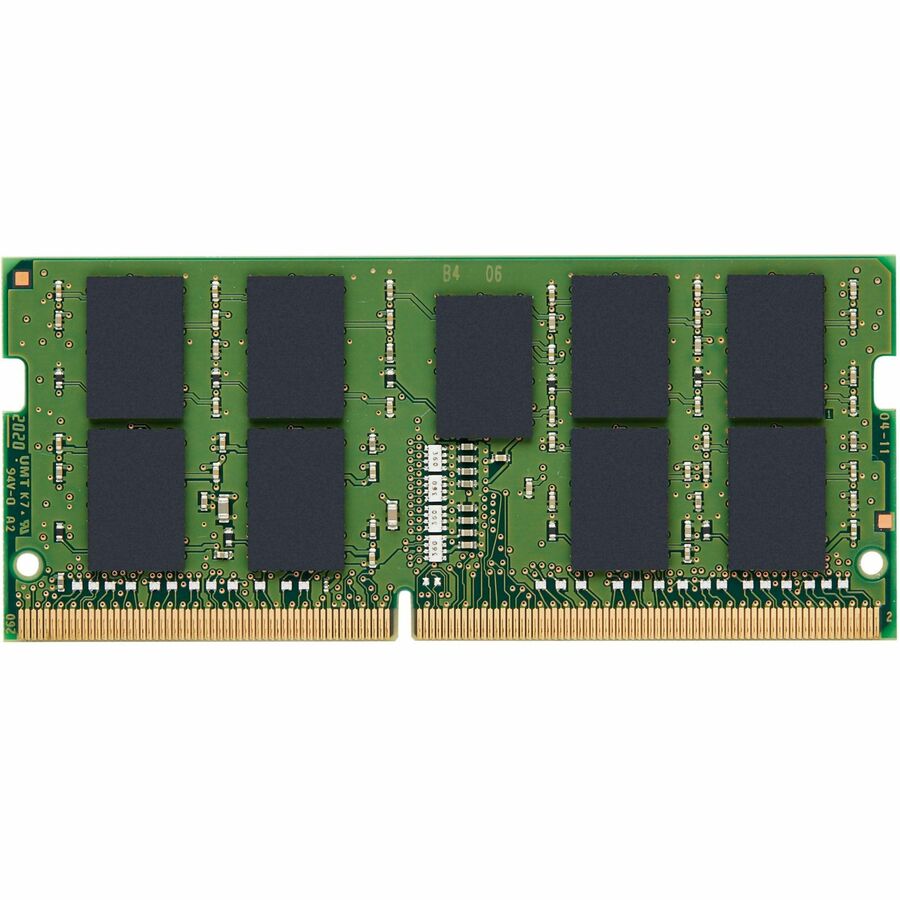

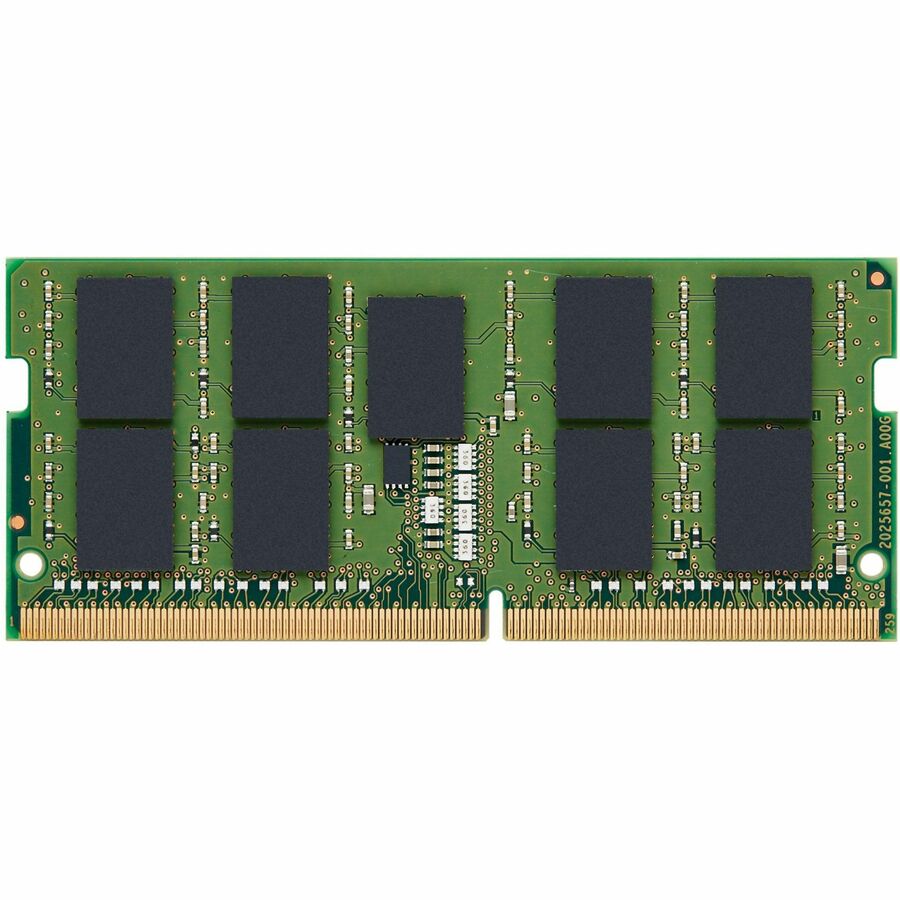

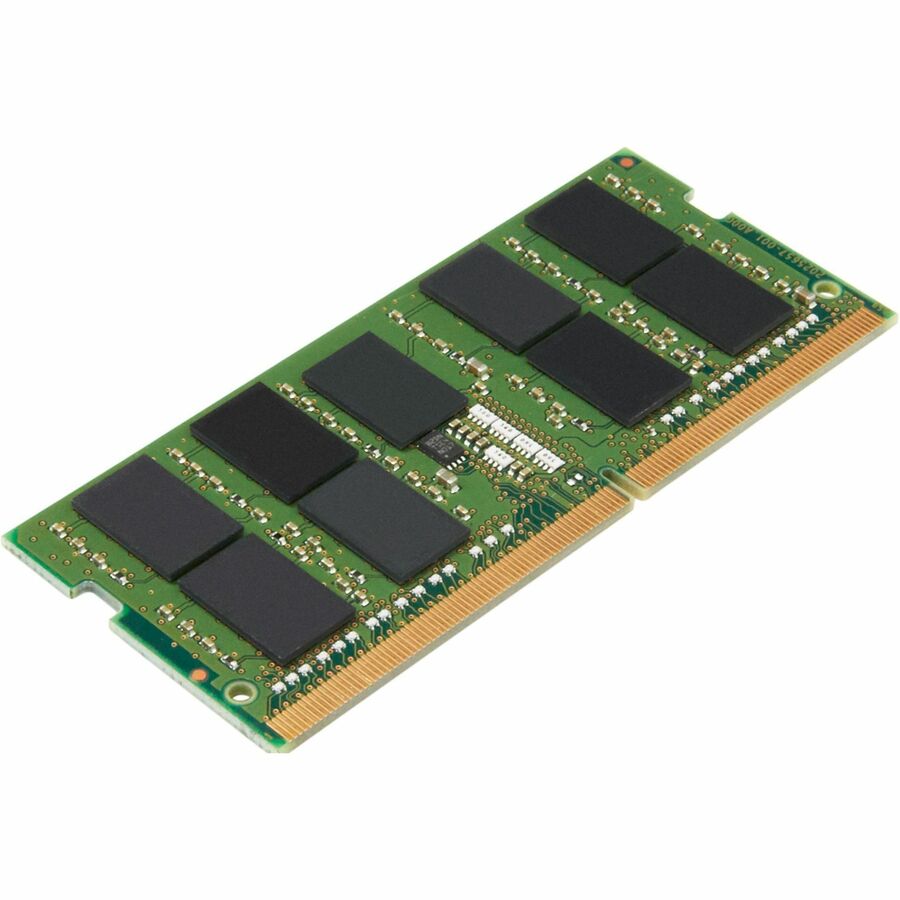

Kingston's KSM32SED8/32HD is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Warranty
Limited Warranty: Lifetime
Highlights
Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
Up to 3200 MHz speed with CL22 latency for playing the latest games and using heavy software
SODIMM 32 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
DDR4-3200/PC4-25600 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
1 x 32GB modules for quick access and retrieval of data and information to ensure maximum usability
260-pin for enhanced, dependable system performance with maximum usability
CL22 CAS latency for quicker access to the required location in a timely efficient manner
Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
SODIMM form factor with 260-pin and 32 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
Specifications
General Information
Manufacturer
Kingston Technology Company
Manufacturer Part Number
KSM32SED8/32HD
Brand Name
Kingston
Product Line
Server Premier
Product Name
32GB 2Rx8 4G x 72-Bit PC4-3200 CL22 260-Pin ECC SODIMM
Product Type
RAM Module
Physical Characteristics
Number of Pins
260-pin
Form Factor
SODIMM
Width
1.2"
Length
2.7"
Technical Information
Memory Size
32 GB
Memory Technology
DDR4 SDRAM
Memory Voltage
1.20 V
Number of Modules
1 x 32GB
Memory Speed
3200 MHz
Memory Data Transfer Rate
3.20 GT/s
Memory Standard
DDR4-3200/PC4-25600
Memory Rank
Dual-rank
Error Checking
ECC
CAS Latency
CL22
Device Supported
Server
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
