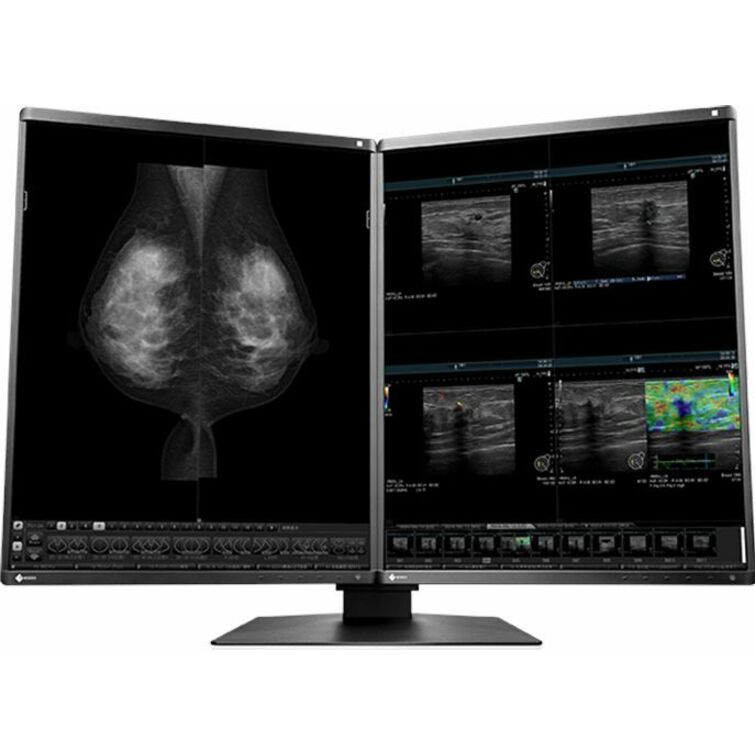

EIZO RadiForce RX570 21" Class QSXGA LED Monitor - 4:5 - Black

High Fidelity Images for Peace of Mind | Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14 standard. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Simple Calibration with Built-In Sensor

With the Integrated Front Sensor (IFS) built into the front bezel and the bundled monitor control software RadiCS LE, you can easily calibrate to DICOM Part 14 standard without having to mount, run, and remove an external sensor.

Mammography QC Standards Compliance

EIZO's easy-to-use quality control software and calibration sensor RadiCS UX2 (sold separately) performs precise calibration conforming to DICOM Part 14 and enables high-grade quality control (QC), complying with ACR Practice Guidelines and other QC standards for digital mammography monitors.

5 Megapixels for High-Definition Display

When a monitor displays data that exceeds its maximum resolution, the data is downsampled, resulting in a loss in image quality. The RX570 displays 5 megapixels (2048 x 2560 pixels) with a pixel pitch of 0.165 mm, ensuring highly detailed mammography images are shown more clearly compared to 2 or 3 megapixel monitors.

Optimum Breast Screening Monitor

The monitor has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor is capable of displaying detailed breast screening images where high performance is essential.

Full Color Support for Ultrasound, Breast CT and MRI

The RX570, while a color monitor, achieves an impressive brightness of 1200 cd/m 2 . This allows it to display high-definition monochrome breast tomosynthesis and mammography images conveniently alongside color images from breast MRI, CT, and ultrasound, all on one screen.

Variations for Specific User Needs

EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.

Evolve Your Image Reading | Hybrid Display of Monochrome and Color

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images, optimizing grayscale for each pixel. This allows for the simultaneous display of monochrome mammography images according to the DICOM standard (GSDF) and color images from breast MRI, CT, and ultrasound at Gamma 2.2 on the same screen, enhancing reading efficiency.

Visual Assessment

Kumamoto Chuo Hospital in Japan conducted a visual assessment of a RadiForce monitor equipped with the Hybrid Gamma PXL function. They observed an approximate 37% improvement when using a color monitor with Hybrid Gamma PXL compared to one without. In addition, Hybrid Gamma PXL performed as effectively as monochrome monitors with GSDF when displaying monochrome images.
