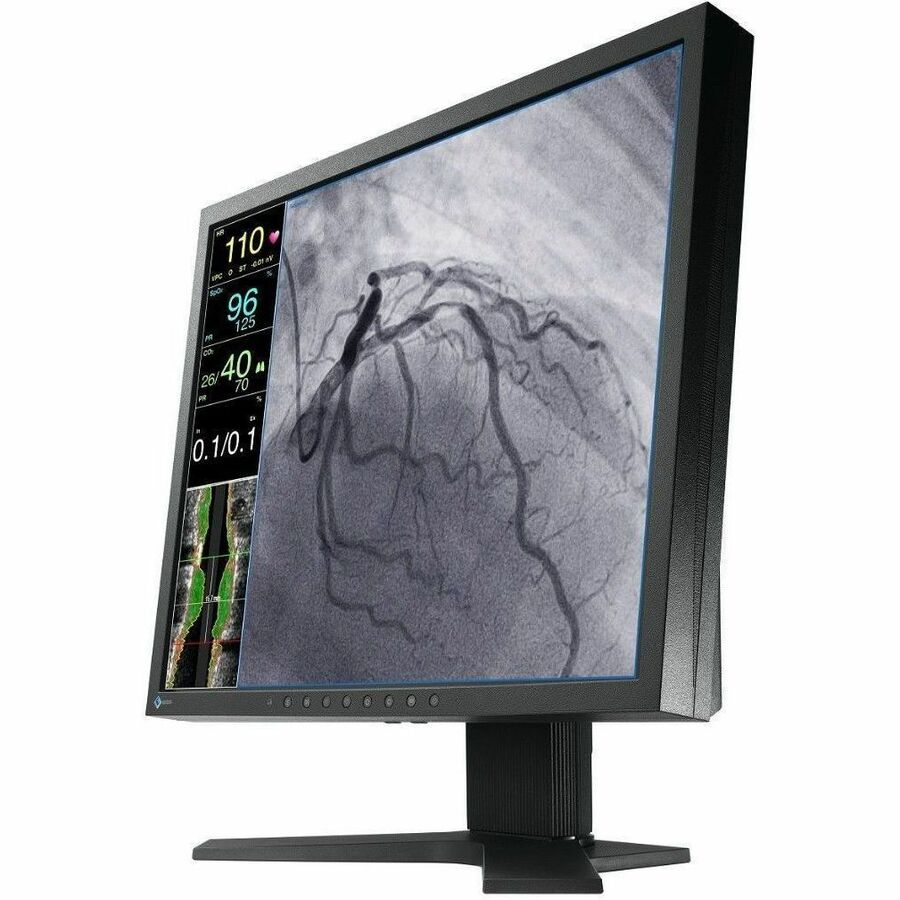

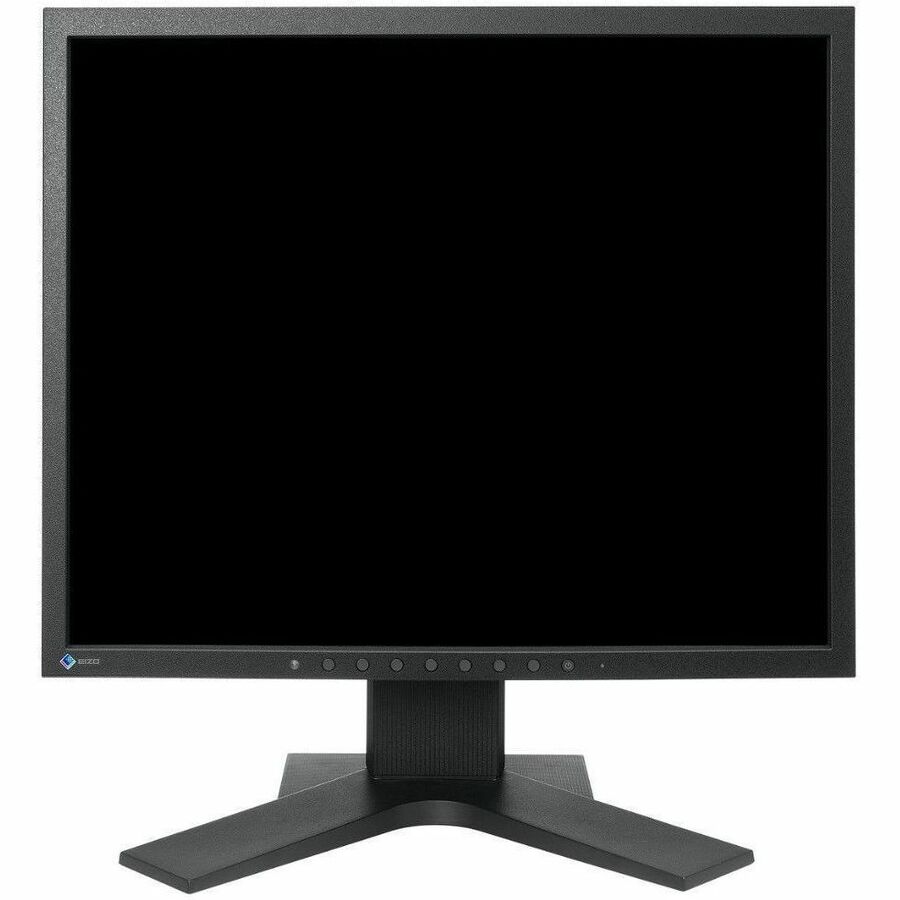

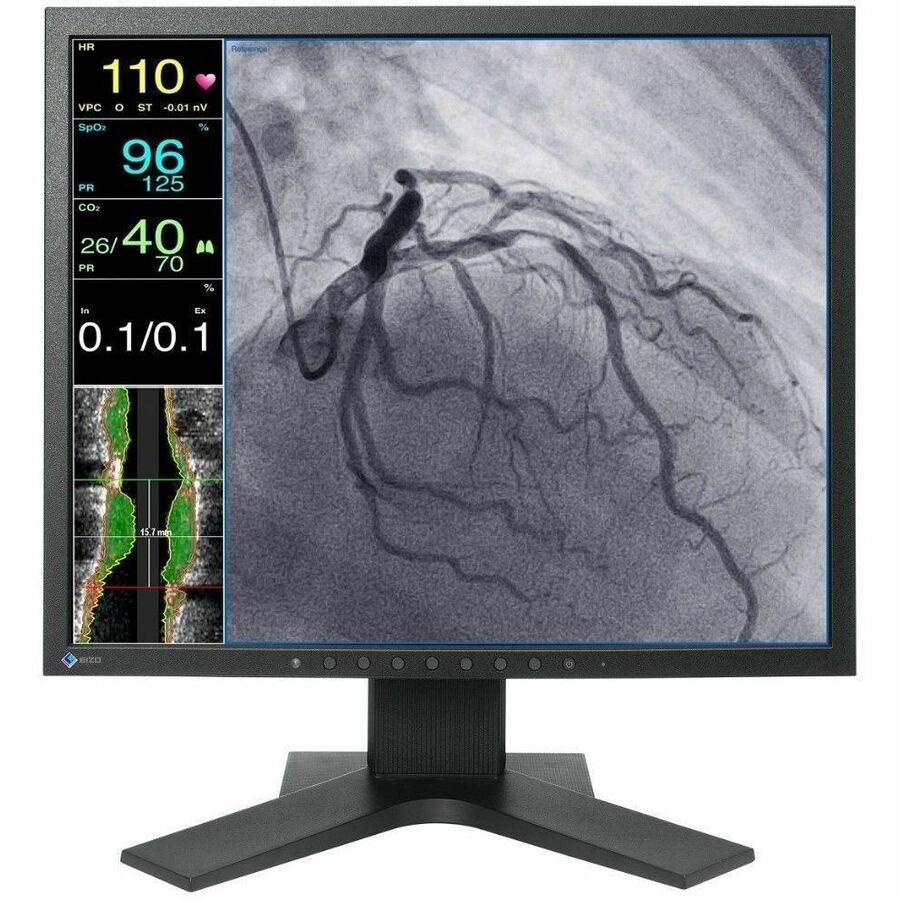

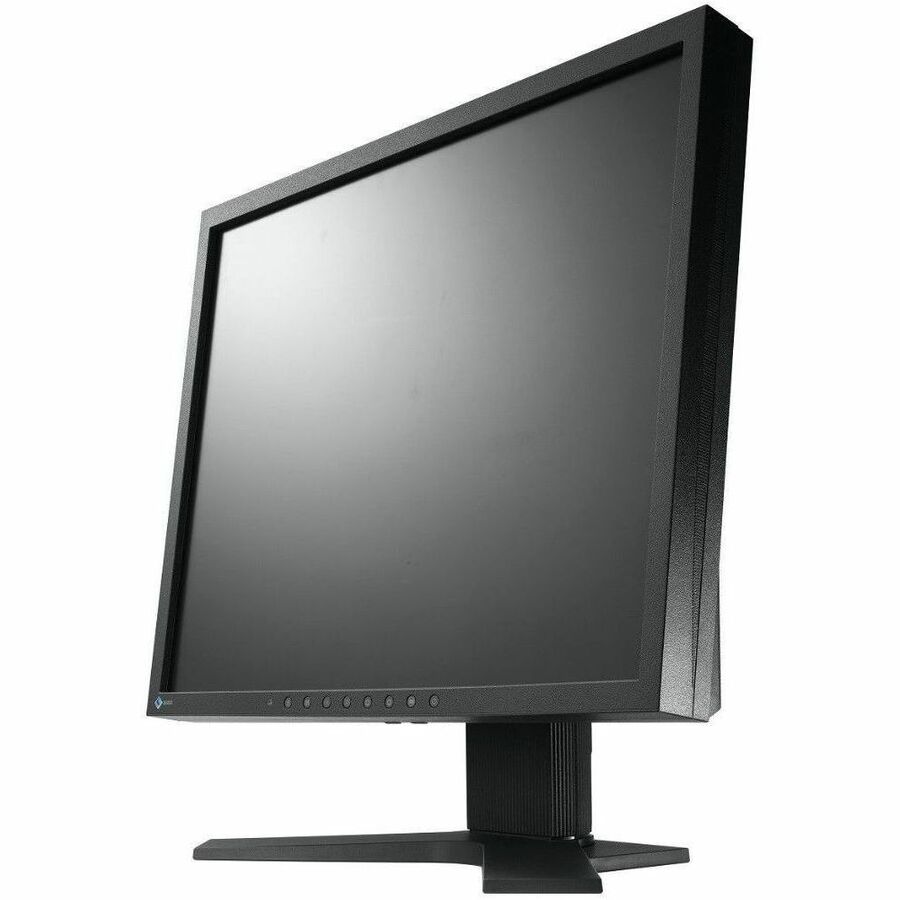

EIZO CuratOR LX1910-S 19" Class SXGA LED Monitor - 5:4 - Black
19" Viewable - In-plane Switching (IPS) Technology - LED Backlight - 1280 x 1024 - 16.7 Million Colors - 700 Nit - 12 ms - DVI - DisplayPort - VESA Mount Compatible
SKU
Category
Monitors
MSRP$2,495.00
$2,353.40
Save 6%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 7 and Nov 11, then process your delivery right after.
Genuine EIZO through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Monitors
Overview
Clear Visibility
The IPS panel technology used provides high contrast and wide viewing angles for clear visibility, even when viewing the monitor from the side. In addition, the monitor delivers flicker-free images, even at low refresh rates, alleviating eyestrain cause by a flickering screen.
Adapt Different Resolution Signals
In OR and medical imaging environments, various equipment supporting different video signals and resolutions is frequently used. The monitor can display video input signals in their actual size, enlarged, or displayed over the entire screen, depending on user needs.
Digital and Analog Video Inputs
The monitor has both DisplayPort and DVI-I input connections, allowing for flexible connection to modern or legacy imaging systems, whether the image source is digital or analog. The monitor automatically displays the connected analog video signal. If this is not sufficient, the display settings can be adjusted by using the On Screen Display (OSD). The monitor comes with D-Sub, DVI, and BNC adapters for connecting to analog systems.
DICOM® Part 14 Calibration
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone at the factory for full compliance with DICOM® Part 14. The five default presets contain practice-based settings. Each preset meets the current specifications for diagnostic monitors as standardized in the DIN 6868-157 room classes.
Stable Brightness and Instant Image Display
EIZO's fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.
Highlights
Supports different signal resolutions
Connection of digital and analog signals possible
DICOM Part 14 calibrated
Brightness stability
Control buttons on the front frame
Specifications
General Information
Manufacturer
EIZO
Manufacturer Part Number
LX1910-S
Brand Name
EIZO
Product Line
CuratOR
Product Model
LX1910-S
Product Name
CuratOR LX1910-S Widescreen LED Monitor
Product Type
LED Monitor
Interfaces/Ports
DVI
Yes
USB
Yes
DisplayPort
Yes
Number of DisplayPorts
1
Number of USB Ports
2
Number of USB Type-B Ports
1
USB Type-B
Yes
Physical Characteristics
VESA Mount Compatible
Yes
Color Family
Black
Product Color
Black
Height
13.1"
Width
15.9"
Depth
2.4"
Width with Stand
15.94"
Depth with Stand
8.03"
Weight (Approximate)
13.45 lb
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Panel Technology
In-plane Switching (IPS) Technology
Response Time
12 ms
Aspect Ratio
5:4
Pixel Pitch
0.29400 mm x 0.29400 mm
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Backlight Technology
LED
Mount Type
Ceiling Mountable
Features
On-screen Display (OSD), Wide Viewing Angle
Horizontal Frequency
30 kHz to 100 kHz - Analog, 30 kHz to 100 kHz - Digital
Vertical Frequency
50 Hz to 85 Hz - Analog, 50 Hz to 85 Hz
Adjustable Stand
Yes
Stand Adjustments
Tilt, Swivel, Height
Ingress Protection (IP) Rating
IP20
Active Display Area (H x V)
14.81" x 11.85"
Video
Maximum Resolution
1280 x 1024
Color Supported
16.7 Million Colors
Native Contrast Ratio
1,000:1
Brightness
700 Nit
Miscellaneous
Package Contents
CuratOR LX1910-S Widescreen LED Monitor
Adapter (D-Sub - DVI)
Adapter (BNC - D-Sub)
Utility Disk (PDF Instructions for Use)
Stand
Application/Usage
Hospital
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
