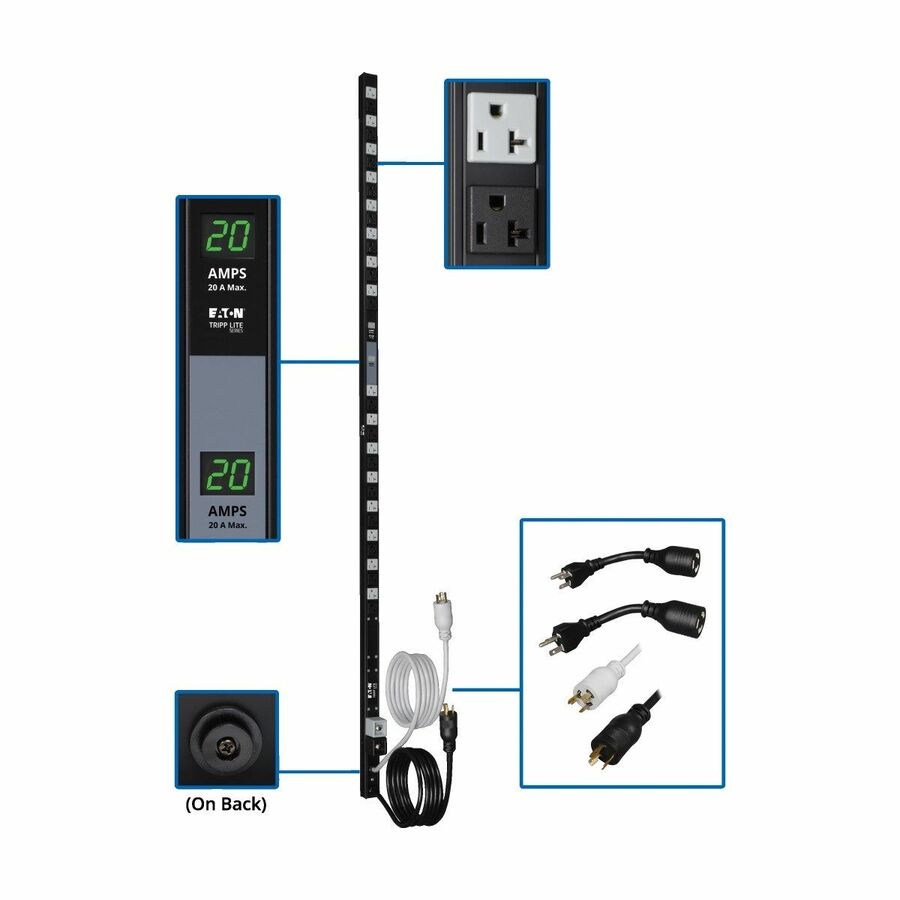

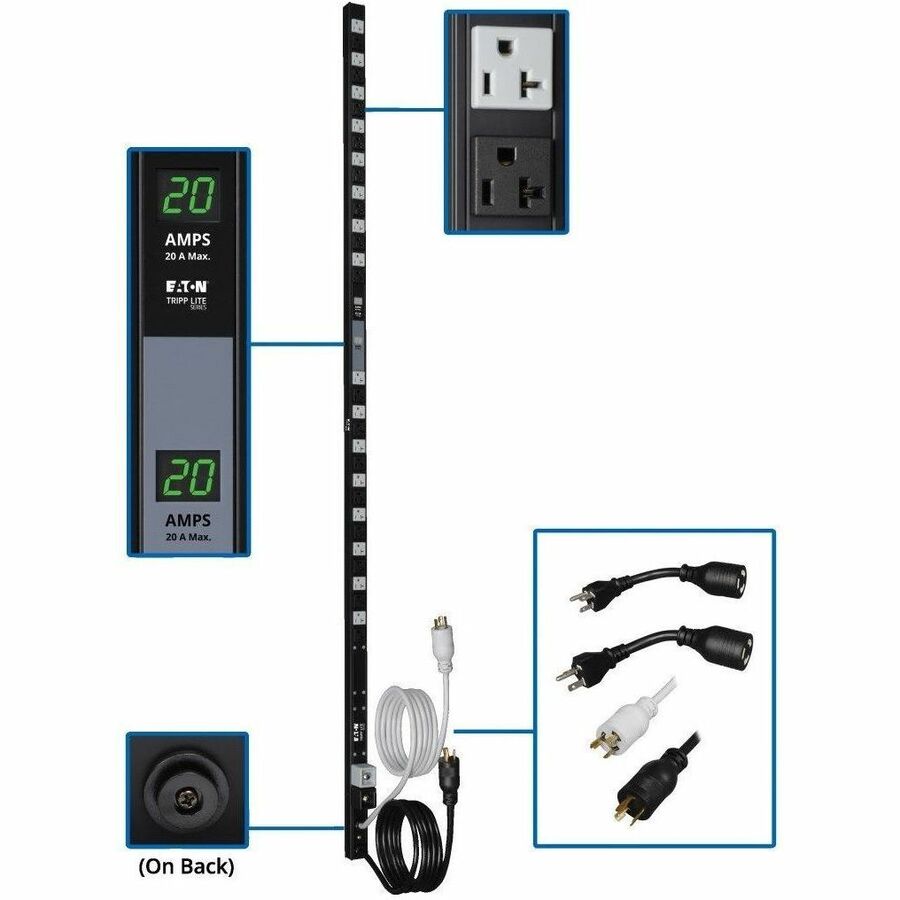

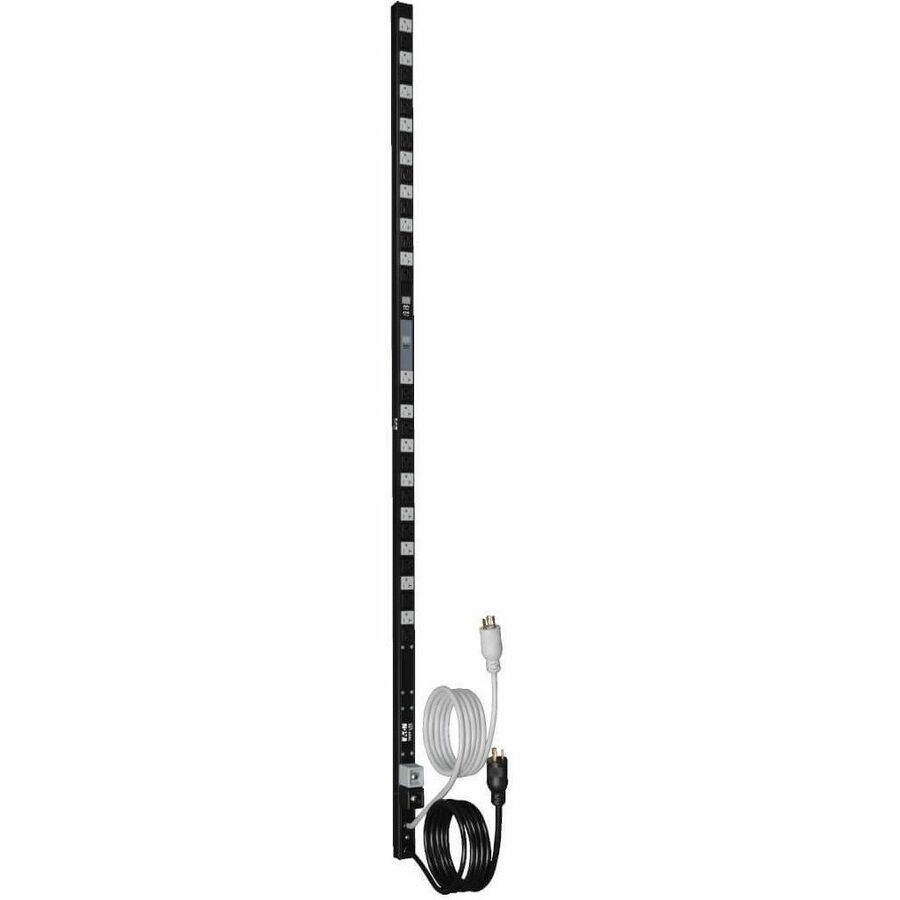

Tripp Lite by Eaton PDU 3.8kW Single-Phase Local Metered PDU Dual Circuit 120V Outlets (32 5-15/20R) L5-20P/5-20P 10 ft. (3.05 m) Cord 0U Vertical

The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space.

More from the Manufacturer

Reliable IT Power Distribution, Dual Circuit Design and Color-Coded Circuits

Unfiltered electrical pass-through makes the PDUMV40 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets and more. It provides 32 5-15/20R outlets in two separately powered, breakered and metered 20A load banks, and dual 10-ft. power cords with locking L5-20P plugs. Included plug adapters enable the PDU to be connected to standard 5-15/20R outlets.

The PDUMV40 features two independent 20A circuits, each with its own cord/plug, digital meter, 20A circuit breaker and 16-outlet load bank. This makes the PDUMV40 ideal for powering servers and networking equipment with dual redundant power supplies or for any application that requires high capacity in a compact form factor.

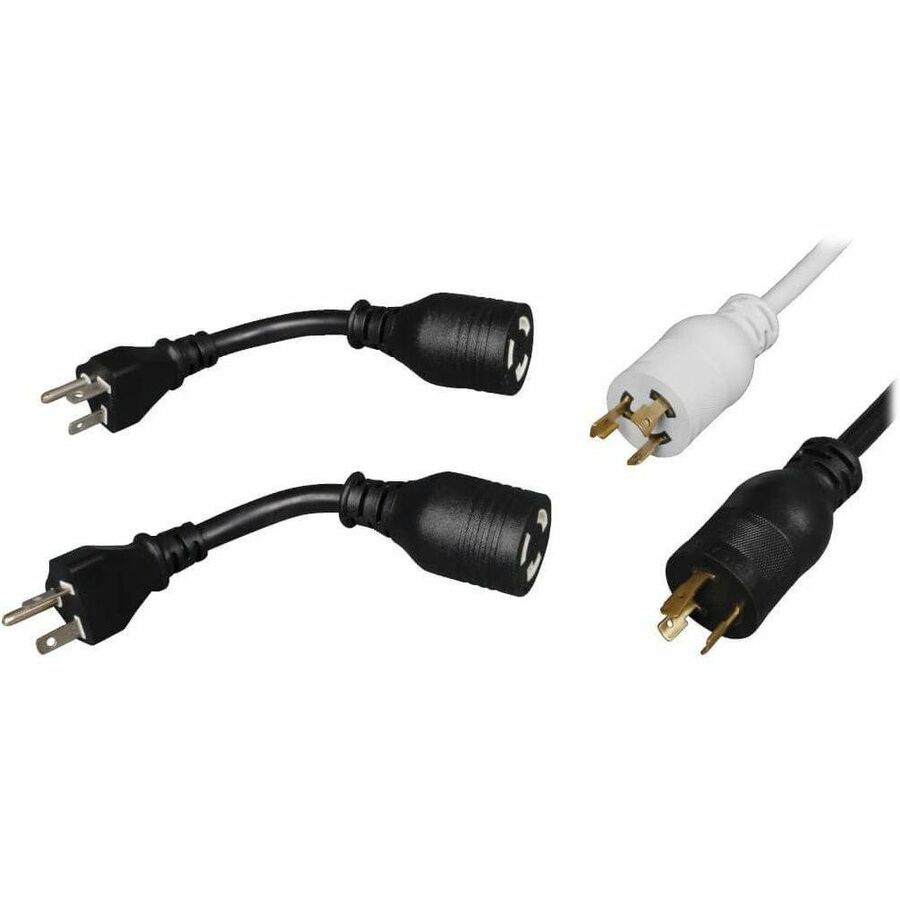

The PDUMV40 features color-coded current meters, plugs, power cords, outlets and circuit breakers for each independent 20A circuit. This simplifies power cord management in high-density multi-server configurations. The included L5-20R to 5-20P plug adapters enable the PDU to be connected to standard 5-15/20R outlets.

Digital Current Meters, Versatile Installation Options and 2-Year Warranty

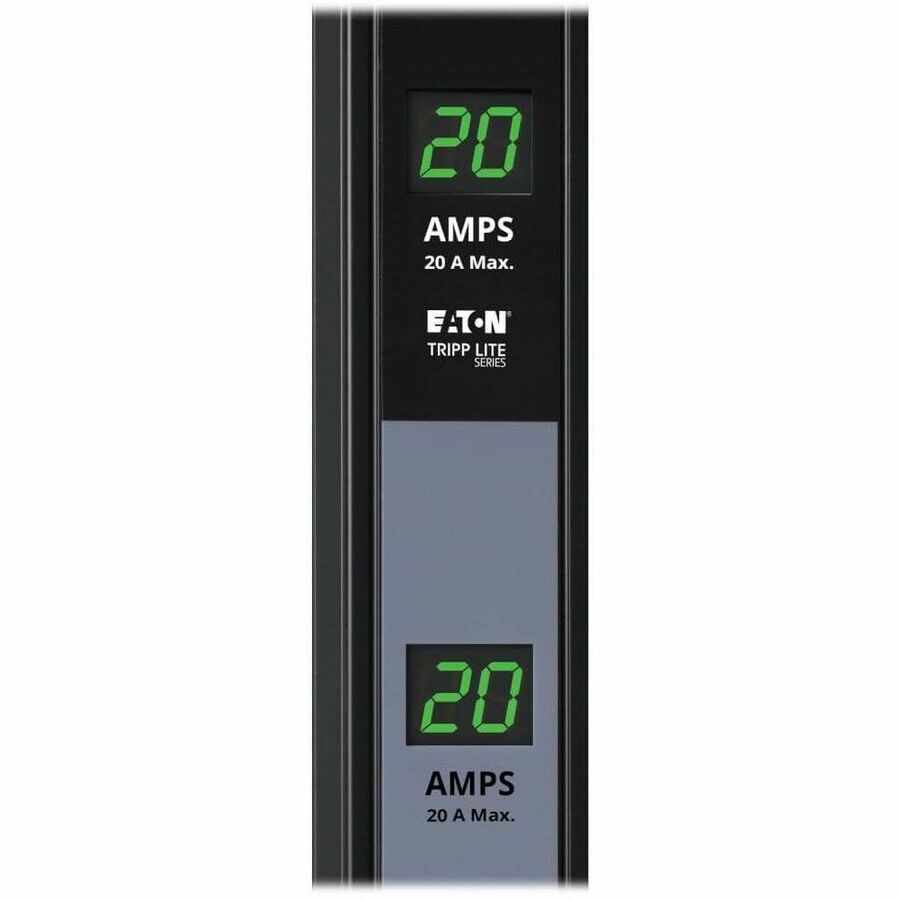

The PDUMV40 is equipped with two easy to read, two-character digital LED meters that display the connected equipment load for each independent 16-outlet load bank. These meters enable IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits. This helps to assure proper load balance in complex redundant power applications.

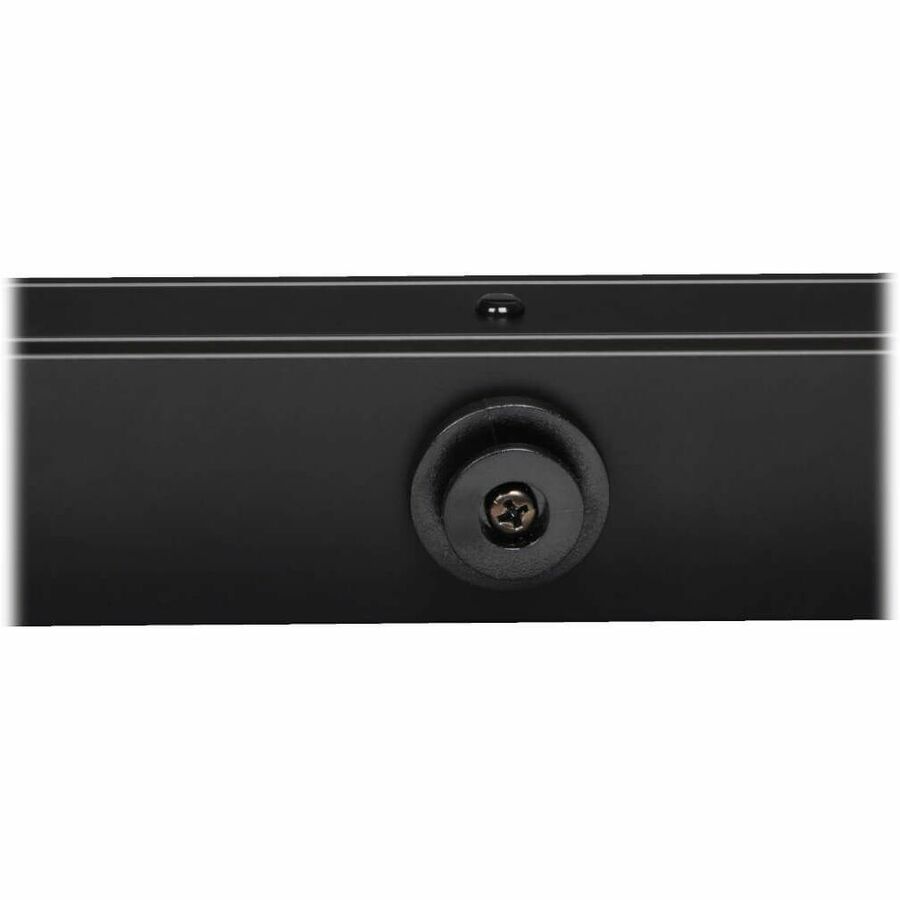

The PDUMV40 is easy to integrate with a wide range of data center and network applications. Included mounting hardware enables the PDU to be installed in 0U vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications. It is also configurable for toolless button-mount vertical installation in compatible rack enclosures.

The PDUMV40 comes backed by a 2-Year Warranty. As a part of Tripp Lite's commitment to environmental responsibility, the PDUMV40 is manufactured in compliance with strict RoHS specifications.
