Eaton Tripp Lite Series 5.8kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V L6-30P Inputs, 16-C13 2-C19 & 1 L6-30R Outlet, 2U, TAA

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

More from the Manufacturer

Optimized for Demanding Applications

The PDUMH30HVAT is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets, a 30A circuit breaker and a switchless design to prevent accidental shutoff. Auto-Transfer Switching function adds hot-swap and maintenance bypass ability to standard UPS configurations.

Reliable IT Power Distribution

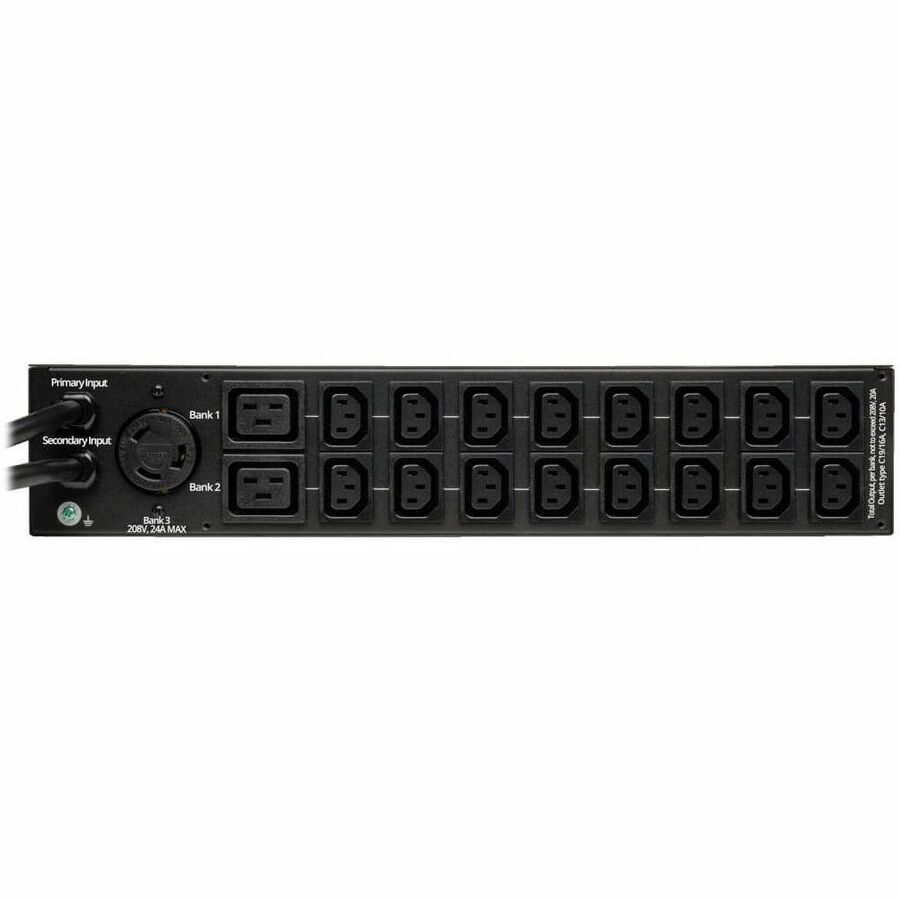

Unfiltered electrical pass-through makes the PDUMH30HVAT ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. It provides nineteen outlets (6 x C13, 2 x C19, 1 x L6-30R) outlets and dual 10-ft. cords (one attached, one detachable) with locking L6-30P plugs to prevent accidental disconnection.

High-Current Input and Worldwide Compatibility

The PDUMH30HVAT features 208/240V and 230V input and output power capacity, making it ideal for a wide range of IT and industrial applications worldwide.

Integrated Auto-Transfer Switching & Hot-Swap Capability

The PDUMH30HVAT features optional integrated automatic transfer switching (ATS) capability to provide a redundant power option for networking and server applications with non-redundant internal power supplies. In ATS mode, the attached power cord delivers primary input power and the included detachable power cord provides secondary input power. If primary power becomes unstable or fails, the PDU automatically switches to the secondary power source. Additionally, ATS enables fault-tolerant hot-swappable UPS protection when used with a single UPS system, and fully redundant UPS protection when each power cord is connected to a separate UPS system. Front-panel input LEDs indicate primary or secondary power availability.

Digital Current Meter

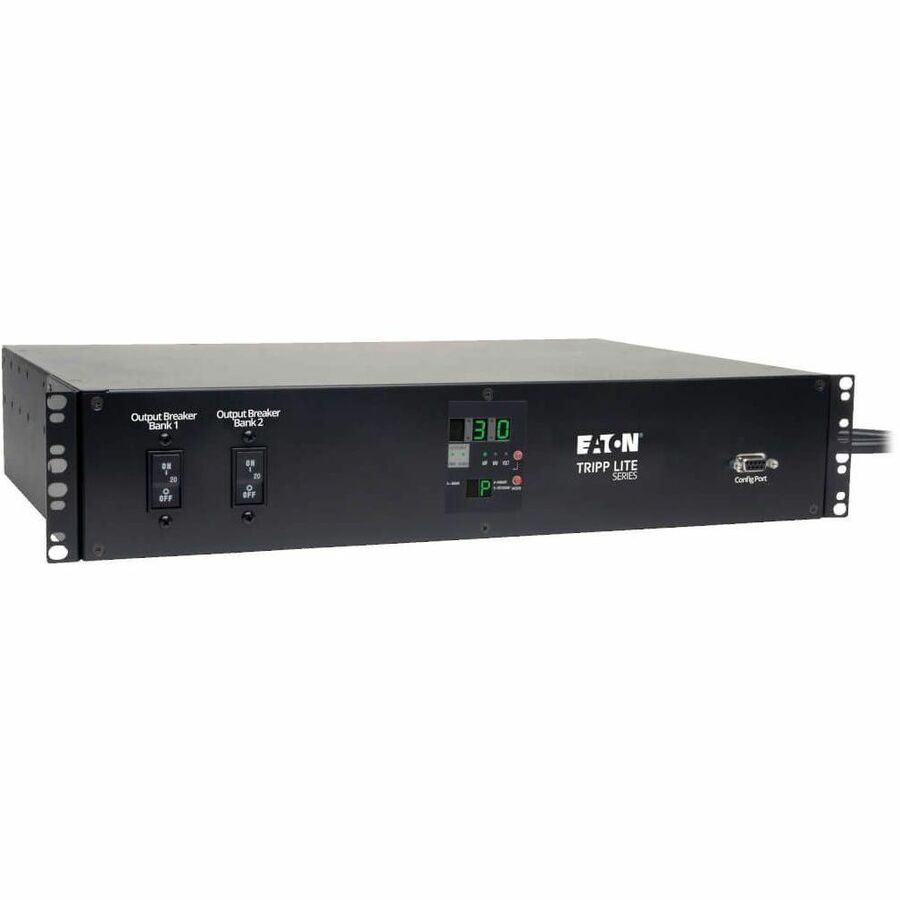

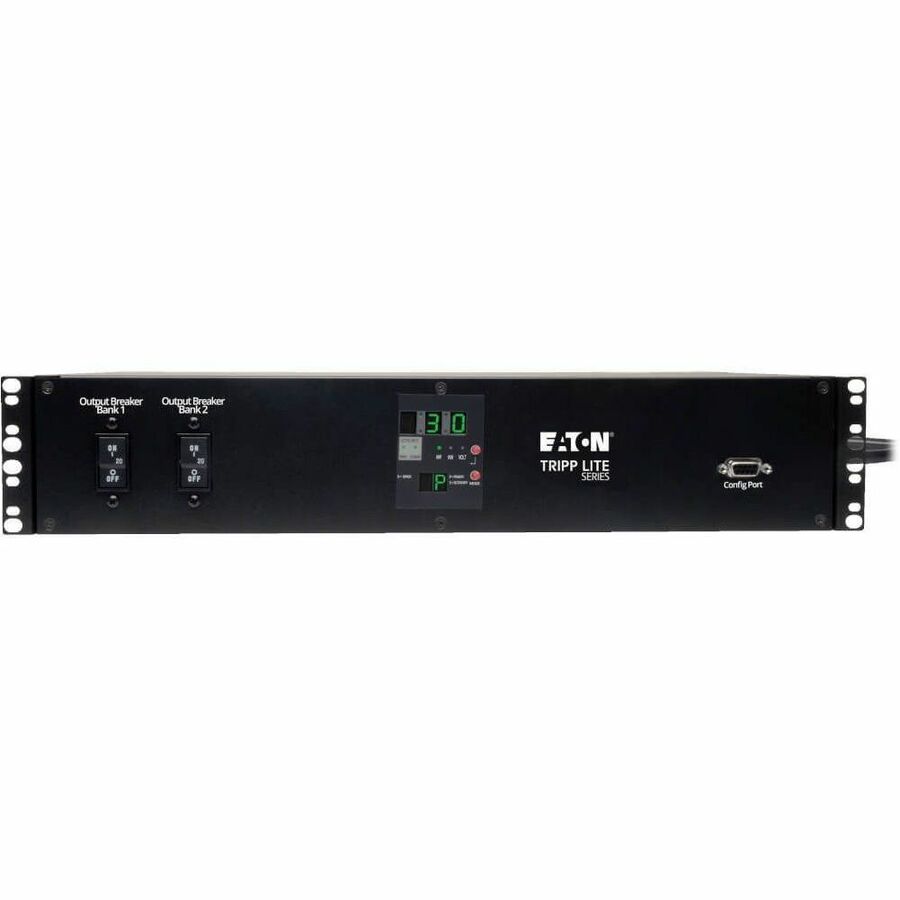

Assure proper load balance with the PDUMH30HVAT's easy to read, two-character digital LED meter that displays the total connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits. Plus, the outlets are factory programmed for sequential turn-on when the PDU is first powered on to prevent inrush-related equipment interaction on start-up and safeguard against costly overloads.

PDUMH30HVAT Product Summary

Automatic transfer switching (ATS) to provide a redundant power option

Digital meter for on-site monitoring of total PDU load

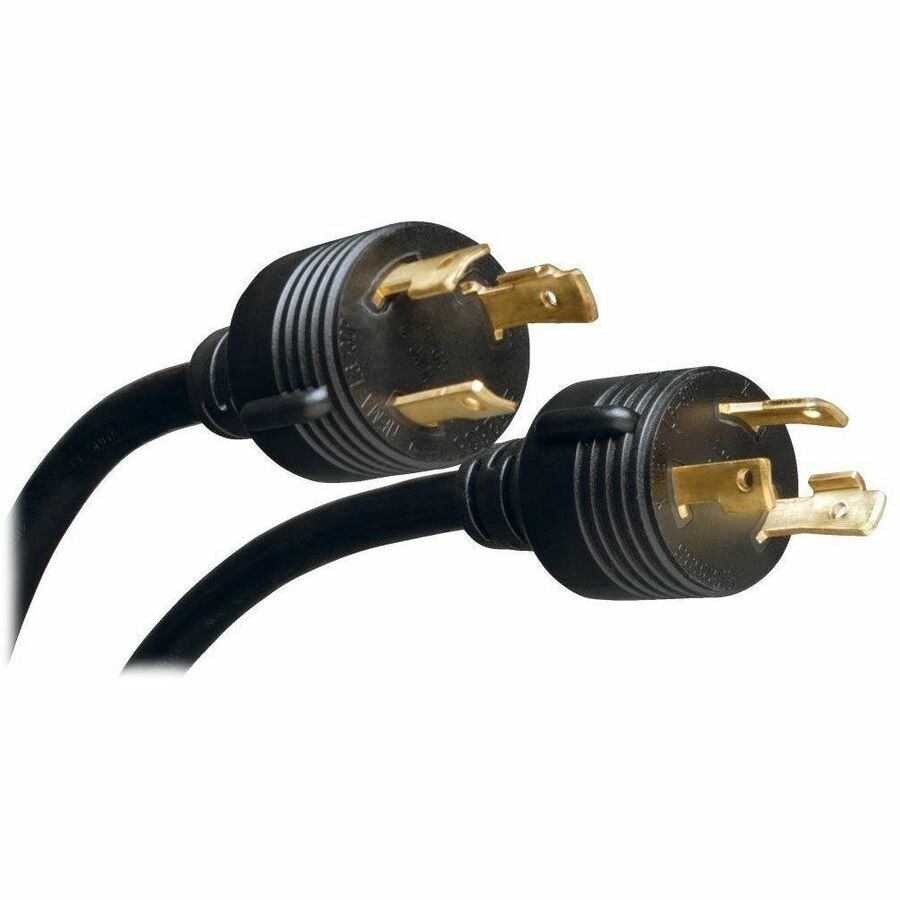

Dual L6-30P inputs enable primary and secondary input options

Configurable for 2U rackmount installation
