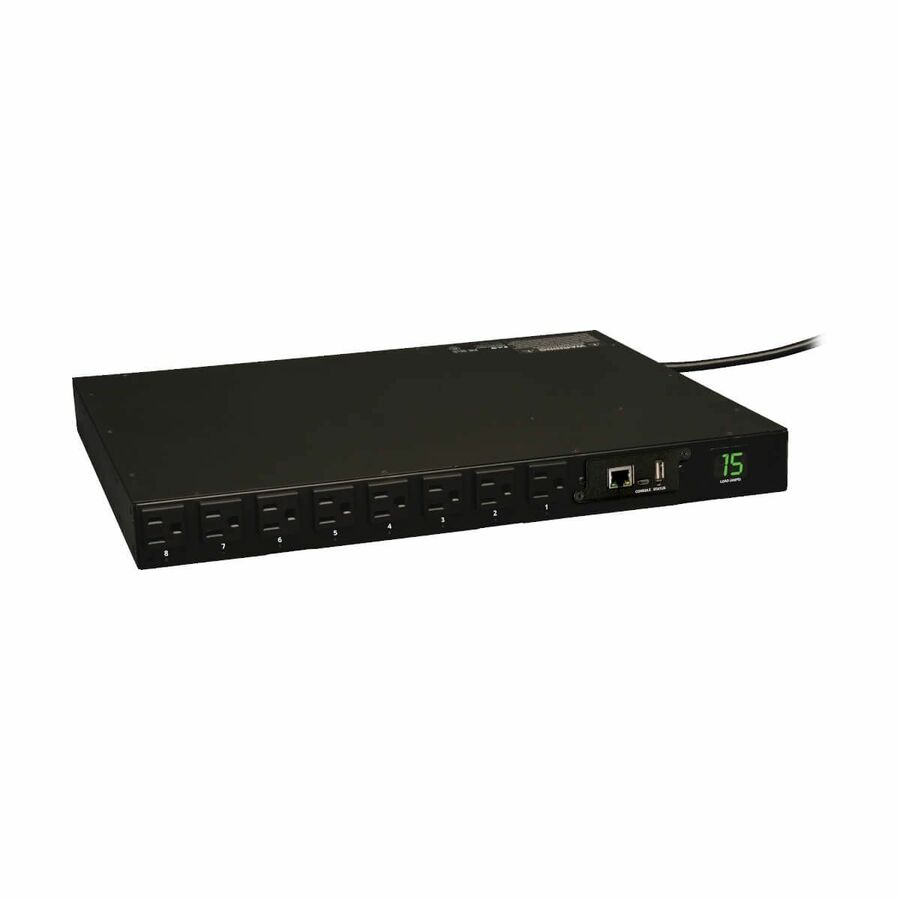

Tripp Lite by Eaton PDU 1.4kW Single-Phase Switched PDU - LX Interface 120V Outlets (16 5-15R) 5-15P 120V Input 12 ft. (3.66 m) Cord 1U Rack-Mount TAA

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. More from the Manufacturer

Digital Current Meter and Outlet LEDs

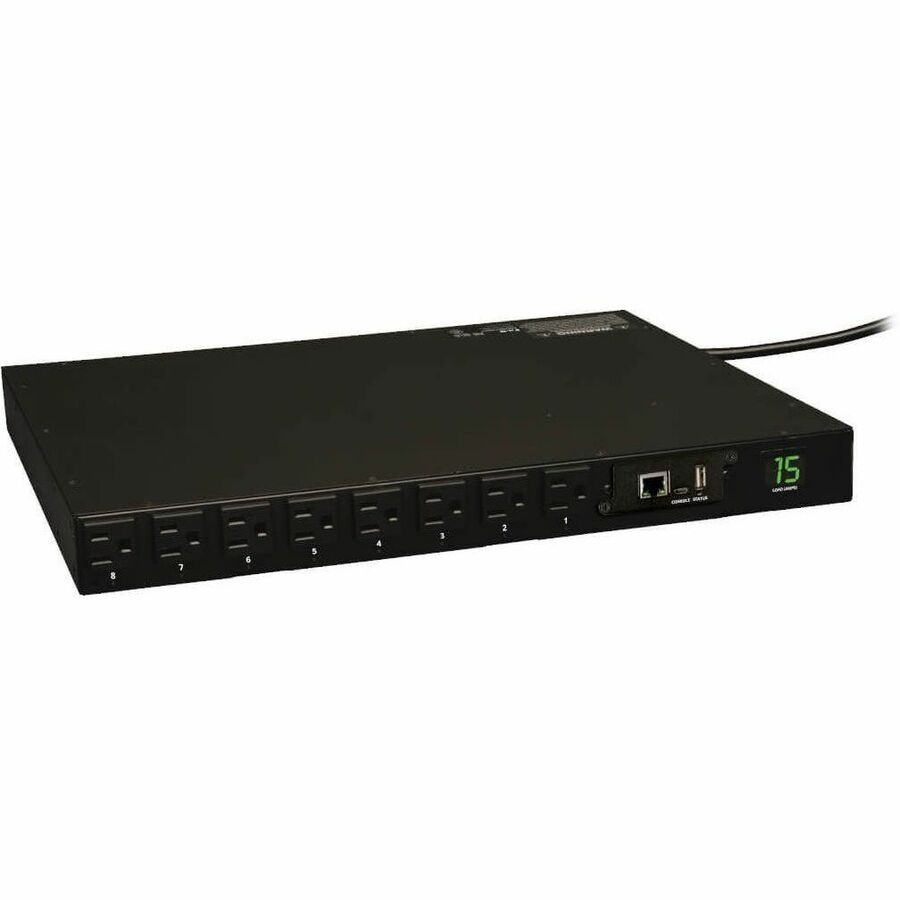

The PDUMH15NET is equipped with a digital LED meter that lets IT personnel monitor the total PDU load in real time. This meter helps to ensure that the PDU is used at maximum capacity with no danger of overload. Each outlet has an LED that illuminates to confirm power on/off status. Its circuit breaker-free format prevents power interruptions due to tripped breakers.

Efficient Design and Flexible Outlet Control

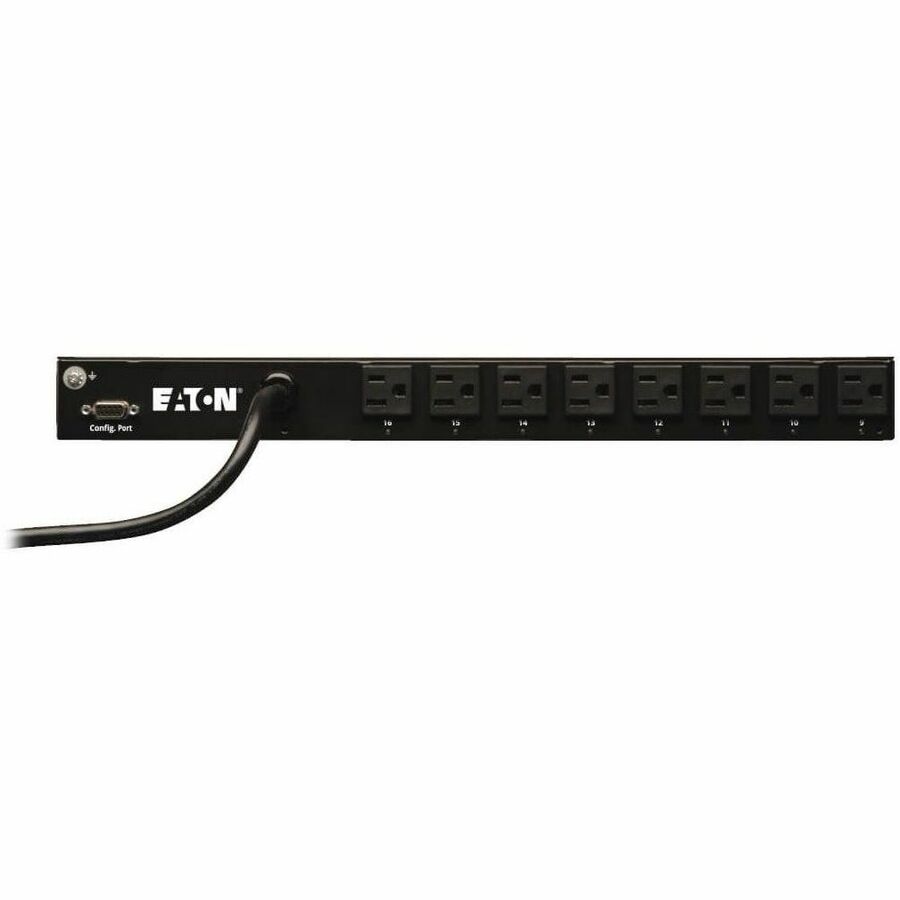

The PDUMH15NET features a total of 16 5-15R outlets—8 on the front and 8 on the rear of the unit. The unit's reversible housing makes it easier to connect equipment to the PDU and also simplifies cord management—a key advantage in IT applications where cord clutter is a problem. All of the PDUMH15NET's outlets are individually controllable via network or web browser interface, providing a higher level of network power control.

Advanced Network Monitoring Capabilities

A built-in Java-free, HTML5-based LX Platform network interface enables full remote access to this PDU. Tiered access privileges can be configured from full administrator to view-only operator. The PDUMH15NET supports notification of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. Power management tasks, such as load shedding, load ramping and rebooting of locked-up network devices can be performed remotely. This saves time and money because it eliminates the need for around-the-clock on-site management. So if equipment needs to be rebooted on a Sunday—no problem! Simply log on from wherever you are and take care of business remotely. When used with optional EnviroSense2 environmental sensor modules, the PDUMH15NET can also remotely monitor temperature/humidity conditions.

Broad Compatibility

The PDUMH15NET provides 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration support enables network settings to be assigned automatically or manually.

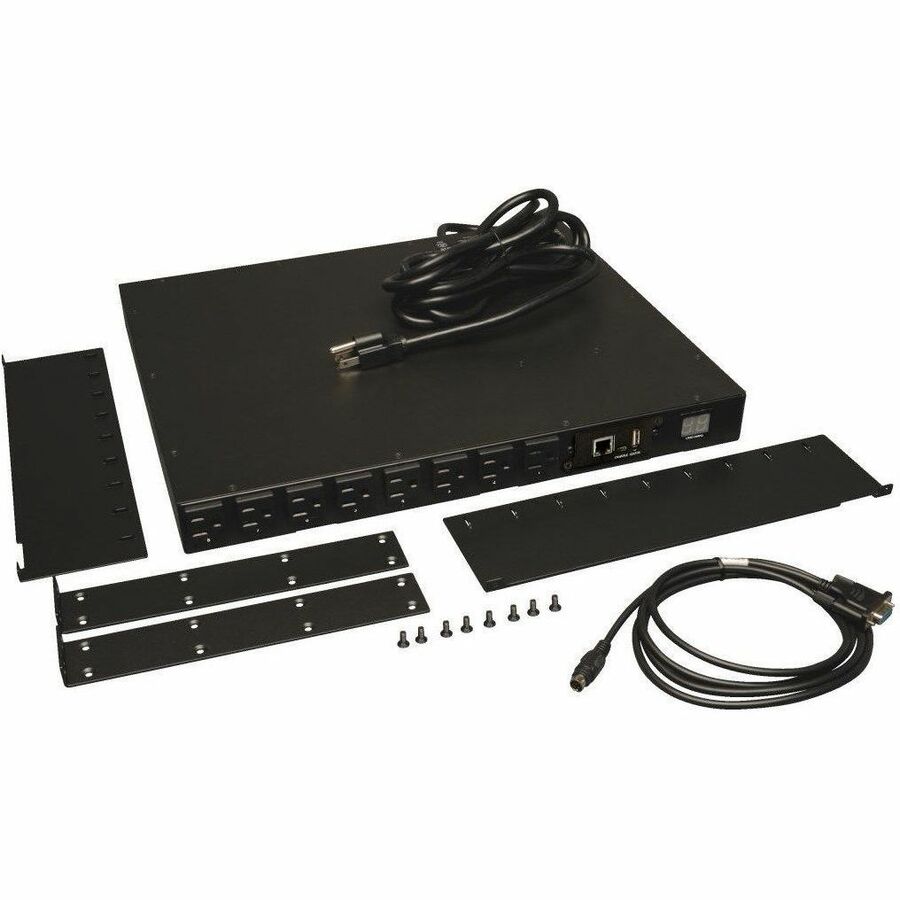

Versatile Installation Options The PDUMH15NET is easy to integrate with a wide range of data center and network applications. It is suitable for 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench and under-counter installations.
