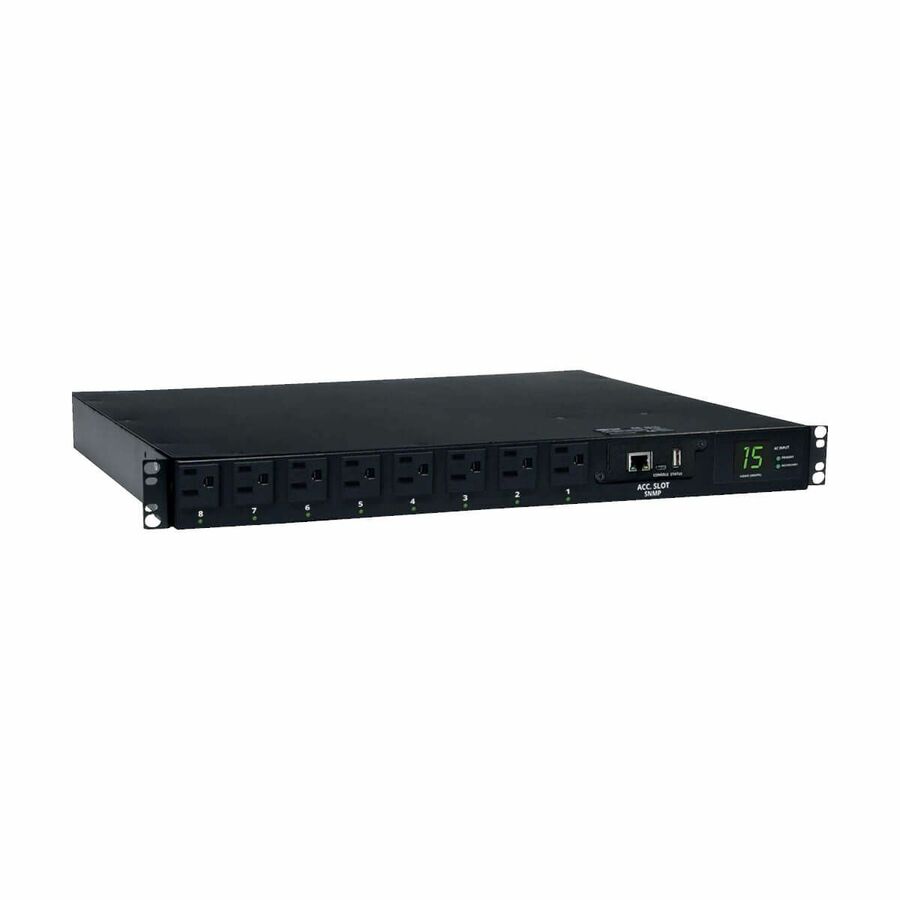

Tripp Lite by Eaton PDU 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. More from the Manufacturer

1.4kW Single-Phase Switched PDU with Automatic Transfer Switching and Redundant Power

Tripp Lite’s PDUMH15ATNET distributes, monitors and manages 120V power to equipment in network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. Eight switched NEMA 5-15R outlets offer advanced network control and remote power monitoring features, including the ability to turn on, turn off, reboot or lock out power to each outlet. Reducing the frequency of on-site visits can save you money and reduce downtime.

Typical Applications

· Distribute 120V power to mission-critical data center devices whose continuous operation is vital

· Remotely manage networking equipment in a large industrial or commercial facility

· Monitor load levels from various servers, switches and other computer network components

Key Features

Primary and Secondary Inputs for Power Redundancy

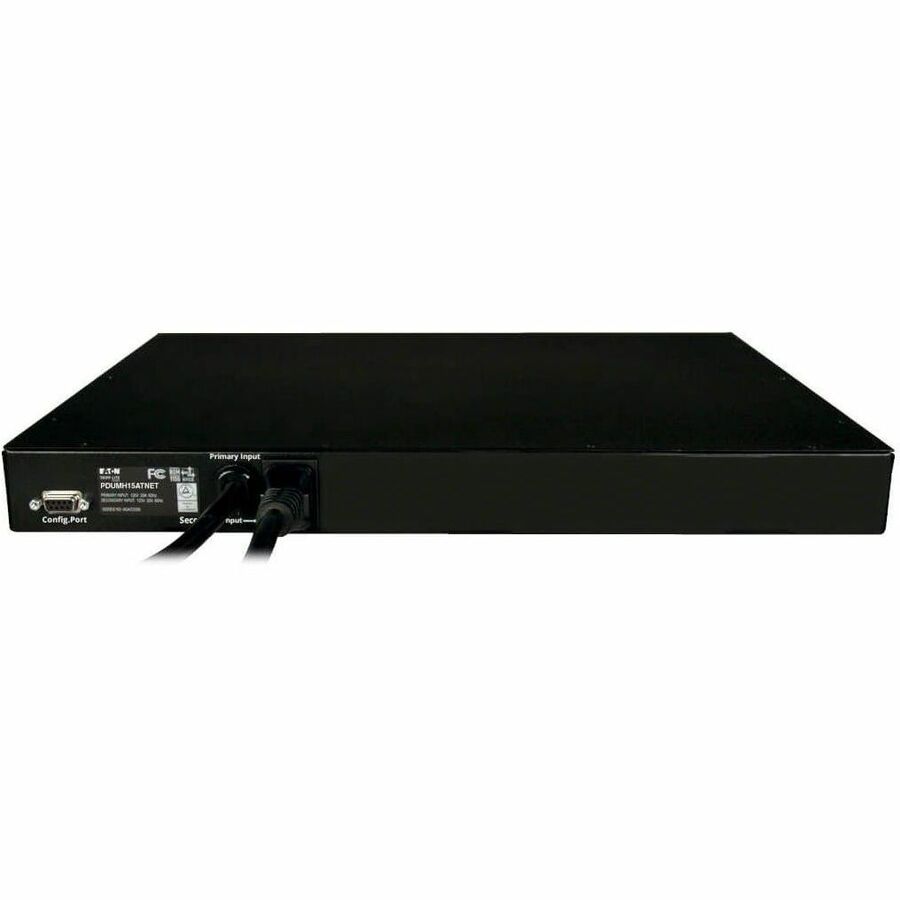

The PDUMH15ATNET enables redundant A/B power for network devices with single power cords. Dual 12-foot input cords with NEMA 5-15P plugs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids. The PDU constantly evaluates the power quality of both input sources and maintains continuous power to all outlets as derived from the primary source.

Switches from Primary to Secondary Power Source in Milliseconds

Dynamic solid-state automatic transfer switching (ATS) allows the PDUMH15ATNET to switch to the secondary source within 2–5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor prevents switching if the secondary source is unavailable or of lower quality than the primary source.

Check Essential Functions at a Glance

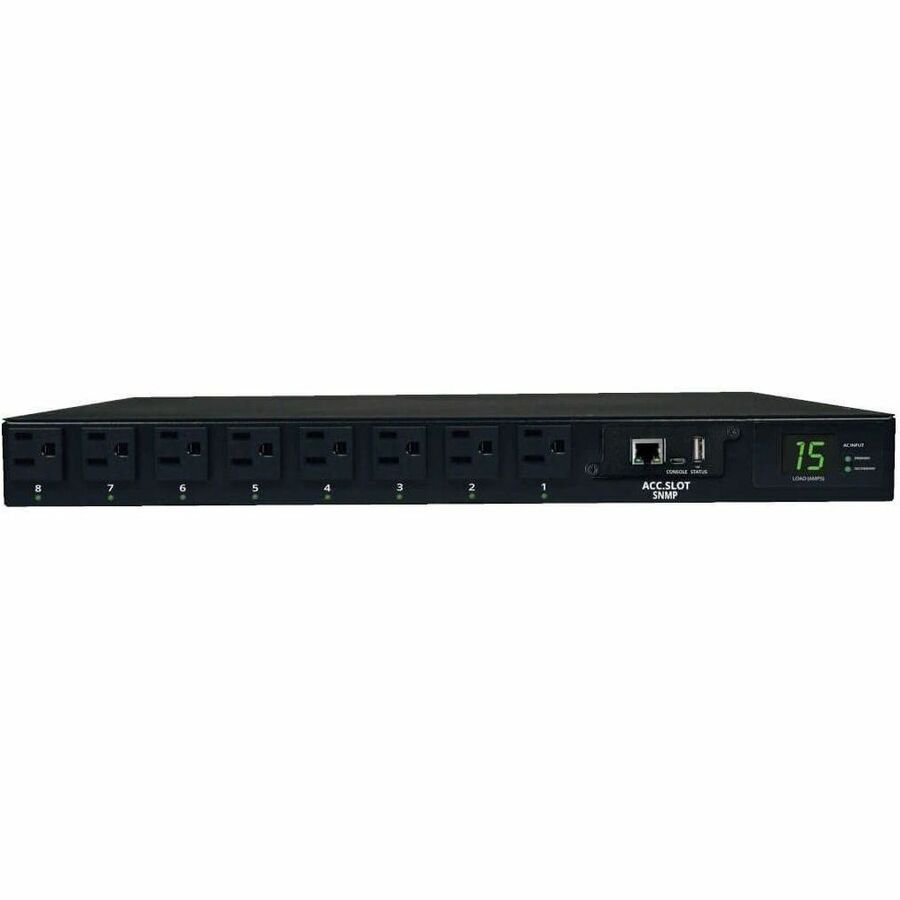

A digital ammeter displays total output current from connected equipment. LEDs indicate on/off status of individual outlets and power status of primary and secondary inputs.

Built-In LX Platform Interface Gives You Unrestricted Remote Access to Your Equipment 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Versatile Mounting Options Give You More Freedom

This PDU mounts in 1U of space in EIA-standard 19-inch racks using the included brackets and user-supplied hardware. By removing and reattaching the brackets at a different angle, you can also install the unit on a wall or under a counter.
