Tripp Lite by Eaton PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (13 5-15R) 5-15P 100-127V Input 15 ft. (4.57 m) Cord 1U Rack-Mount

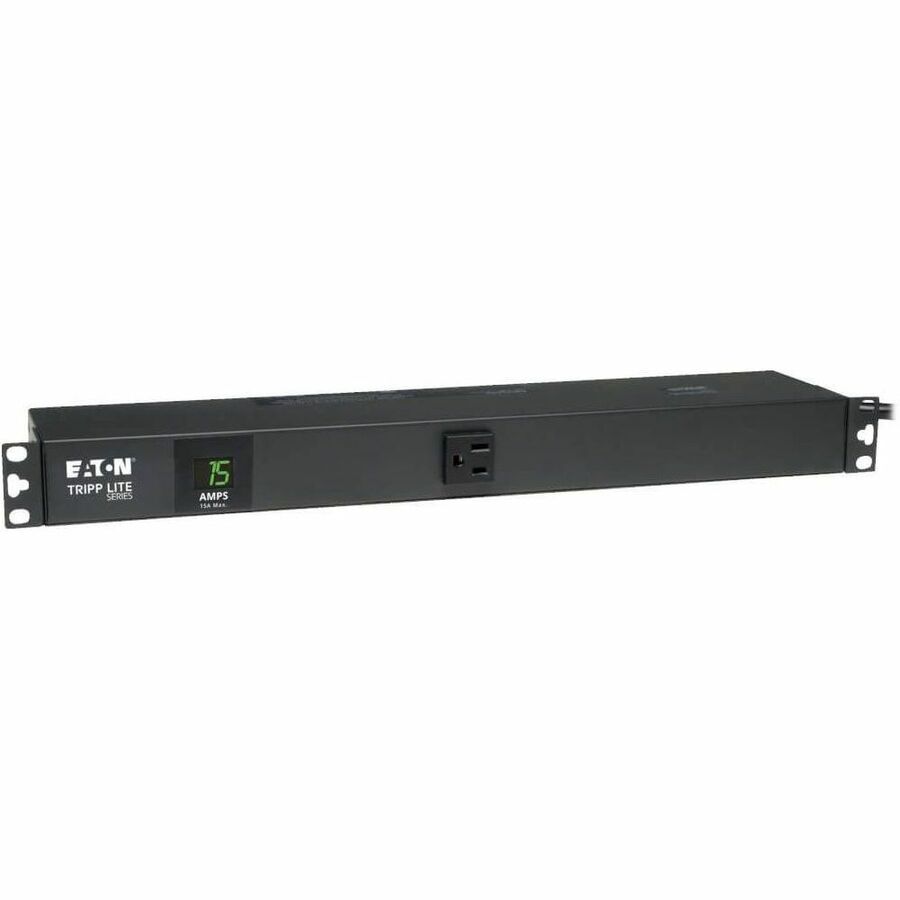

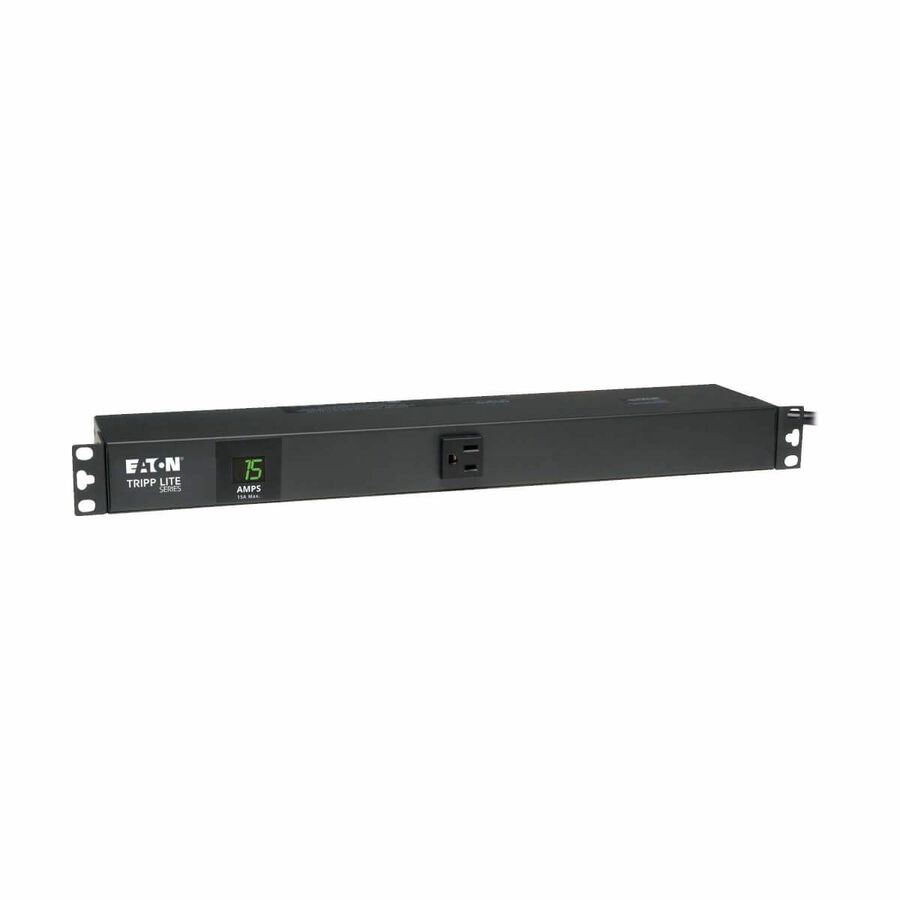

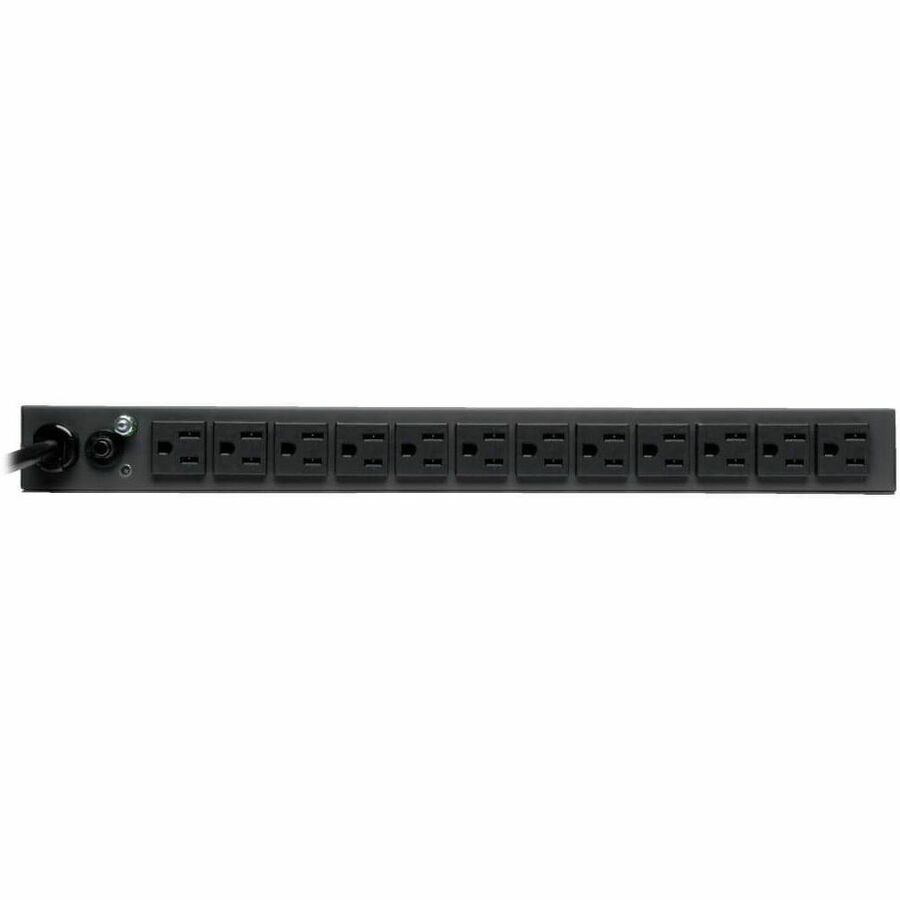

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.

More from the Manufacturer

Reliable IT Power Distribution and Versatile Installation Options

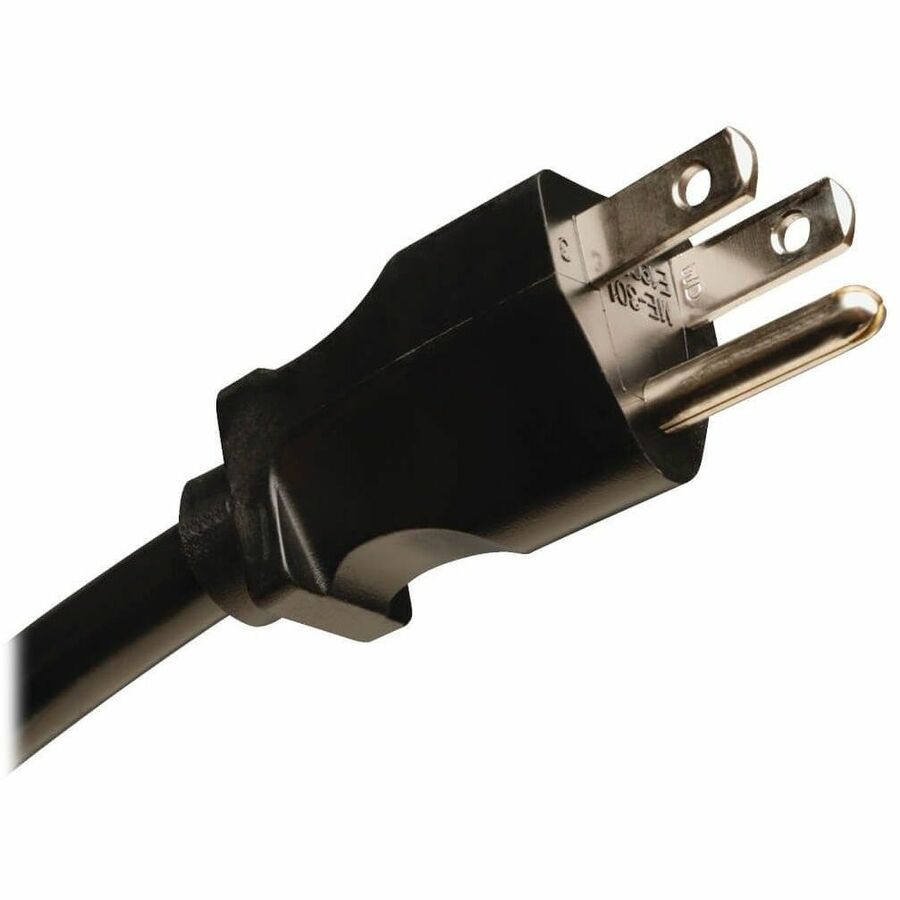

The PDUMH15 is optimized for reliable distribution of alternate waveform AC power from a UPS system, generator or utility wall outlet to supported equipment in telecom, audio/video, security and other IT environments. It provides 13 total 5-15R outlets (one front-facing, 12 rear-facing) and a 15 ft cord with 5-15P plug. The PDUMH15 features a rugged all-metal case, high-quality outlets and plugs, switchless design, 15A circuit breaker and a rear-mounted TVSS grounding lug.

The PDUMH15 is easy to integrate with a wide range of data center and network applications. Detachable flanges enable the PDU to be installed in horizontal/vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications. It is configurable for 1U rackmount installation with included hardware, and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. The PDUMH15 is also suitable for wall-mount, under-counter and similar applications.

Digital Current Meter and 2-Year Warranty

The PDUMH15 is equipped with a digital LED meter that displays the connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits.

The PDUMH15 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a two-year warranty.
