LX Interface Gigabit 30 Outlets IEC 309 32A Red 380-415V Input LCD 1.8 m Cord 0U 1.8 m Height TAA
Switched - IEC 60309 32A Red 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
MSRP$3,224.00
$2,966.08*
Save 8%In stock: 36
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

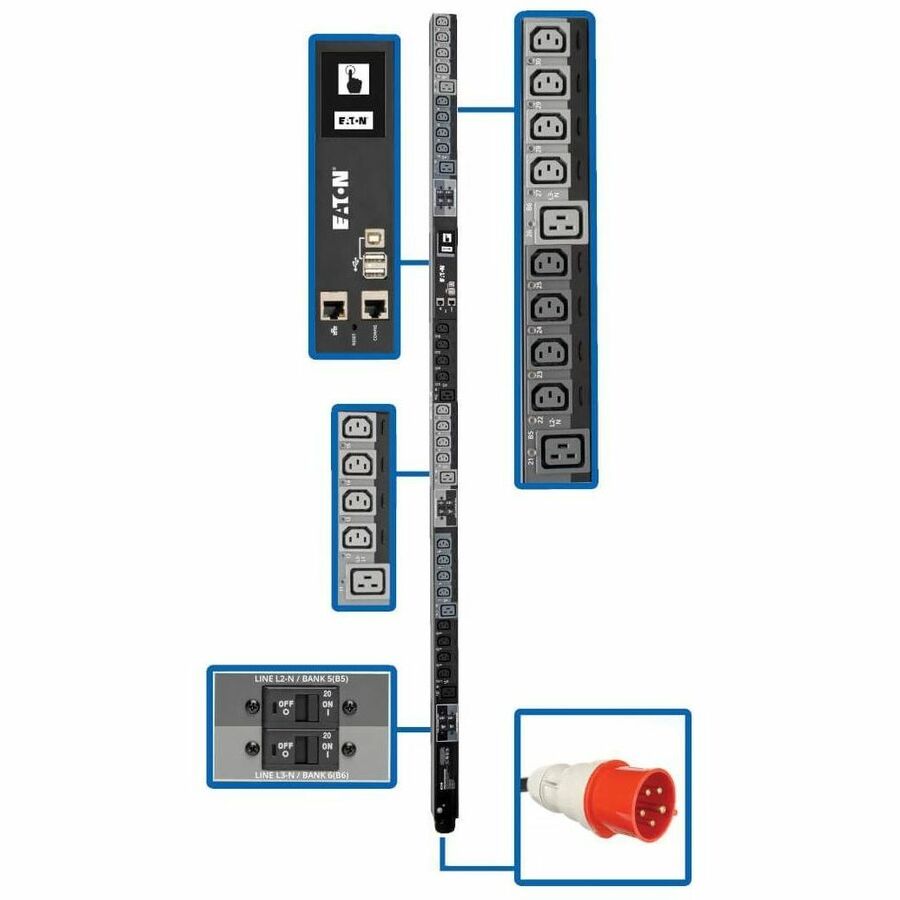

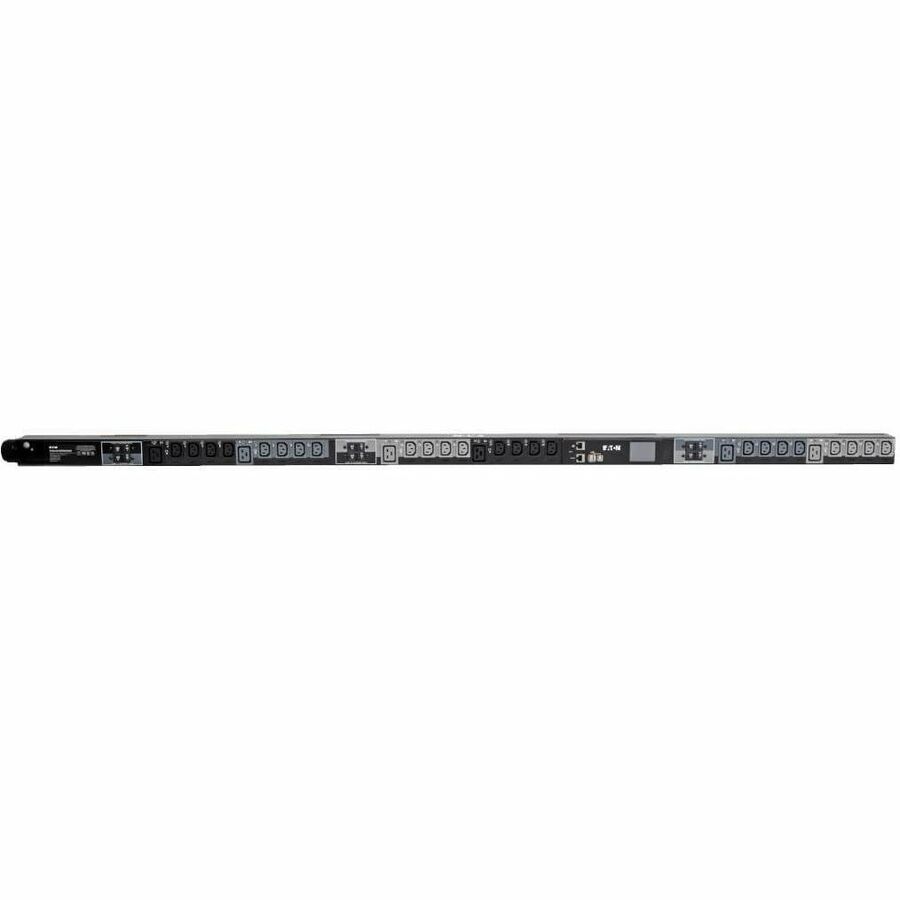

The PDU3XEVSR6G32B 22.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 220/230V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 32A Red 380/400V plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
More from the Manufacturer
22.2kW 3-Phase Switched PDU with Color Touchscreen Provides Remote Management
Tripp Lite’s PDU3XEVSR6G32B distributes, monitors and manages 220/230V power to equipment in network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. A 1.8-meter (six-foot) cord with IEC 309 32A Red 380/400V input plug connects to a compatible mains power source, generator or protected UPS. Firmware upgrades support future product enhancements.
30 Individually Controllable Outlets Distribute AC Power and Save You Money

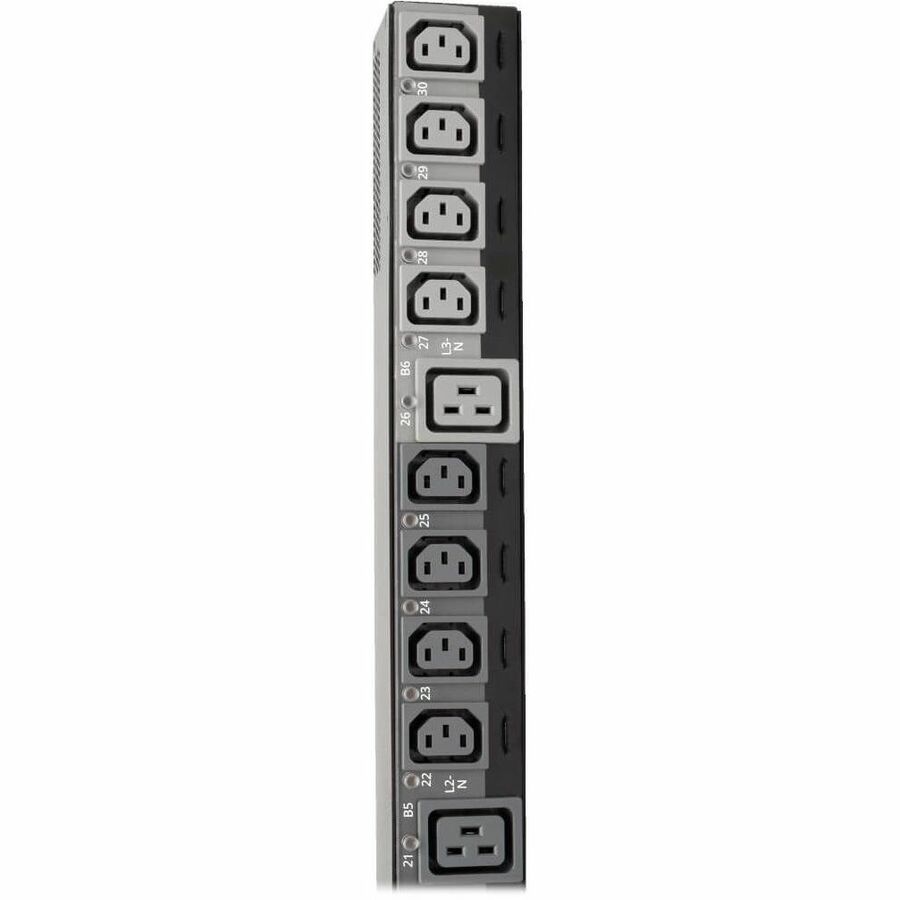

24 C13 and six C19 switched outlets are split into six load banks, each with its own 20-amp circuit breaker to protect connected equipment against dangerous overloads. These controllable outlets offer advanced network control and remote power monitoring features, including the ability to turn on, turn off, reboot or lock out power to each outlet. Reducing the frequency of on-site visits can save you money and reduce downtime. Included plug-lock insert sleeves prevent cables from becoming accidentally disconnected and powering down essential components.
30 Individually Controllable Outlets Distribute AC Power and Save You Money
24 C13 and six C19 switched outlets are split into six load banks, each with its own 20-amp circuit breaker to protect connected equipment against dangerous overloads. These controllable outlets offer advanced network control and remote power monitoring features, including the ability to turn on, turn off, reboot or lock out power to each outlet. Reducing the frequency of on-site visits can save you money and reduce downtime. Included plug-lock insert sleeves prevent cables from becoming accidentally disconnected and powering down essential components.

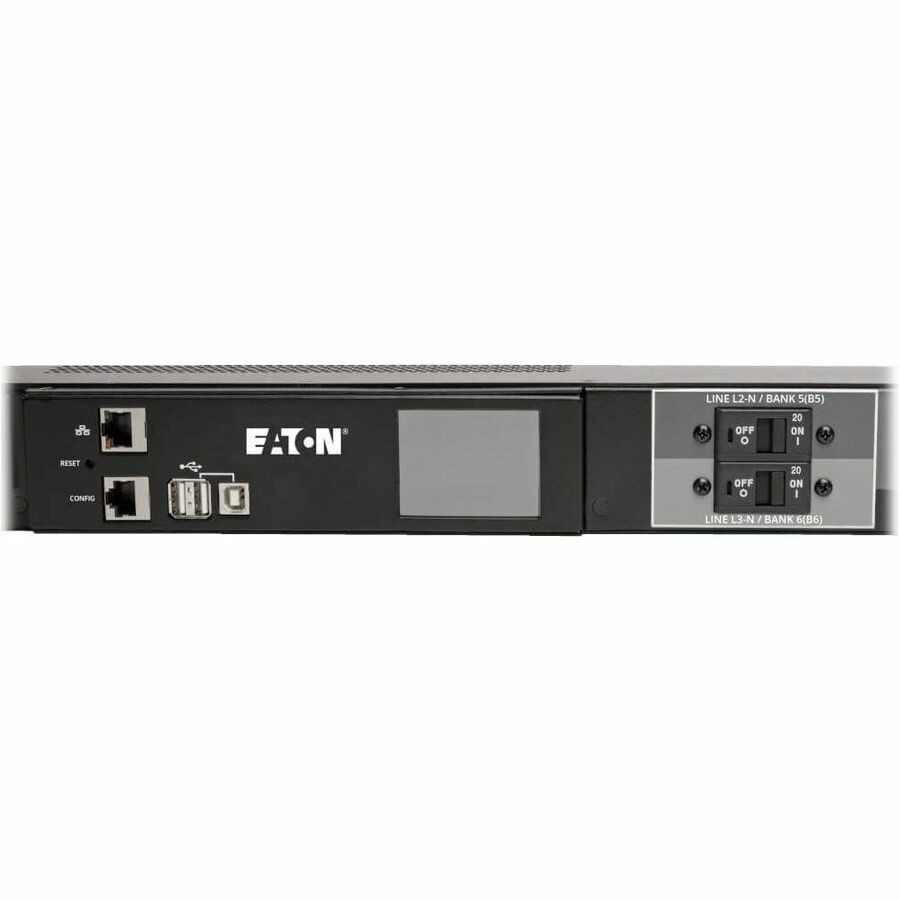

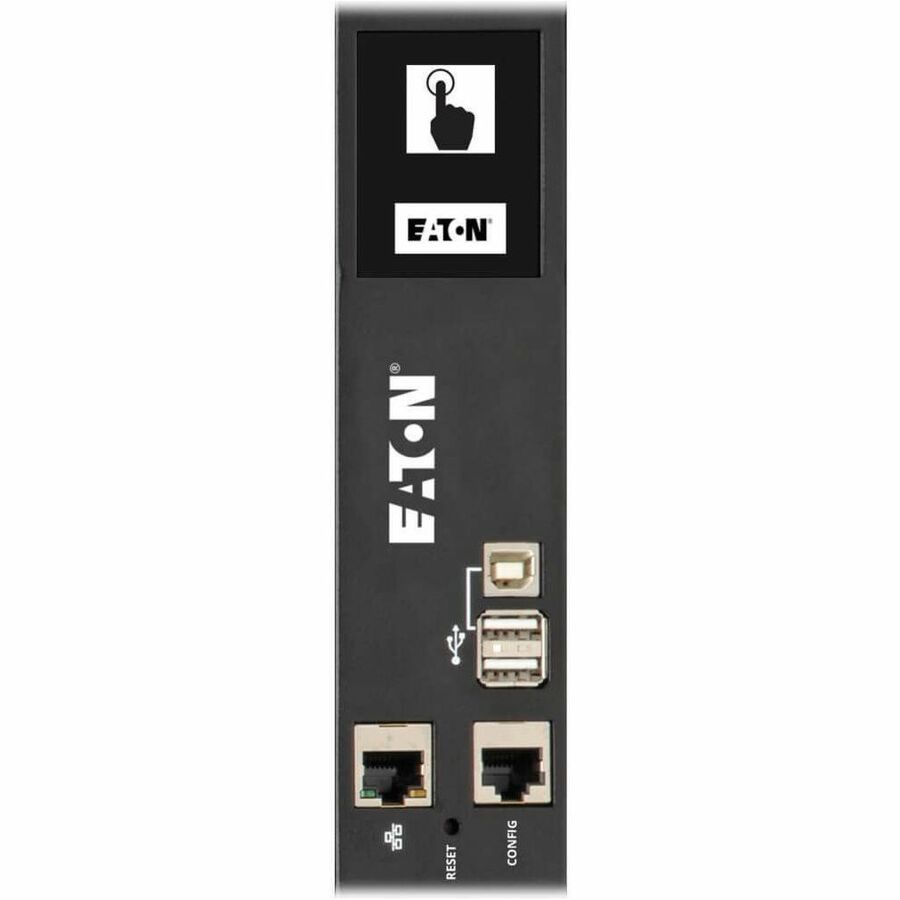

Multifunction Touchscreen LCD Displays Status Information at Your Fingertips
With the touch of your finger, you can access network data, including IP address, input current level per phase and output current per load bank with ±1% billing-grade accuracy. The color LCD also generates a unique QR code that allows read-only access to the free downloadable PowerAlert® Device Manager through a mobile device. Gain full access by logging into PowerAlert via web browser as a user with read/write credentials.
Installs Easily in 0U of Space in an EIA-Standard 19 in. Rack
Use the included toolless buttons or brackets to mount the PDU vertically in 0U of rack space. You can mount the unit with outlets facing either the front or rear, whichever offers better airflow or more convenient access to equipment.
2-Year Warranty and Environmentally Responsible Design
The PDU3XEVSR6G32B comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Complies with TAA for GSA Schedule Purchases
The PDU3XEVSR6G32B is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 95 years of quality products and service, Tripp Lite is a brand you can trust.
Limited Warranty: 2 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3XEVSR6G32B |
| Brand Name | Eaton |
| Product Model | PDU3XEVSR6G32B |
| Product Name | PDU3XEVSR6G32B 30-Outlet PDU |
| Product Type | PDU |
| Management | |
| Management | Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" |
| Width | 2.2" |
| Depth | 2.5" |
| Weight (Approximate) | 16 lb |
| Power Description | |
| Input Voltage | 380 V AC, 400 V AC |
| Output Voltage | 220 V AC, 230 V AC |
| Power Rating (Watt) | 23 kW |
| Input Current | 32 A |
| Technical Information | |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19, 24 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
