Overview

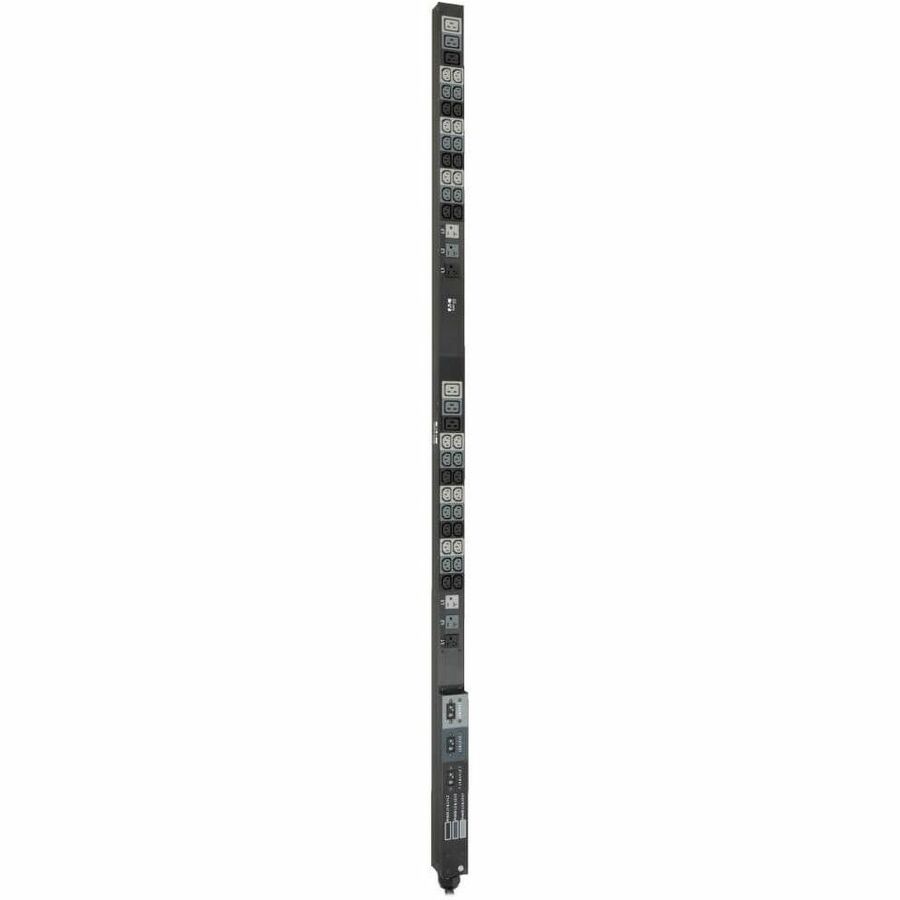

Three-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads

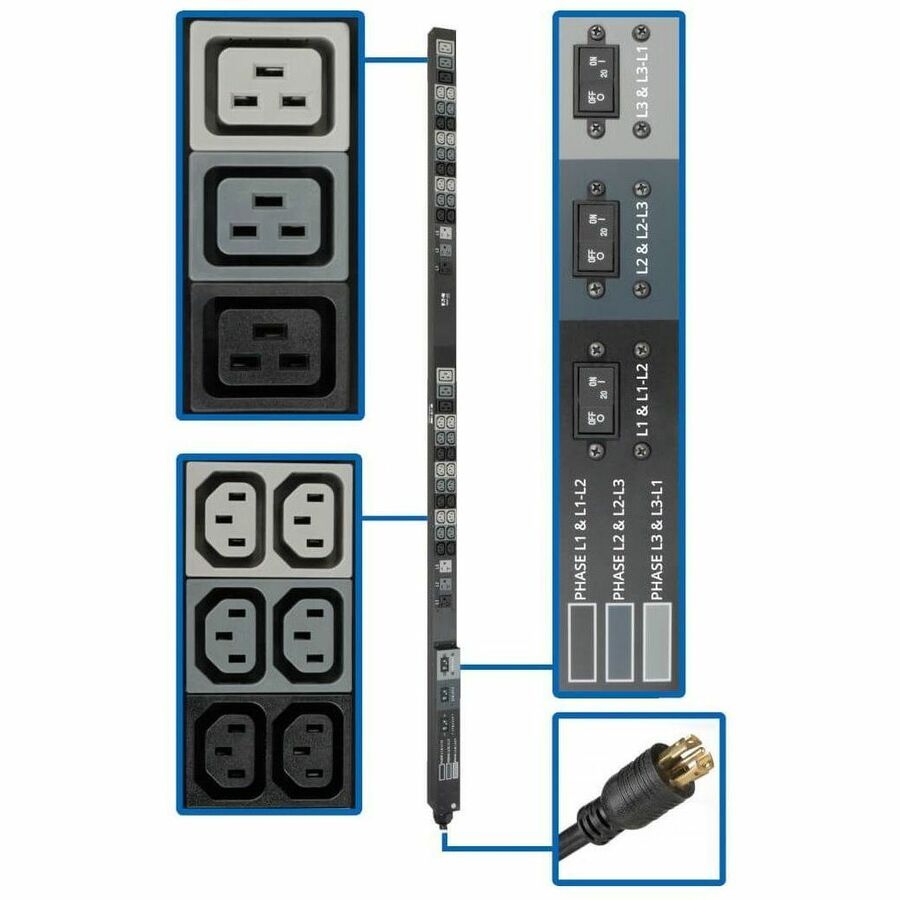

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2130 features 36 C13 (208V), six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Three 20A circuit breakers, one per output phase, protect connected components from dangerous overloads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

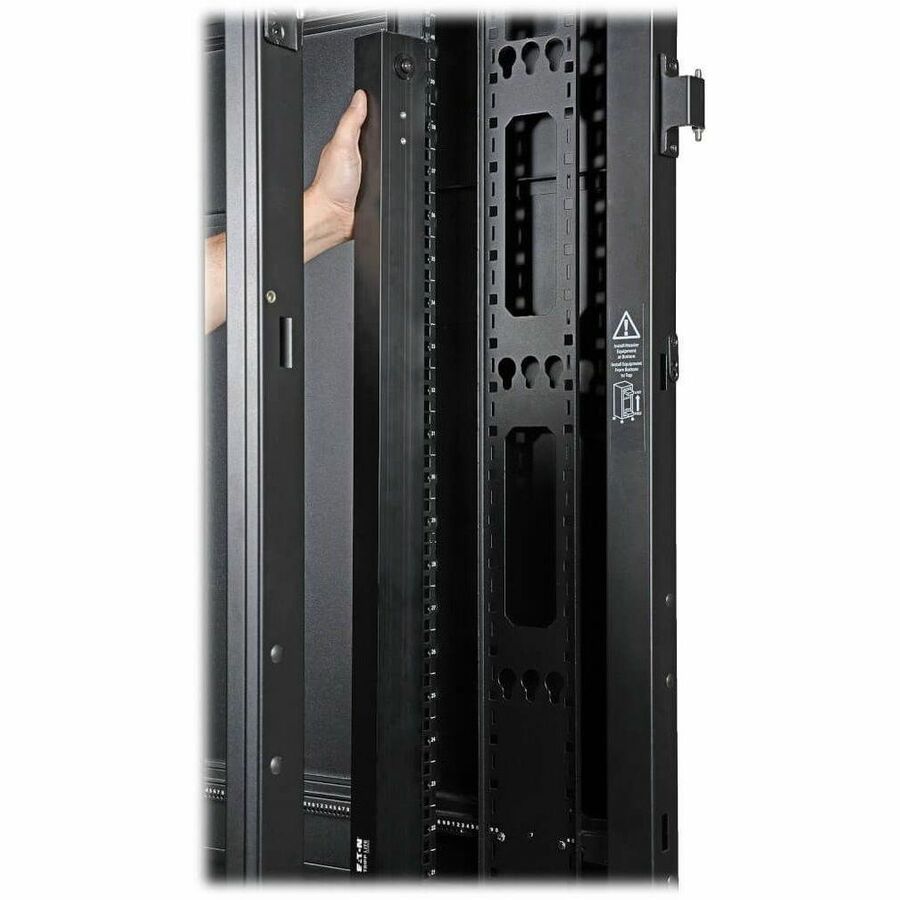

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2130 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal no-frills PDU for telecom, security, audio/video and other network applications

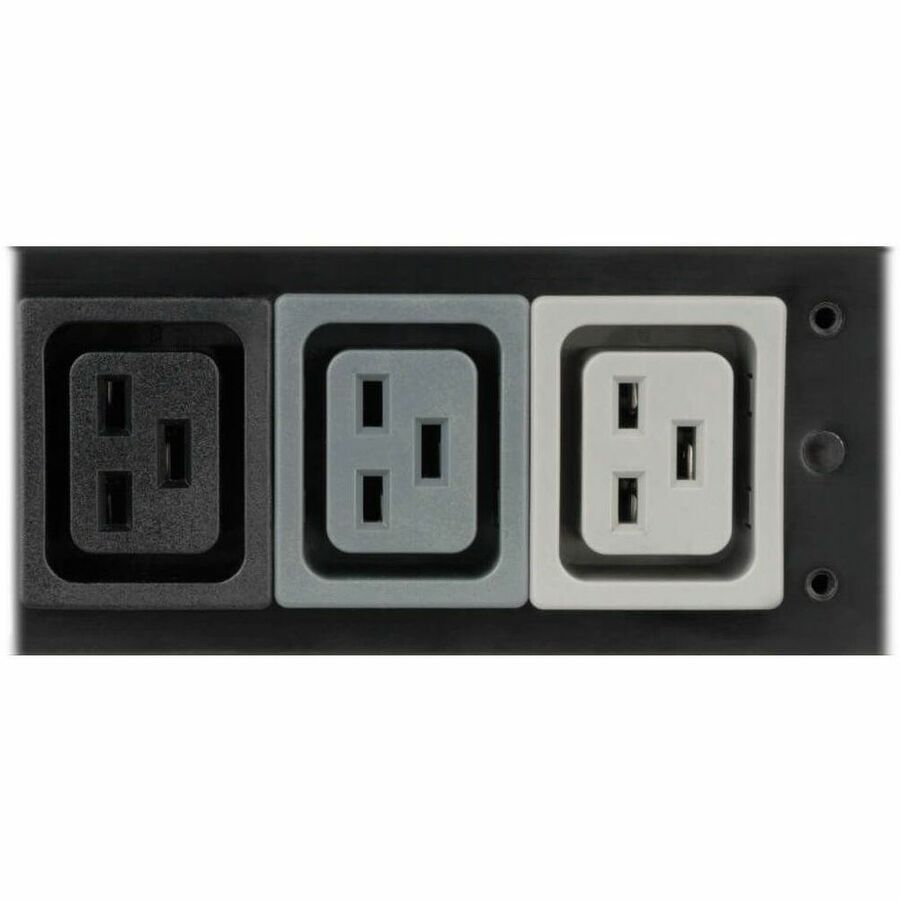

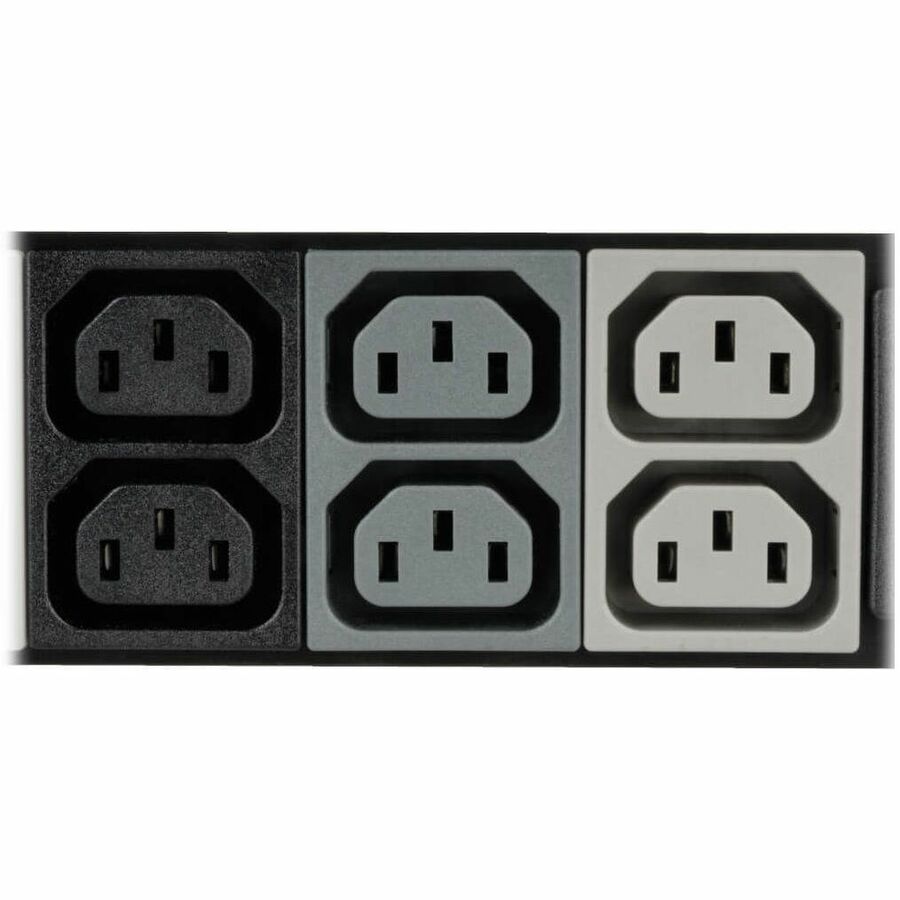

36 C13, 6 C19 and 6 5-15/20R outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
6 ft. power cord with NEMA L21-30P input connects to compatible AC source
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
PDU3V6L2130
Brand Name
Tripp Lite series
Product Model
PDU3V6L2130
Product Name
PDU3V6L2130 48-Outlets PDU
Product Type
PDU
Physical Characteristics
Mounting Orientation
Vertical/Toolless
Mount Type
Rack-mountable
Rack Height
0U
Height
70"
Width
2.2"
Depth
1.7"
Weight (Approximate)
13.90 lb
Power Description
Input Voltage
230 V AC
Output Voltage
208 V AC, 120 V AC
Power Rating (Watt)
8600 W
Input Current
24 A
Technical Information
PDU Type
Basic
Phase
Three Phase
Plug/Connector Type
NEMA L21-30P
Receptacle Type
IEC 60320 C13, IEC 60320 C19, NEMA 5-15/20R
Receptacle Detail
36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R
Protection Type
Accidental Power Shutdown, Overload Protection, Circuit Protection
Locking Receptacles
Cord Retention Bracket
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
PDU3V6L2130 48-Outlets PDU
Plug Retention Brackets With Installation Hardware
