Overview
3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

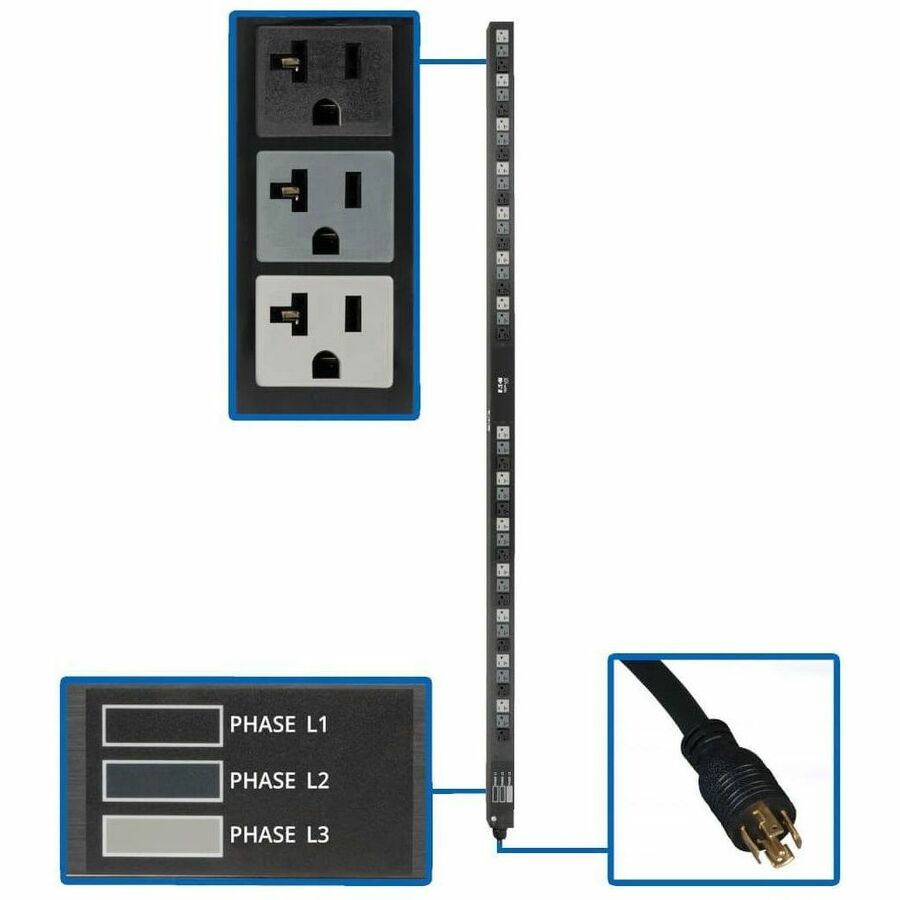

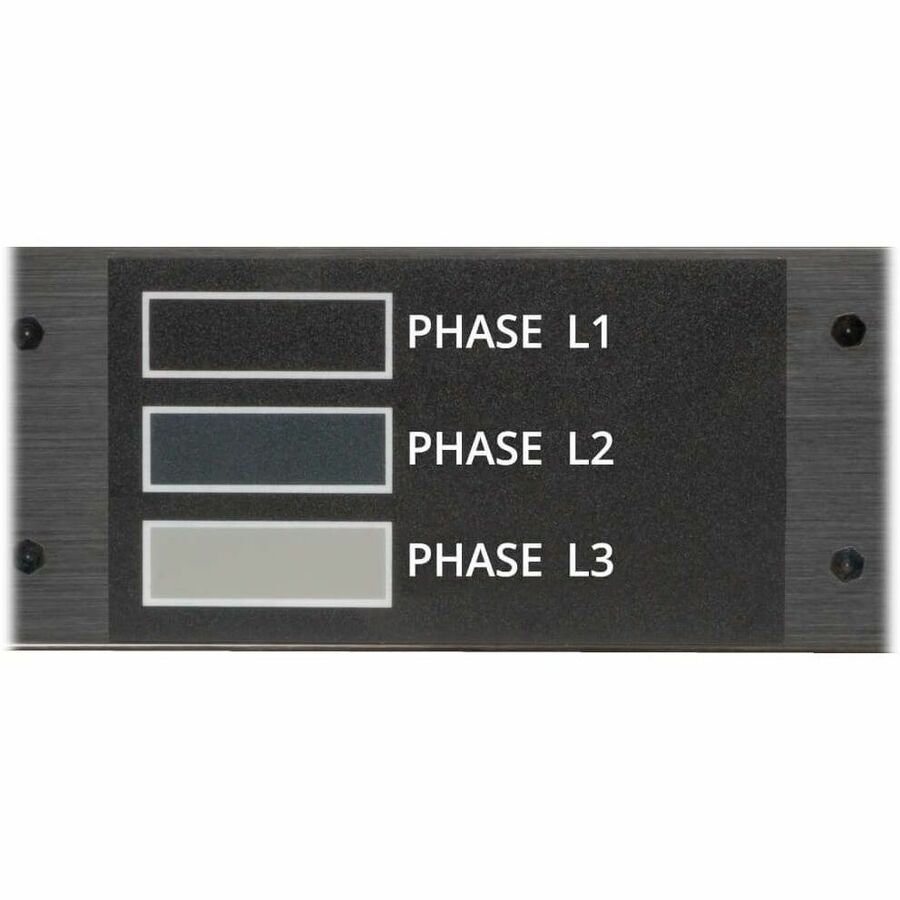

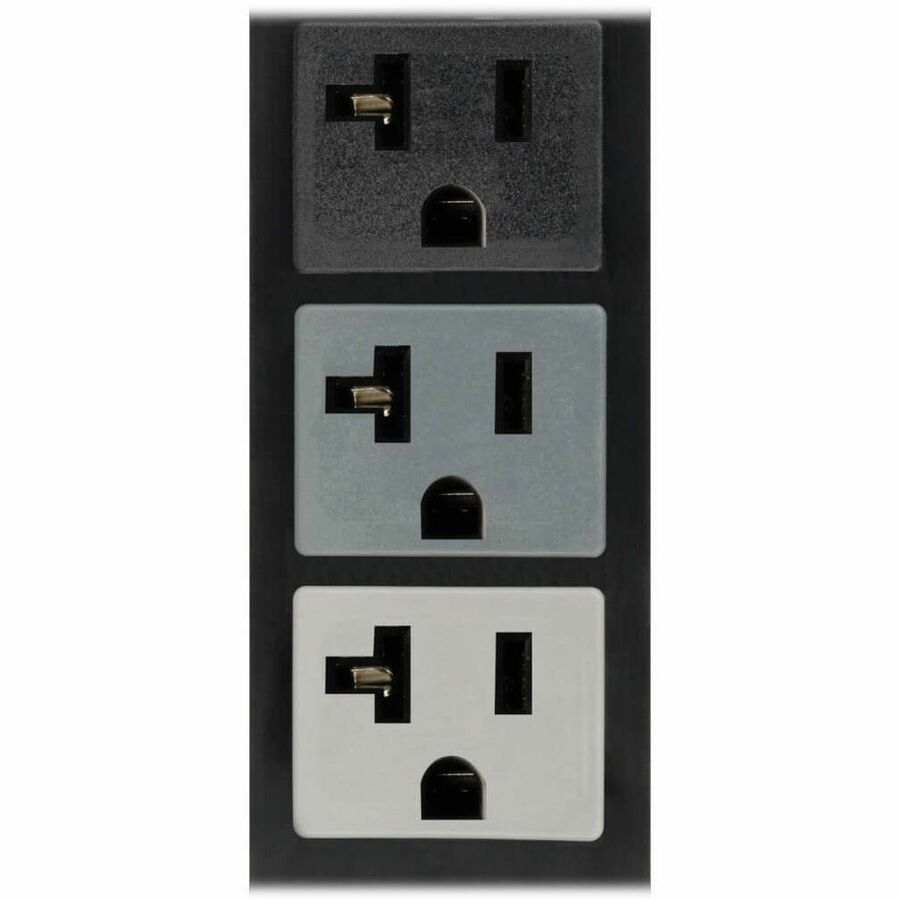

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

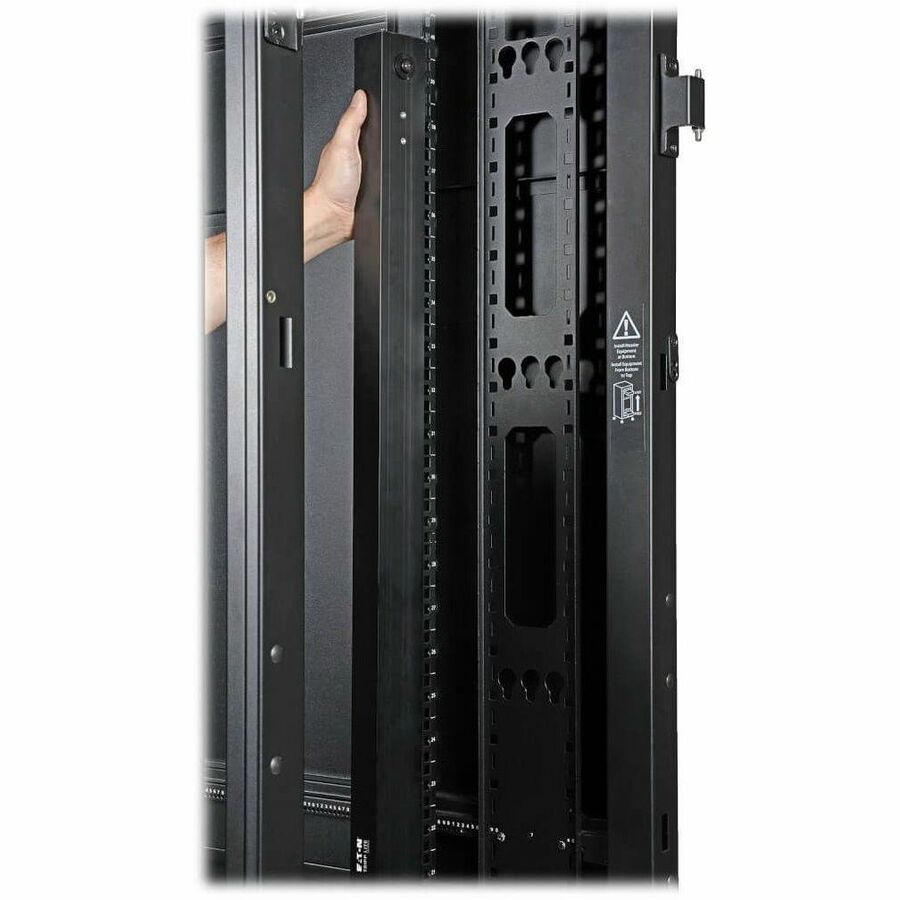

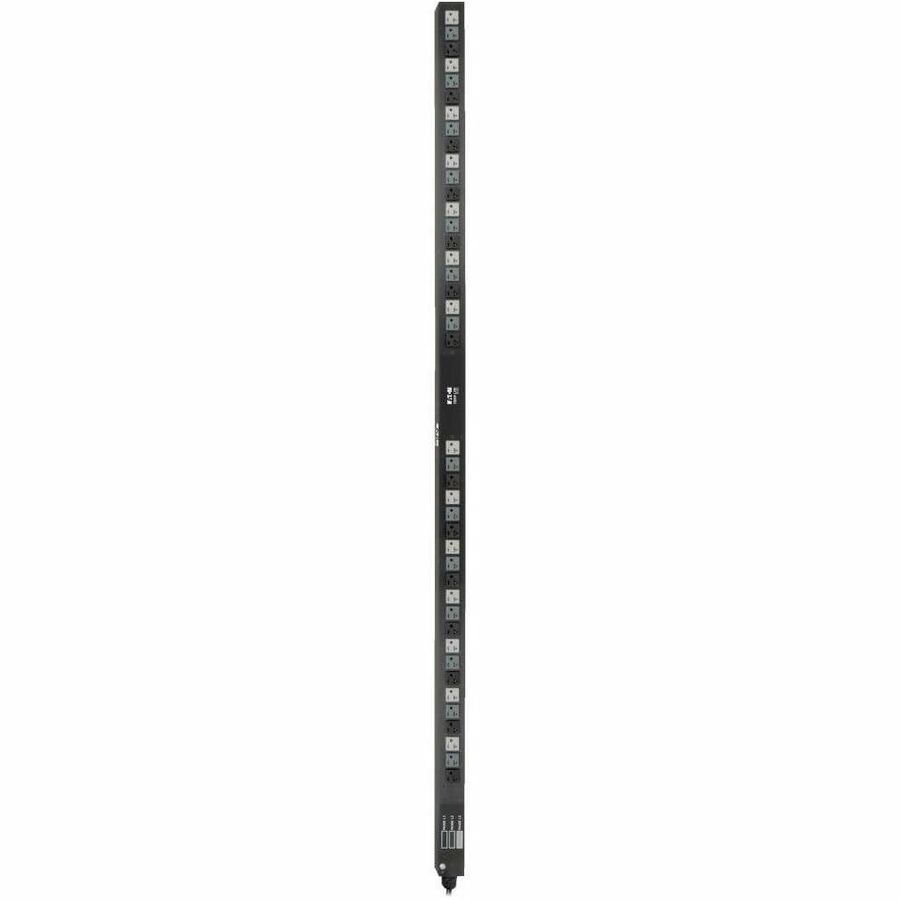

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
PDU allows power to be more efficiently distributed and controlled
With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
NEMA 5-15/20R receptacle type to ensure maximum productivity with added feasibility
Three Phase phase PDU provides optimal power output with added usability
NEMA L21-20P plug/connector type for reliable, productive connectivity and optimal power output
230 V AC input voltage for maximum feasibility and added productivity
120 V AC output voltage for optimal performance with maximum feasibility
Specifications
Package Contents
PDU3V6L2120LV 42-Outlets PDU
Cable Retention Brackets With Installation Hardware
Rack-mounting Hardware
Owner's Manual
Product Type
PDU
Input Voltage
230 V AC
Manufacturer Part Number
PDU3V6L2120LV
Limited Warranty
2 Year
Output Voltage
120 V AC
Weight (Approximate)
12.70 lb
Input Current
16 A
Manufacturer
Eaton Corporation
Product Model
PDU3V6L2120LV
Product Name
PDU3V6L2120LV 42-Outlets PDU
Mount Type
Rack-mountable
Protection Type
Accidental Power Shutdown, Overload Protection, Circuit Protection
