LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA
Switched - NEMA L21-30P - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
MSRP$2,722.00
$2,504.24*
Save 8%In stock: 25
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

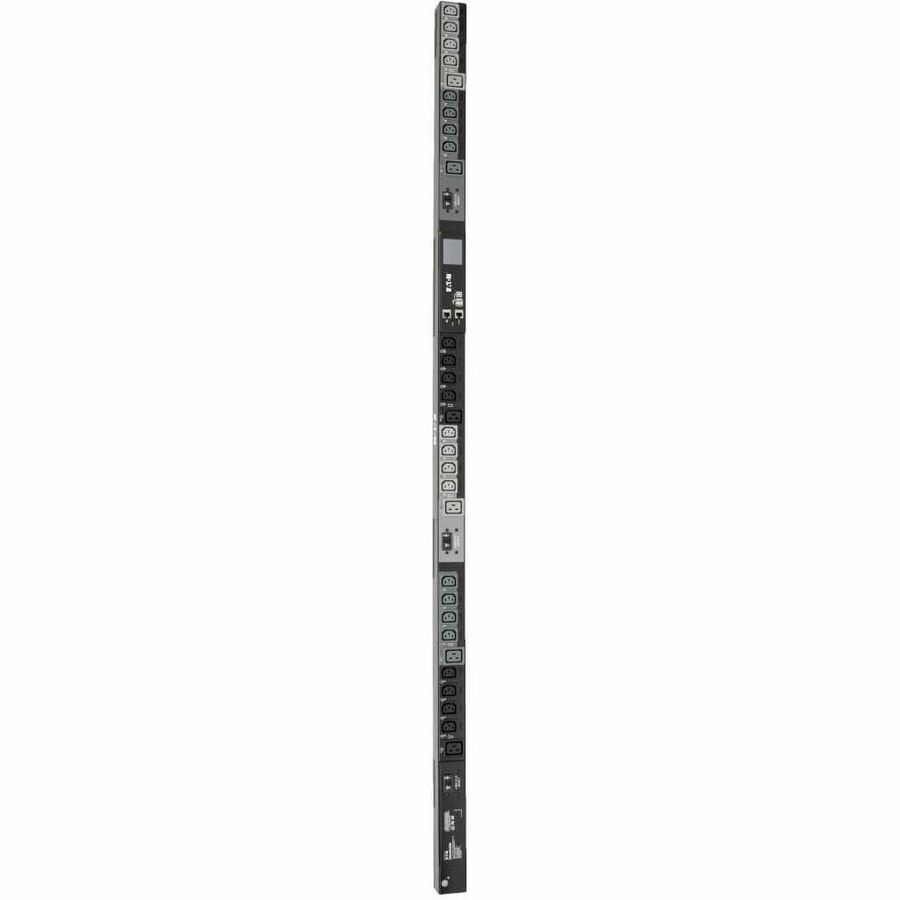

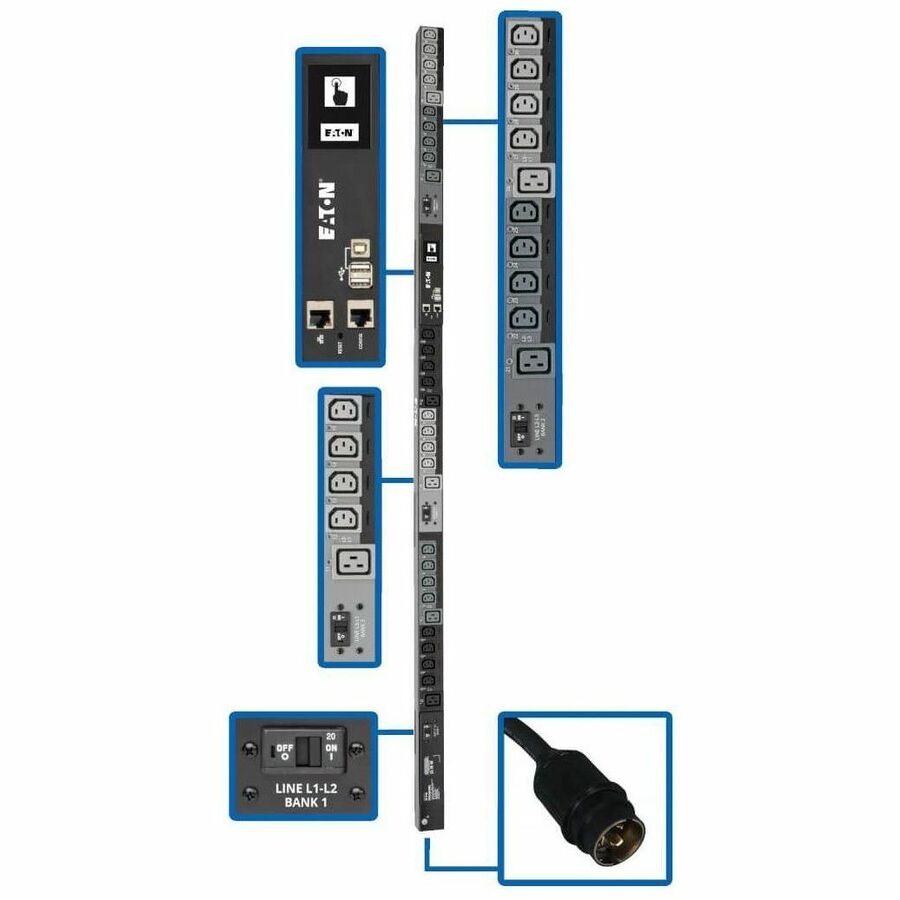

The PDU3EVSR6L2130 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input and output current levels, as well as environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
Sed bibendum ullamcorper efficitur
Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.
10kW 3-Phase Switched PDU with LX Platform Interface and Touchscreen LCD

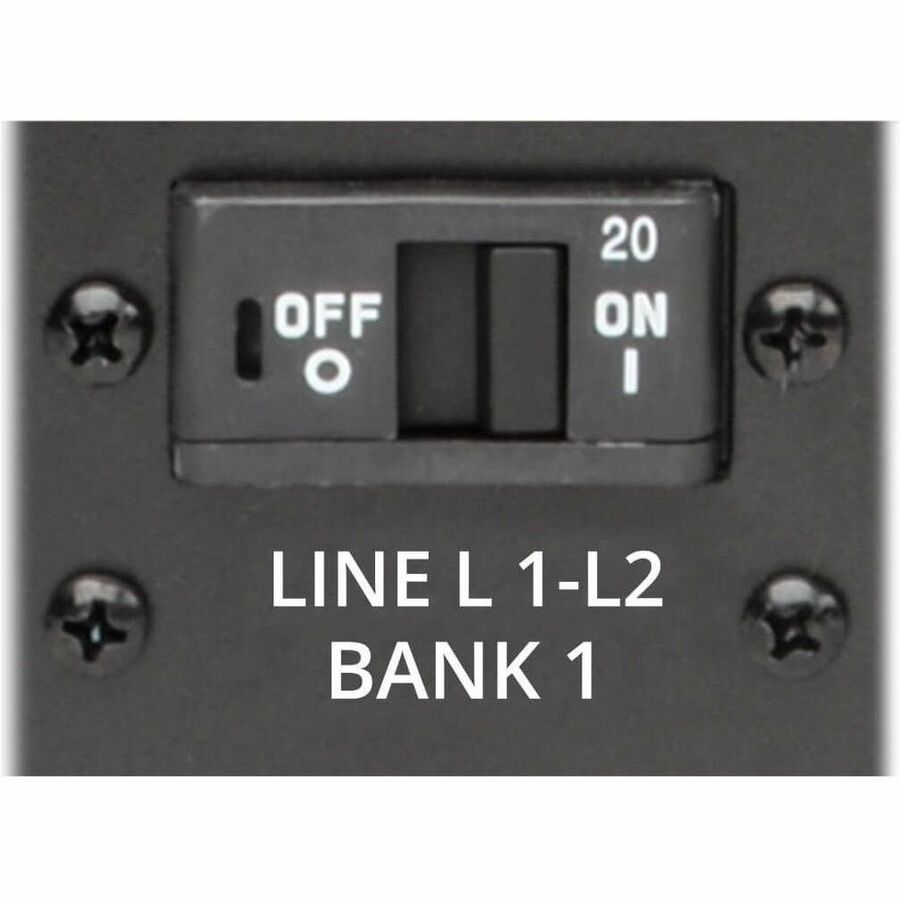

Tripp Lite’s PDU3EVSR6L2130 distributes, monitors and manages 200/208/240V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. The PDU features 30 switched outlets (24 C13 and six C19) in three breakered load banks. A six-foot power cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS system.
Cursus Sapien Ut
Built-In LX Platform Network Management Interface
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Color Touchscreen LCD A color

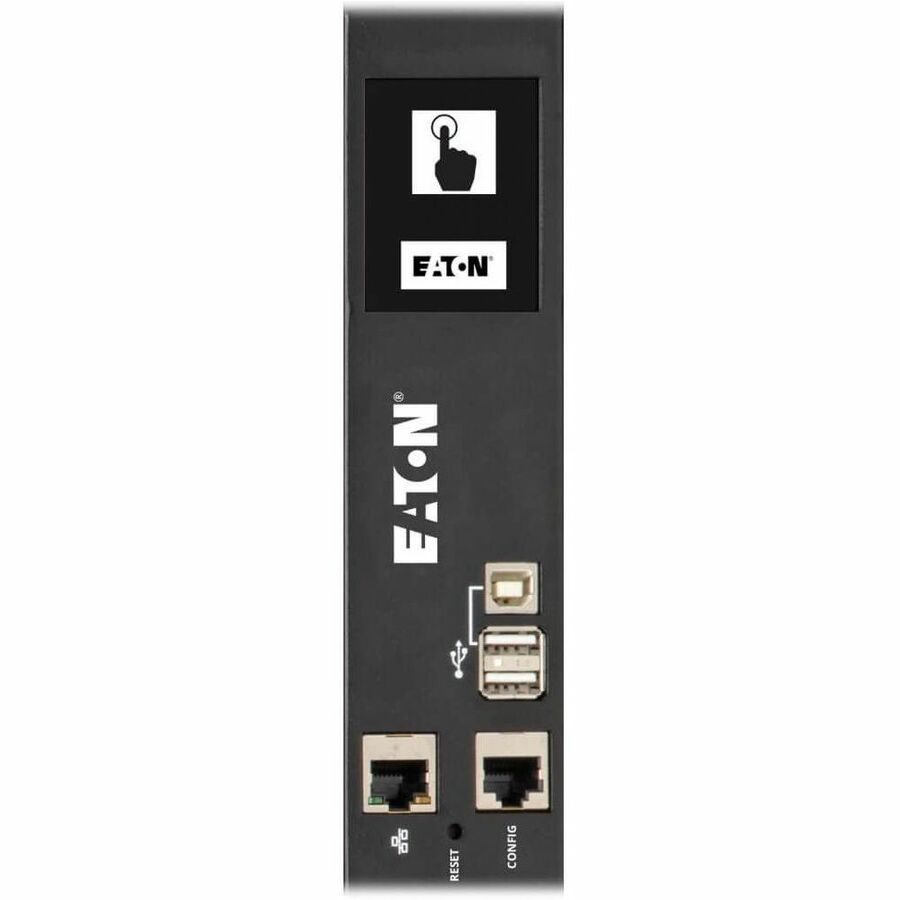

touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. The LCD also generates a unique QR code to allow access to the free downloadable PowerAlert® Device Manager through a mobile device. Full access is available by logging into PowerAlert via web browser as a user with read/write credentials.
Remote Individual Outlet Control

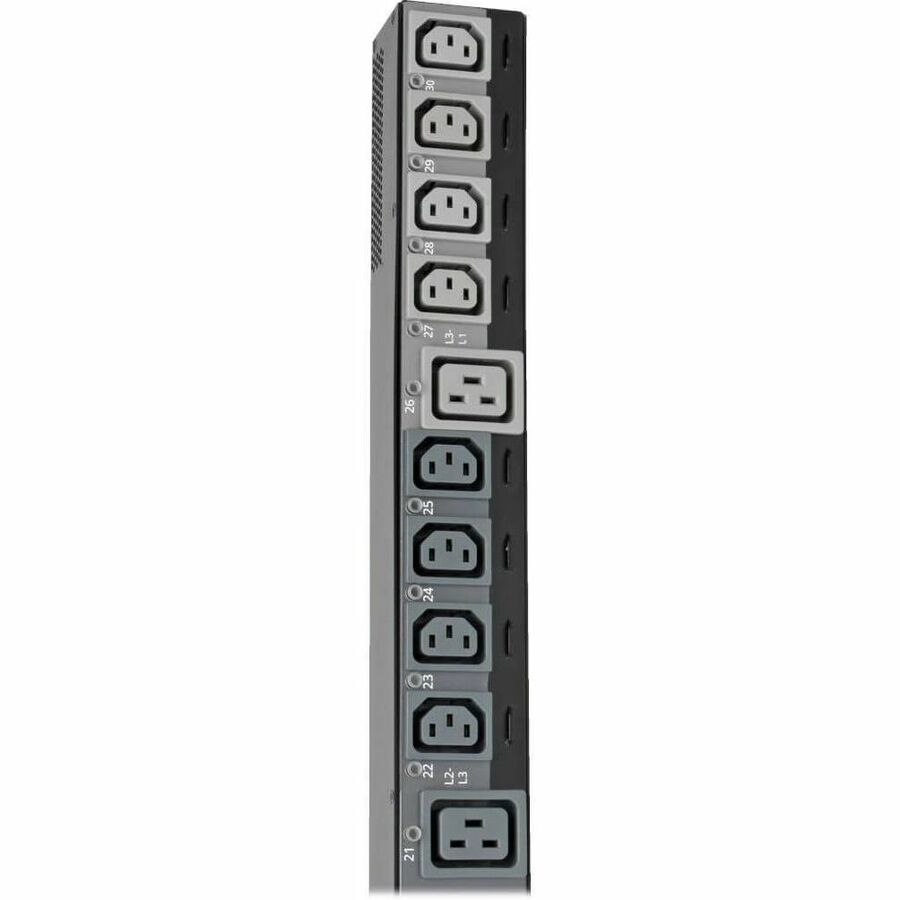

For a higher level of network power control, the 24 C13 and six C19 outlets can be individually controlled in real time. These controllable outlets enable power management tasks, including load shedding, load ramping, programming power-on and power-off sequences, and rebooting of locked-up network devices, to be performed remotely. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads. Each outlet has an LED that illuminates to confirm power on/off status.
Cursus Sapien Ut
Optimized for Demanding Applications
The all-metal case is designed to endure in demanding IT and industrial environments. The locking NEMA L21-30P plug and included plug-lock insert sleeves for the outlets help prevent the PDU and its connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered.
Versatile Installation Options
The PDU3EVSR6L2130 mounts vertically in 0U of space in EIA-standard 19-inch 2-post and 4-post racks using the included toolless mounting buttons or rack-mounting brackets. You can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access. Upgradable Firmware To support any future product enhancements, the PDU’s firmware can be manually upgraded.
TAA-Compliant for GSA Schedule Purchases
The PDU3EVSR6L2130 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Limited Warranty: 2 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3EVSR6L2130 |
| Brand Name | Eaton |
| Product Model | PDU3EVSR6L2130 |
| Product Name | PDU3EVSR6L2130 30-Outlet PDU |
| Product Type | PDU |
| Management | |
| Management | Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" |
| Width | 2.2" |
| Depth | 2.9" |
| Weight (Approximate) | 16.55 lb |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC, 208 V AC, 240 V AC |
| Power Rating (Watt) | 10 kW |
| Input Current | 24 A |
| Technical Information | |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19, 24 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
