Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 3 m Cord 0U 1.8 m Height TAA

The PDU3EVSR10L2130 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Features

Distributes, Monitors and Manages Network-Grade AC Power

• 10kW 200/208/240V switched PDU with 3-phase input

• Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

• NEMA L21-30P plug with 10 ft. cord connects to compatible AC power source

• Firmware upgrades support future product enhancements

30 Switched Outlets Distribute AC Power

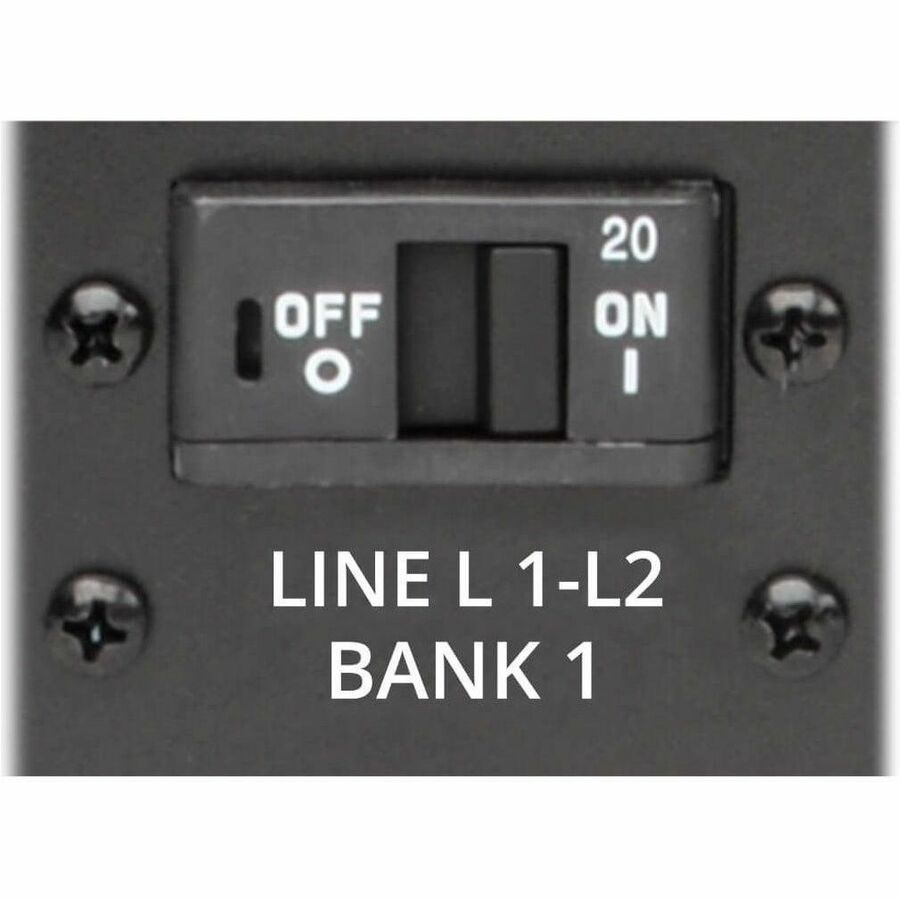

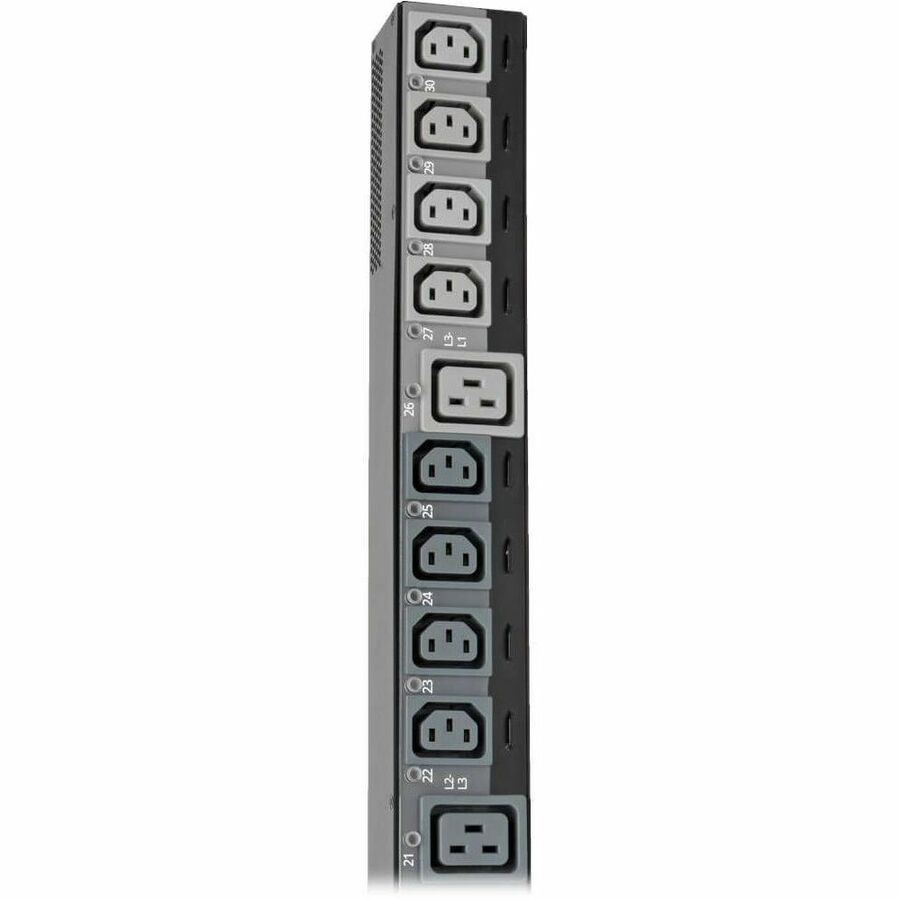

• 24 C13 and 6 C19 outlets split into 3 separately breakered load banks

• Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices

• Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD

• Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy

• Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device

• Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In LX Platform Interface

• Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

• No Java required

Broad Communications Compatibility

• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

• Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets

• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

10kW 3-Phase Switched PDU Provides Remote Management and Individual Outlet Control

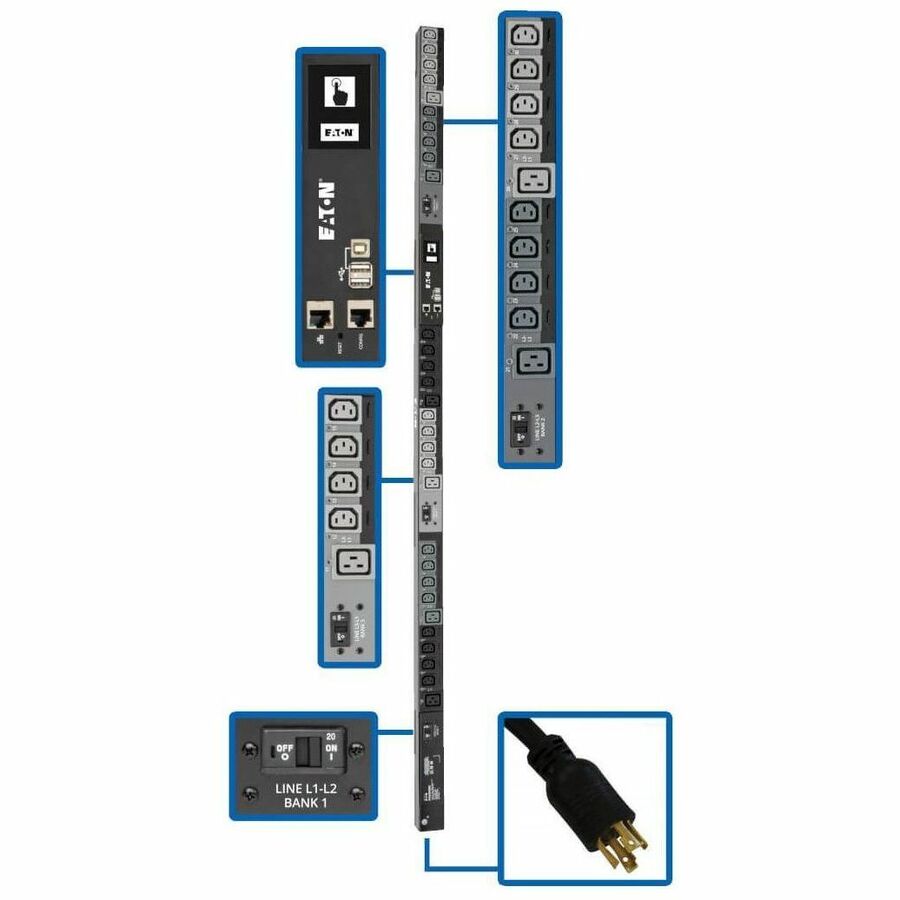

Tripp Lite’s PDU3EVSR10L2130 3-phase switched PDU provides 200/208/240V power to equipment in data centers, network closets, server rooms, computer rooms and other environments requiring network-grade power. It features remote management capability, individual outlet control and a multifunction touchscreen. This 3-phase PDU has 30 switched outlets (24 C13 and 6 C19) in three load banks, each with a separate circuit breaker. It has a 10 ft. input power cord with an L21-30P plug.

Provides Remote Monitoring with Included LX Platform Network Interface

The LX Platform network interface comes installed in the PDU, providing full remote access for status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It is a Java-free HTML5-based interface that supports 10/100 Mbps auto-sensing for effective network communication. Optional EnviroSense2 modules (sold separately) add a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Offers Individual Outlet Control from Anywhere

Advanced remote capabilities can help minimize downtime and reduce the frequency of on-site visits to save you time and money. Each outlet can be managed individually for load shedding, load ramping and programming of power-on/power-off sequences. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads. Each outlet has an LED to confirm power on/off status.

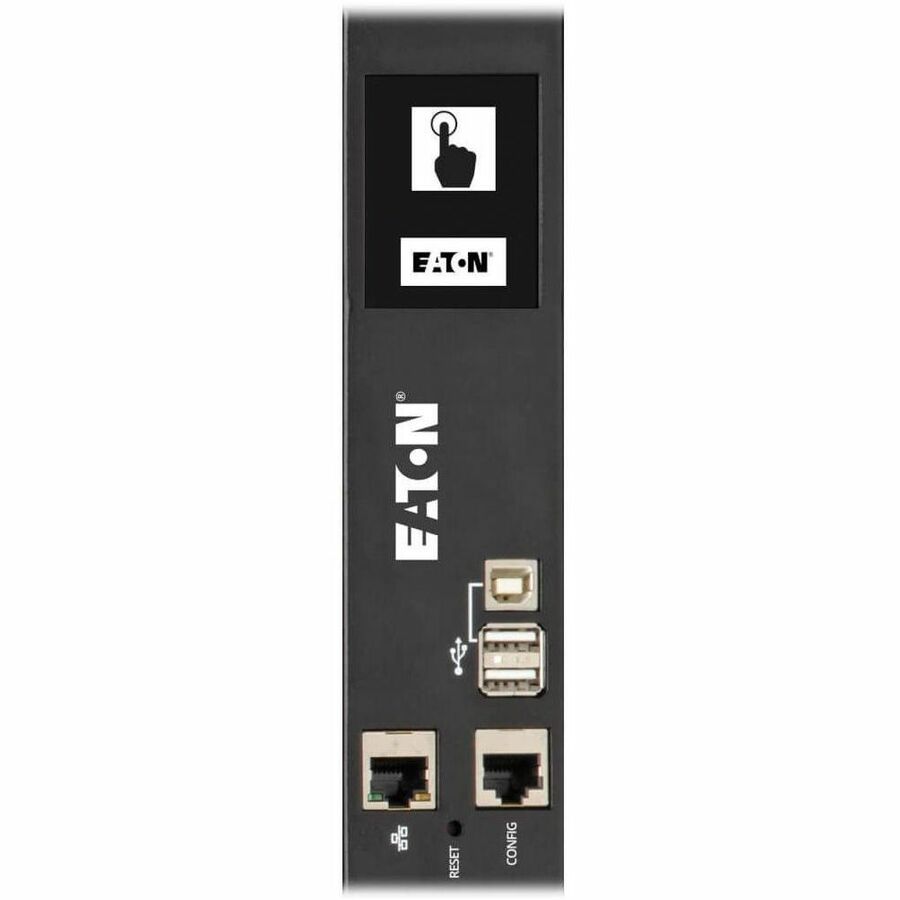

Displays Status on a Multifunction Touchscreen LCD and Mobile Device

With the touch of your finger, you can access power data, including the load per phase, per load bank and per outlet, as well as environmental sensor data and network information. The color LCD can also generate a unique QR code to allow access to the free downloadable PowerAlert® Device Manager through a mobile device. Gain full access by logging into PowerAlert via web browser as a user with read/write credentials.

Offers Versatile Installation Options

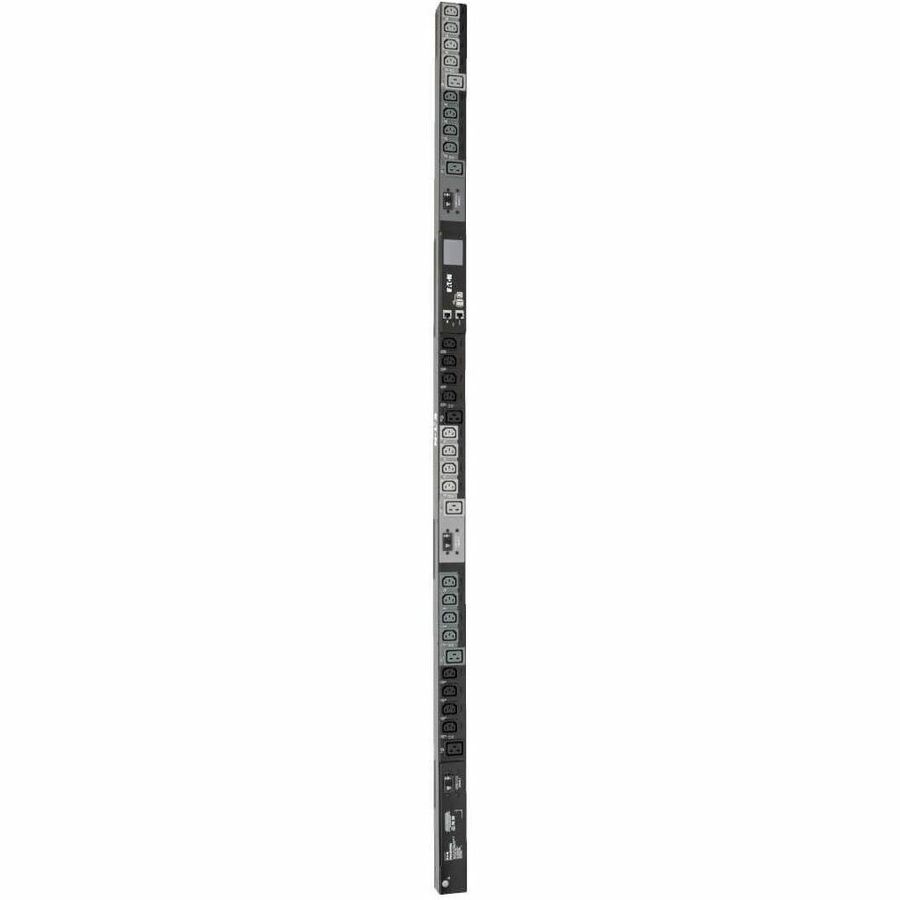

The PDU3EVSR10L2130 mounts vertically in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or rack-mounting brackets. You can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access.

2-Year Warranty and Environmentally Responsible Design

The PDU3EVSR10L2130 comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Complies with TAA for GSA Schedule Purchases

The PDU3EVSR10L2130 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
