Outlets NEMA L5-30P Input 15 ft. (4.57 m) Cord 1U Rack-Mount
24 x NEMA 5-15R - 24 - 1U 19" Rack-mountable"
MSRP$471.00
$433.32
Save 8%In stock: 606
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

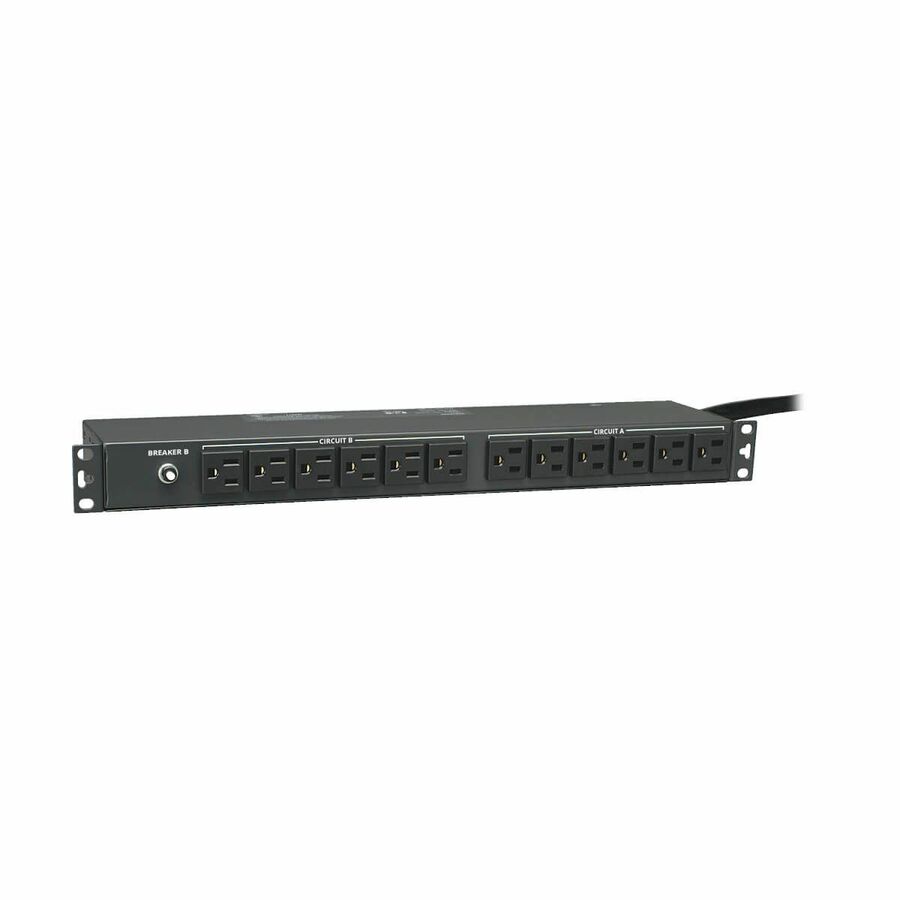

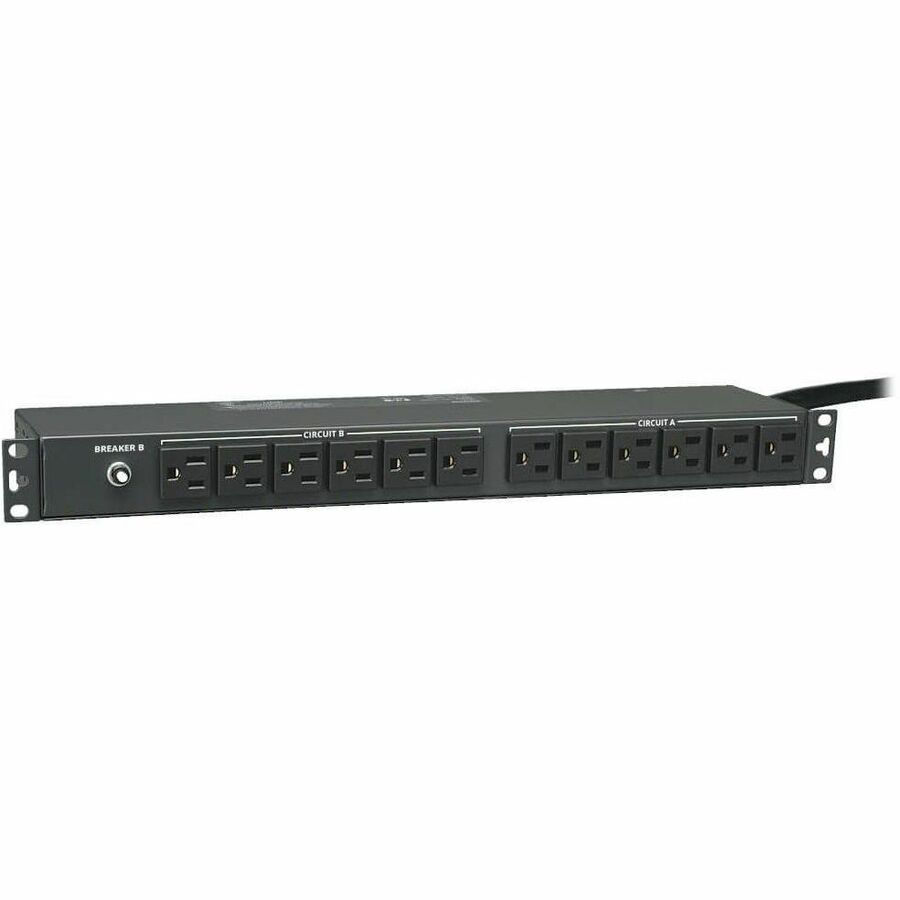

The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot(4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory(sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.
More from the Manufacturer
Dependable, Cost-Efficient, and Flexible Power Distribution Solution
If you need dependable power distribution that won't bust your budget, Tripp Lite's PDU2430 Single-Phase Basic Power Distribution Unit (PDU) is the economical choice for distributing and managing power to IT, industrial and similar high-density applications. With 24 5-15R outlets and a locking L5-30P plug, the PDU2430 offers flexible and reliable power distribution to components. The PDU2430 is configured for 1U rackmount installation with the included hardware and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. Detachable mounting flanges enable the PDU2430 to be installed in a wide range of additional configurations. For peace of mind, the PDU2430 comes backed by a 5-year warranty and is designed according to strict RoHS specifications.
Flexible Outlet Array

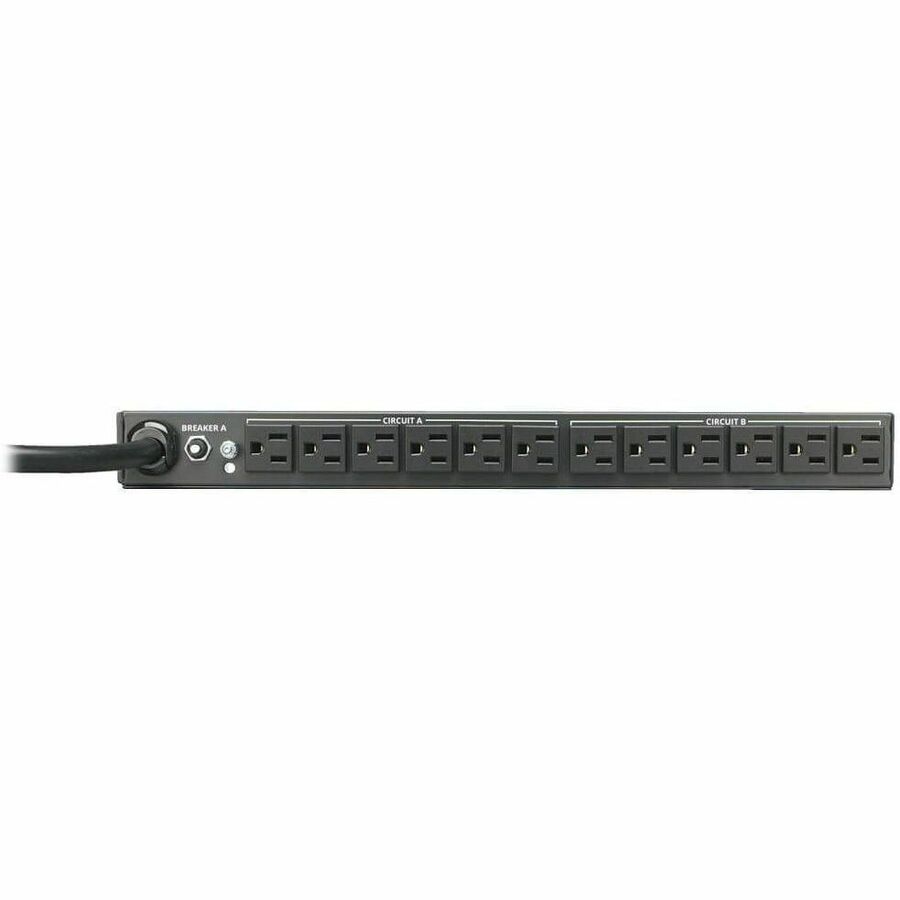

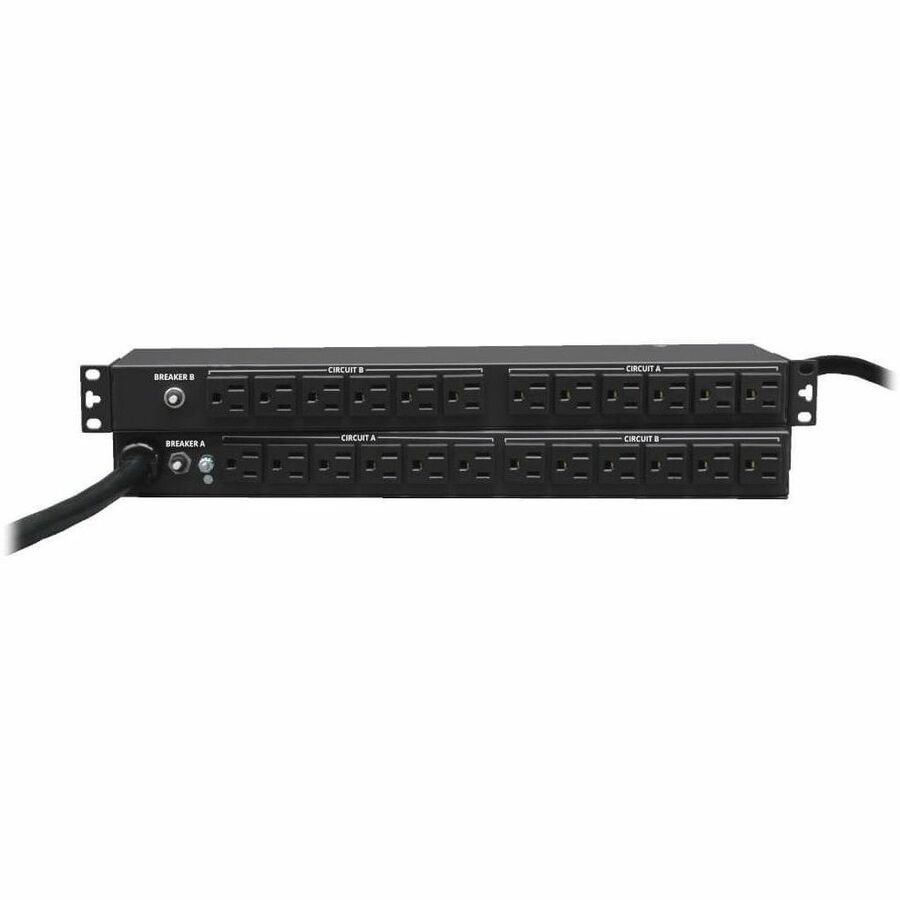

The PDU2430 contains a total of 24 5-15R outlets—12 on the front and 12 on the rear of the unit. The PDU2430's reversible housing makes it easier to connect equipment to the PDU and also simplifies cord management—a key advantage in IT applications where cord clutter is a problem.
Constructed for Heavy-Duty Service
With a rugged, all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff, the PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications. The PDU2430 is furnished with its two 15-amp circuit breakers (one for each set of 12 outlets) to protect the PDU as well as the connected equipment against overloads and short circuits.
Optimized for Rackmount Installation
The PDU2430 easily mounts within standard 1U (horizontal) racks with the included hardware. It can also be configured for 0U (vertical) installation in the cable management area of many rack enclosures. In 0U configuration, the PDU2430 can help to promote efficient airflow through the rack by reducing cord clutter.
Multiple Installation Options
The PDU2430 is easy to integrate with a wide range of applications. Adjustable, detachable mounting flanges enable you to install the PDU2430 in many configurations: on a wall or workbench, under a counter and more. It also features a long 15-ft. power cord that reaches distant AC outlets with ease.
Constructed for Heavy-Duty Service
The PDU2430 is optimized for reliable service in demanding IT, industrial and commercial applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff. Two resettable 15A circuit breakers protect the PDU and connected equipment from damage due to power overloads and short circuits.
Tripp Lite's PDU2430 Power Distribution Unit Offers:
30-amp PDU with 24 outlets
Rugged all-metal housing with detachable mounting flanges
Switchless design prevents accidental shutoff
Configurable for 1U rackmount (horizontal) or 0U (vertical) installation
Limited Warranty: 5 Year Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
P560-Series DVI Dual Link TMDS Cables
How to Choose a PDU: Basic PDUs
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU2430 |
| Brand Name | Tripp Lite series |
| Product Model | PDU2430 |
| Product Name | PDU2430 2.9kW Single-Phase 120V Basic PDU |
| Product Type | PDU |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 24 x NEMA 5-15R |
| Warranty | |
| Limited Warranty | 5 Year Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
