Overview

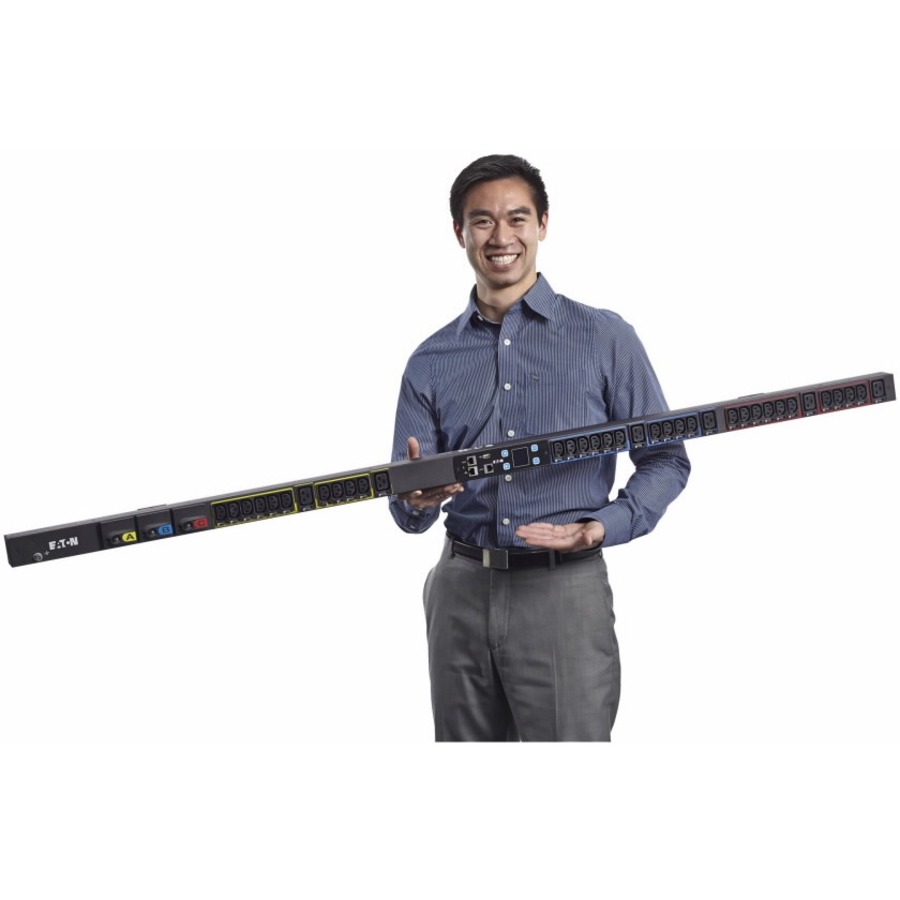

Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
• IEC outlet grip plug retention secures plugs in place using standard cables
• Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
• High operating temperature (140F / 60C) for containment or hot network closet environments
• Hot-swap meter for servicability of without removing power to the rack
• +/- 1% billing grade accuracy for high accuracy reporting of energy usage
• Daisy chain of IP addresses allows four devices to share one network connection
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
High density units support up to 25 1U/2U servers or three blade server chassis
Easy read digital ammeter reduces local monitoring time
Clearly labeled circuits simplify load balancing
Reading available via Ethernet connection over a network
UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
EMI318-10
Brand Name
Eaton
Product Line
ePDU
Product Name
ePDU 39-Outlets PDU
Product Type
PDU
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Mount Type
Rack-mountable
Rack Height
38U
Cord Length
10 ft
Height
66.5"
Width
2.1"
Depth
2.1"
Weight (Approximate)
14.30 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Input Voltage Range
120 V AC - 208 V AC
Power Rating (Watt)
5760 W
Input Current
16 A
Technical Information
Plug/Connector Type
NEMA L21-20P
Receptacle Type
IEC 60320 C13, IEC 60320 C19, NEMA 5-20R
Receptacle Detail
30 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-20R
