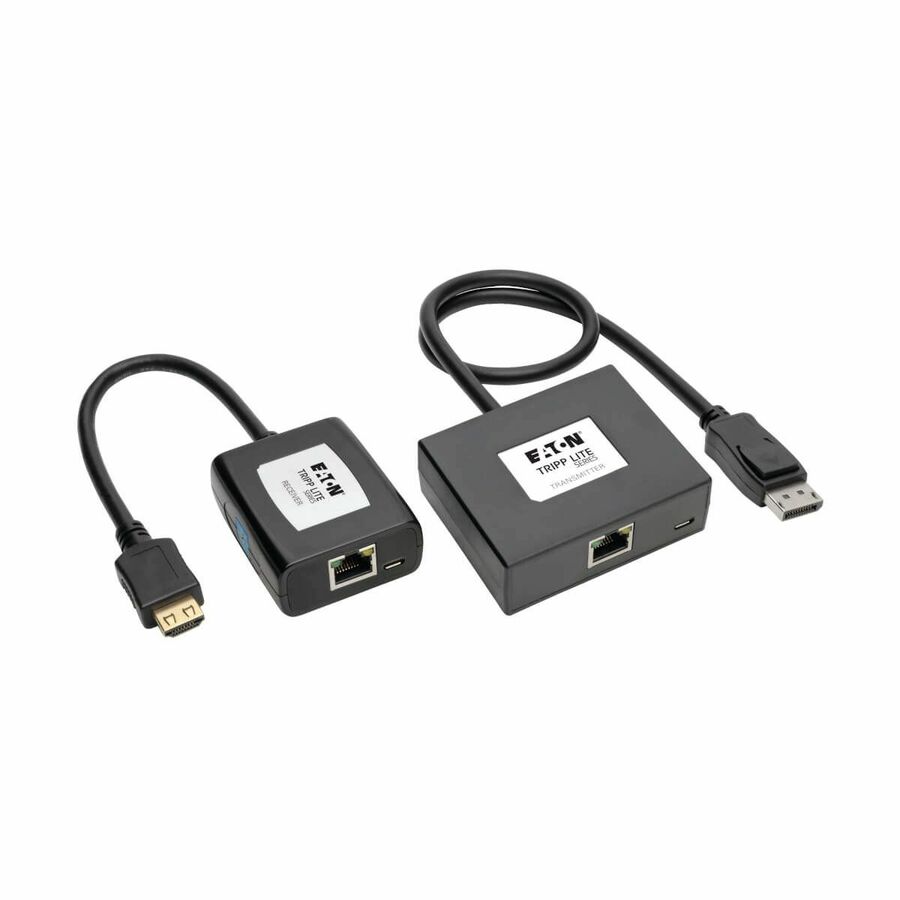

Tripp Lite by Eaton DisplayPort to HDMI over Cat5/6 Active Extender Kit Pigtail Transmitter/Receiver for Video/Audio 150 ft. (45 m) TAA

Active extender kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or TV up to 150' away. Kit is capable of extending a high-definition 1080i (60 Hz) signal up to 150' and a 1080p (60 Hz) signal up to 125'. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal for quick reference. Universal design is compatible with all operating systems. Hassle-free functionality does not require an external power supply for immediate use. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Kit supports 24-bit True Color (8 bits per channel) and stereo audio. Extender kit is perfect for digital signs, trade shows, presentations, classrooms, churches and more. More from the Manufacturer

Converts a DisplayPort Signal to HDMI and Extends It Up to 150 ft. via a Single

Tripp Lite’s B150-1A1-HDMI DisplayPort to HDMI over Cat5e/6 Active Extender Kit includes a transmitter and a receiver that convert a DisplayPort audio/video signal to HDMI, and then extend it to a high-definition television, monitor or projector up to 150 ft. away. You can save money by using your existing HDMI display without an expensive upgrade to a new DisplayPort monitor. The B150-1A1-HDMI is ideal for digital signage applications in schools, churches, trade shows, convention centers, retail environments and other locations where the video source is located farther from the display than conventional HDMI cables allow.

Supports 1080i Video Resolutions Up to 150 ft. (at 60 Hz) and Rich Stereo Sound

The HDCP 1.3-compliant B150-1A1-HDMI can extend a 1080i signal up to 150 feet (45.7 meters) or a 1080p signal up to 125 feet (38.1 meters) with a single Cat5e/6 cable. In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the B150-1A1-HDMI delivers full, rich stereo. The DisplayPort source device must be enabled to support audio in order for the B150-1A1-HDMI to extend audio signals.

Typical Applications

Streaming audio/video signals to HDTVs or monitors in another room

Video-conferencing in conference rooms, offices and classrooms

Displaying industrial and marketing videos at trade shows

Uses Inexpensive Cat5e/6 Cabling and Setup

One low-cost, user-supplied Cat5e/6 cable connects the transmitter and the receiver. For best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series.

The receiver’s built-in HDMI cable features a latching connector that helps prevent the unit from becoming dislodged or accidentally disconnected from the display device.

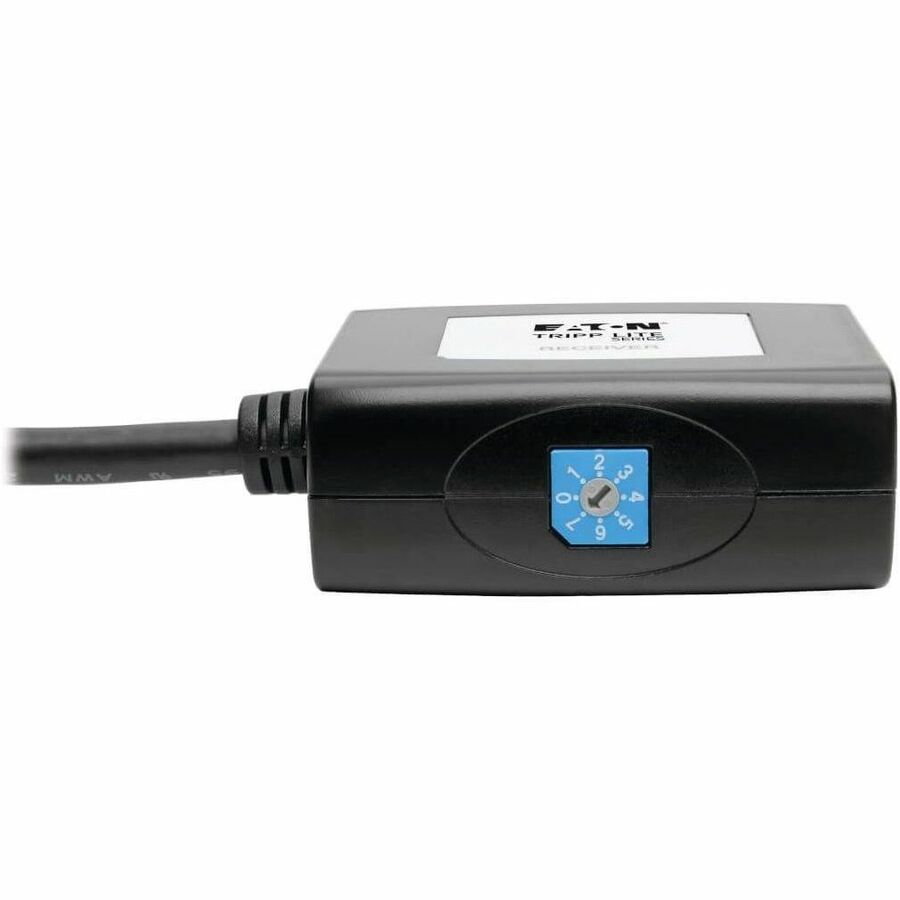

The plug-and-play B150-1A1-HDMI requires no external power, software or drivers, no matter which major operating system you use. Just connect the transmitter’s built-in DisplayPort cable to the source device and a Cat5e/6 cable between the transmitter’s RJ45 output jack and the receiver. Connect the receiver’s built-in HDMI cable to the display. Both units are powered via the included USB Micro-B cables, which connect to USB ports on the source and display devices or USB wall chargers. LEDs light up to indicate when the units are receiving power and sharing a signal. Use the receiver’s equalization control to adjust the video image.

Warranty and TAA

The B150-1A1-HDMI is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

The B150-1A1-HDMI comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
