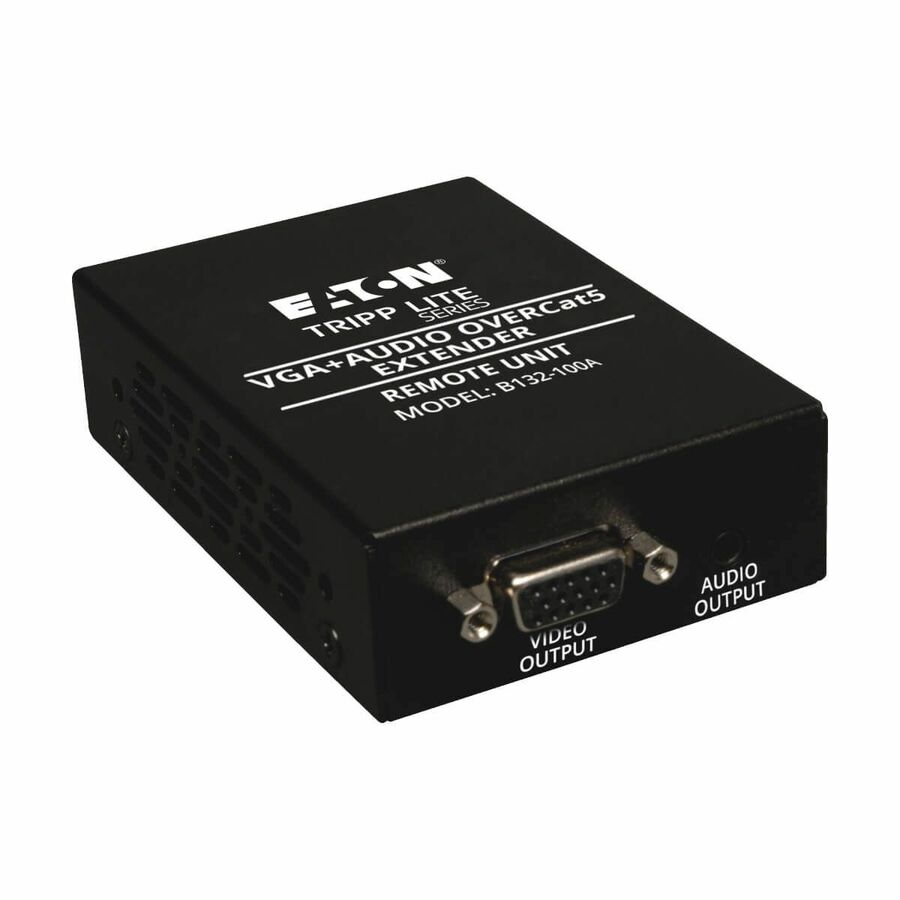

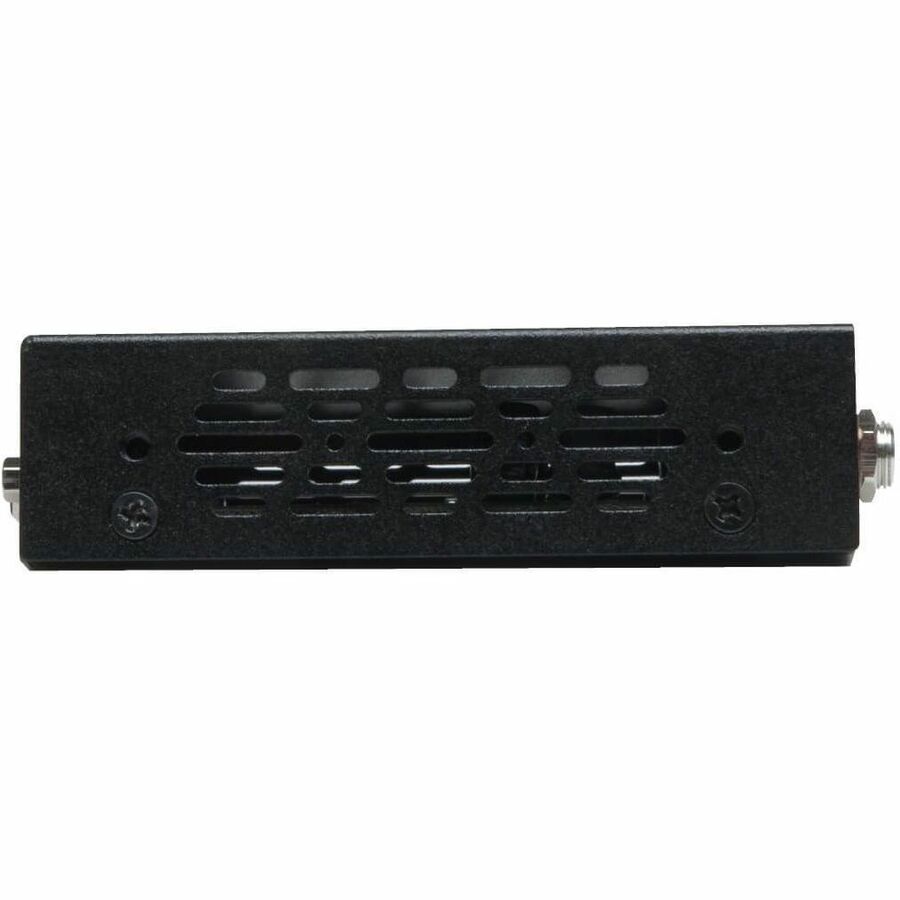

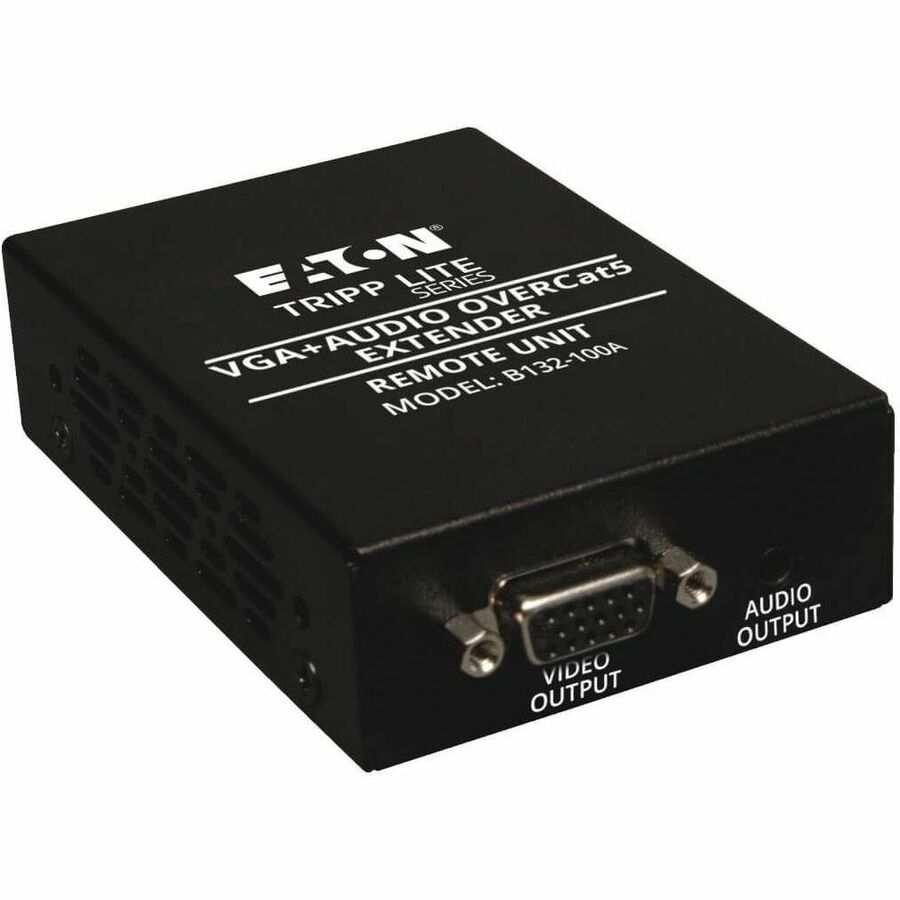

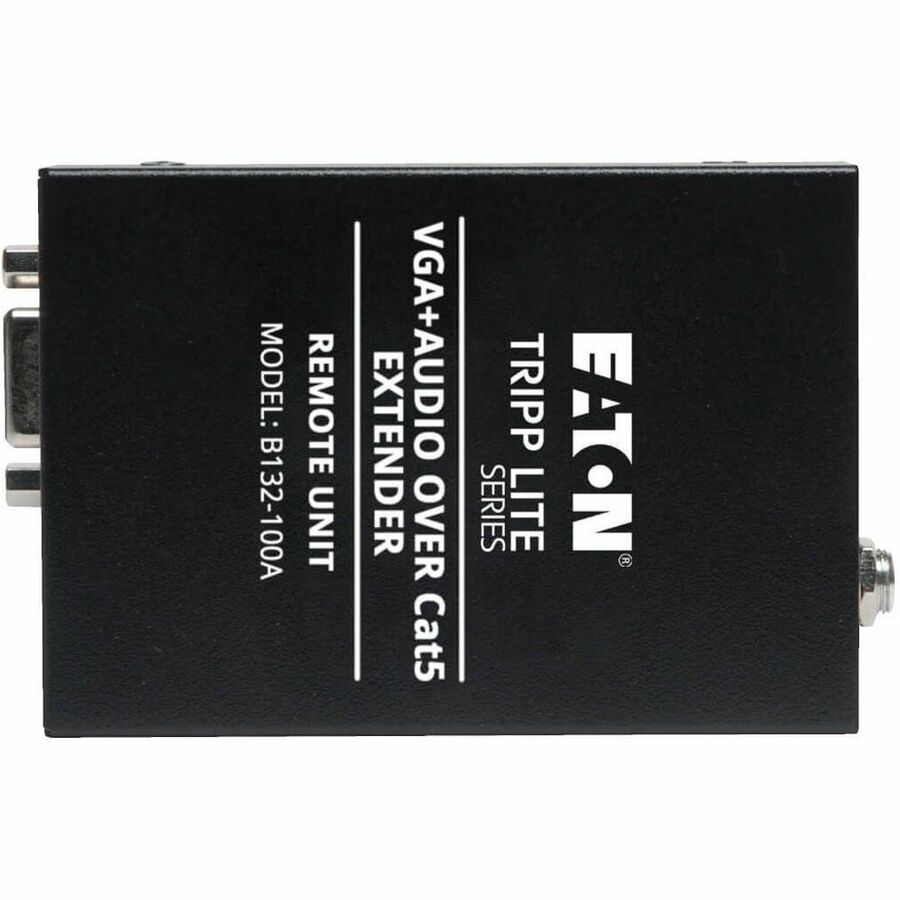

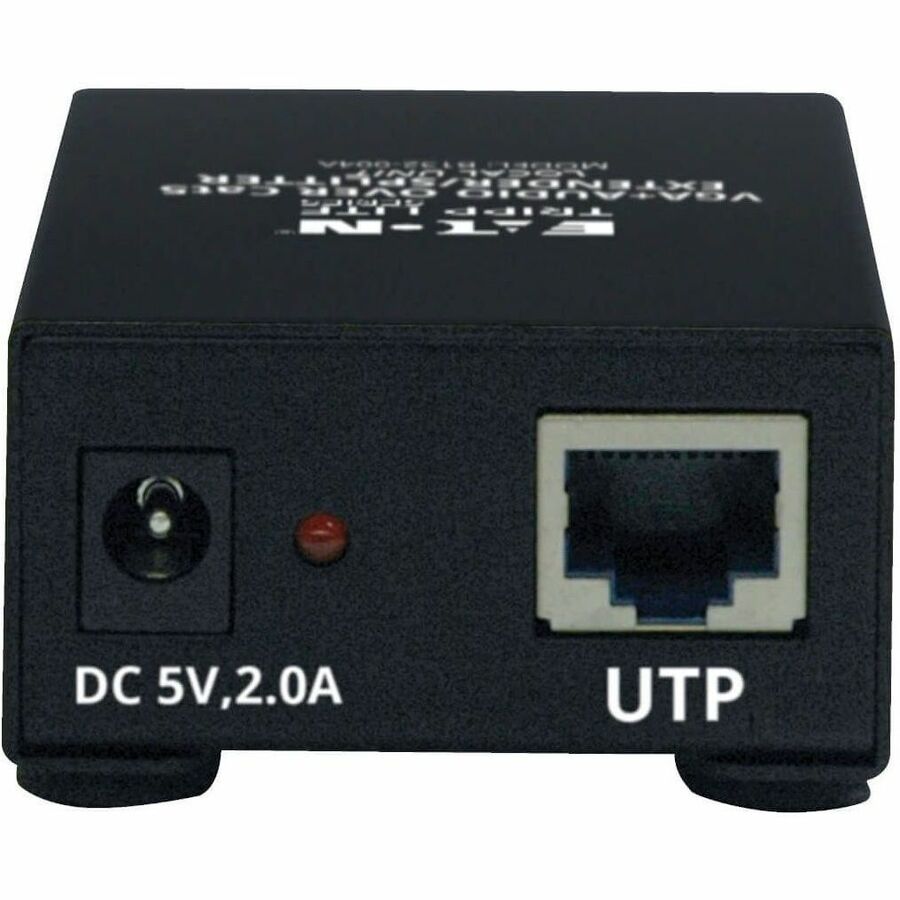

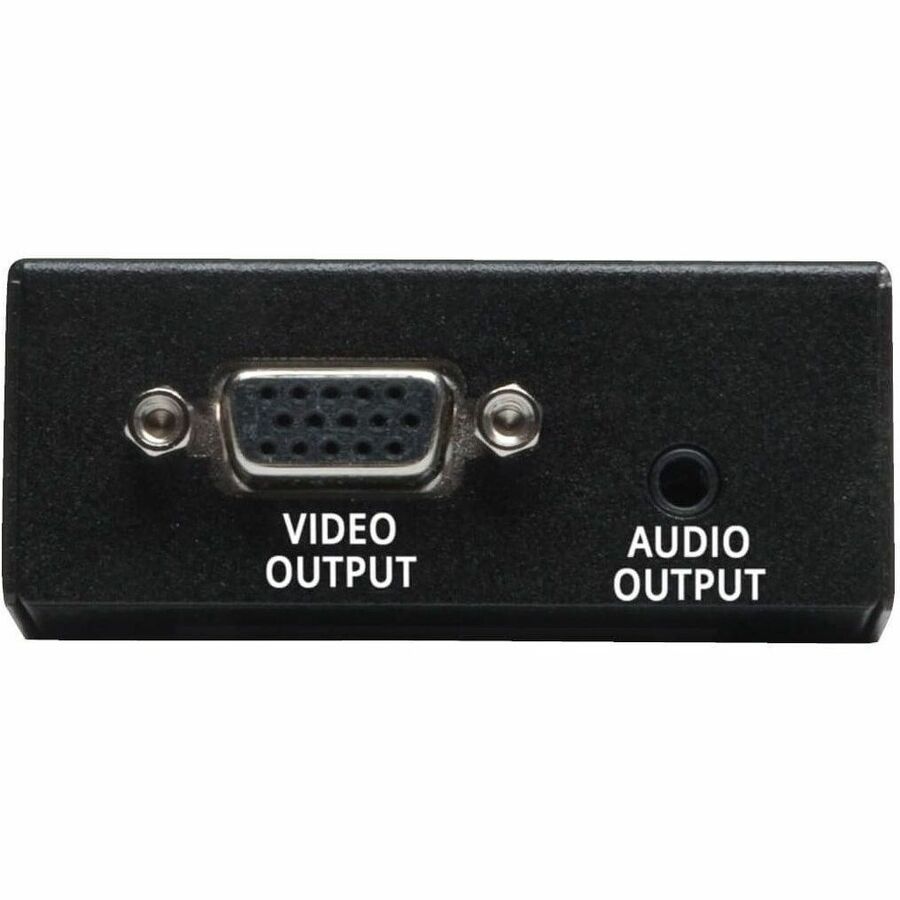

Eaton Tripp Lite Series VGA over Cat5/6 Extender, Box-Style Receiver for Video/Audio, Up to 1000 ft. (305 m), TAA
1 x 1 - VGA, XGA, SVGA, SXGA, UXGA, WUXGA - 500ft, 1000ft
- SKU
- B132-100A
- Category
- Audio & Video Consoles/Extenders
MSRP$158.00
$103.04
Save 35%In stock: 12
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B132-100A
- Category
- Audio & Video Consoles/Extenders
Overview
Tripp Lite's B132-100A works with a B132-002A-2 or B132-004A-2 local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
More from the Manufacturer
Warranty
Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Works with a B132-002A-2 or B132-004A-2 local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | B132-100A |
| Limited Warranty | 1 Year |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable, Wall Mountable, Pole-mountable |
| Manufacturer | Eaton Corporation |
| Product Model | B132-100A |
| Product Name | B132-100A TAA/GSA Compliant Video Extender |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1440 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 1000 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 1.10" |
| Transmitter Width | 2.50" |
| Transmitter Depth | 3.60" |
| Transmitter Weight (Approximate) | 7.20 oz |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
