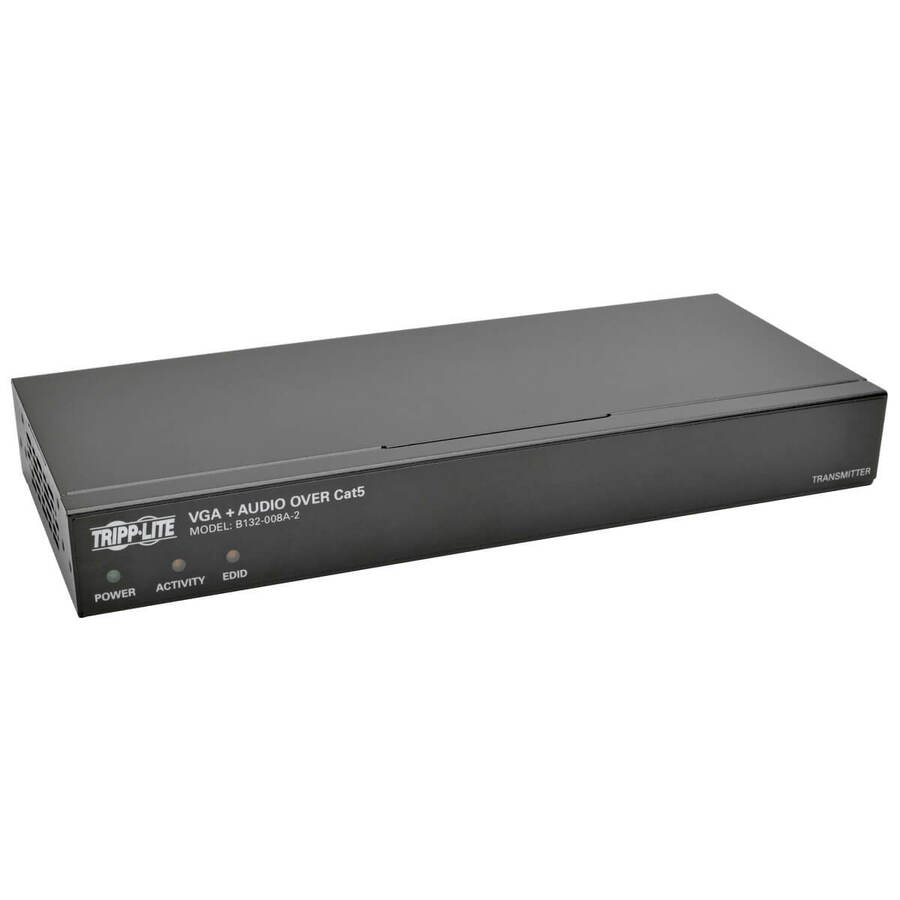

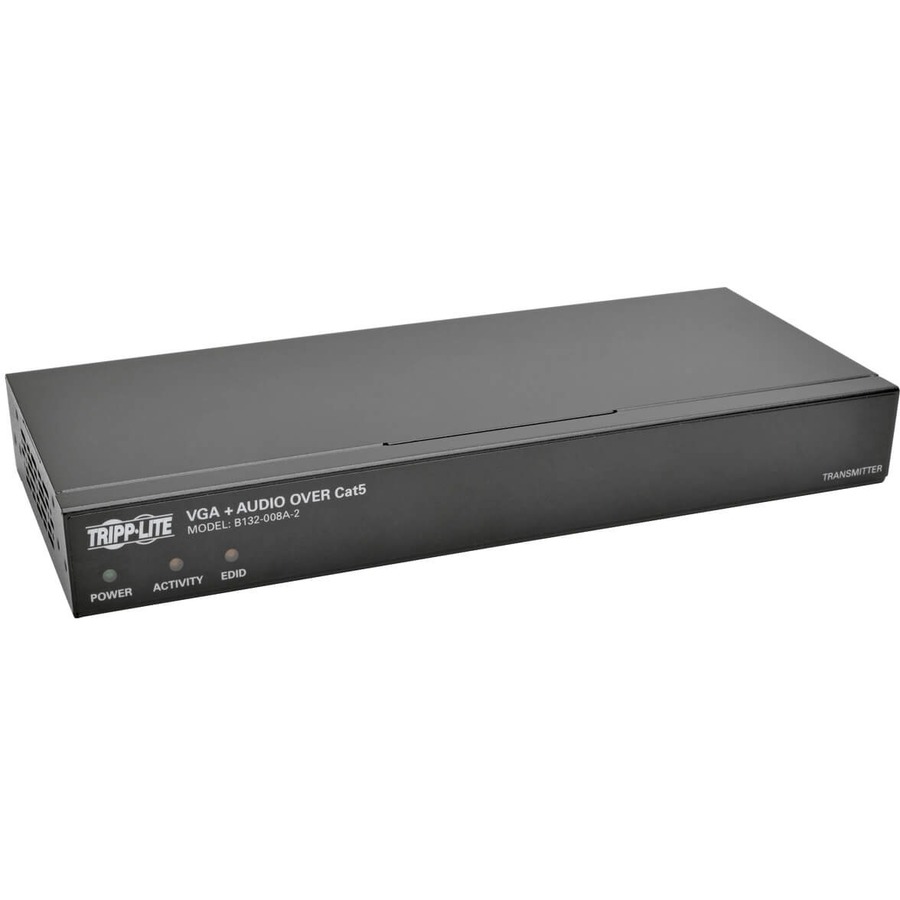

Eaton Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

The B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver to split a VGA audio/video signal into nine separate signals-one local and eight remote. It's ideal for digital signs, trade shows and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

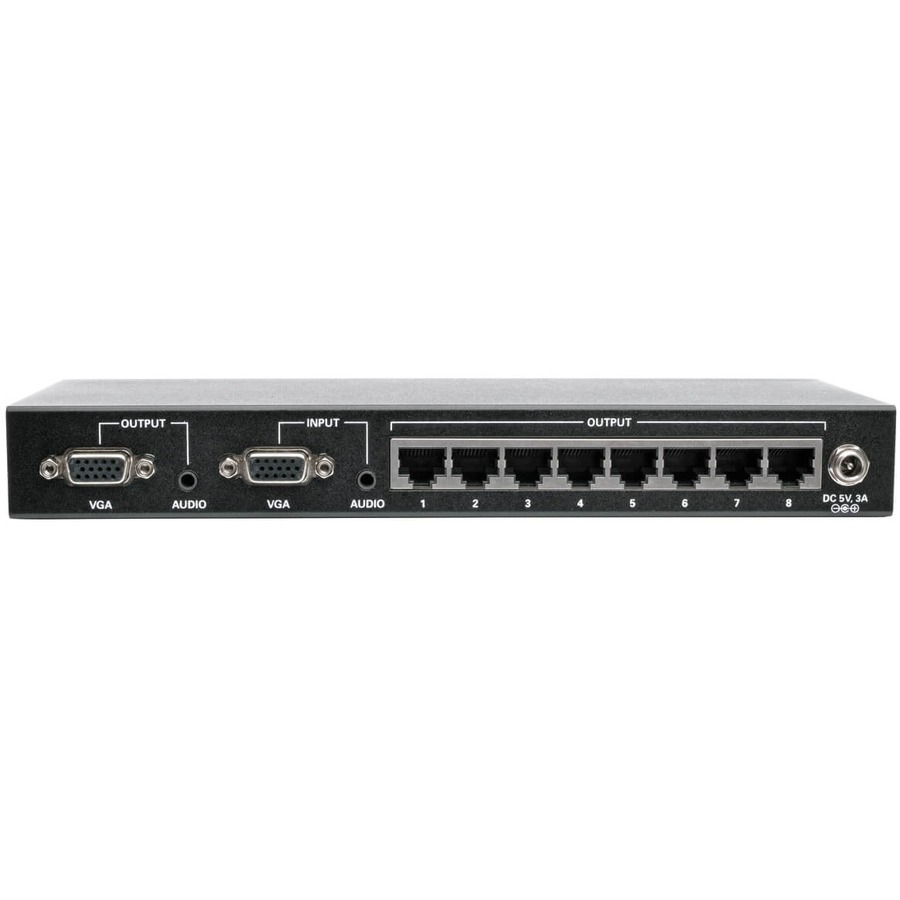

The B132-008A-2 uses VGA cable(such as Tripp Lite's P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable.

When used with Tripp Lite's B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays-48 remote and one local.

Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.

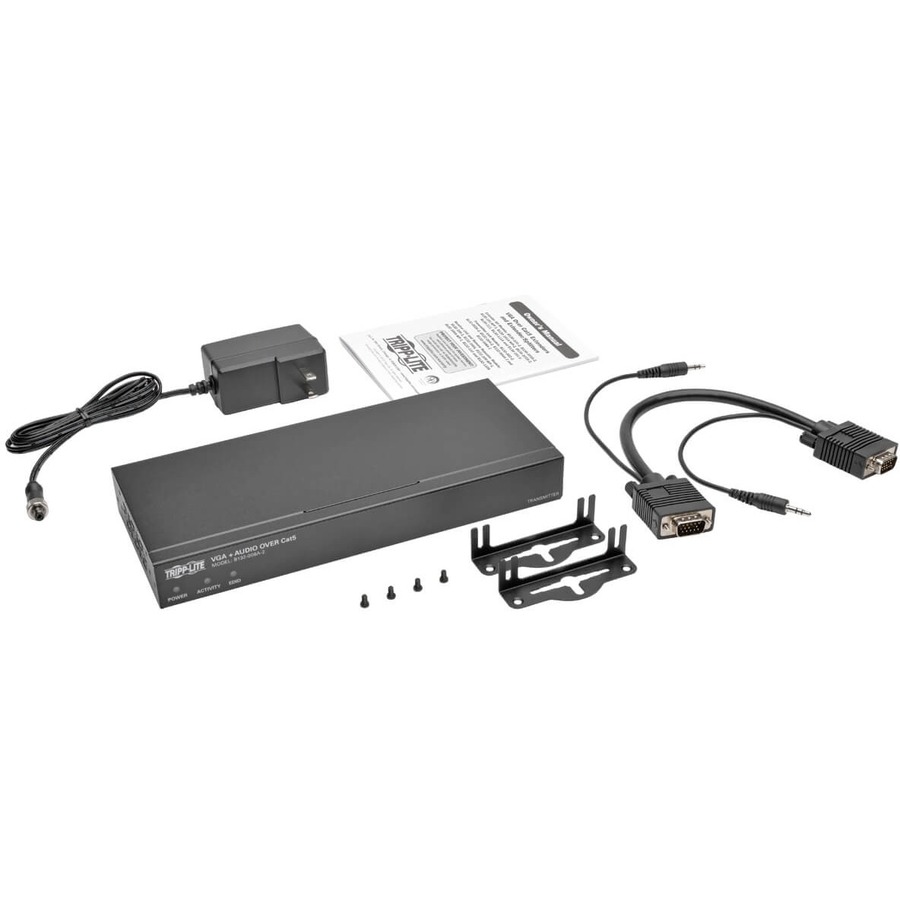

The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no Software Or Drivers To Install. Mounts To A Wall, Rack Or Pole Using The Included Hardware. More from the Manufacturer

Extend Signals Up to 1,000 ft. and Daisy-Chain Units

When used with Tripp Lite’s B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440 (60 Hz) signal up to 500 feet and a 1024 x 768 (60 Hz) signal up to 1,000 feet. The unit uses VGA cable to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers.

By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays—48 remote and one local. Add up to three B132-110A remote repeaters (sold separately) to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440 (60 Hz) signal up to 500 feet or a 1024 x 768 (60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.

Easy to Set Up, TAA Compliant and One-Year Warranty

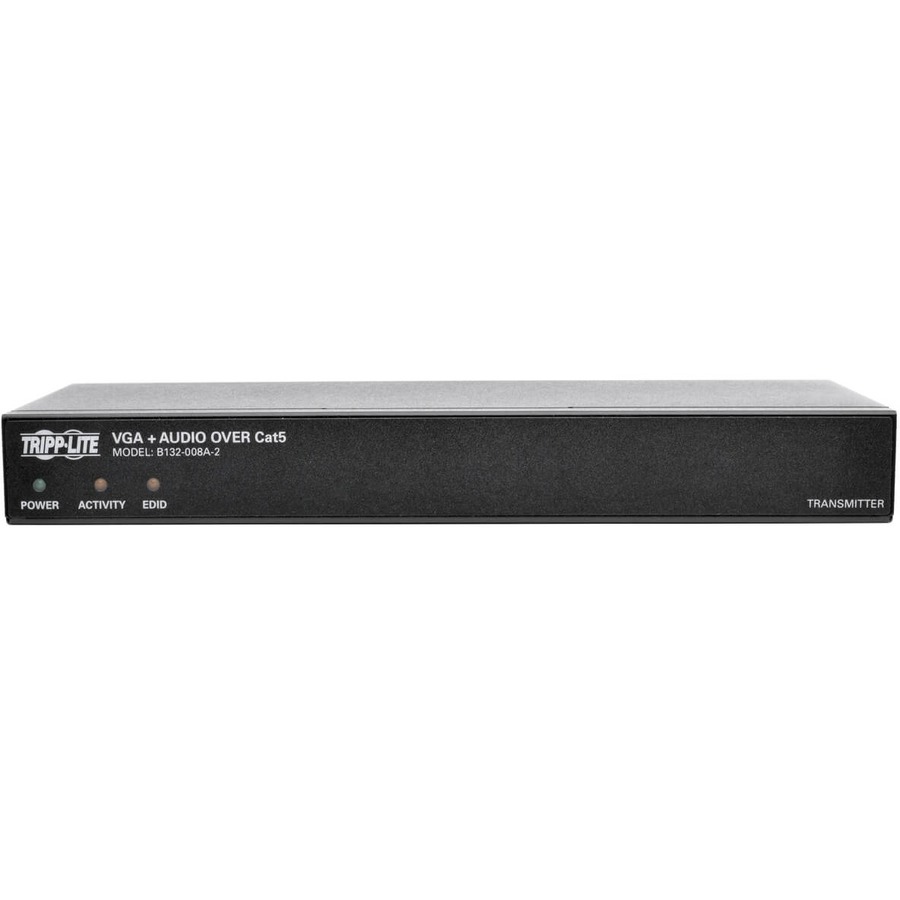

The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. It’s a breeze to set up with no software or drivers to install, and mounts to a wall, rack or pole using the included hardware. Convenient LEDs indicate at a glance when the unit is receiving power and a VGA signal from the source.

The B132-008A-2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

The B132-008A-2 comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
