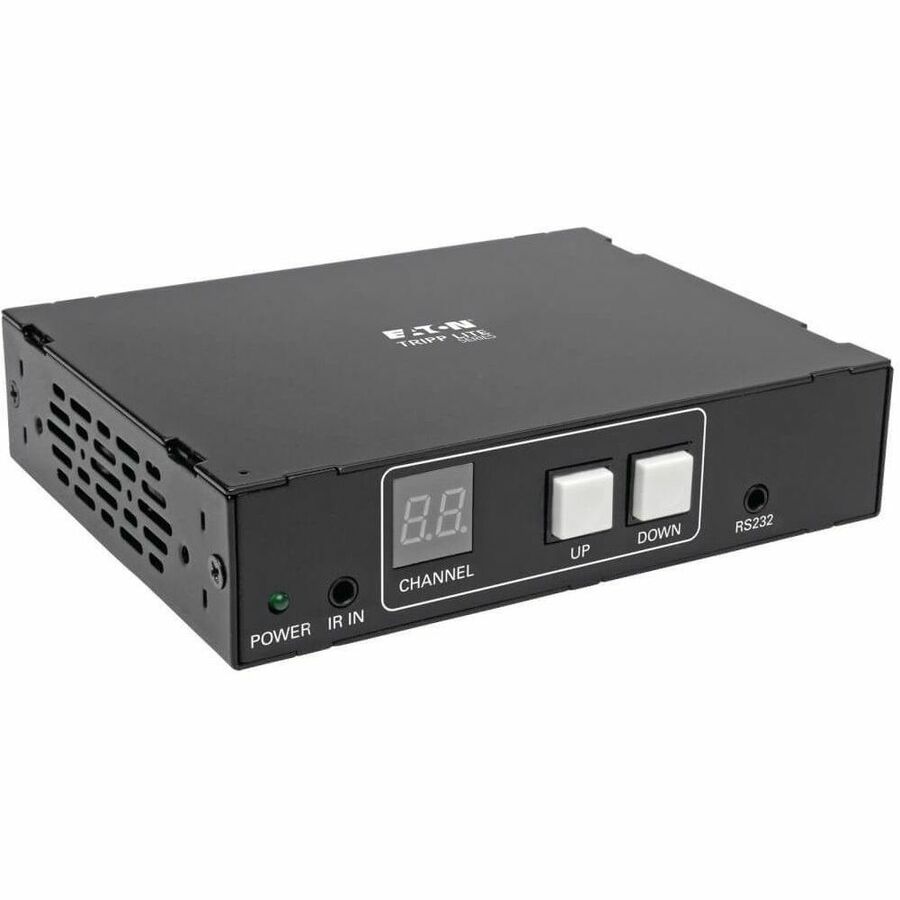

Eaton Tripp Lite Series DVI/HDMI over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

The B160-100-HDSI HDMI Audio/Video with RS-232 Serial and IR Control over IP Receiver extends and distributes HDMI/DVI video(adapter cable included for connecting DVI display), RS-232 serial and IR(infrared) remote signals through a dedicated Ethernet network switch* located up to 328 feet(100 m) away. With an additional 328 feet between the switch and the transmitter(sold separately), the total maximum distance from source to display is 656 feet(200 m).

The B160-100-HDSI is designed for managed network switches with IGMP, which allow login and remote management via switch interface. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.**

The B160-100-HDSI supports video resolutions up to 1920 x 1080(1080p) at 60 Hz. It works with any analog or digital source, including DisplayPort and VGA. It extends IR control signals that control a source, such as a Blu-ray? player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.

Compatible with Tripp Lite's B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.

*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.

**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.

Features

Extends and Distributes HDMI/DVI A/V, Serial and IR Control Signals over Cat5/6 Cabling

• Converts source video to IP-based signal transmitted to and distributed through network switch

• Adapter cable included for connecting a DVI display

• Extends signal up to 328 ft.(100 m) from switch

• Can also connect directly to transmitter up to 328 ft. away

Designed for Managed Network Switches with IGMP

• Allows login and remote management via switch interface

• Works with any analog or digital source, including DisplayPort and VGA

• Connect up to 64 transmitters and 255 receivers in single managed switch installation

Enhanced Technical Features

• Supports video resolutions up to 1920 x 1080(1080p) @ 60 Hz

• Uses H.264 video compression standard

• Transmits on 20-60 kHz IR frequency

• Extends IR control signals that control a source from a remote display

• Supports RS-232 serial baud rates up to 57600 Bps

• HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter (not compatible with VGA transmitter)

Plug and Play Functionality

• No software or drivers required

• Hardware included for mounting on wall, rack or pole

• Compatible with B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters

TAA-Compliant

• Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

More from the Manufacturer

Distributes HDMI/DVI A/V, Serial and IR Control Signals over Cat5e/6 Cabling

The B160-001-HDSI HDMI/DVI over IP Extender Transmitter works with a Tripp Lite B160-Series receiver (sold separately) to extend and distribute HDMI or DVI audio/video, RS-232 serial and IR (infrared) remote signals up to 328 feet (100 meters).

Typical Applications

Keep your content source in a secure location with displays located elsewhere for viewing by the intended audience

Create an easily updatable video board communicating dynamic information

Display arrivals, departures and up-to-the-minute information in an airport or train station

Duplicate audio/video content across multiple displays, show different content on multiple screens or create an impressive video wall made up of many monitors

Extend content using source and display equipment you already own

Point-to-Point Installations Beyond Conventional Limits

Place your computer, tablet, DVD player, Blu-ray player or other source in a secure, out-of-the-way location. With just a single transmitter and receiver, your monitor, TV or projector can be located up to 328 feet away...that’s more than 200 feet farther than a traditional Cat5e/6 solution.
