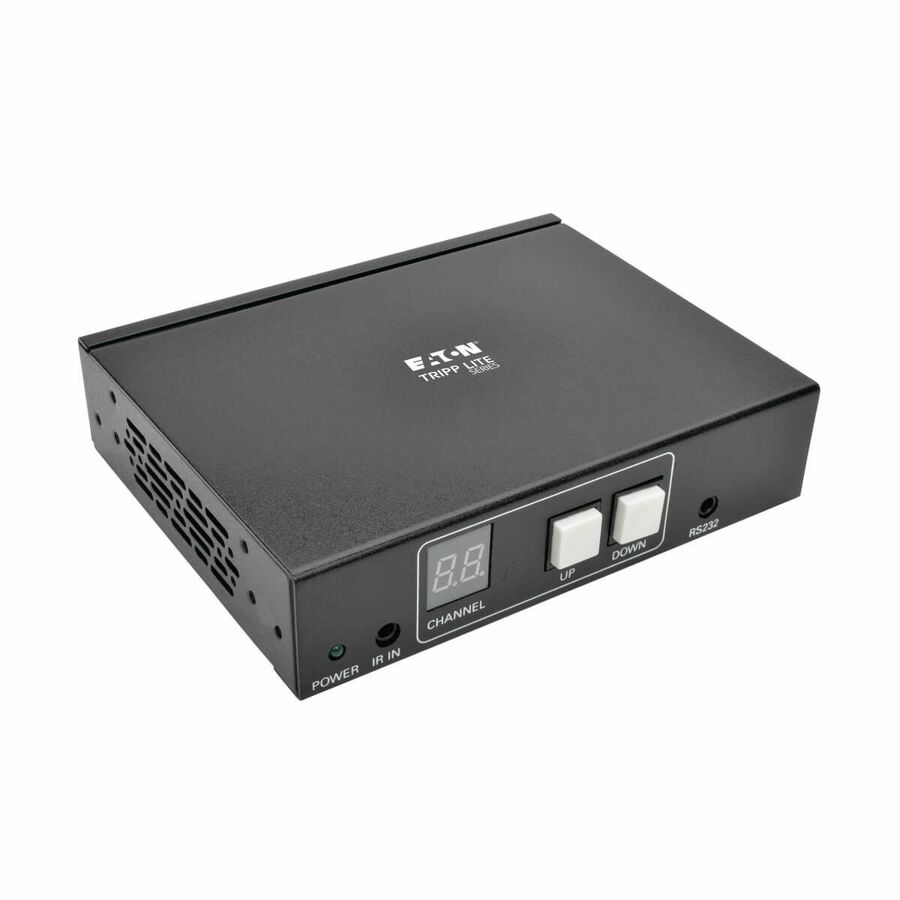

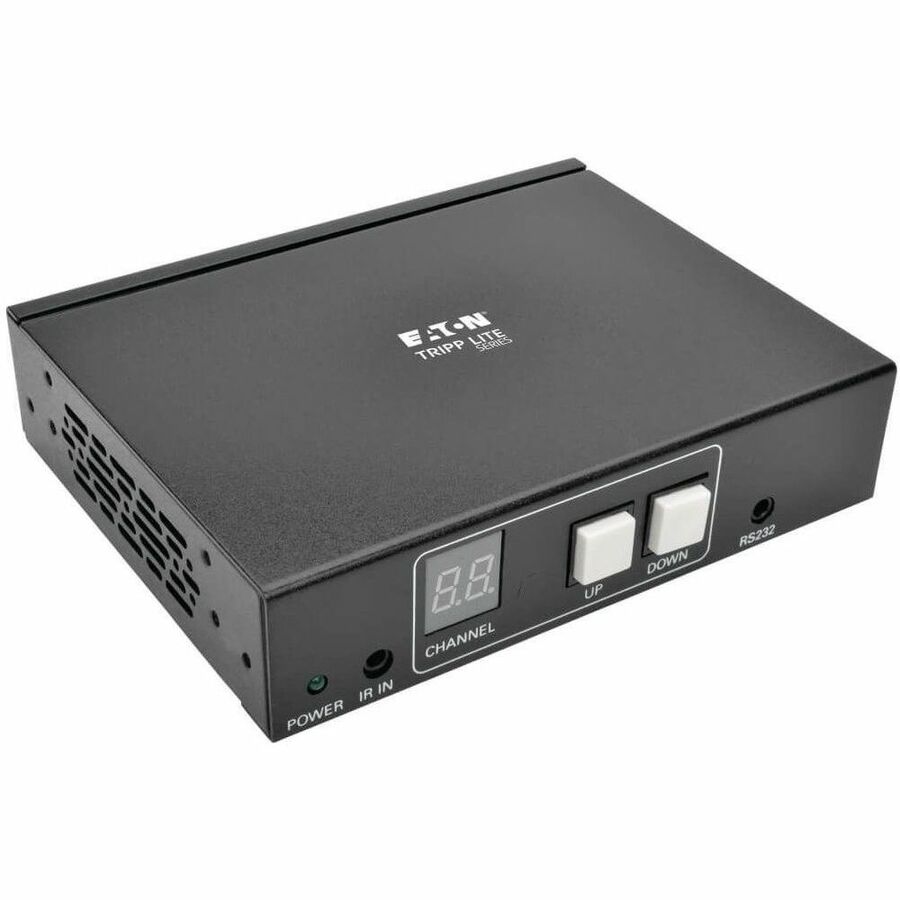

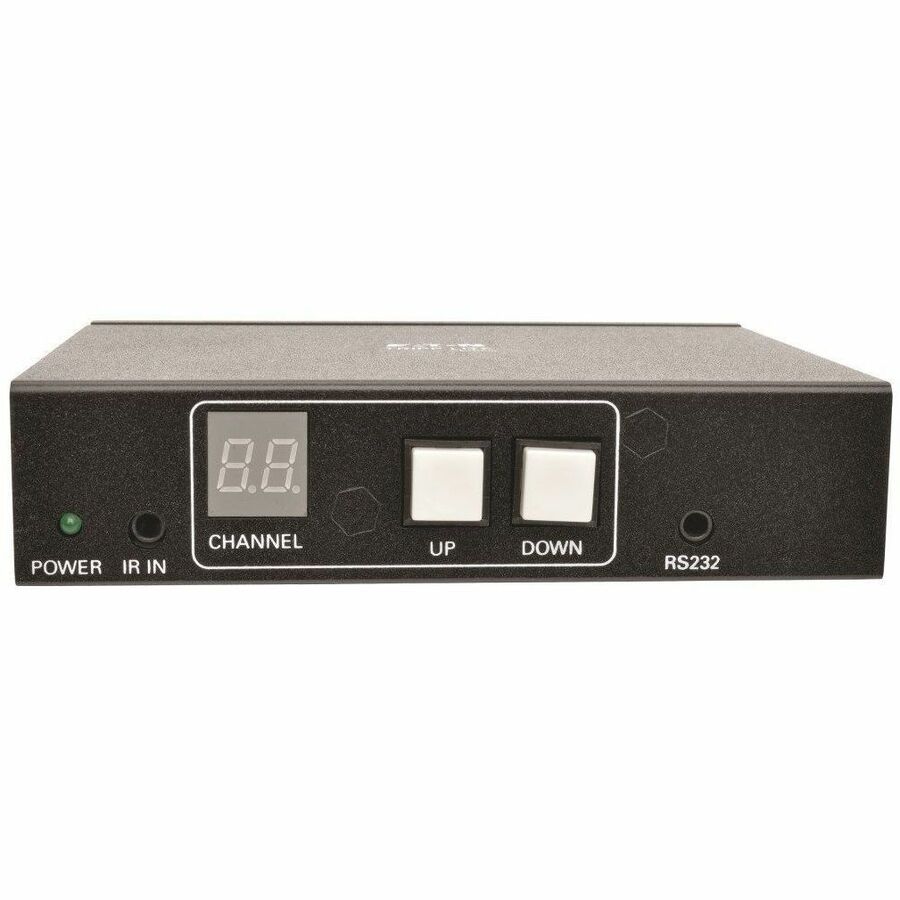

Eaton Tripp Lite Series 2-Port HDMI over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

The B160-200-HSI 2-Port HDMI Audio/Video with RS-232 Serial and IR Control over IP Receiver extends and distributes HDMI audio/video, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 m).

The B160-200-HSI is designed for managed network switches with IGMP, which allow login and remote management via switch interface. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.

The B160-200-HSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz. It works with any analog or digital source, including VGA and DisplayPort?. Dual HDMI ports allow the connection of two displays. This receiver extends IR control signals that control a source, such as a Blu-ray? player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps.

Compatible with Tripp Lite's B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters.

Features

Extends and Distributes HDMI A/V, Serial and IR Control Signals over Cat5/6 Cabling

• Converts source video to IP-based signal transmitted to and distributed through network switch

• Extends signal up to 328 ft. (100 m) from switch

• Can also connect directly to transmitter up to 328 ft. away

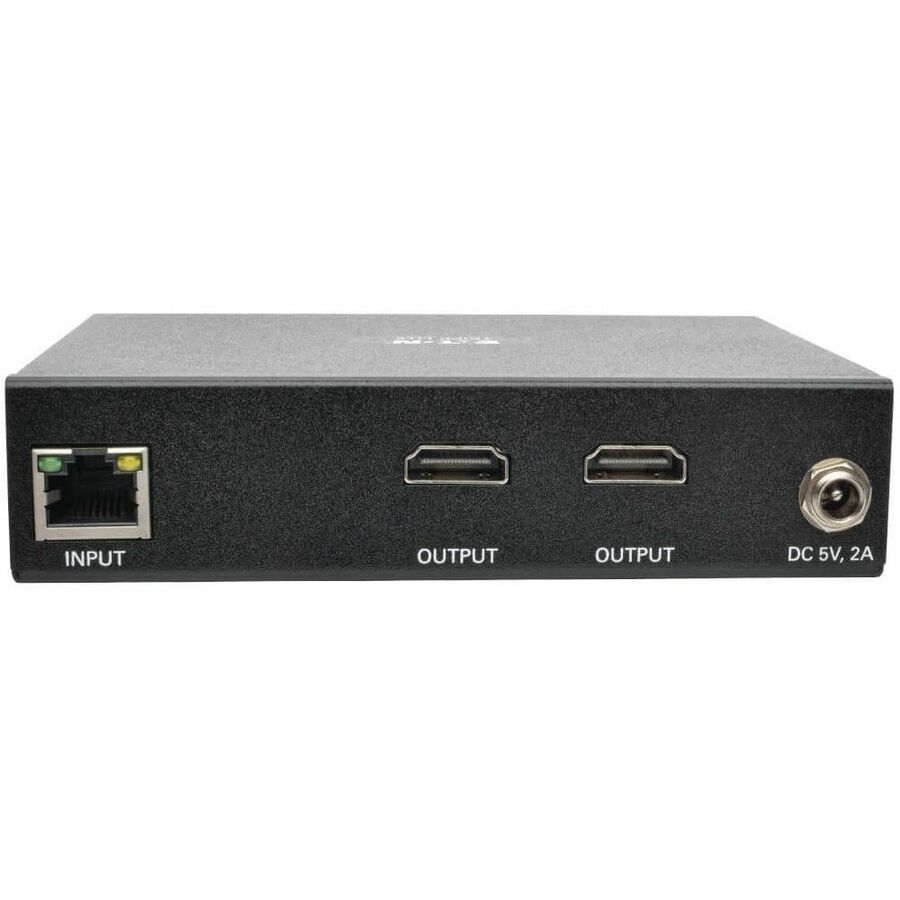

• Dual HDMI outputs for connecting 2 displays

Designed for Managed Network Switches with IGMP

• Allows login and remote management via switch interface

• Works with any analog or digital source, including VGA and DisplayPort

• Connect up to 64 transmitters and 255 receivers in single managed switch installation

Enhanced Technical Features

• Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz

• Uses H.264 video compression standard

• Transmits on 20-60 kHz IR frequency

• Extends IR control signals that control a source from a remote display

• Supports RS-232 serial baud rates up to 57600 Bps

• HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter (not compatible with VGA transmitter)

Plug and Play Functionality

• No software or drivers required

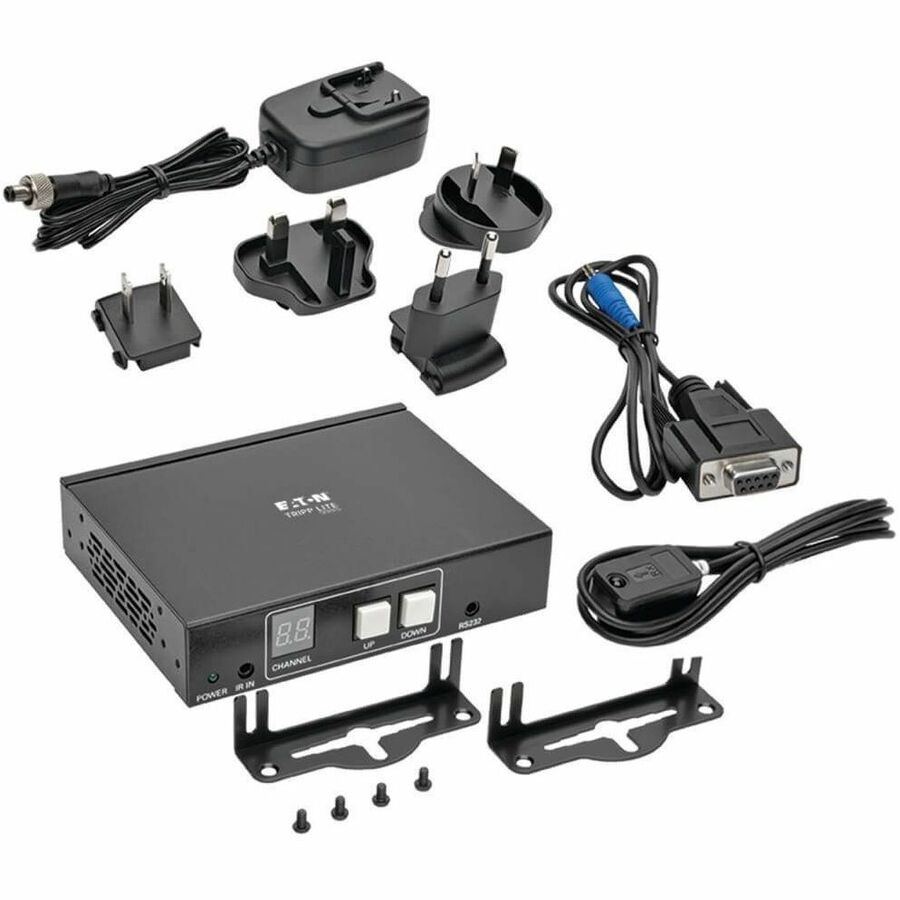

• Hardware included for mounting on wall, rack or pole

• Compatible with B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Build the Digital Signage System that Meets Your Needs

Tripp Lite’s B160-Series A/V Over IP solutions offer great flexibility and expandability in a point-to-point installation. The distance can be expanded easily and inexpensively with a basic unmanaged network switch, such as Tripp Lite’s NG5. By incorporating multiple managed switches with Internet Group Management Protocol (IGMP), you can scale up to a multi-in, multi-out system supporting up to 64 transmitters for sources and up to 255 receivers for displays in your installation. You can even mix and match technologies between digital and analog sources and displays, allowing you to use equipment you may already have.

Point-to-Point Installations Beyond Conventional Limits

Place your computer, tablet, DVD player, Blu-ray player or other source in a secure, out-of-the-way location. With just a single transmitter and receiver, your monitor, TV or projector can be located up to 328 feet away...that’s more than 200 feet farther than a traditional Cat5e/6 solution.

Increase Distances with an Ethernet Switch

If you need to extend the distance between your source and display in a point-to-point installation, it’s easy to do so. Simply add an inexpensive network switch, such as Tripp Lite’s NG5. The switch allows you to extend the range of your installation by an additional 328 feet. To add yet another 328 feet, simply cascade another switch. You can continue cascading additional switches until your desired distance is achieved.

Scale Up to a Multi-In, Multi-Out Installation

You can create an installation featuring multiple sources and displays by including a dedicated managed Ethernet network switch with IGMP, such as Tripp Lite’s NSS-G16D2. By adding multiple managed switches, you can have as many as 64 transmitters and 255 receivers. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays. Mix and match multiple analog and digital technologies simply by choosing the appropriate transmitters and receivers. The B160-Series includes transmitters and receivers for HDMI, DVI, Component Video, DisplayPort and VGA. All units come with hardware for mounting on a wall, rack or pole.

Typical Applications

The A/V Over IP solution provides the framework for flexible, scalable applications ideal for retail, education, hospitality and transportation environments:

- Keep your content source in a secure location, with displays located elsewhere for viewing by the intended audience

- Create an easily updatable video board communicating dynamic information

- Display arrivals, departures and up-to-the-minute information in an airport or train station

- Duplicate audio/video content across multiple displays, show different content on multiple screens or create an impressive video wall made up of many monitors (multiple transmitters and receivers required)

- Extend content using source and display equipment you already own

Dependable Service and Support from an Industry Leader

- One-Year Warranty: For peace of mind, the B160-100-VSI is covered by a one-year warranty.

- Environmentally Responsible Design: This product is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

- TAA-Compliant: The B160-100-VSI is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
