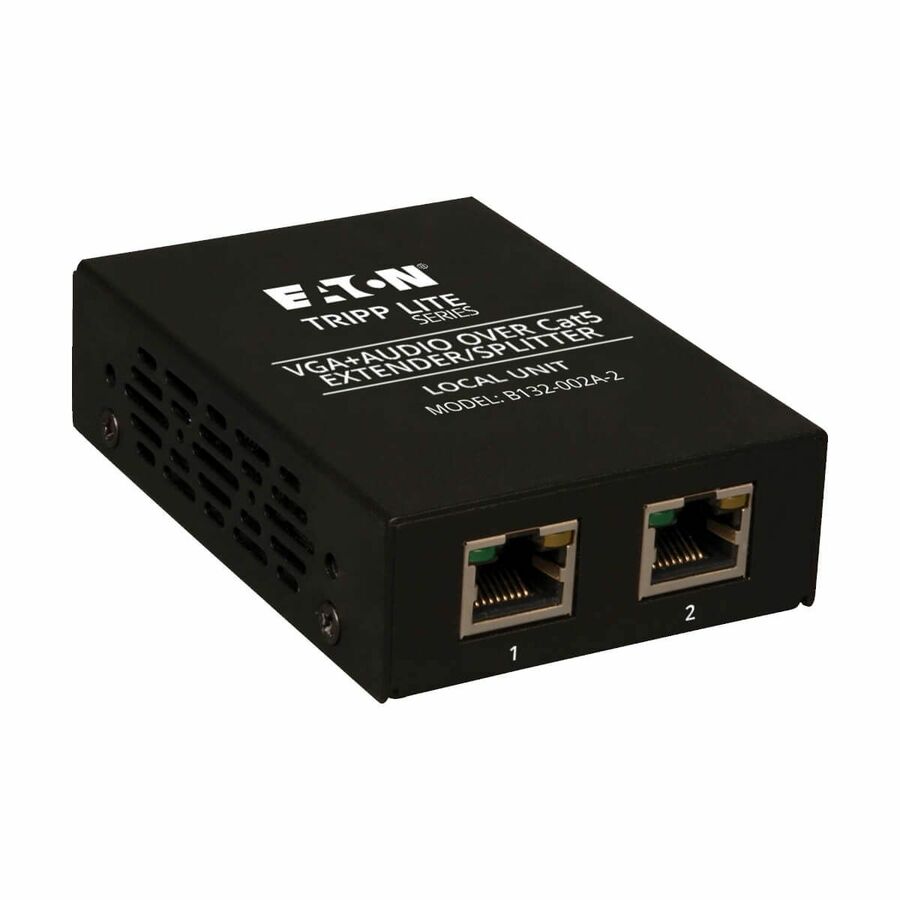

Eaton Tripp Lite Series 2-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. More from the Manufacturer

Split and Extend a Single VGA + Audio Signal Into 2 with This VGA + Audio over Cat5 Extender

Tripp Lite’s B132-002A-2 VGA + Audio over Cat5 Extender allows you to split a single VGA + Audio signal into 2 and extend both signals up to 1,000 ft. , delivering peak video and audio performance from VGA-enabled digital video components. When used with B132-100A or B132-100A-WP-1 remote receiver units and 24 AWG Solid-Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, the B132-002A-2 can extend 1920 x 1440 (60 Hz) signals up to 500 ft. or 1024 x 768 (60 Hz) signals up to 1,000 ft. For maximum image quality between 500 and 1,000 ft. , use Zero-Skew cable such as Tripp Lite P524-01K. With no software or drivers to install, the B132-002A-2 provides total plug-and-play convenience. For peace of mind, the B132-002A-2 comes backed by a one-year warranty.

The Smart Solution for Digital Signage Applications

The B132-002A-2 splits a single VGA + Audio signal into 2 and extends both signals hundreds of feet away from the source, making it the ideal solution for digital signage applications in schools, churches, retail locations, tradeshow presentations and more. The B132-002A-2 allows for the video source to be in a secure, remote location for controlled access while still delivering signals to TVs, projectors and other devices in other areas.

Greater Distance—Greater Flexibility

When used with B132-100A or B132-100A-WP-1 remote receiver units and 24 AWG Solid Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, the B132-002A-2 can extend 1920 x 1440 (60 Hz) signals up to 500 ft. or 1024 x 768 (60 Hz) signals up to 1,000 ft. This distance can be further expanded with the addition of B132-110A repeaters. Up to 4 remote units can be connected in a repeater chain (3 repeaters and one receiver), with a set of monitors and speakers at each location. For maximum image quality between 500 and 1,000 ft. , use Zero-Skew cable such as Tripp Lite’s P524-01K.

Premium Stereo Audio

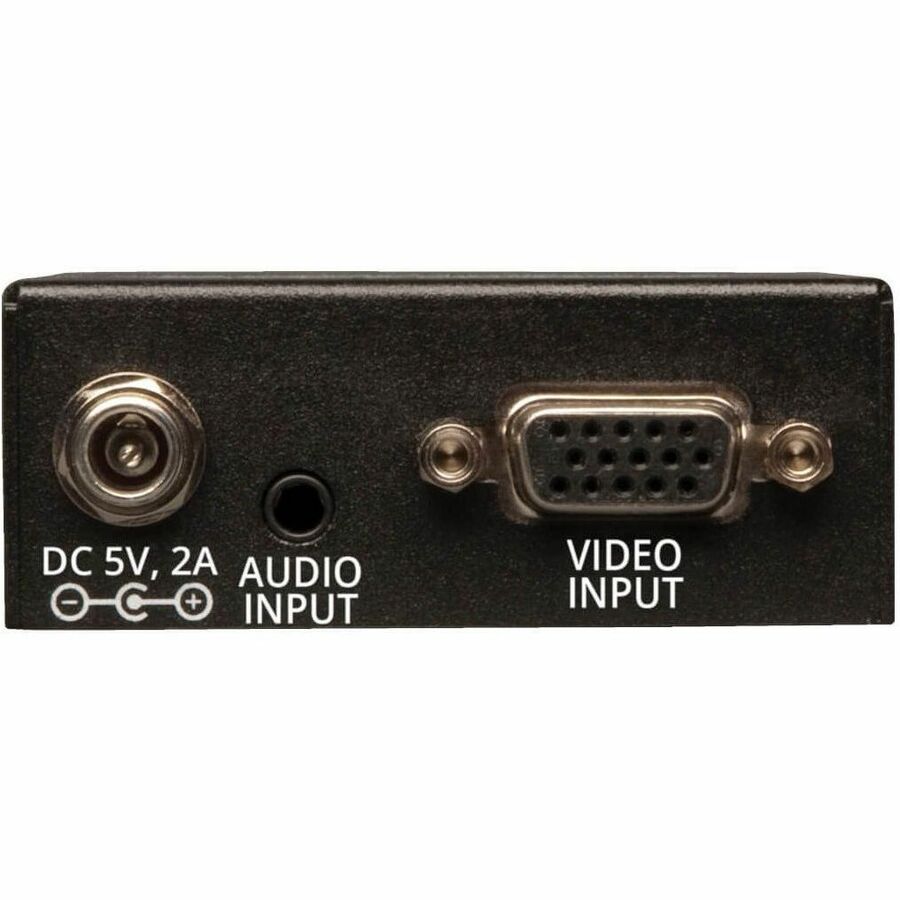

We haven't forgotten the sound! The B132-002A-2 features built-in 3.5 mm stereo audio connectors, allowing it to also carry high-quality stereo audio. This delivers premium sound quality to every point of your application and adds greater functionality to your displays.

Versatile Installation

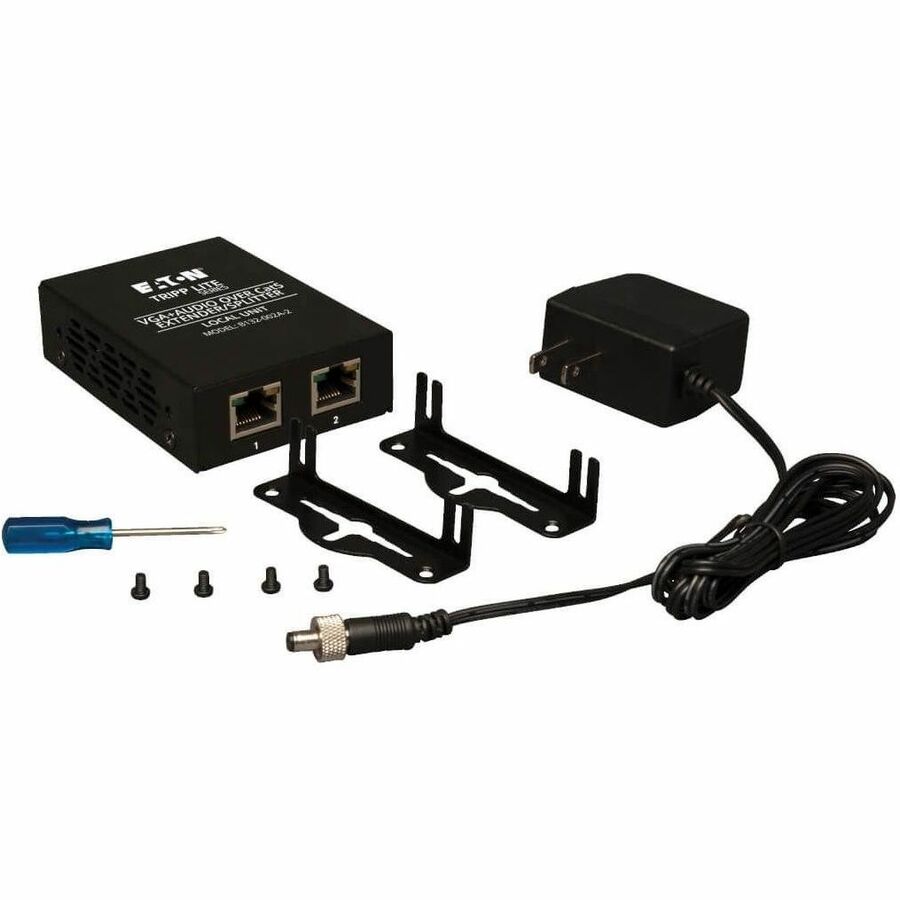

The B132-002A-2 includes all hardware necessary for installation. Mounting options include wall-mount, rackmount and pole mount.

One-Year Warranty and Environmentally Responsible, TAA-Compliant Design

The B132-002A-2 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. It is also compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. For peace of mind, it comes backed by a one-year warranty.
