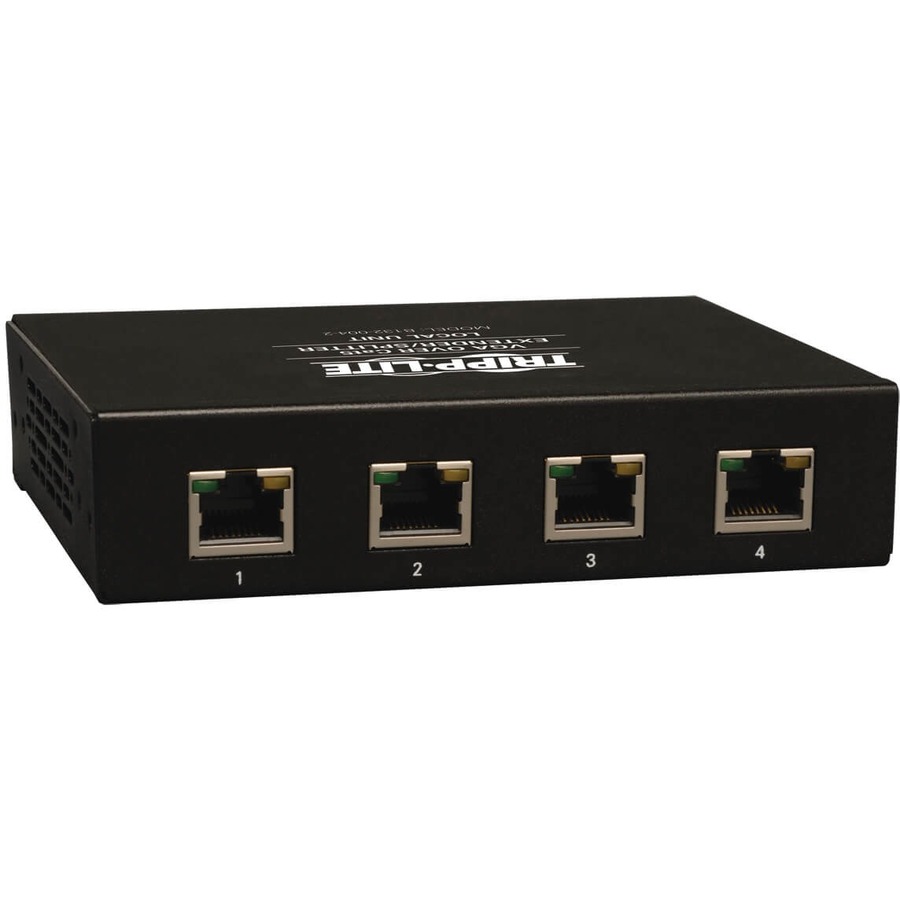

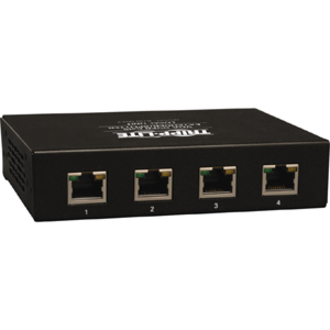

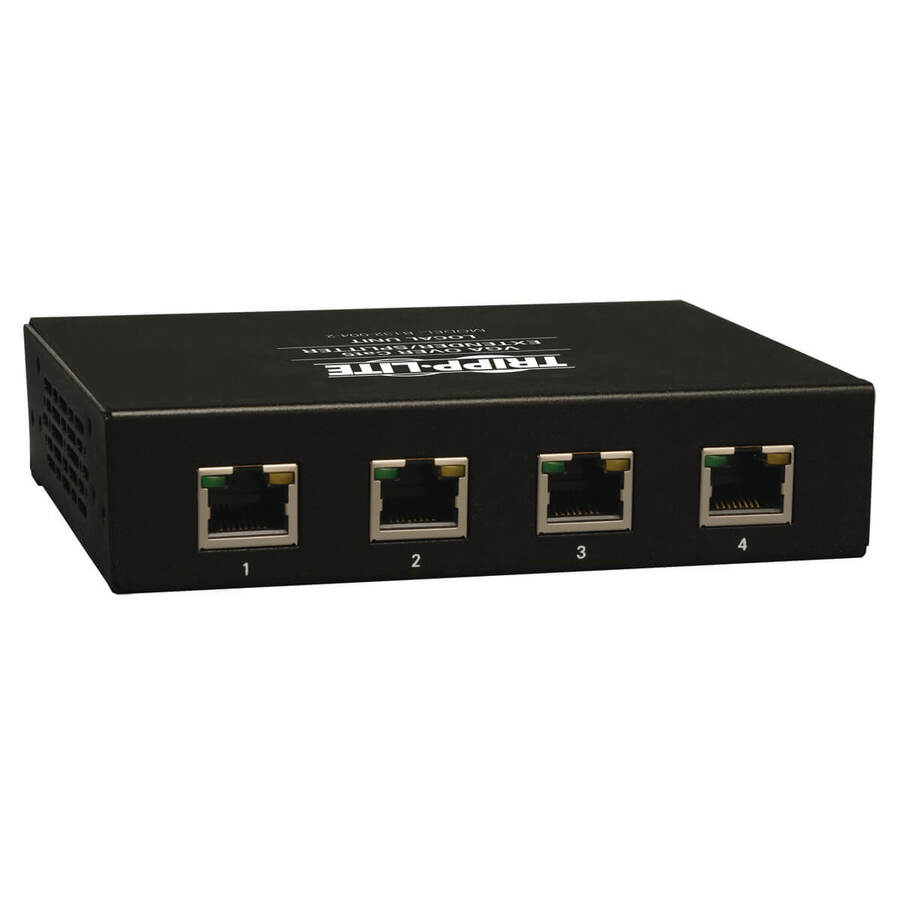

Eaton Tripp Lite Series 4-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, Up to 1000 ft. (305 m), TAA

Tripp Lite's B132-004-2 allows you to split a single VGA signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004-2 units together. Along with a B132-100-1 or B132-100-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors can be further expanded by adding B132-110A (Video Only) repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Splits a single VGA signal into 5 (1 local, 4 remote)

• Increase the number of displays to up to 25 (1 local, 24 remote) by daisychaining up to six B132-004-2 units together

• A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor

• Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)

• Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters

• EDID copy feature ensures optimal display compatibility

• Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location

• A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

• Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.

• Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket

• Ideal for digital signage situations, such as retail, schools, churches, etc.

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Split and Extend a Single VGA Signal to Four Displays up to 1000 ft. Using Cat5/6 Cable

Tripp Lite’s B132-004-2 VGA over Cat5/6 Extender allows you to split a single VGA signal to four displays and extend both signals up to 1,000 ft., delivering peak video and audio performance from VGA-enabled digital video components. When used with B132-100-1 or B132-100-WP-1 remote receiver units and 24 AWG Solid-Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, the B132-004-2 can extend 1920 x 1440 (60 Hz) signals up to 500 ft. or 1024 x 768 (60 Hz) signals up to 1,000 ft. For maximum image quality between 500 and 1,000 ft., use Zero-Skew cable such as Tripp Lite P524-01K. With no software or drivers to install, the B132-004-2 provides total plug-and-play convenience. The B132-004-2 is TAA-compliant for GSA Schedule purchases and comes backed by a one-year warranty.

The Smart Solution for Digital Signage Applications

The B132-004-2 splits a single VGA signal into 4 and extends both signals hundreds of feet away from the source, making it the ideal solution for digital signage applications in schools, churches, retail locations, tradeshow presentations and more. The B132-004-2 allows for the video source to be in a secure, remote location for controlled access while still delivering signals to TVs, projectors and other devices in other areas.

Greater Distance—Greater Flexibility

When used with B132-100A or B132-100A-WP-1 remote receiver units and 24 AWG Solid Wire Cat5e/6 cabling like Tripp Lite’s N022-01K-GY or N222-01K-GY, the B132-004-2 can extend 1920 x 1440 (60 Hz) signals up to 500 ft. or 1024 x 768 (60 Hz) signals up to 1,000 ft. This distance can be further expanded with the addition of B132-110A repeaters. Up to 4 remote units can be connected in a repeater chain (3 repeaters and one receiver), with a set of monitors and speakers at each location. For maximum image quality between 500 and 1,000 ft., use Zero-Skew cable such as Tripp Lite’s P524-01K.

Versatile Installation

The B132-004-2 includes all hardware necessary for installation. Mounting options include wall-mount, rackmount and pole mount.

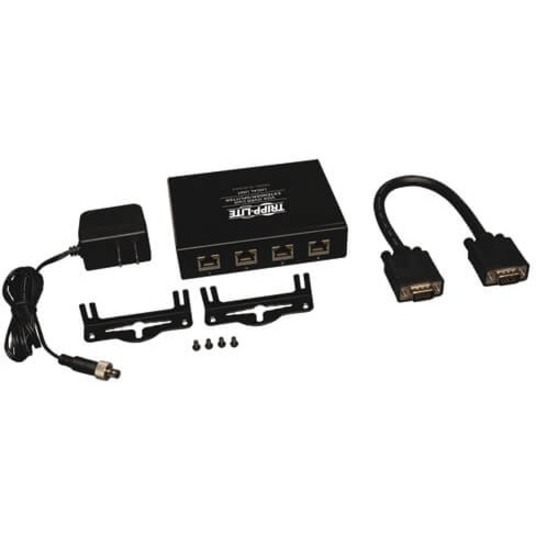

hat’s in the Box

4 Port Extender/Splitter Local (Transmitter) Unit

1 ft. VGA Daisychain Cable

Mounting Hardware External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)

Owner's Manual

One-Year Warranty and Environmentally Responsible Design

This Tripp Lite 4-Port VGA over Cat5/6 Transmitter enables the extension of a VGA signal beyond the usual distance limitations. The B132-004-2 can extend a 1920 x 1440 (60Hz) video signal up to 500ft. or a 1024 x 768 (60Hz) video signal up to 1,000ft. using 24 AWG Solid-Wire Cat5e/6 cable like the Tripp Lite N202-series. For optimum image quality between 500 and 1,000 feet, use Zero-Skew cable (Tripp Lite P524-01K).

TAA-Compliant for GSA Schedule Purchases

The B132-004-2 is compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
