1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1920 x 1440 - Twisted Pair - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
MSRP$125.00
$99.43
Save 20%Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
• Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
• 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

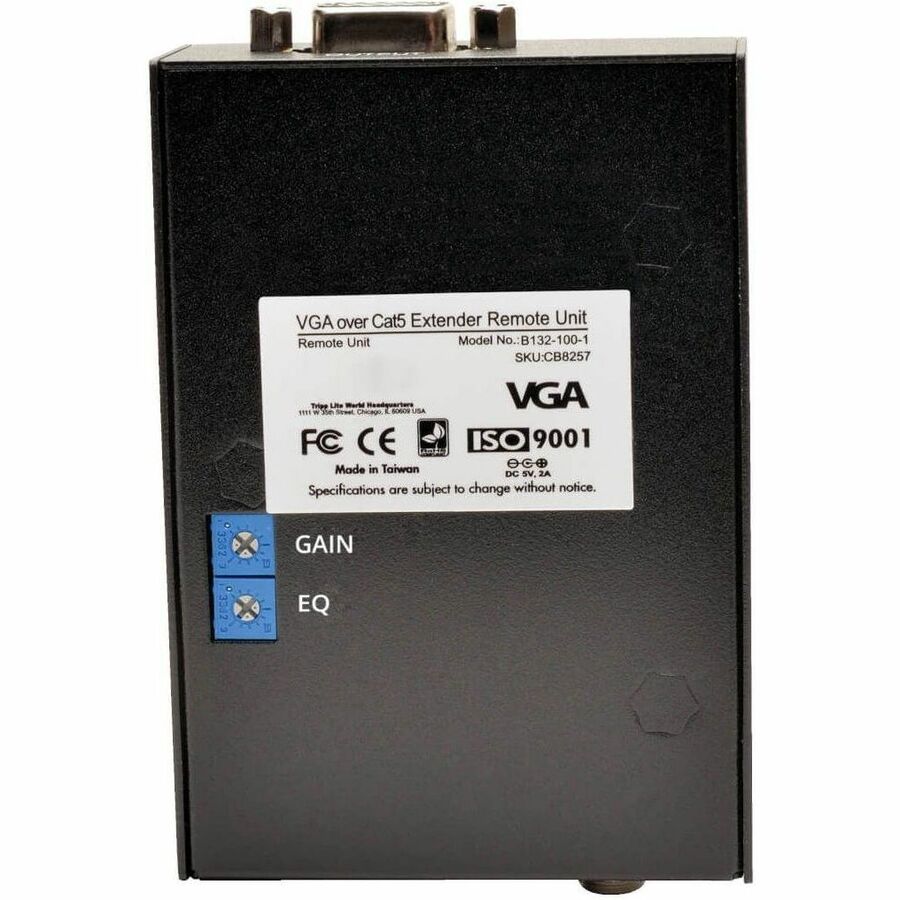

• Features built-in Equalization and Gain controls to adjust the video image
• Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
• Ideal for digital signage situations, such as retail, schools, churches, etc..
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• 1 year limited waranty.
More from the Manufacturer
The Smart Solution for Digital Signage Applications
The B132-100-1 enables the video source to be installed in a secure, remote location for controlled access. It can be used to connect display devices with VGA ports, such as DTVs, plasma displays, LCD TVs and projectors, to VGA video sources, such as computers, video cards and AV receivers.
Greater Distance Greater Flexibility
This genuine Tripp Lite VGA Over Cat5 Receiver works with a B132-002-1 or B132-004-1 local unit to extend a VGA video signal beyond the average 100-ft. distance limitation. The B132-100-1 can extend a 1024 x 768 (60 Hz) signal up to 1000 feet when using 24Awg Solid Wire Cat5e/6 cable (Tripp Lite N202-series), and supports a maximum resolution of 1920 x 1440 (60 Hz). For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K.
Superior Quality Assures Error-Free Signal Transfer
The B132-100-1 Receiver is manufactured using top-quality materials. Plus, built-in equalization and gain controls allow the video image to be adjusted for optimal quality. It is also compliant with RoHS (Reduction of Hazardous Substances) standards, reflecting Tripp Lite's commitment to environmental responsibility.
Versatile Installation Options

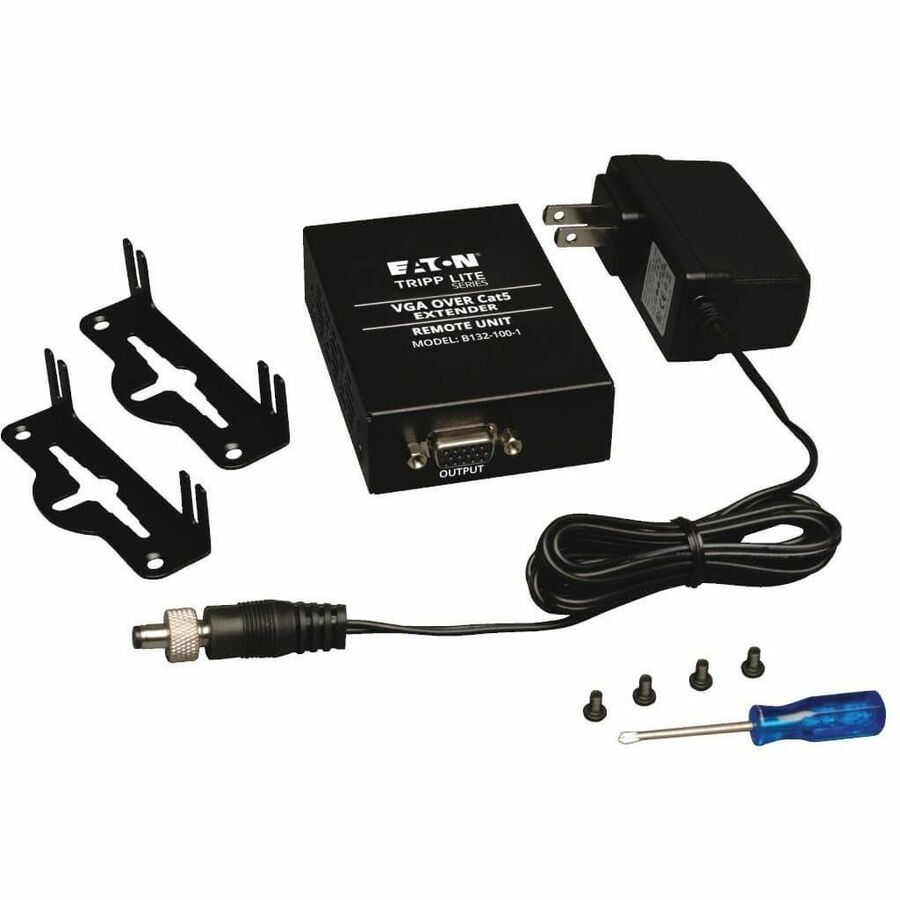

The B132-100-1 Receiver includes mounting hardware that enables it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B132-100-1 |
| Brand Name | Tripp Lite series |
| Product Model | B132-100-1 |
| Product Name | Extender Remote (Receiver) Unit |
| Product Type | Video Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 1" |
| Receiver Width | 2.50" |
| Receiver Depth | 3.60" |
| Form Factor | Wall Mountable, Rack-mountable, Pole-mountable |
| Receiver Weight (Approximate) | 7.20 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 1000 ft |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
