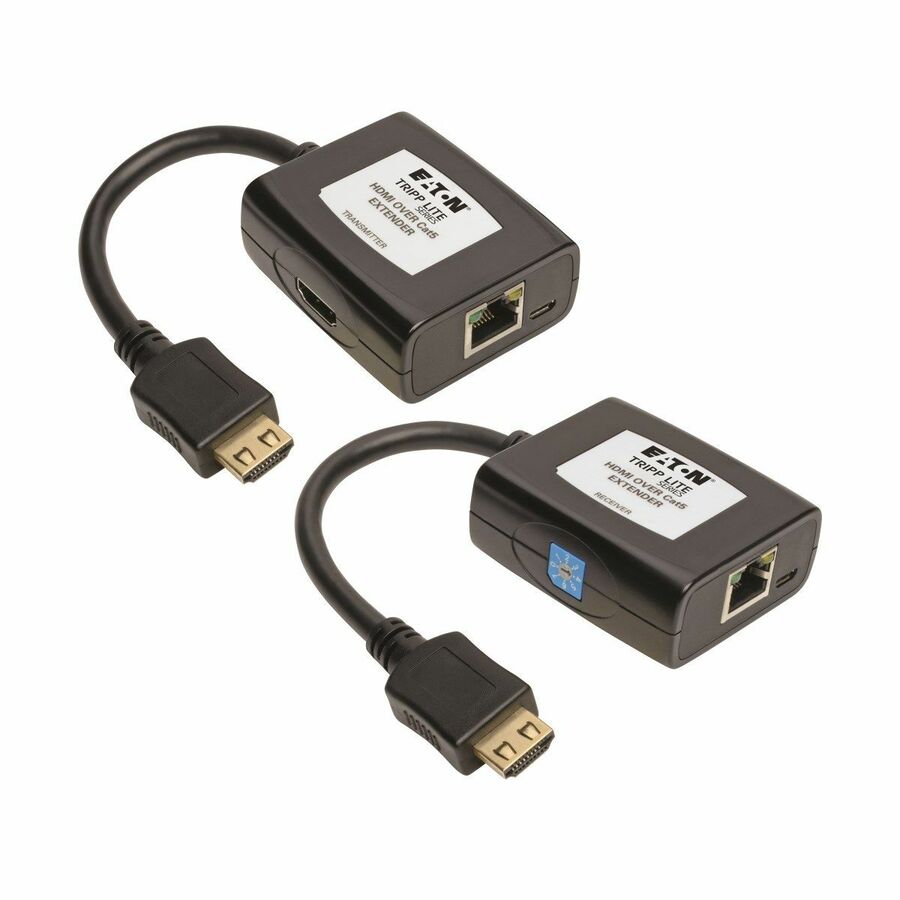

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA

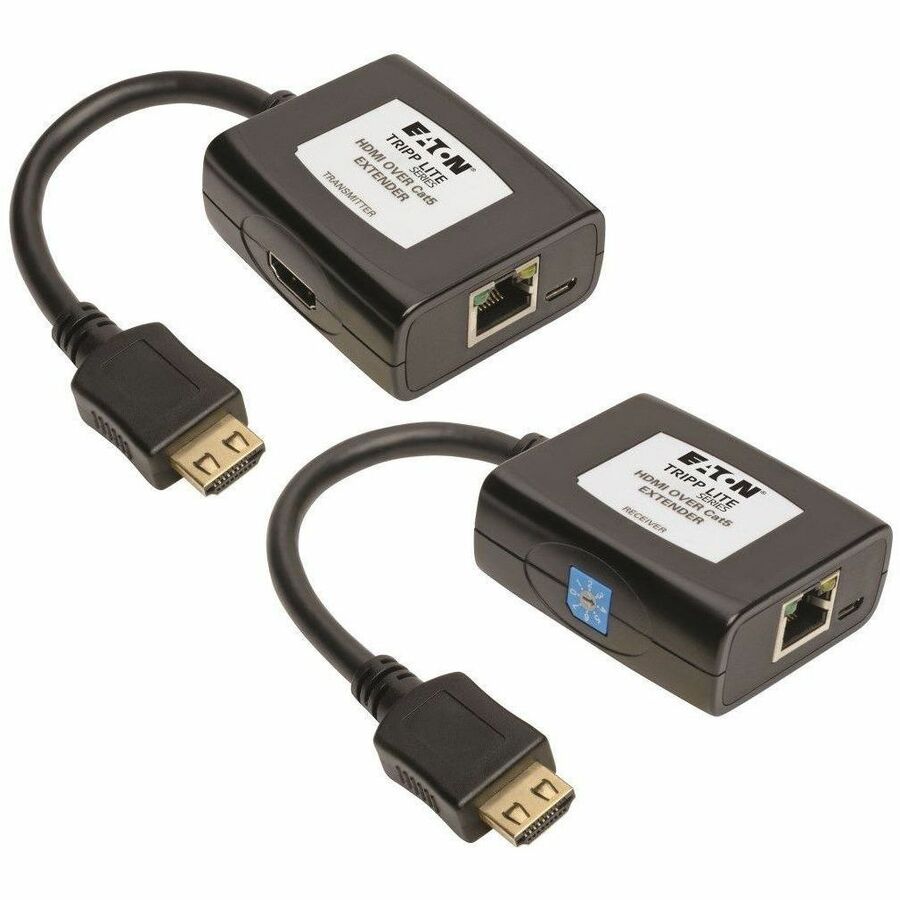

The B126-1A1-U HDMI over Cat5/Cat6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to an HDMI projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The transmitter's built-in HDMI cable connects to the audio/video source, and the receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the source device, display or USB wall charger. You can also connect an optional HDMI monitor to the transmitter's local port with a user-supplied HDMI cable, such as Tripp Lite's P568-Series.

The B126-1A1-U can extend a 1080p (@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at each remote display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Features

Extends HDMI Audio/Video Signals to an HDMI Display

• Extends a 1080p (@ 60 Hz) signal up to 125 ft.

• Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings

• Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

• Supports stereo audio and HDCP

• Built-in equalization control lets you adjust the image on the remote display

Easy to Set Up and Use

• Plug-and-play engineering-no software, drivers or external power supply

• Powered via included USB cables

• Units connect quickly to source and display with built-in HDMI cables

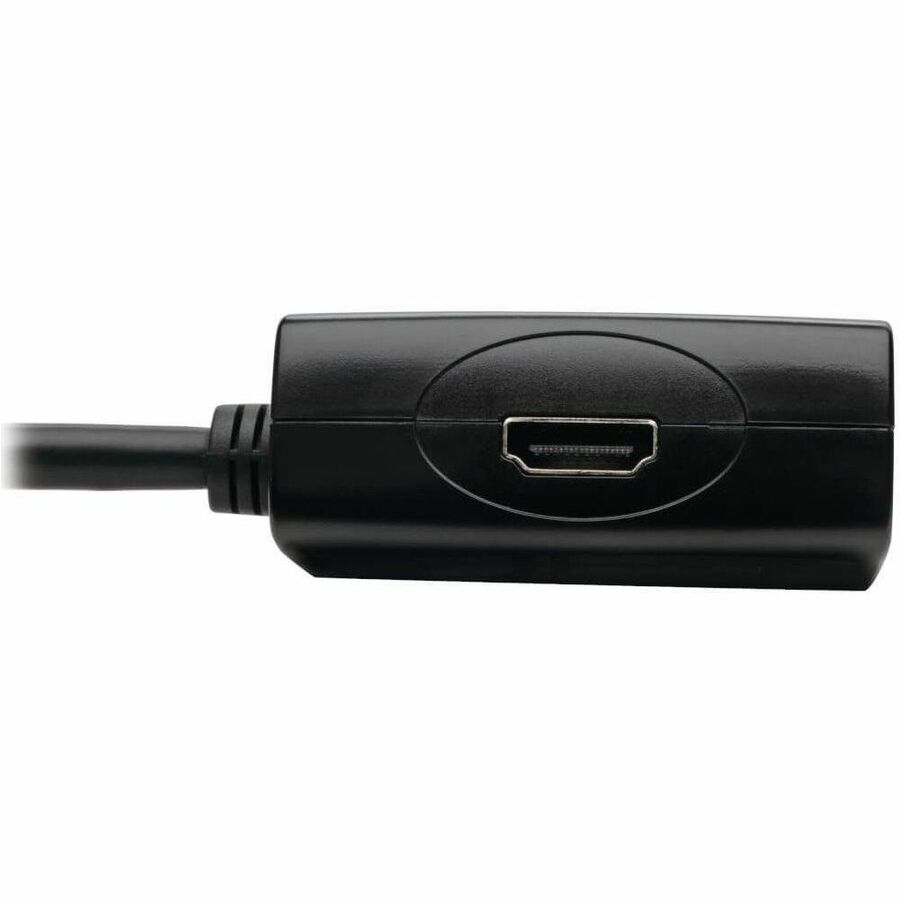

• Optional local HDMI monitor connects to transmitter with user-supplied HDMI cable

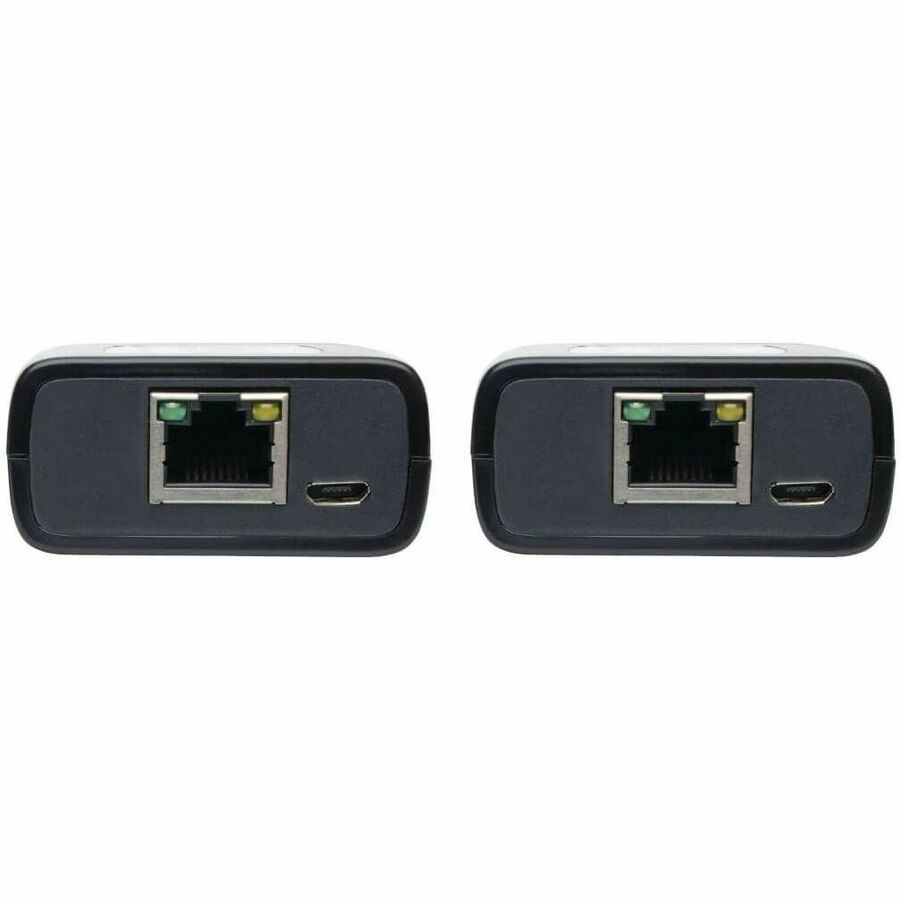

• LEDs indicate when units are receiving power and a signal from the source

• Works with all operating systems and HDMI sources

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Computer, Blu-ray? player or other source with HDMI port

• Display with HDMI port

More from the Manufacturer

A Smart Solution for Long-Run HDMI Applications

Because the video source does not have to be close to the display, you can secure the source device in a safe remote location for controlled access. The B126-1A1-U uses Cat5e/6 cabling to connect HDMI sources, such as Blu-ray players, laptops and computers, with HDMI display devices, including high-definition televisions, projectors and monitors. It’s ideal for point-of-sale and other retail displays, trade show presentations, churches, schools and even home theater applications.

Supports 1080p at a 60 Hz Refresh Rate

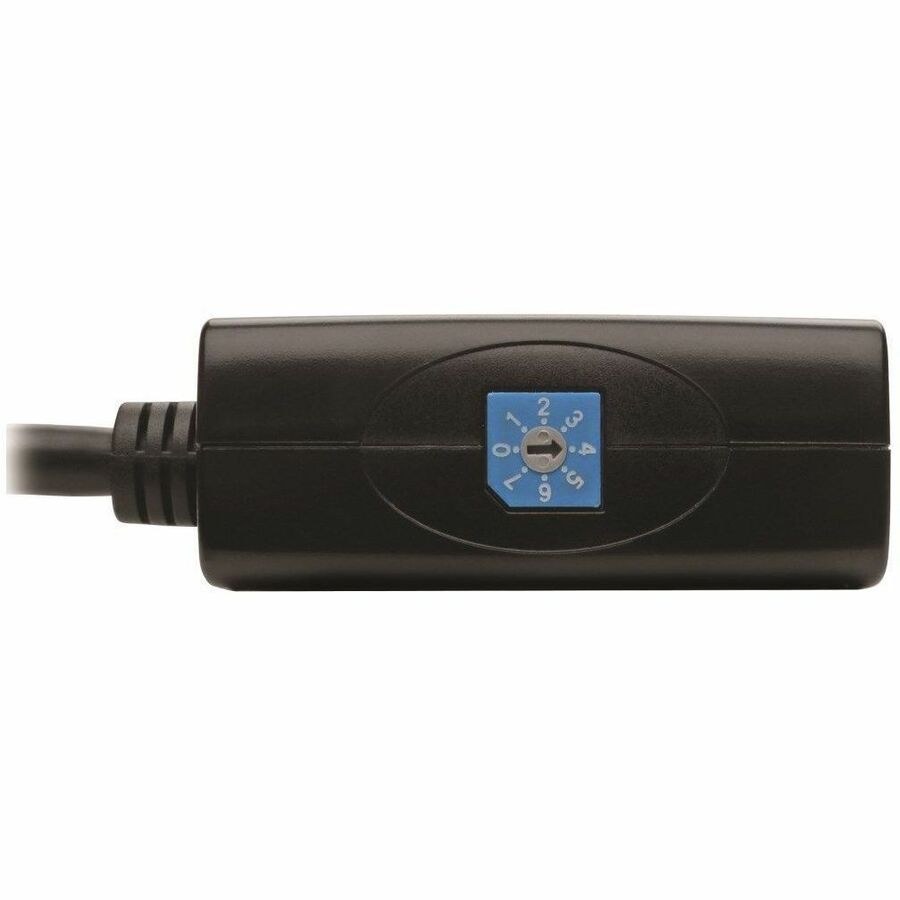

The B126-1A1-U supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz, as well as stereo audio and HDCP. An eight-level equalization control lets you fine-tune the image quality on the remote display using an included screwdriver. You can also connect an HDMI monitor to the transmitter’s local port with a user-supplied HDMI cable, such as Tripp Lite’s P568-Series.

Latching Connectors Ensure Continuous A/V Signal

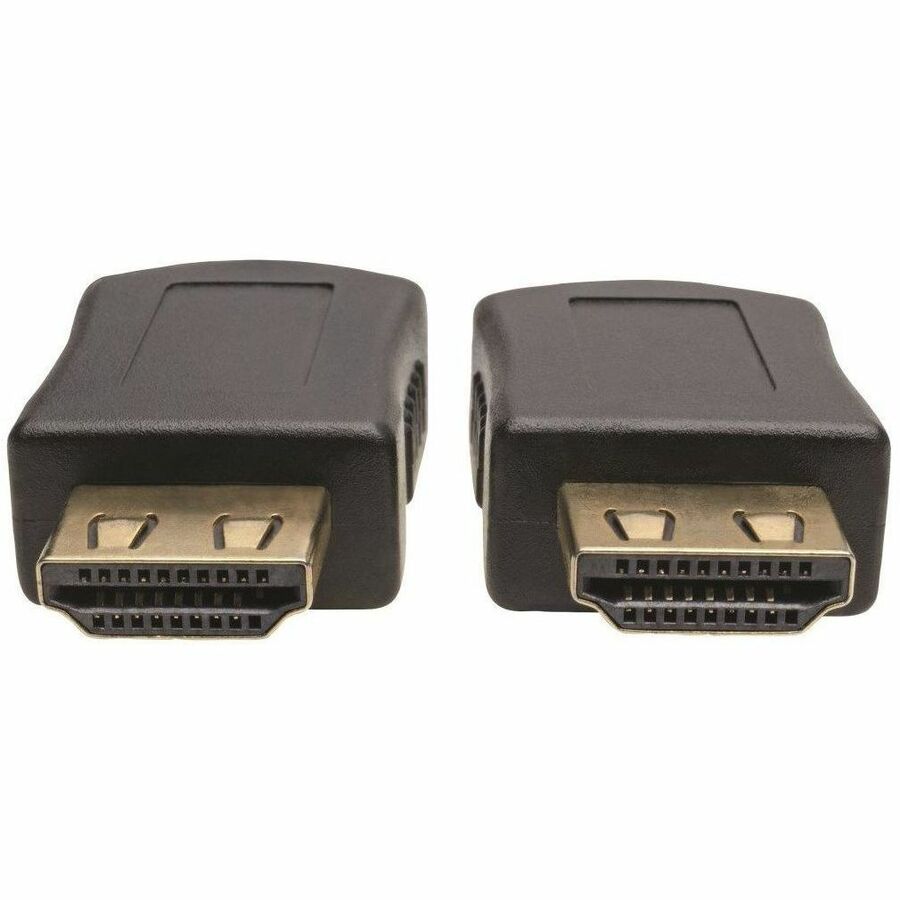

To ensure a continuous signal, the built-in HDMI cables on both the transmitter and receiver feature latching connectors that protect the cables from becoming loose or accidentally dislodged.

Convenient Plug-and-Play Setup & Warranty

With no software or drivers to install, the B126-1A1-U’s plug-and-play setup gets your application up and running faster, no matter which major operating system you use. The transmitter’s built-in HDMI cable connects to the audio/video source, while the receiver’s built-in HDMI cable connects to the display. An inexpensive user-supplied Cat5e/6 cable (for best results, use a 24 AWG solid-wire cable, such as Tripp Lite’s N202-Series) connects the transmitter and the receiver. Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the connected device or a USB wall charger. LEDs indicate the units are receiving power and a signal from the source.

TAA-Compliant for GSA Schedule Purchases

The B126-1A1-U is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

One-Year Warranty and Environmentally Responsible Design

The B126-1A1-U comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
