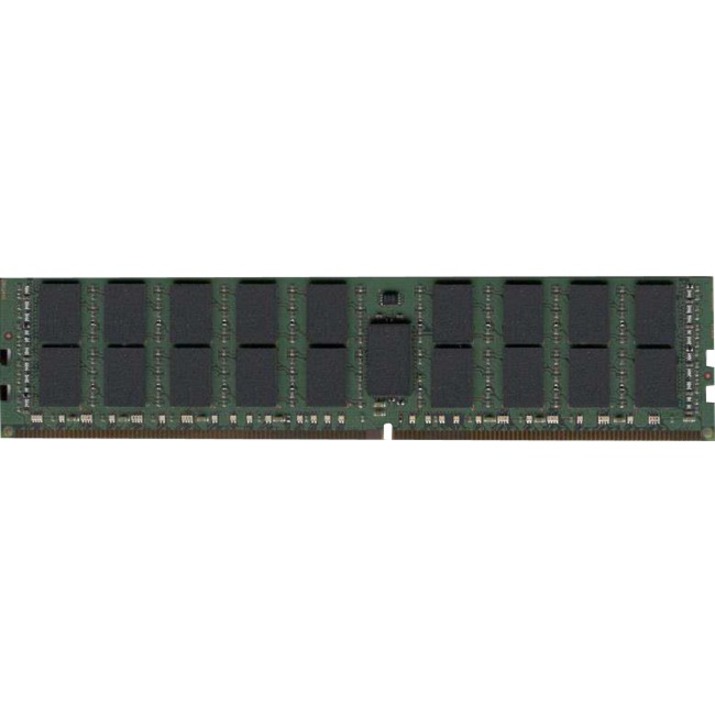

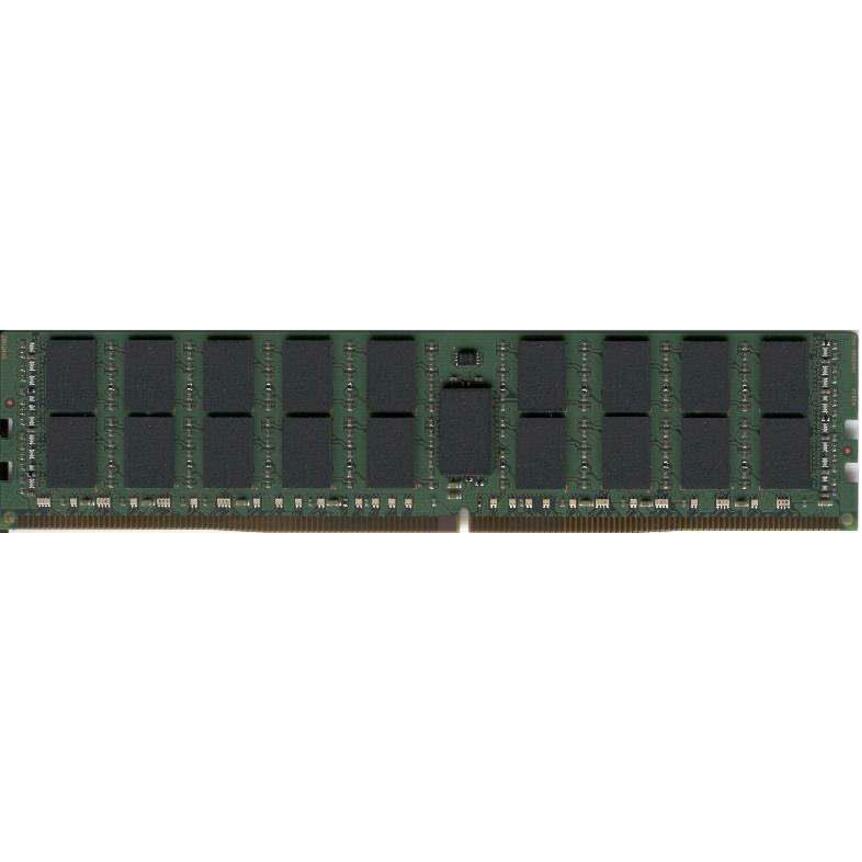

Dataram 128GB DDR4 SDRAM Memory Module
Dataram

Dataram 128GB DDR4 SDRAM Memory Module

For Blade Server - 128 GB (1 x 128GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - 2933 MHz Quad-rank Memory - 1.20 V - ECC - Registered - 288-pin - DIMM

SKU
4ZC7A15113-DR
Category
RAM Modules

MSRP$1,460.00

$1,053.86

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4ZC7A15113-DR
Category
RAM Modules

Overview

The DRV2933R upgrades are registered memory modules, which conform to JEDEC's DDR4-2933, PC4- 2933Y standard. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.

Highlights

  • 288-pin JEDEC-compliant DIMMs
  • 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
  • Data Transfer Rate: 23.4 Gigabytes/sec
  • Operating Voltage: 1.2V (1.14V~1.26V)
  • Fully RoHS Compliant
  • Thermal Sensor

Specifications

Product TypeRAM Module
CompatibilityLenovo ThinkSystem SN550 (Xeon SP Gen 2) Blade Server
Device SupportedBlade Server
Error CheckingECC
Manufacturer Part Number4ZC7A15113-DR
Number of Modules1 x 128GB
Number of Pins288-pin
Packaged Quantity1
Signal ProcessingRegistered
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2933 MHz
Product Name128GB DDR4 SDRAM Memory Module
Memory Size128 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2933/PC4-23466
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Memory RankQuad-rank
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
