CyberPower PDU15B2F8R 100 - 125 VAC 15A Basic PDU
10 Outlets, 15 ft, NEMA 5-15P, Horizontal, 1U, Lifetime Warranty
- SKU
- PDU15B2F8R
- Category
- PDUs
MSRP$143.00
$104.59
Save 27%In stock: 2
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PDU15B2F8R
- Category
- PDUs
Overview

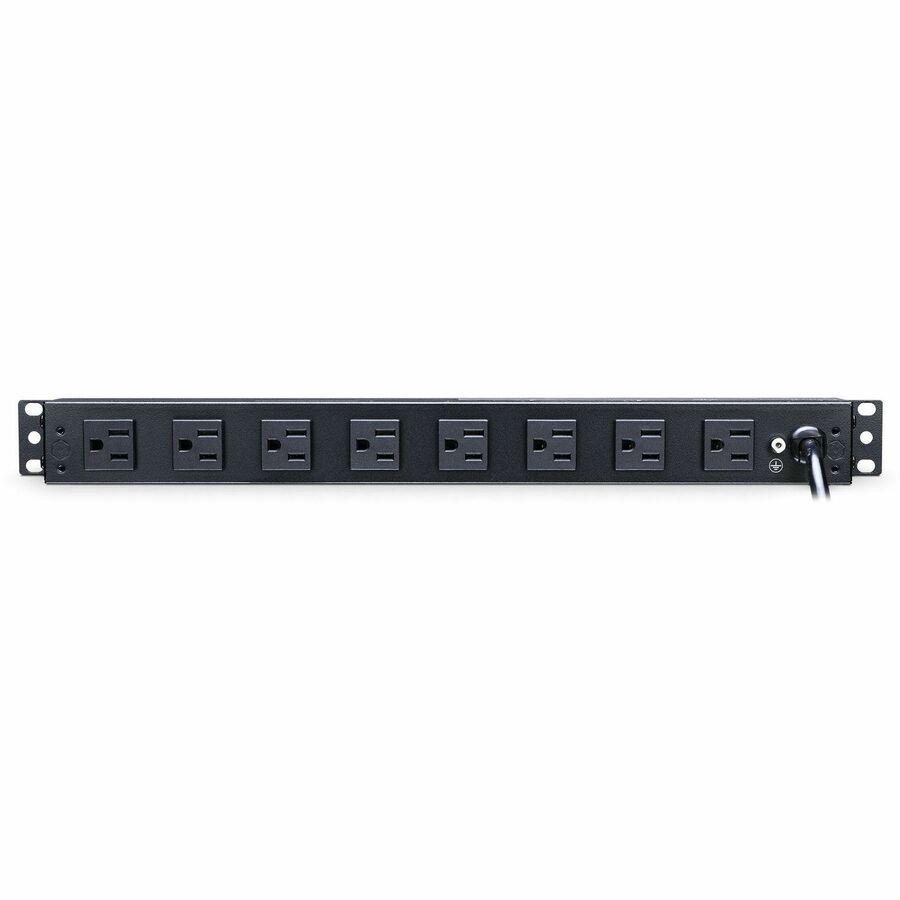

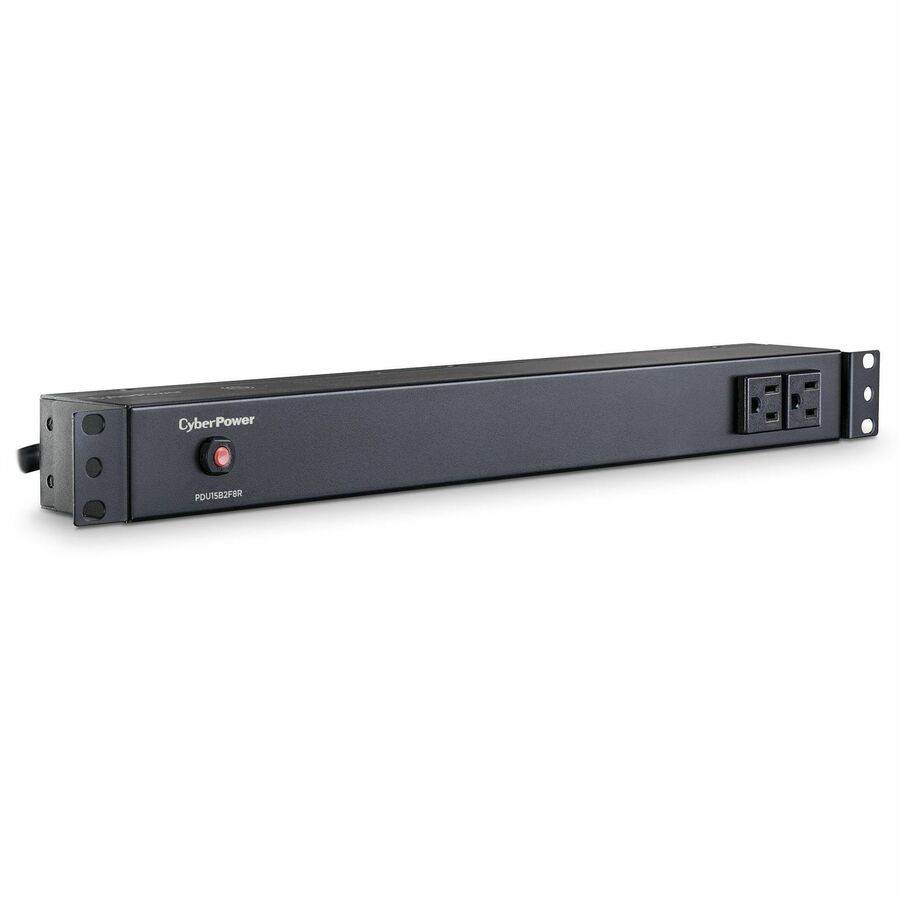

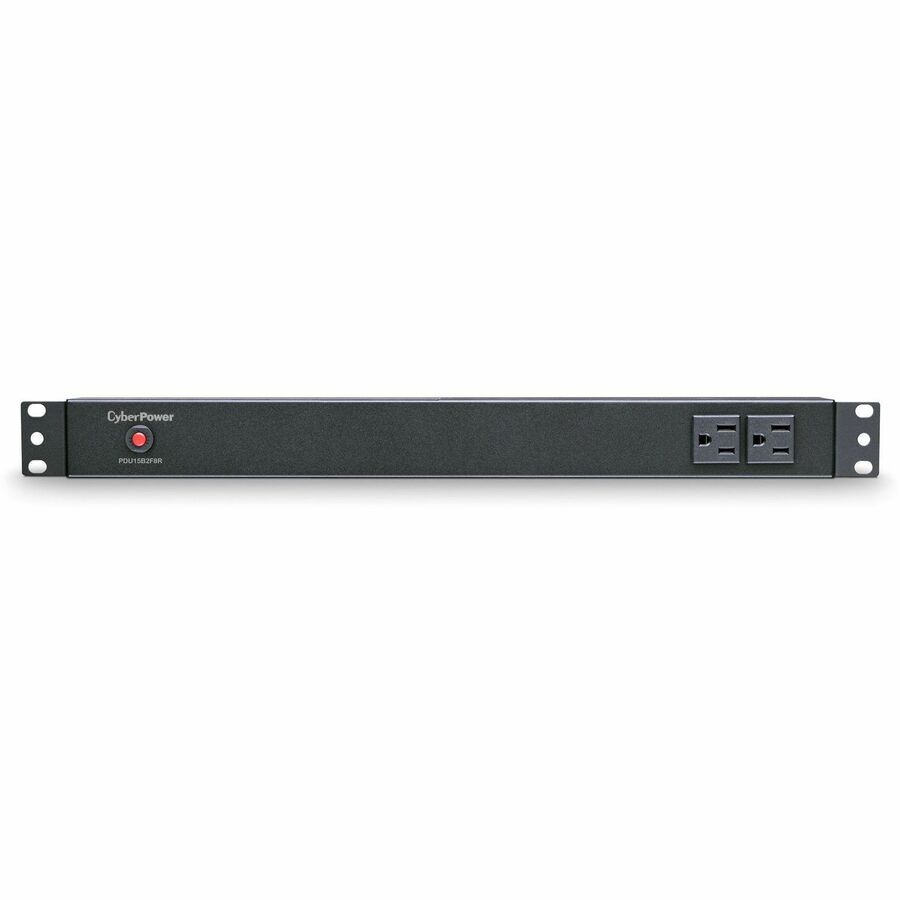

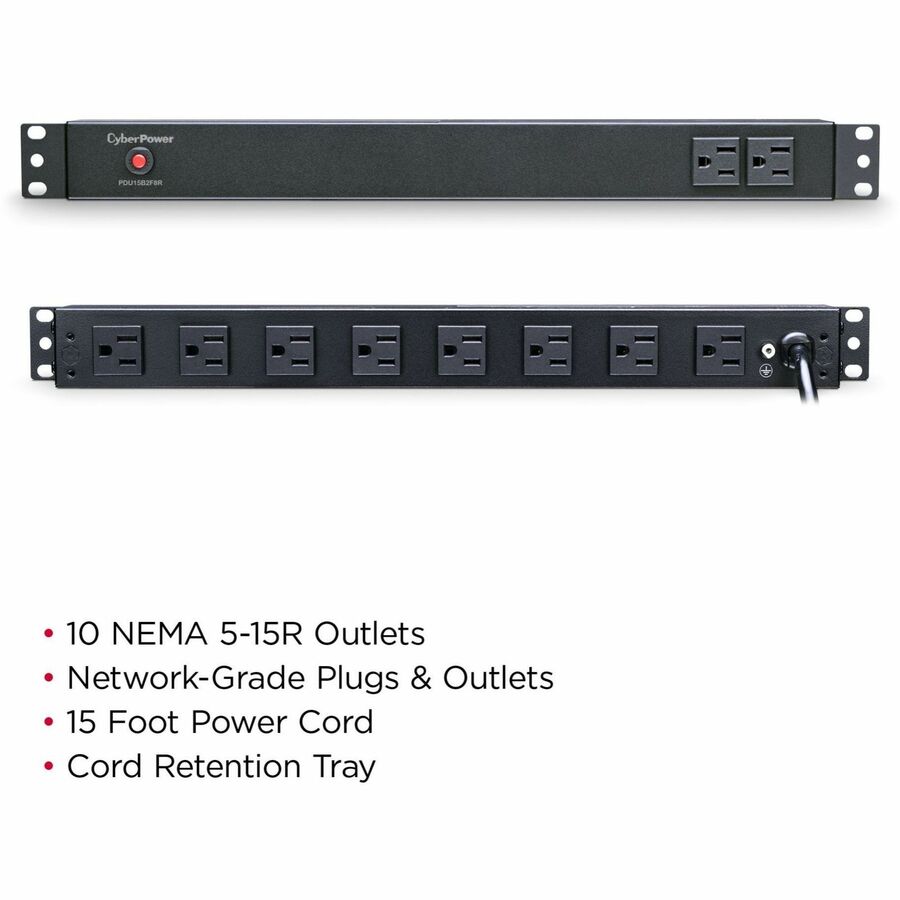

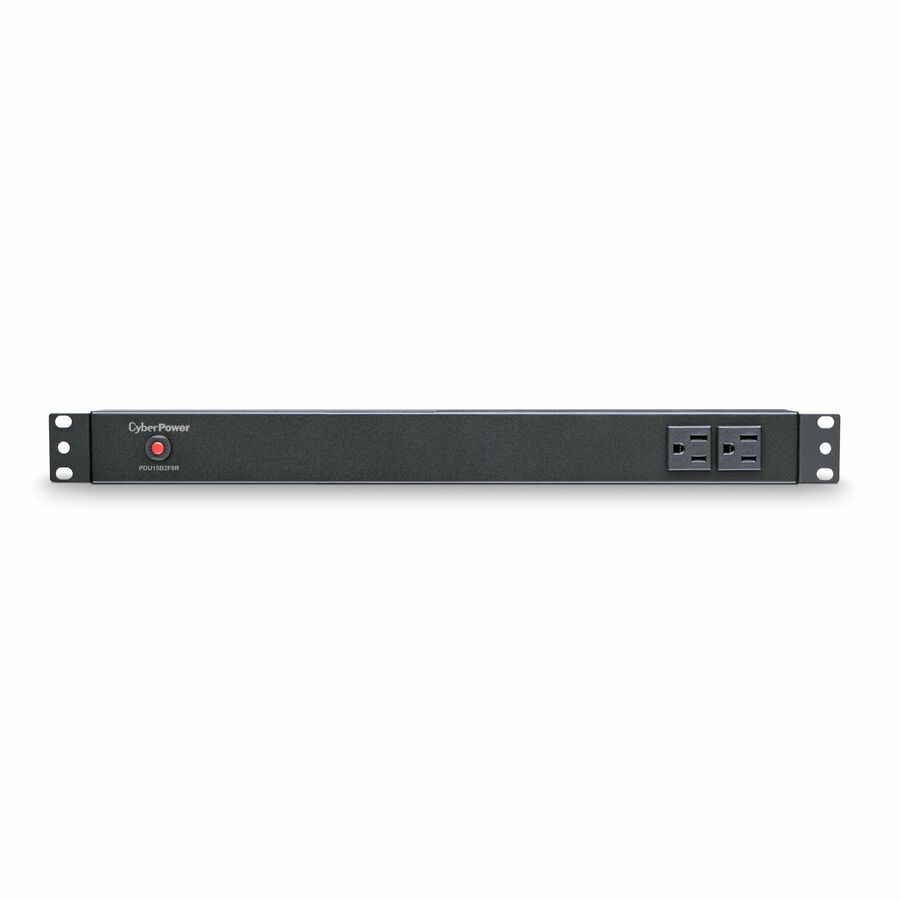

The CyberPower PDU15B2F8R, a 10-outlet (2 front, 8 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Highlights
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 100 - 125 V
- Frequency: 50Hz/60Hz
- Plug type: NEMA 5-15P
- Outlets: 10 NEMA 5-15R
- Size: 1U Rackmount

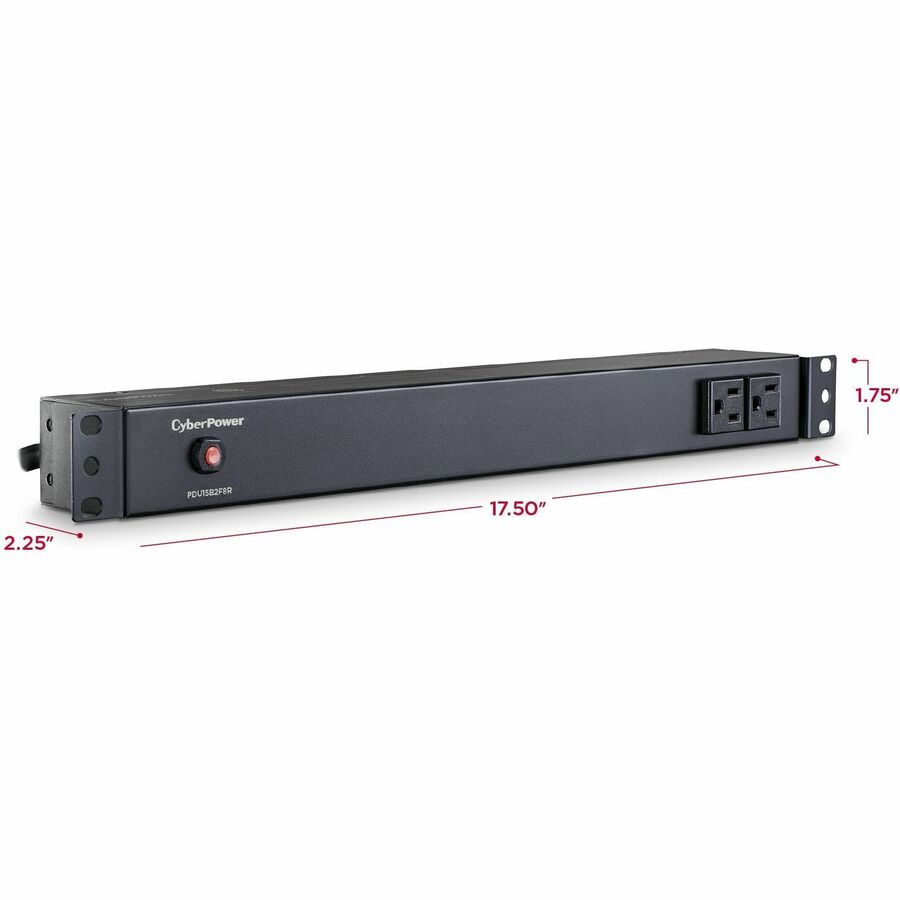

- Dimensions (in.): 17.5W x 1.75H x 2.25D
- Cord length (ft.): 15
- Warranty: Limited lifetime
Specifications
| Package Contents |
|
|---|---|
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PDU15B2F8R |
| Limited Warranty | Lifetime |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 4 lb |
| Length | 2.3" |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU15B2F8R |
| Product Name | PDU15B2F8R 100 - 125 VAC 15A Basic |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection |
| Product Series | Basic PDU |
| Rack Height | 1U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-15P |
| Country of Origin | China |
| Height | 1.8" |
| Width | 17.5" |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Energy Star | No |
| PDU Type | Basic |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Receptacle Detail | 10 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
