Overview

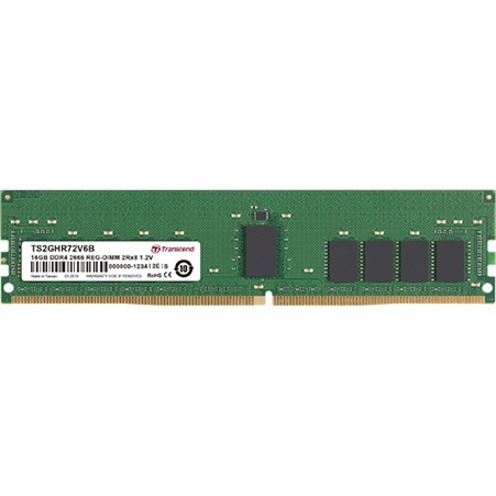

Designed to meet the needs of cloud computing, virtualization, and high-performance computing technologies, Transcend's DDR4-2666 R-DIMMs are fully compatible with Intel® Coffee Lake and AMD Ryzen processors. Each R-DIMM module is constructed of top-quality DRAM chips and rated at 2666MHz, thus maximizing data transmission efficiency with a bandwidth of up to 21GB/s. Operating at a nominal voltage of just 1.2V, Transcend's DDR4-2666 R-DIMMs ensure a low electrical load on the memory controller, consuming up to 40% less electricity than a standard 1.5V DDR3.
Warranty
Limited Warranty: Lifetime
Highlights
JEDEC standard 1.2V ± 0.06V power supply
8 bit pre-fetch
Burst Length: 4, 8
16 Banks (4 Bank Groups)
Support DBI mode
Support Command / Address parity detection
Support Data Cyclic Redundancy Check (CRC) for improved data reliability
Bi-directional differential data-strobe
On-die termination with ODT pin
Serial presence detect with EEPROM
Specifications
General Information
Manufacturer
Transcend Information, Inc
Manufacturer Part Number
TS2GHR72V6BL
Brand Name
Transcend
Product Name
16GB DDR4 SDRAM Memory Module
Product Type
RAM Module
Physical Characteristics
Number of Pins
288-pin
Form Factor
DIMM
Technical Information
Memory Size
16 GB
Memory Technology
DDR4 SDRAM
Memory Voltage
1.20 V
Memory Speed
2666 MHz
Memory Standard
DDR4-2666/PC4-21333
Error Checking
ECC
Signal Processing
Registered
CAS Latency
CL19
Device Supported
Server, Workstation
Warranty
Limited Warranty
Lifetime
Miscellaneous
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Certification
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Energy Efficiency Compliance
Energy-related Products Directive (ErP)
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS)
