Overview

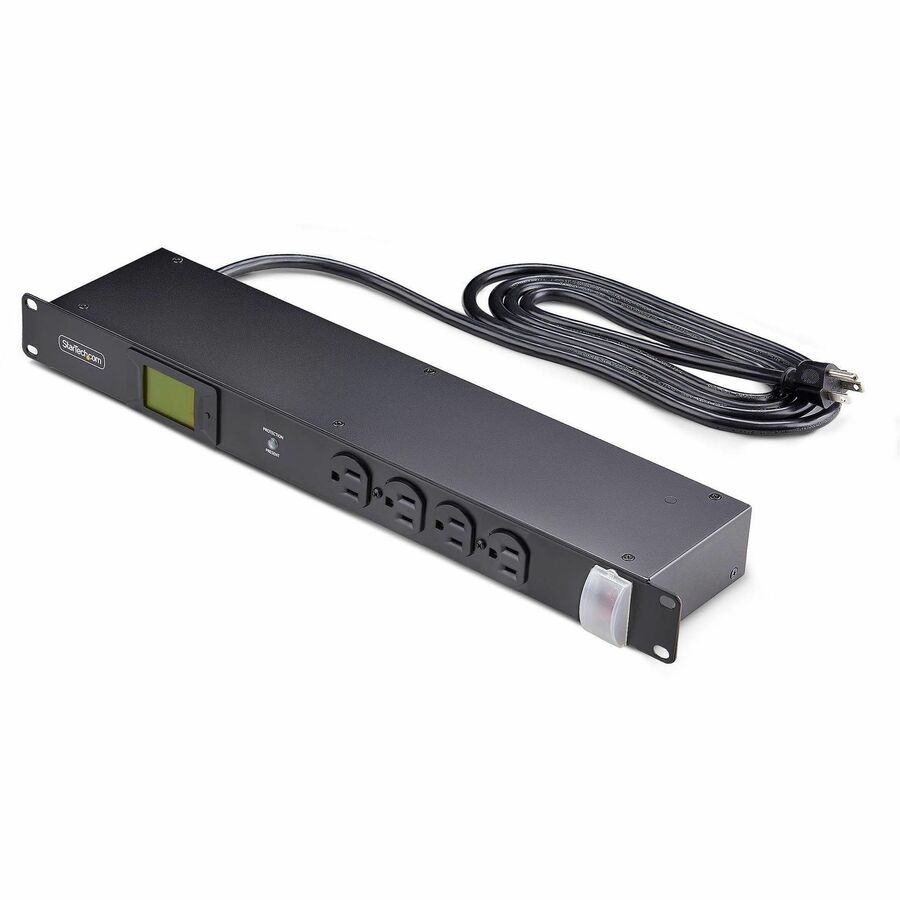

This 1U Rack Mount Metered PDU features a built-in 8ft (2.4m) NEMA 5-15P power cord and 16x NEMA 5-15R outlets, while the surge protection helps ensure the safe and stable operation of critical equipment. A large backlit LCD provides live readings of electrical parameters for connected devices.
Metered Power Distribution Unit
Metering is essential for maintaining equipment performance and stability by enabling real-time reads of key electrical parameters: voltage (V), current (Amp), wattage (W), and power factor (PF). The power factor indicates the efficiency of connected devices, with values closer to 1.0 being the most efficient. Monitoring enables early detection of potential issues, efficient load management, and insights for optimizing energy use.

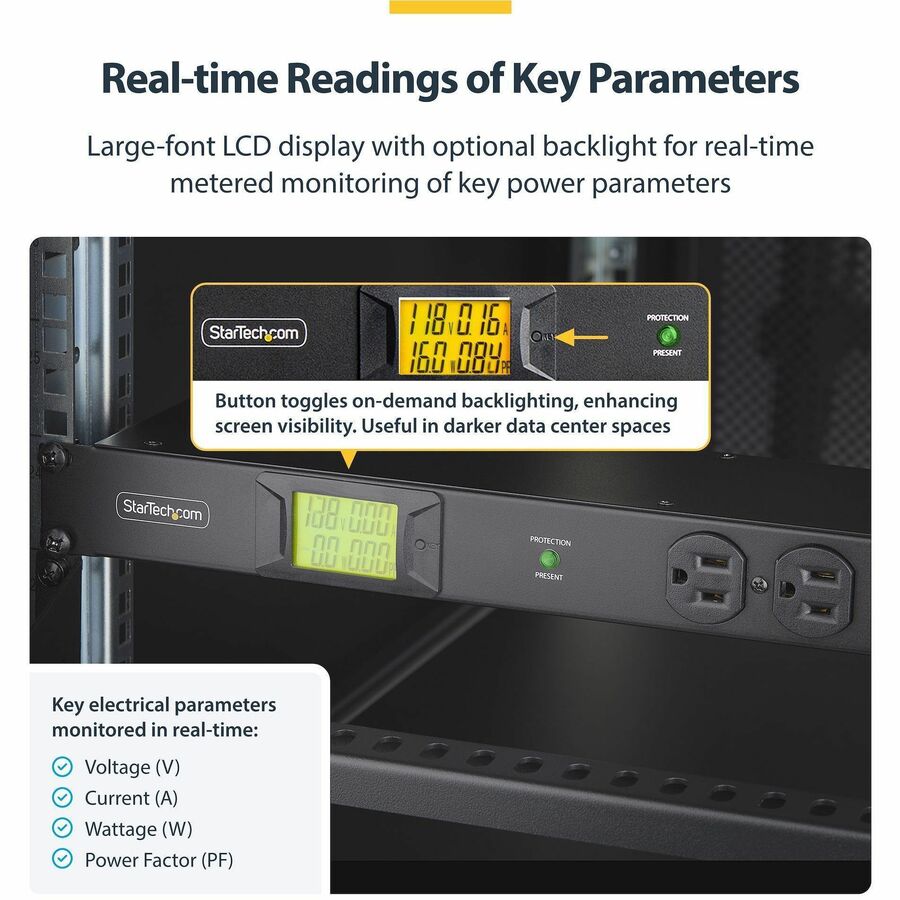

The large-font display provides real-time monitoring of key electrical parameters, while the on-demand backlight helps with visibility in dimly lit scenarios.
Enhanced Power Safety
The robust 15A circuit breaker features a mechanical trigger that quickly responds to surges, providing essential protection for the connected. The resettable breaker has a safety cover that prevents unintentional resets. A bright LED indicator confirms active surge protection

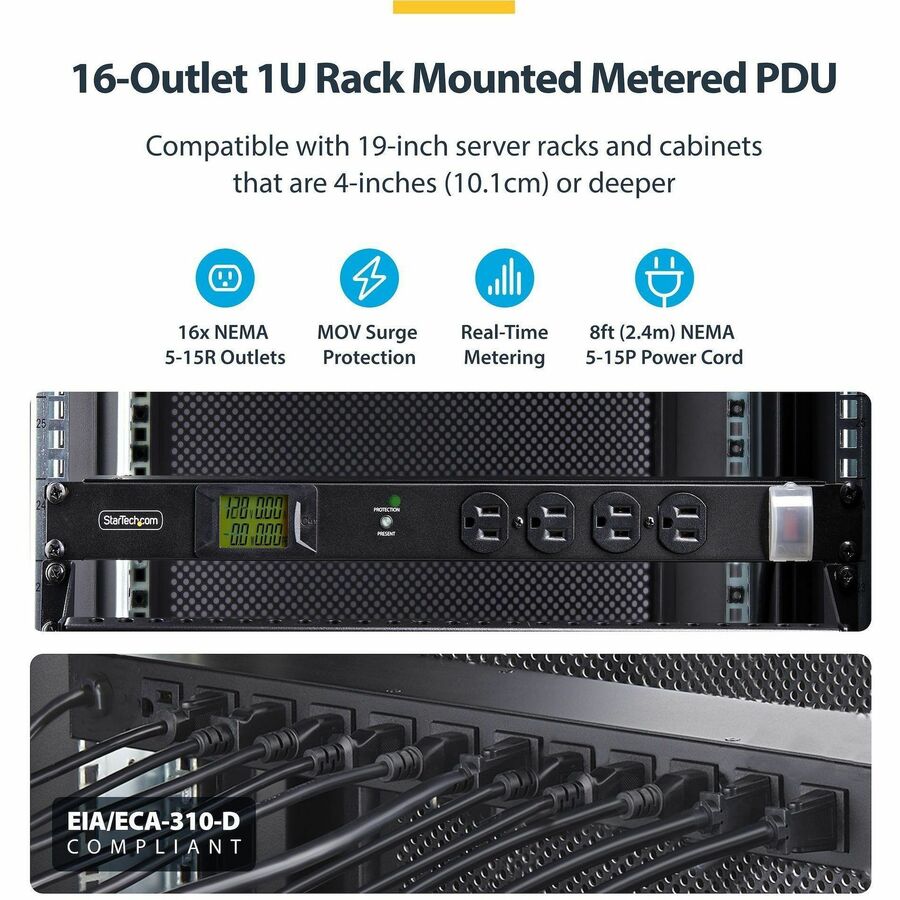

Rack Mount Design

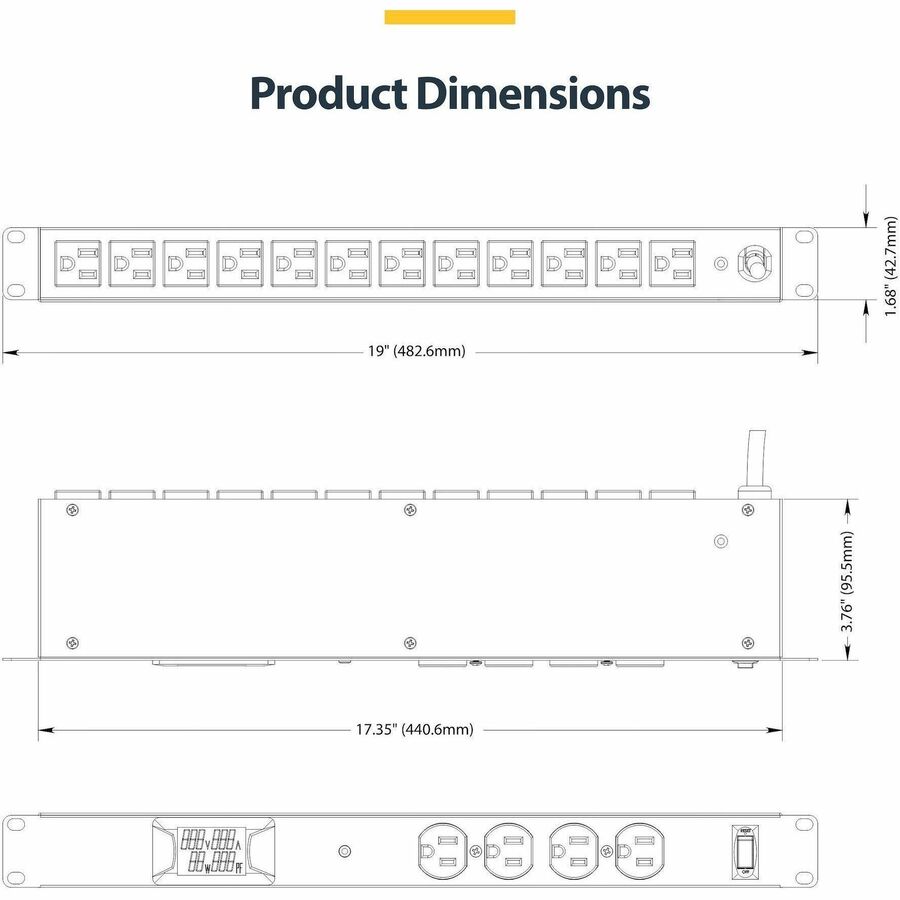

1U horizontal rackmount PDU is compatible with EIA-310-compliant 19-inch 2 or 4-post server racks or cabinets that are 4-inch (10.1cm) or deeper

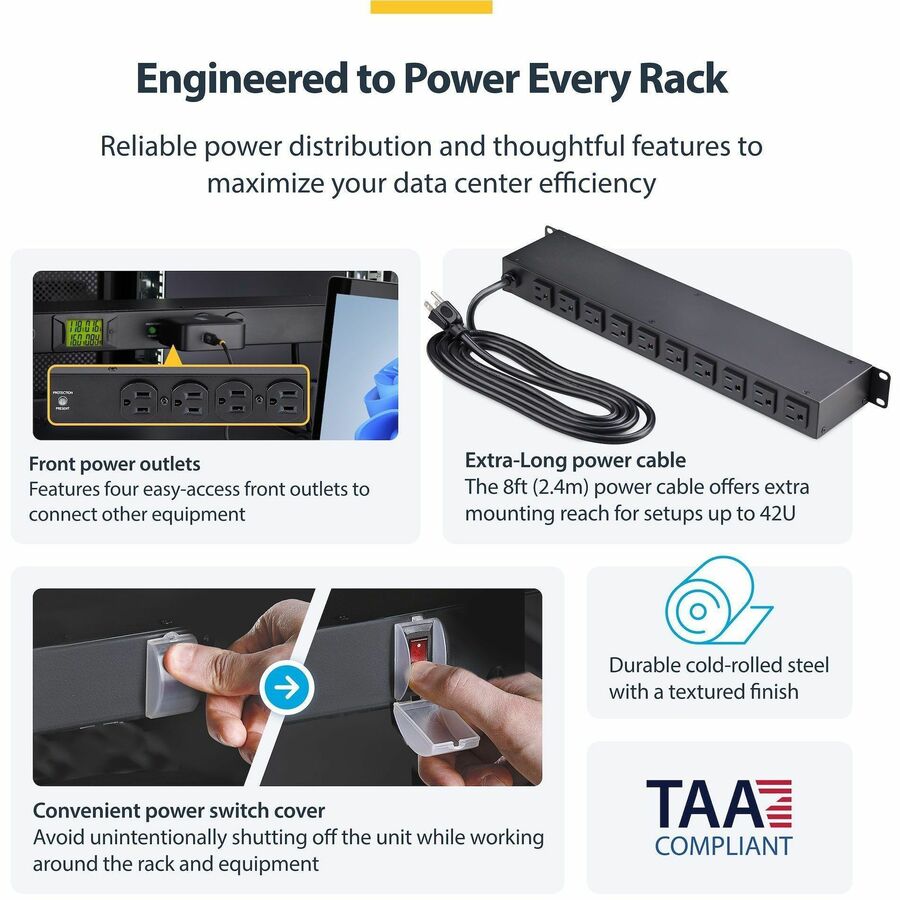

The TAA-compliant cabinet power strip is constructed from cold-rolled steel that ensures sturdiness and features a textured finish that enhances long-lasting durability. The PDU is equipped with a total of sixteen electrical outlets, including twelve positioned at the rear and four at the front, providing ample connectivity options for various devices in server rooms, data centers, and other professional environments.
More from the Manufacturer
Highlights
16-OUTLET 1U RACK MOUNTED METERED PDU: 16x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs
METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices
SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets
RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 12x rear and 4x front electrical outlets
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Application/Usage
Server Rack/Cabinet, Data Center
Package Contents
16-Outlets PDU
Quick-Start Guide
Product Type
PDU
Input Voltage
120 V AC
Manufacturer Part Number
16NM8-RACK-MOUNT-PDU
Packaged Quantity
1
Power Source
Power Supply
Limited Warranty
2 Year
Output Voltage
125 V AC, 120 V AC
Weight (Approximate)
4.40 lb
Features
LCD Display, LED Status Indicator
Input Current
15 A
Length
3.8"
Manufacturer
StarTech.com
Product Name
16-Outlets PDU
Mount Type
Rack-mountable
Protection Type
Surge Protection, Circuit Breaker
Rack Height
1U
Brand Name
StarTech.com
Plug/Connector Type
NEMA 5-15P
Cord Length
8 ft
Height
1.7"
Width
19"
Receptacle Type
NEMA 5-15R
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
Minimum Storage Temperature
14°F (-10°C)
Maximum Storage Temperature
122°F (50°C)
TAA Compliant
Yes
PDU Type
Metered
Mounting Orientation
Horizontal
Product Color
Black
Color Family
Black
Receptacle Detail
16 x NEMA 5-15R
Plug/Connector Detail
1 x NEMA 5-15P
Minimum Operating Humidity
5%
Maximum Operating Humidity
95%
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
