230 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI In - DisplayPort - 1080i, 1080p - 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, 2K, QWXGA - 4096 x 2160 - Twisted Pair - Category 5e - Display, Projector - Wall Plate, Gang Box Mount
MSRP$1,100.00
$680.92
Save 38%Special order — estimated available by September 10, 2026.
Genuine Crestron Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

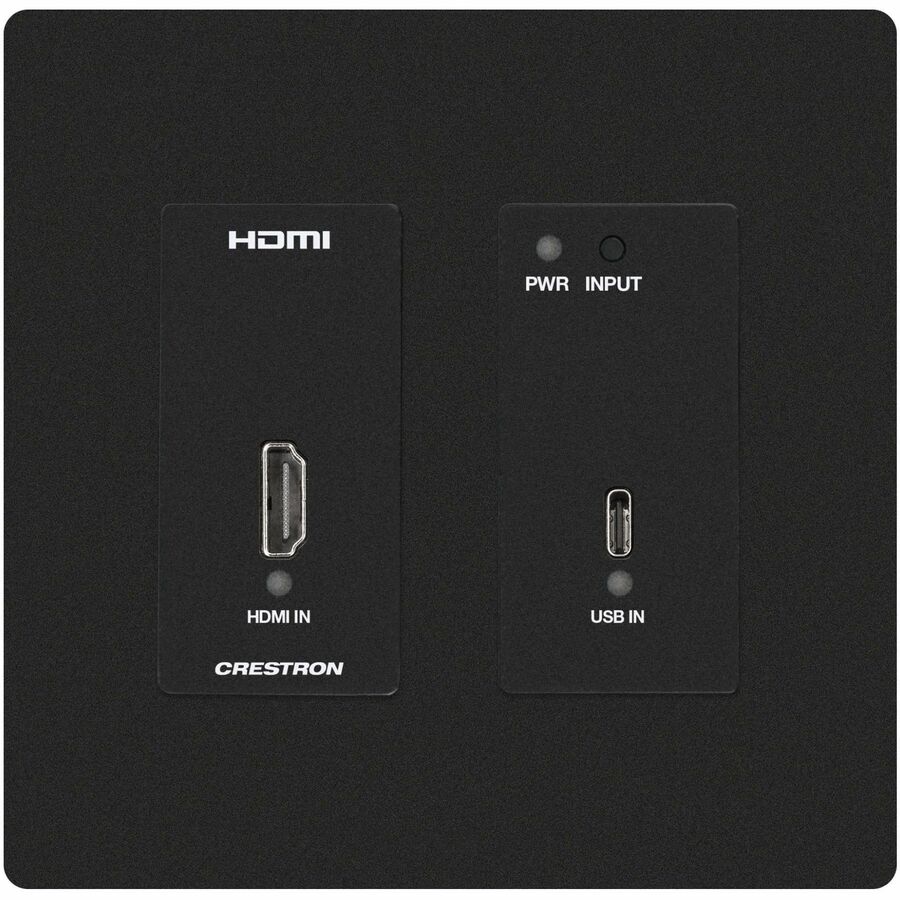

The HD-TX-4KZ-211-2G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite switcher. The paired transmitter and receiver enable extension of HDMI® or USB-C® DisplayPort AV signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TX-4KZ-211-2G to the DM Lite receiver or DMPS Lite switcher. 1
The HD-TX-4KZ-211-2G is available in two models: HD-TX-4KZ-211-2G-B (black) and HD-TX-4KZ-211-2G-W (white).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-211-2G must be connected to a DM Lite input port of a DM Lite 4K60 4:4:4 receiver, DM Lite 4K60 4:2:0 receiver, or DMPS Lite switcher.
The HD-TX-4KZ-211-2G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-211-2G. In addition, control system programming and .AV Framework software support of the HD-TX-4KZ-211-2G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-211-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported. 2
Automatic Switching of Inputs
When the HD-TX-4KZ-211-2G is used with a DMPS Lite switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure AV switching behavior. Switching between the HDMI and USB-C DisplayPort inputs occurs based on the last connected input or on the routing priority assigned to each input. In addition, the input selection push button on the front of the HD-TX-4KZ-211-2G enables the desired input to be selected manually.
Two-Gang Wall Plate Design
The HD-TX-4KZ-211-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-211-2G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher. 3
Key Features
• Interoperability with a DM Lite® receiver or DMPS Lite switcher
• Point-to-point extension of an HDMI® or USB-C® DisplayPort signal over a CAT5e or higher cable
• USB-C input with DisplayPort Alt Mode capability
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• Automatic switching of HDMI and USB-C DisplayPort inputs
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Two-gang wall plate design with black finish
• Decorator style faceplate required (FP-G2-DM Series sold separately)
• Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511916 |
| Brand Name | Crestron |
| Product Line | DM Lite |
| Product Model | HD-TX-4KZ-211-2G-B |
| Product Name | DM Lite 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI and USB-C DisplayPort Signal Extension over CATx Cable, Wall Plate, Black |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.12" |
| Transmitter Width | 3.57" |
| Transmitter Depth | 1.66" |
| Form Factor | Wall Plate, Gang Box Mount |
| Transmitter Weight (Approximate) | 7.33 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, 2K, QWXGA |
| Supported Video Modes | 1080i, 1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Miscellaneous | |
| Application/Usage | Display, Projector |
