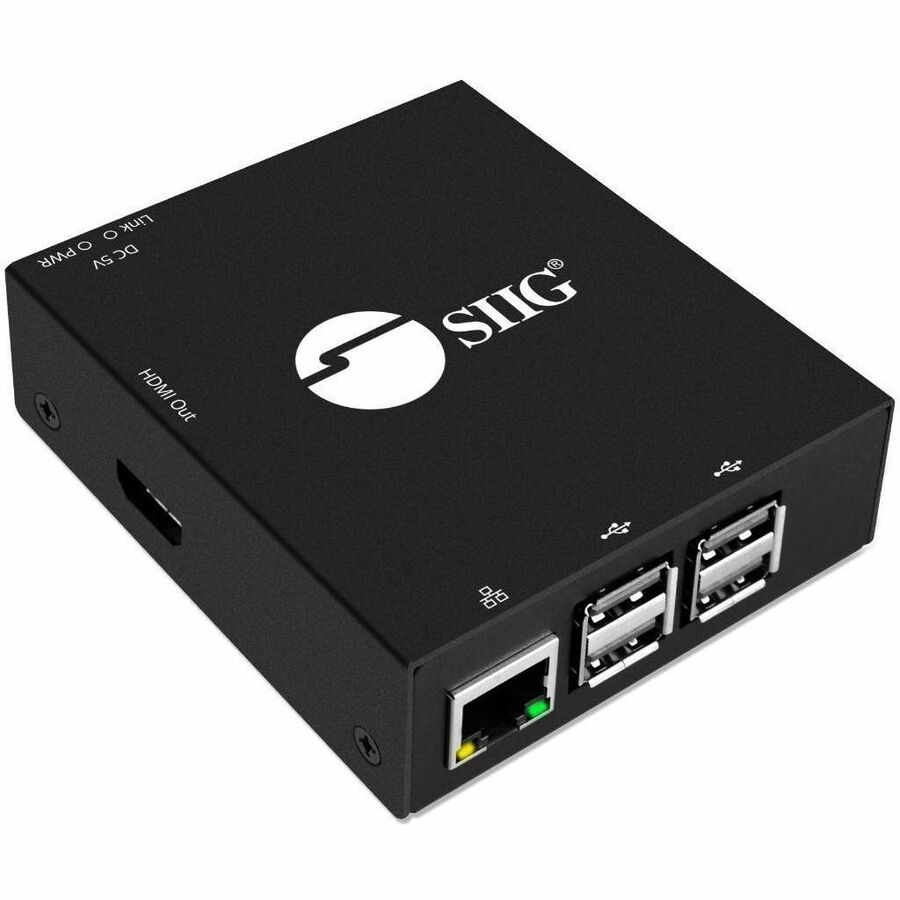

SIIG HDMI Video Wall Over IP Multicast System - Controller
1 x Network (RJ-45) - 4 x USBHDMI In - 1 x HDMI Out - 1080p, 1080i, 720p, 480i, 480p - 4K - 4096 x 2160 - Twisted Pair - Category 7, Category 6 - Power over Ethernet (PoE) - Keyboard, Mouse, Airport, Exhibition, Lecture Hall, Control Center, Retail Store, Restaurant, Digital Signage System, Shopping Center, Surveillance System - TAA Compliant
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE-H25411-S2
Category
Audio & Video Consoles/Extenders
Overview
Smart Controller and central management system allows real time monitoring over IP for CE-H28A11-S1 Matrix Kit, CE-H27F11-S1 Encoder (TX) and CE-H27G11-S1 Decoder (RX), TAA compliant
Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
1080p supported video mode for pleasurable viewing and dependable usage
4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
USB connectivity allows dependable and efficient power supply with maximum productivity
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
4K graphics mode provides optimal video output with remarkable picture clarity
Video Extender Transmitter with keyboard application/usage to ensure maximum dependability and optimal performance
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H25411-S2
Brand Name
SIIG
Product Name
HDMI Video Wall Over IP Multicast System - Controller
Product Type
Video Extender Transmitter
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
USB
Yes
Number of Network (RJ-45) Ports
1
Number of USB Ports
4
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7, Category 6
Physical Characteristics
Color Family
Black
Product Color
Black
Transmitter Height
1.14"
Transmitter Width
3.54"
Transmitter Depth
3.07"
Transmitter Weight (Approximate)
8 oz
Power Description
Power over Ethernet (PoE)
Yes
Technical Information
Connectivity Technology
Wired
Data Link Protocols
TCP/IP
Video
Graphics Modes
4K
Supported Video Modes
1080p, 1080i, 720p, 480i, 480p
Maximum Video Resolution
4096 x 2160
Warranty
Limited Warranty
3 Year
Miscellaneous
Application/Usage
Keyboard, Mouse, Airport, Exhibition, Lecture Hall, Control Center, Retail Store, Restaurant, Digital Signage System, Shopping Center, Surveillance System
Country of Origin
Taiwan
TAA Compliant
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2
