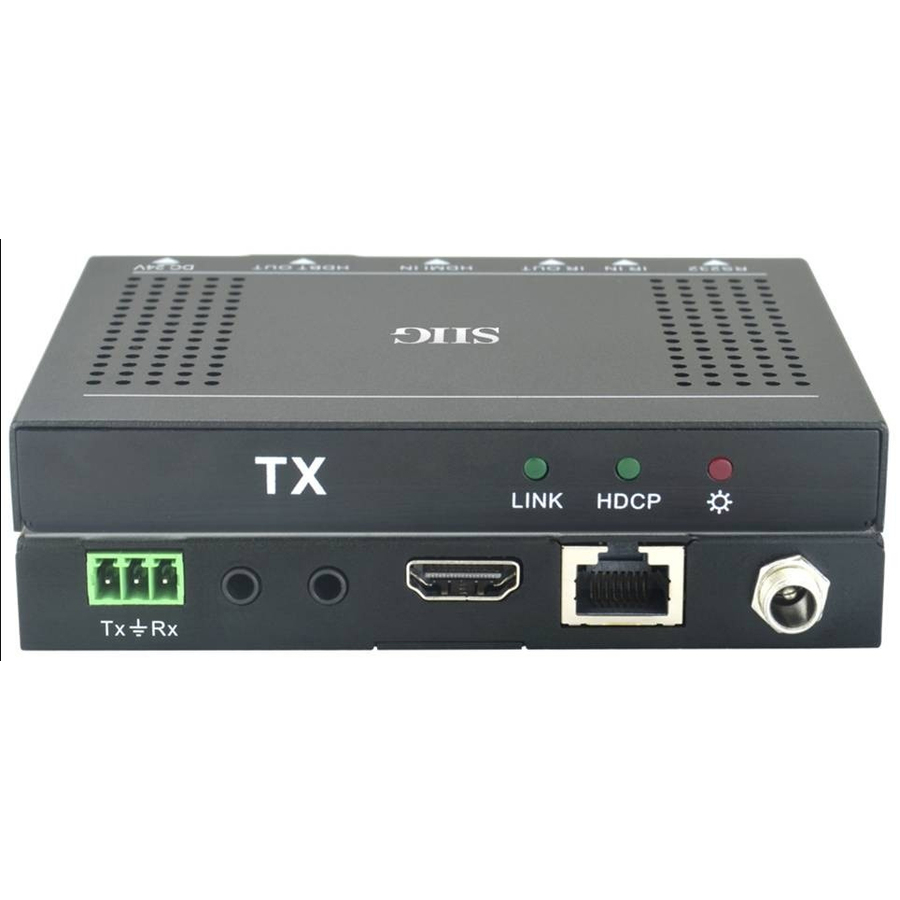

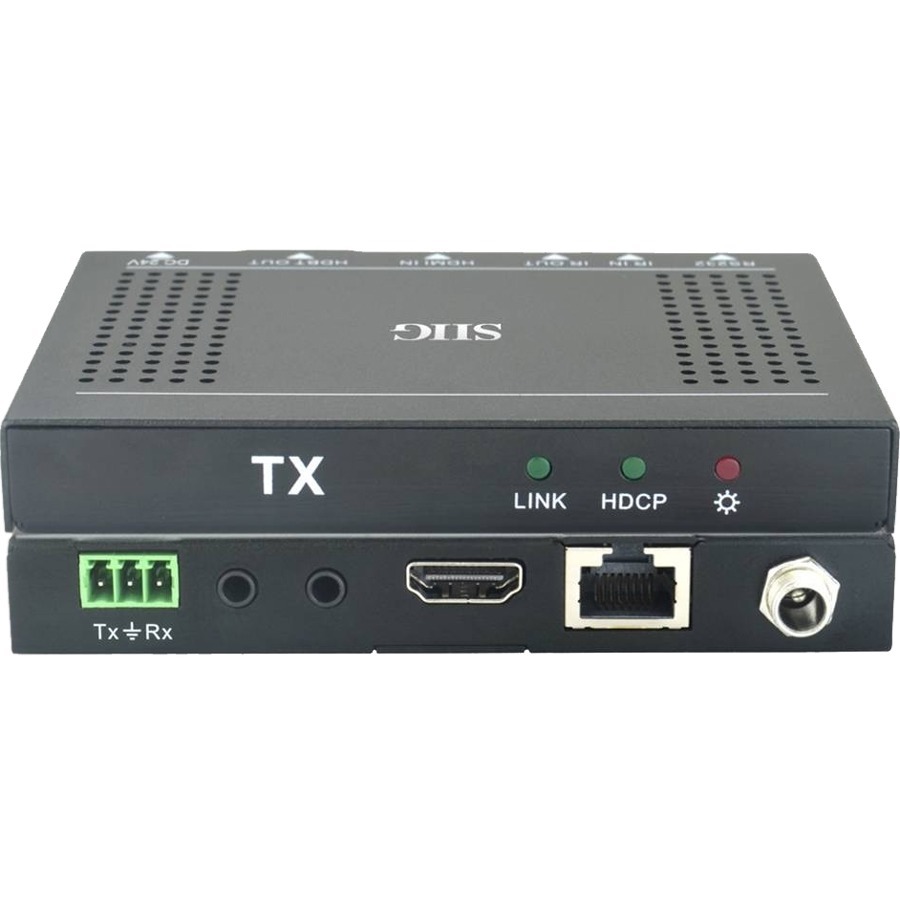

SIIG HDMI HDBaseT 4K Transmitter (TX)
SIIG

SIIG HDMI HDBaseT 4K Transmitter (TX)

1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Category 7 - Rack-mountable

SKU
CE-H24411-S1
Category
Audio & Video Consoles/Extenders

$210.83

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24411-S1
Category
Audio & Video Consoles/Extenders

Overview

Transmits HDMI audio and video signals, RS232 control, IR control, PoH up to 70 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

• 4K HDBaseT Transmitter unit designed to work in conjunction with other SIIG components

• Supports transmission distance up to 230ft (70m ) at 1080p and 131ft (40m) at 4K resolution

• Compliant with HDMI 1.4 and HDCP 2.2

• Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D

• Supports Bi-directional PoH function to power the Transmitter and Receiver using only one power adapter connected to either unit

• Supports CEC pass-through, Bi-directional IR, RS232 control

Highlights

  • Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
  • 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
  • HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
  • Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
  • 1 input devices supported for maximum feasibility and usage convenience
  • 229.66 ft maximum operating distance for reliable coverage and maximum portability
  • 4K graphics mode provides optimal video output with remarkable picture clarity
  • Rack-mountable form factor for added reliability and dependability

Specifications

Package Contents
  • HDMI HDBaseT 4K Transmitter (TX)
  • Power Adapter
  • 2 x Mounting Ears
  • 4 x Screw Kit
  • 4 x Plastic Cushions
  • RS-232 Cable
  • User Manual
Product TypeVideo Extender Transmitter
Manufacturer Part NumberCE-H24411-S1
Limited Warranty3 Year
Connectivity TechnologyWired
Form FactorRack-mountable
ManufacturerSIIG, Inc
Product NameHDMI HDBaseT 4K Transmitter (TX)
Brand NameSIIG
Country of OriginChina
Graphics Modes4K
Environmentally FriendlyYes
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
Transmitter Height0.64"
Transmitter Width4.52"
Transmitter Depth4.30"
Transmitter Weight (Approximate)10.72 oz
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
