Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmitter units - 5x5 VideoWall - KVM - USB - HDCP 2.2 - HDR 10 - 3.5mm Stereo - S/PDIF - Bi-directional IR - RS-232 Control - ESD Protection - TAA Compliant - 3 years warranty - Kit (CE-H28A11-S1) - Decoder (RX) (CE-H27G11-S1) - Controller (CE-H25411-S2)
MSRP$689.99
$611.75
Save 11%In stock: 2
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Overview
HDMI over IP Matrix - Encoder (TX), transmits 4K@60Hz HDMI signal up to 394Ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), Decoder (RX) (CE-H27G11-S1) Features
Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations
Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional Encoder (TX)unit (CE-H27F11-S1), Decoder (RX)unit (part#- CE-H27G11-S1), and Kit (part#- CE-H28A11-S1) are sold separately
PoE Technology
Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required
Long Distance
This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch
4K UHD Resolution
Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only
IR Extension/RS-232 Control
Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices
High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound
Extract Audio
Audio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
Multiple Connectivity Ports

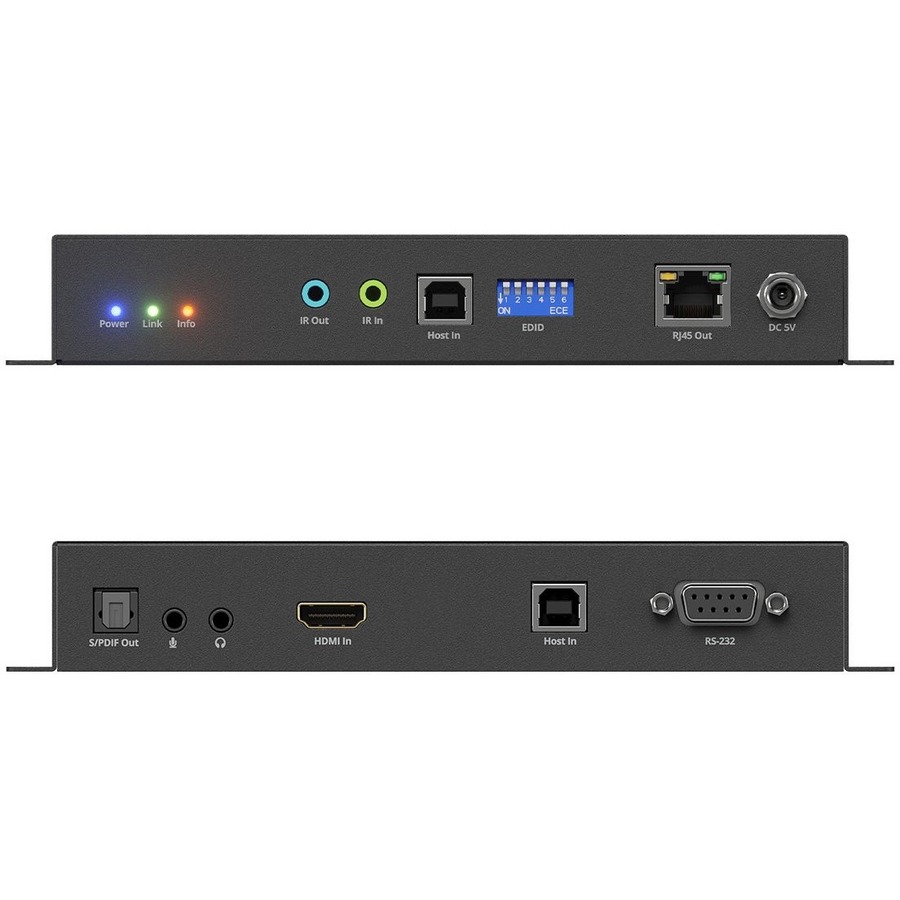

Comes with one HDMI video input port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, one Gigabit Ethernet network port, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm microphone jack, one 3.5mm audio jack, one S/PDIF output port, one DIP switch for video channel selection, one RS-232 port for control, one DC power jack (5V/2A)
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H27F11-S1 |
| Brand Name | SIIG |
| Product Name | 4K 60Hz HDMI over IP Matrix- Transmitter |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.09" |
| Transmitter Width | 5.19" |
| Transmitter Depth | 6.81" |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 1.41 lb |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 393.70 ft |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p, 1080i, 720p, 480i, 480p |
| Maximum Video Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |

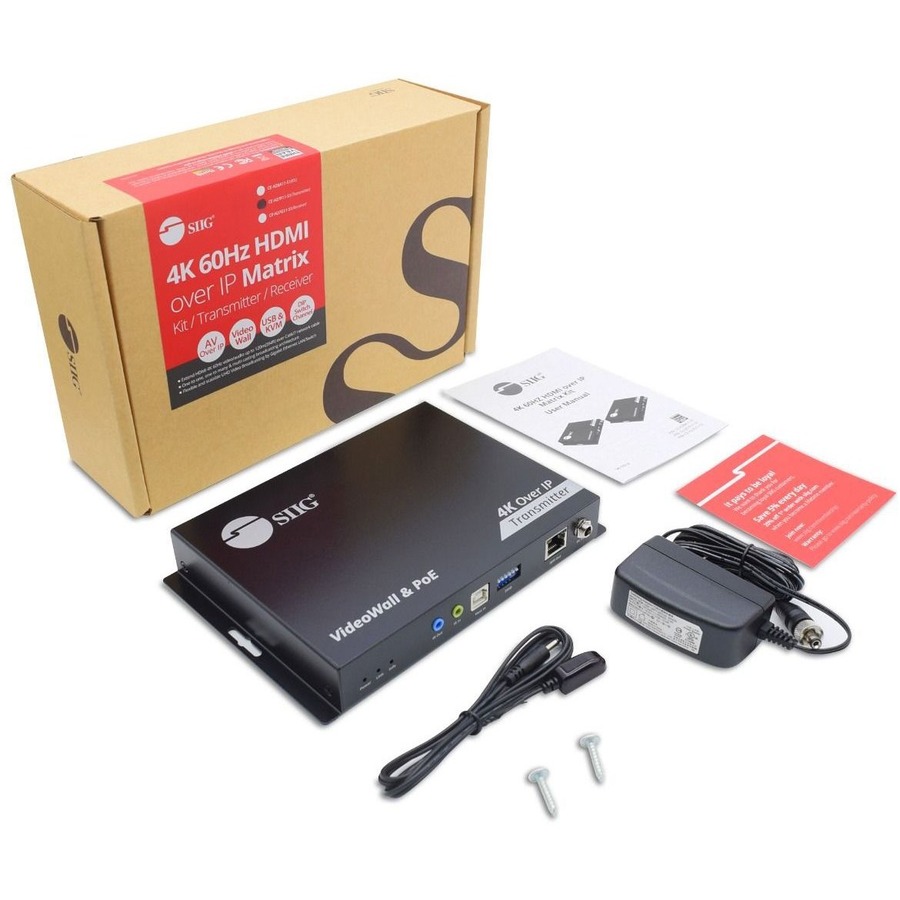

| Package Contents | 4K 60Hz HDMI Over IP Matrix- Transmitter 1x 3.5mm IR Emitter Extension Cable 1x DC Power Adapter, 5V/2A 1x Mounting Kit 1x User Reference Guide |
| Application/Usage | Shopping Center, Digital Signage System, Restaurant, Lecture Hall, Exhibition, Airport, Retail Store, Control Center |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2 |
