Signal Extension over CATx Cable
230 ft Range - 1 x Network (RJ-45) - 1 - 1 x Remote (IR) Input - 1 x Remote (IR) Output - 1080i, 1080p - 4K, Full HD, WUXGA, QWXGA, WQXGA, 4K UHD - 4096 x 2160 - Twisted Pair - Category 5e - Surface-mountable, Rail-mountable
MSRP$480.00
$324.92
Save 32%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
Genuine Crestron Electronics through authorized distribution — NDAA §889 screened before checkout.
The HD-TXC-4KZ-101 is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-TXC-4KZ-101 to the DM Essentials receiver or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher
The DM Essentials output port of the HD-TXC-4KZ-101 must be connected to a DM Essentials input port of a DM Essentials receiver or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 receivers are theHD-RXC-4KZ-101andHD-RXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402,HD-PS401, andHD-RX-4K-210-C-E.
The HD-TXC-4KZ-101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-TXC-4KZ-101. In addition, control system programming and .AV Framework software support of the HD-TXC-4KZ-101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TXC-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

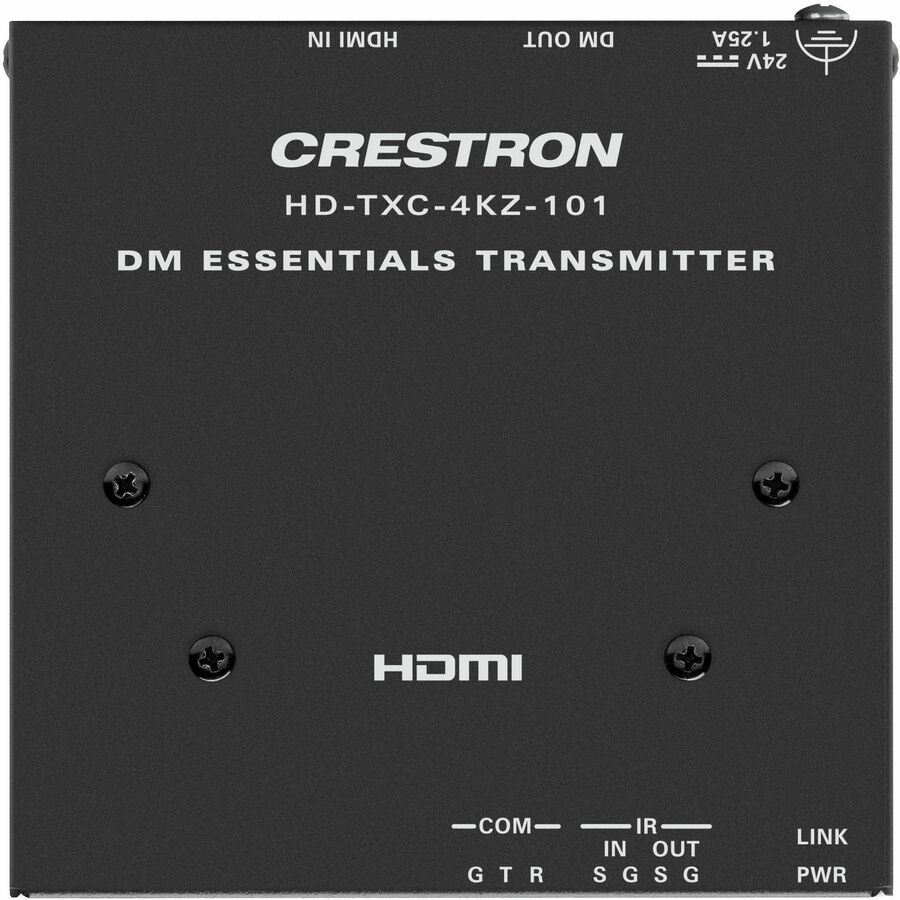

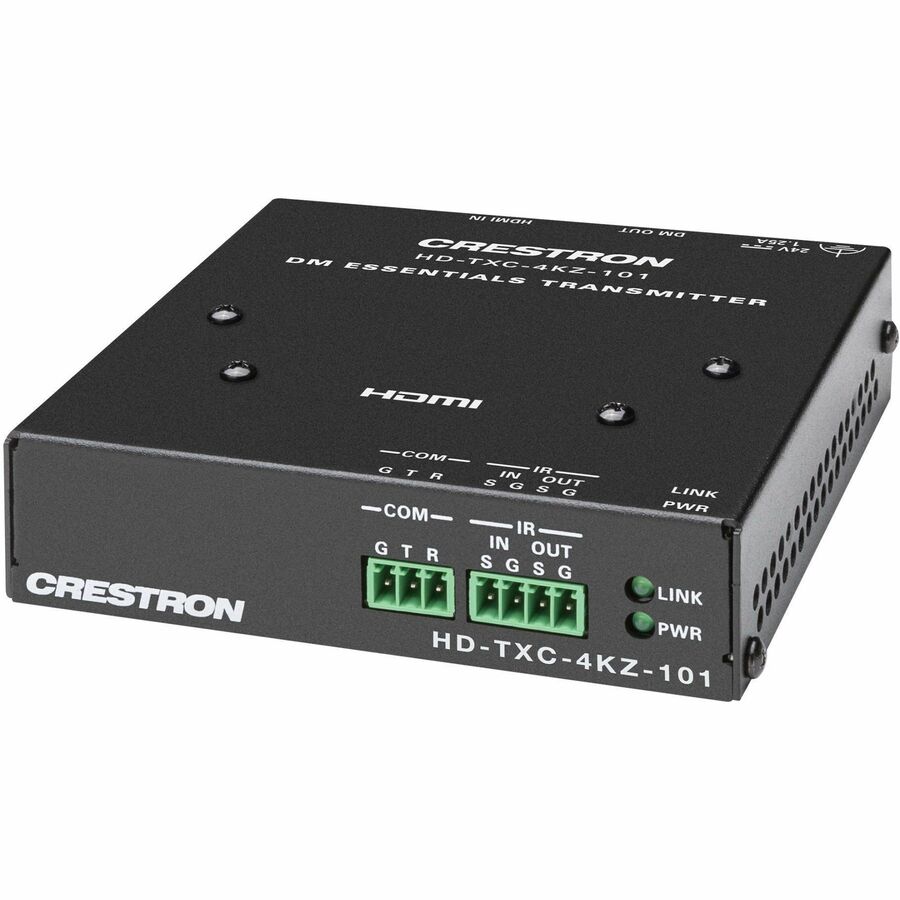

Compact, Surface-Mountable Design
Compact in design, the HD-TXC-4KZ-101 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TXC-4KZ-101 can receive power from the included power pack or from the remote DM Essentials receiver or DMPS Essentials switcher.
Key Features
• Interoperability with a DM® Essentials receiver or DMPS Essentials switcher
• Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability

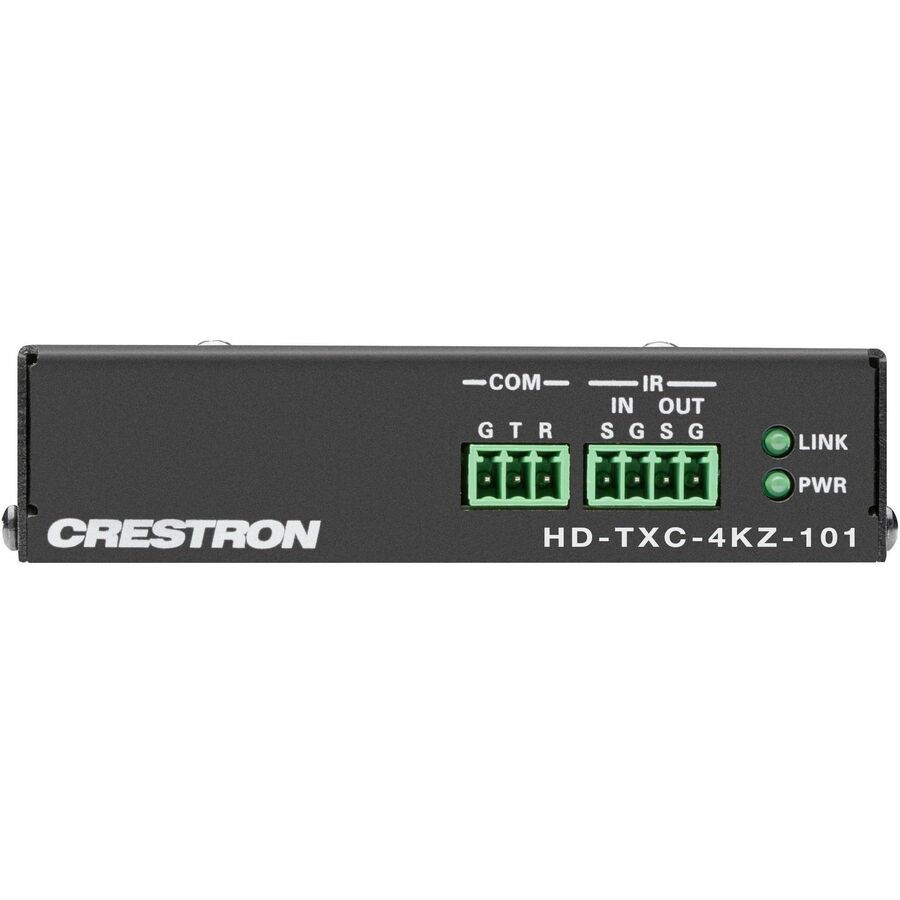

• Bidirectional RS-232 and IR pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design

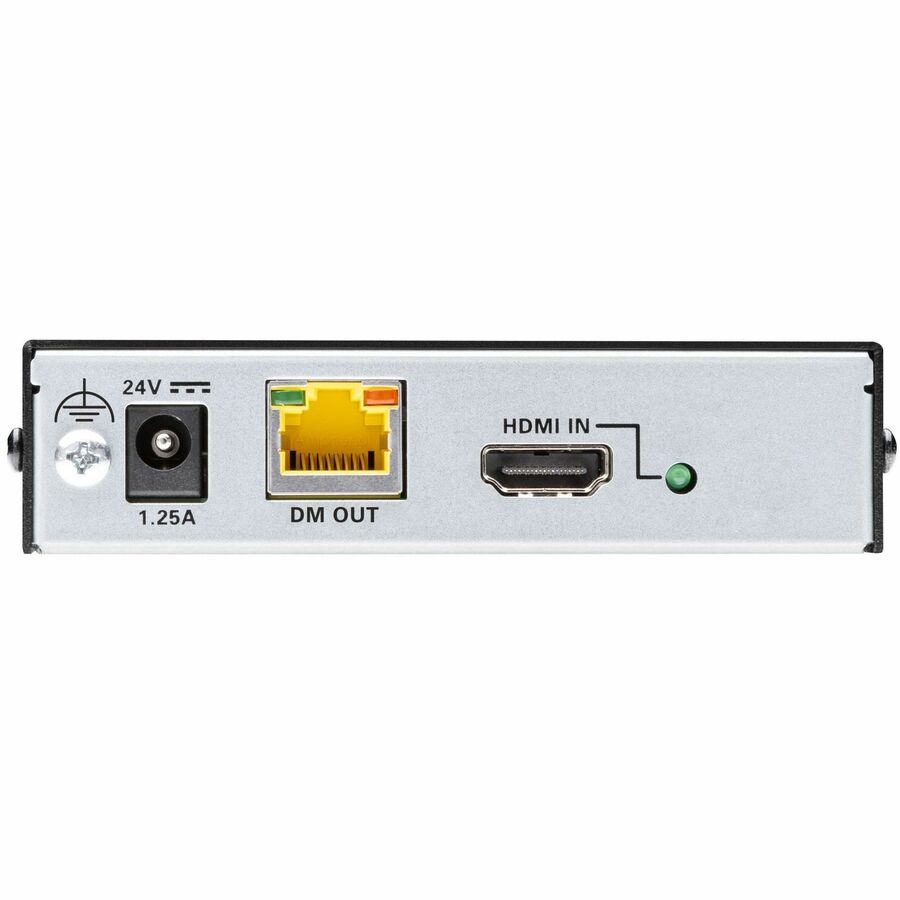

• Power from 24VDC power pack (included) or from remote DM Essentials receiver or DMPS Essentials switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511811 |
| Brand Name | Crestron |
| Product Line | Essentials |
| Product Model | HD-TXC-4KZ-101 |
| Product Name | DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.13" |
| Transmitter Width | 4.18" |
| Transmitter Depth | 1.08" |
| Form Factor | Surface-mountable, Rail-mountable |
| Transmitter Weight (Approximate) | 11.92 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K, Full HD, WUXGA, QWXGA, WQXGA, 4K UHD |
| Supported Video Modes | 1080i, 1080p |
| Maximum Video Resolution | 4096 x 2160 |
