CATx Cable, Wall Plate, Black
229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1080i, 1080p - WQXGA, 4K, 4K UHD, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Category 5e - Wall Mountable, Wall Plate, Gang Box Mount
MSRP$450.00
$289.53
Save 36%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
Genuine Crestron Electronics through authorized distribution — NDAA §889 screened before checkout.
The HD-RX-4KZ-101-1G is a DM Lite® 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Lite® transmitter or DMPS Lite switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-RX-4KZ-101-1G to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
The HD-RX-4KZ-101-1G is available in black (model HD-RX-4KZ-101-1G-B).
Interoperability with a DM Lite Transmitter or DMPS Lite Switcher
The DM Lite input port of the HD-RX-4KZ-101-1G must be connected to a DM Lite output port of a DM Lite transmitter or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 transmitters are the HD-TX-4KZ-101, HD-TX-4KZ-111, HD-TXA-4KZ-101, HD-TXC-4KZ-101, and HD-TXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, and HD-PS402.
The HD-RX-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-RX-4KZ-101-1G. In addition, control system programming and .AV Framework software support of the HD-RX-4KZ-101-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-RX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

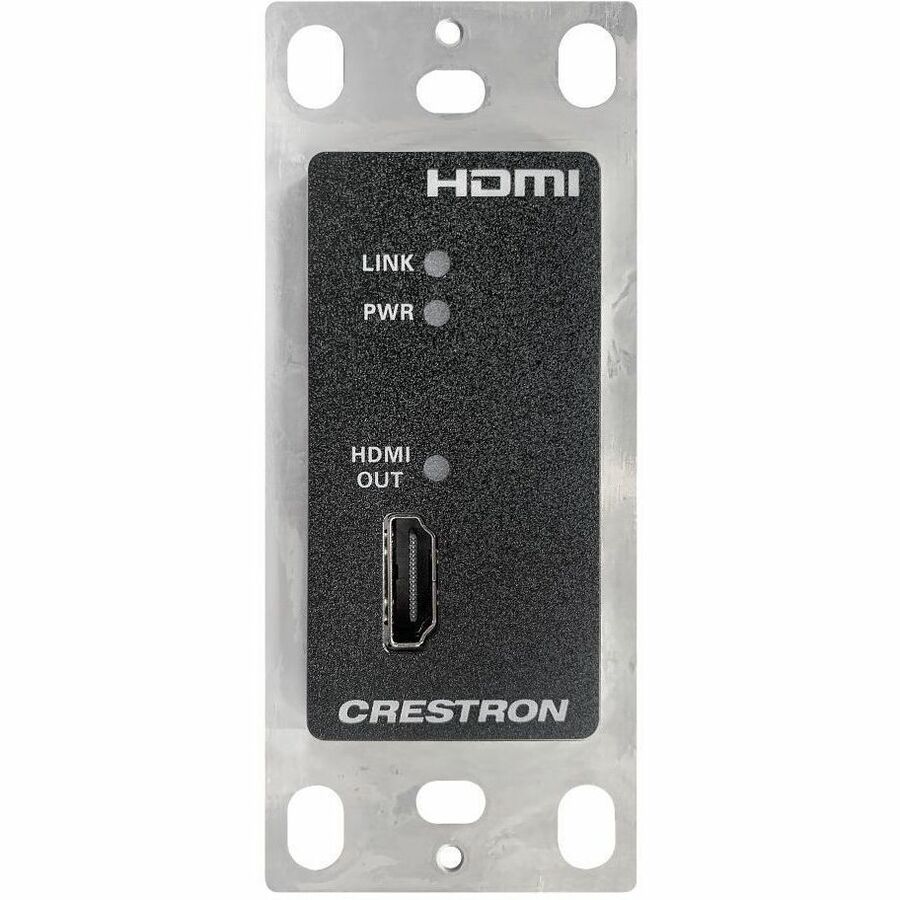

One-Gang Wall Plate Design
The HD-RX-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RX-4KZ-101-1G can receive power from the remote DM Lite transmitter (surface mountable only) or DMPS Lite switcher.
Key Features
• Interoperability with a DM Lite® transmitter or DMPS Lite switcher
• Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability

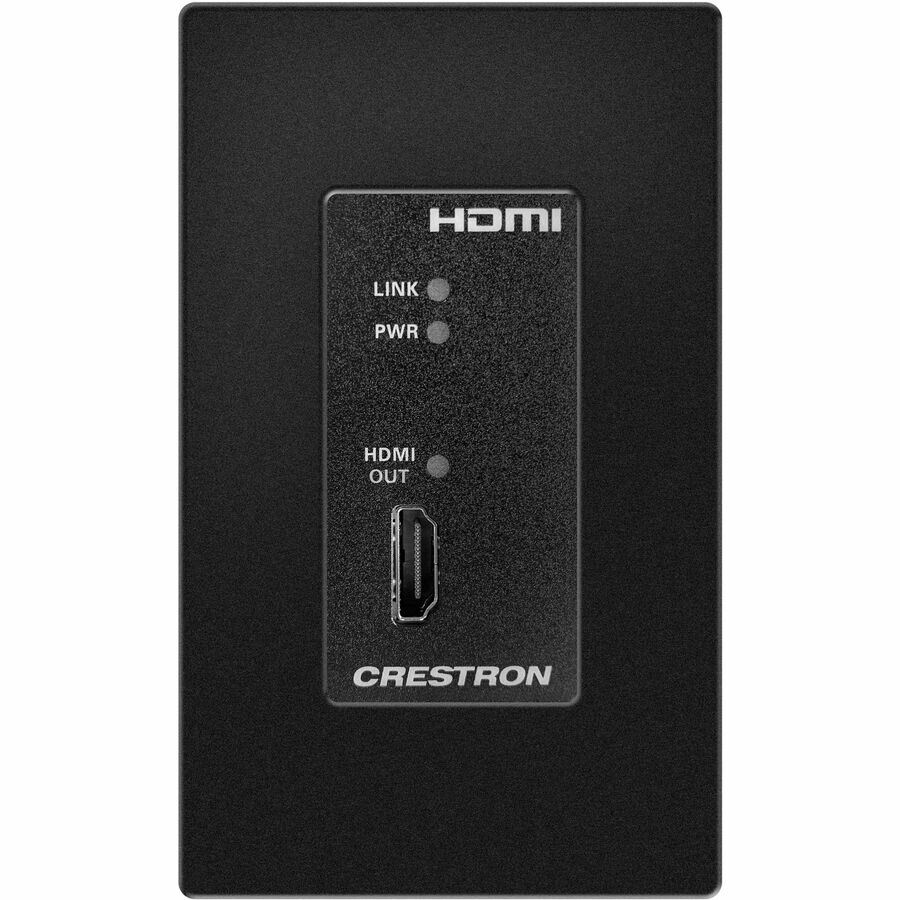

• One-gang wall plate design with black finish
• Decorator style faceplate required (FP-G Series sold separately)
• Power from the remote DM Lite transmitter (surface mountable only) or DMPS Lite switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511812 |
| Brand Name | Crestron |
| Product Line | DM Lite |
| Product Model | HD-RX-4KZ-101-1G-B |
| Product Name | DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black |
| Product Type | Video Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 4.12" |
| Receiver Width | 1.72" |
| Receiver Depth | 2.19" |
| Form Factor | Wall Mountable, Wall Plate, Gang Box Mount |
| Receiver Weight (Approximate) | 5.33 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229.66 ft |
| Video | |
| Graphics Modes | WQXGA, 4K, 4K UHD, Full HD, UXGA, WUXGA, QWXGA |
| Supported Video Modes | 1080i, 1080p |
| Maximum Video Resolution | 4096 x 2160 |
