Extension over CATx Cable
230 ft Range - 1 x Network (RJ-45) - 1 x USB - 1080p - WQXGA, Full HD, WUXGA, 4K, 4K UHD, 2K, UXGA, QWXGA - 4096 x 2160 - Twisted Pair - Category 5e - Power over Ethernet (PoE) - Surface-mountable, Rail-mountable
MSRP$510.00
$344.72
Save 32%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
Genuine Crestron Electronics through authorized distribution — NDAA §889 screened before checkout.
The HD-TX-4KZ-111 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite switcher. The HD-TX-4KZ-111 includes a USB-C® input with DisplayPort Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher.For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported. 1
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DM Lite 4K60 4:2:0 receivers are the HD-RX-101-C-E, HD-RXC-101-C-E, HD-RX-201-C-E, HD-RX-101-C-1G-E, and HD-RXC-101-C-1G-E. Supported DMPS Lite switchers are the HD-PS622, HD-PS621, HD-PS402, HD-PS401, and HD-RX-4K-210-C-E(-POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-111 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111. In addition, control system programming and .AV Framework software support of the HD-TX-4KZ-111 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported. 2

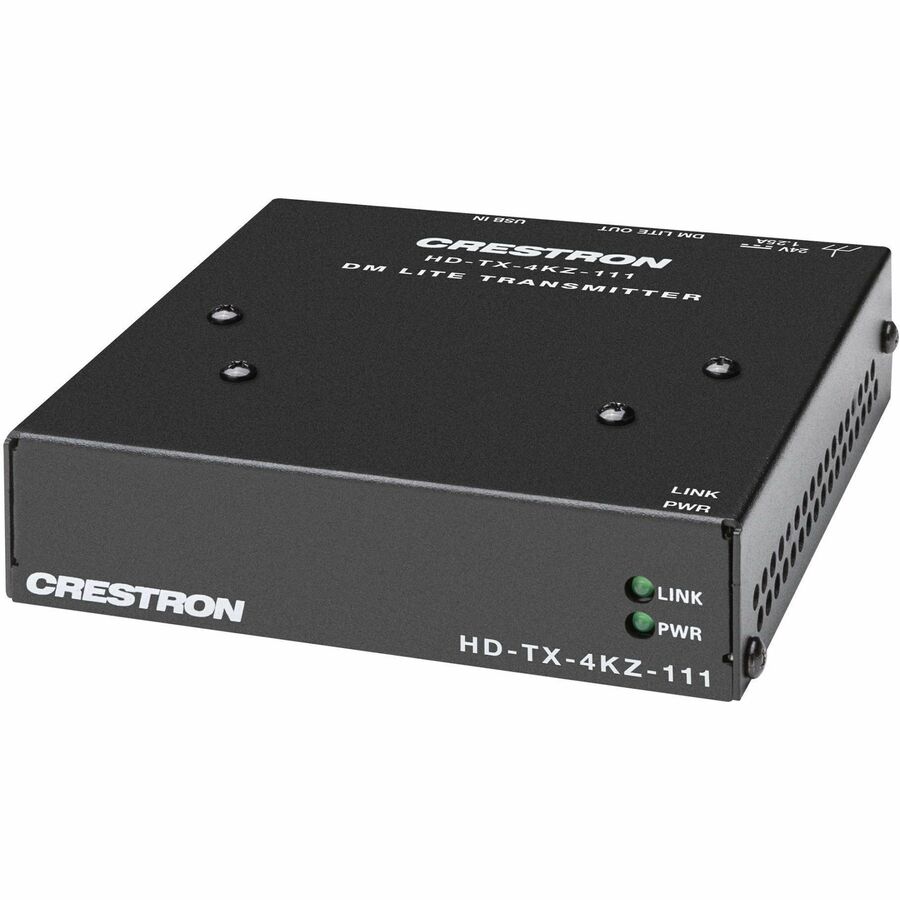

Compact, Surface-Mountable Design
Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.
Key Features
• Interoperability with a DM Lite® receiver or DMPS Lite switcher
• USB-C® input with DisplayPort Alt Mode capability for the point-to-point extension of a DisplayPort AV signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Lite receiver or DMPS Lite switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511805 |
| Brand Name | Crestron |
| Product Line | DM Lite |
| Product Model | HD-TX-4KZ-111 |
| Product Name | DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.13" |
| Transmitter Width | 4.18" |
| Transmitter Depth | 1.08" |
| Form Factor | Surface-mountable, Rail-mountable |
| Transmitter Weight (Approximate) | 11.96 oz |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | WQXGA, Full HD, WUXGA, 4K, 4K UHD, 2K, UXGA, QWXGA |
| Supported Video Modes | 1080p |
| Maximum Video Resolution | 4096 x 2160 |
