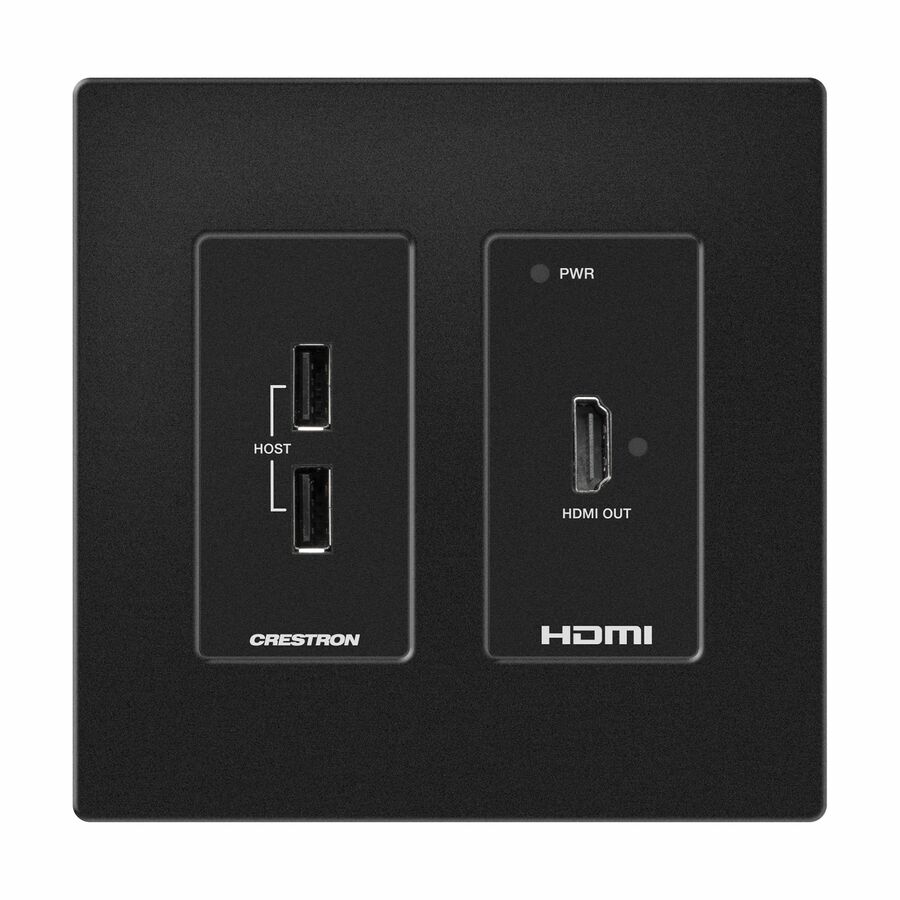

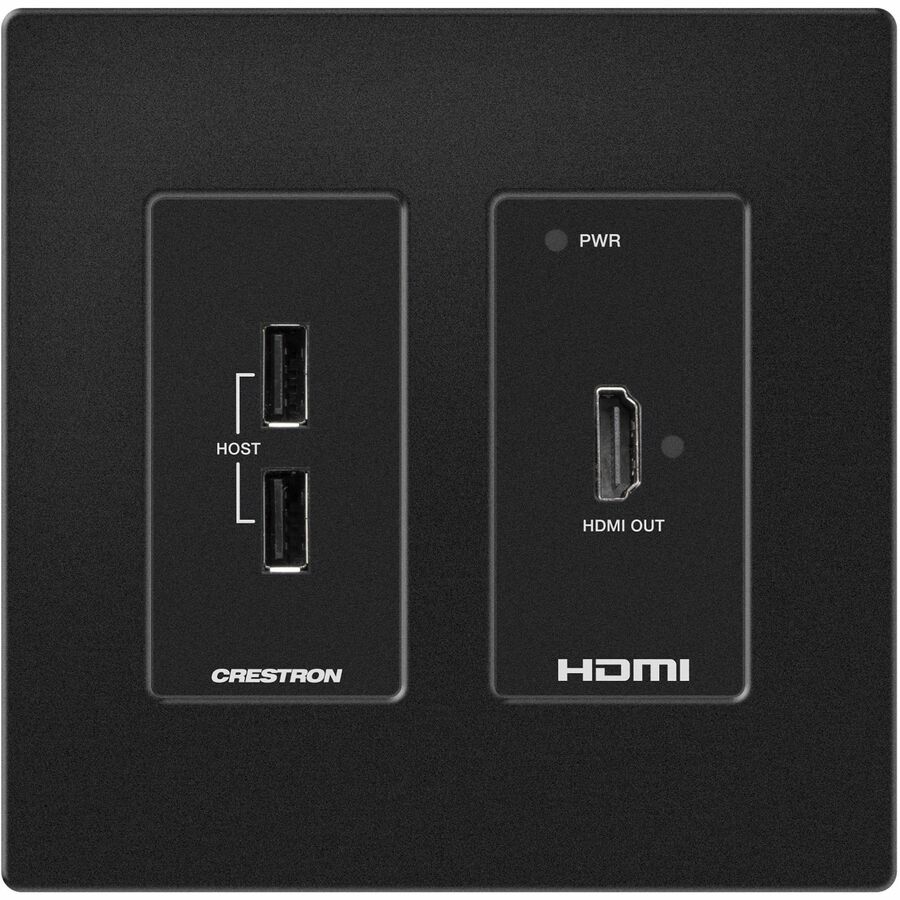

Crestron DM Lite 4K60 4:4:4 Receiver for HDMI and USB 2.0 Signal Extension over CATx Cable, Wall Plate, Black

The HD-RXU-4KZ-101-2G is a DM Lite® 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Lite HD-TXU-4KZ Seriestransmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-RXU-4KZ-101-2G to the DM Lite transmitter. 1

The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).

Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter

For interoperability between the HD-RXU-4KZ-101-2G and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-101-2G must be connected to the DM Lite output port of the HD-TXU-4KZ Series transmitter. Examples of supported DM Lite transmitters are the HD-TXU-4KZ-111-E and HD-TXU-4KZ-111-2G.

NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-2G is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite? HD-PS Series switcher.

4K60 4:4:4 and HDR Support

The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported. 2

USB 2.0 Data Extension

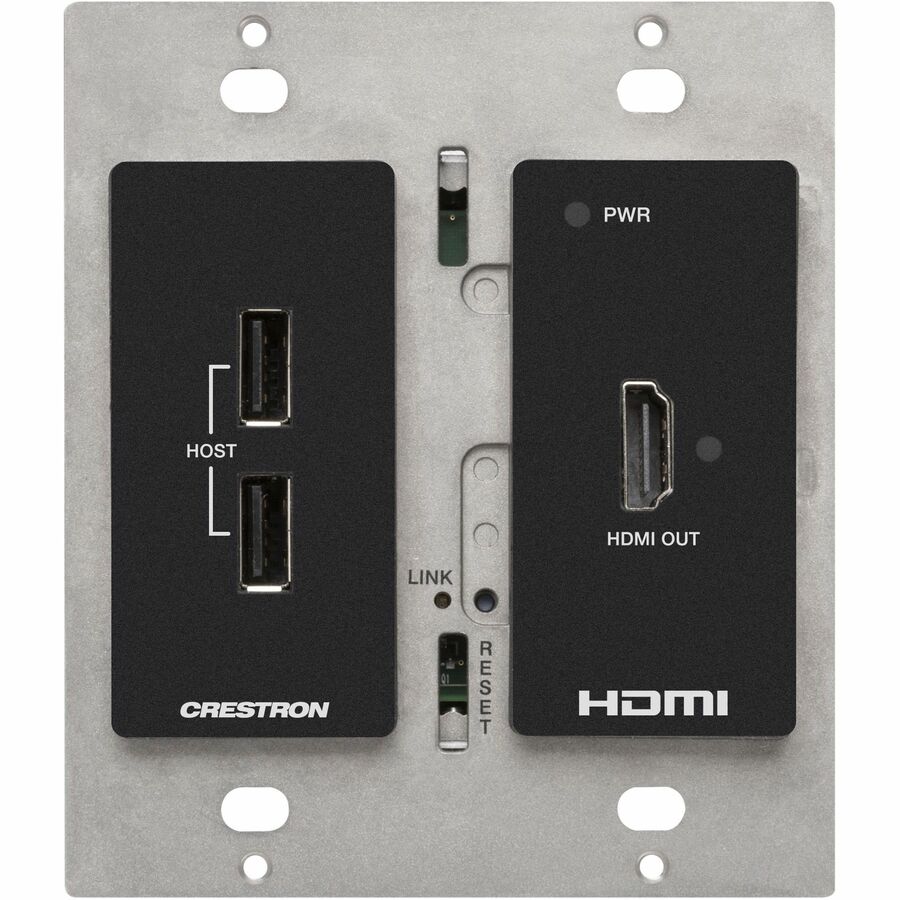

Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices. 3

Two-Gang Wall Plate Design

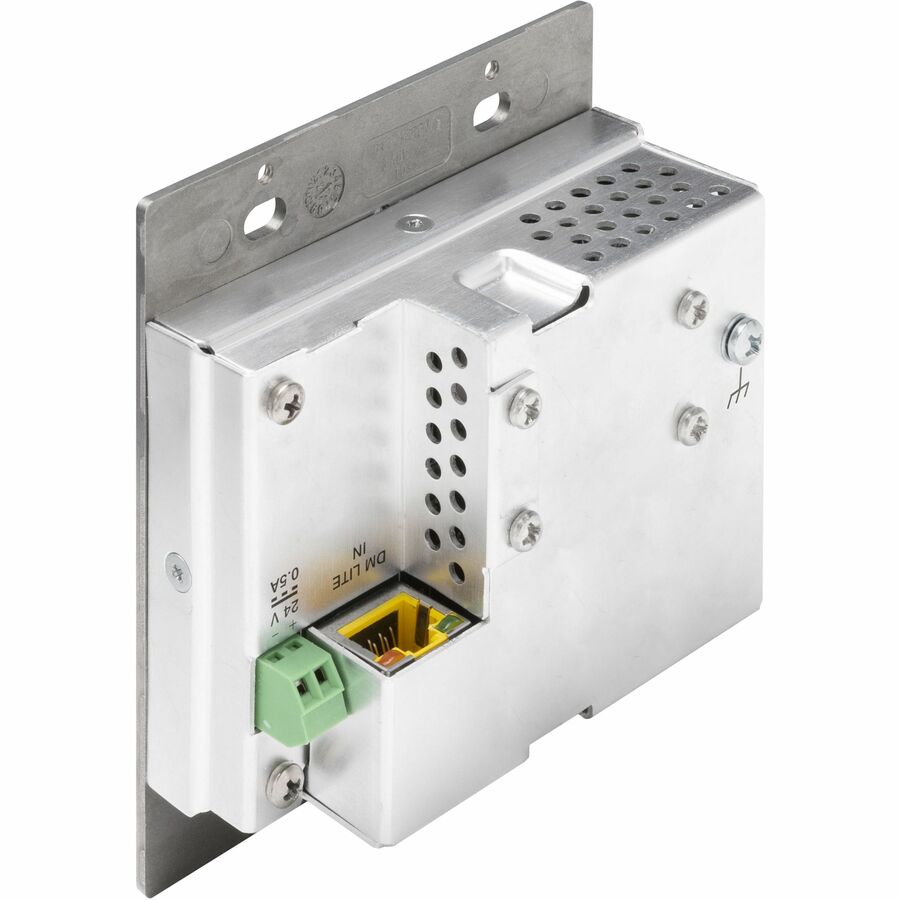

The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Lite transmitter (surface mountable only). 4

Key Features

• DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter

• Point-to-point extension of an HDMI® AV signal and USB 2.0 data signals over a CAT5e or higher cable

• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals

• 4K60 4:4:4 capability

• HDR10, HDR10+, and Dolby Vision® video formats

• Compliance with HDCP 2.3

• CEC (Consumer Electronics Control) pass-through capability

• EDID pass-through capability

• Two-gang wall plate design with black finish

• Decorator style faceplate required (FP-G2-DM Series sold separately)

• Power from the remote DM Lite transmitter (surface mountable only)
