130 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1 x Remote (IR) Input - 1 x Remote (IR) Output - 1080i, 1080p - 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Twisted Pair - Category 5e - Flat Panel Display, Projector - Surface-mountable, Rack-mountable
MSRP$480.00
$314.34
Save 35%Special order — estimated available by August 23, 2026.
Genuine Crestron Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The HD-RXC-4KZ-101 is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-RXC-4KZ-101 to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher

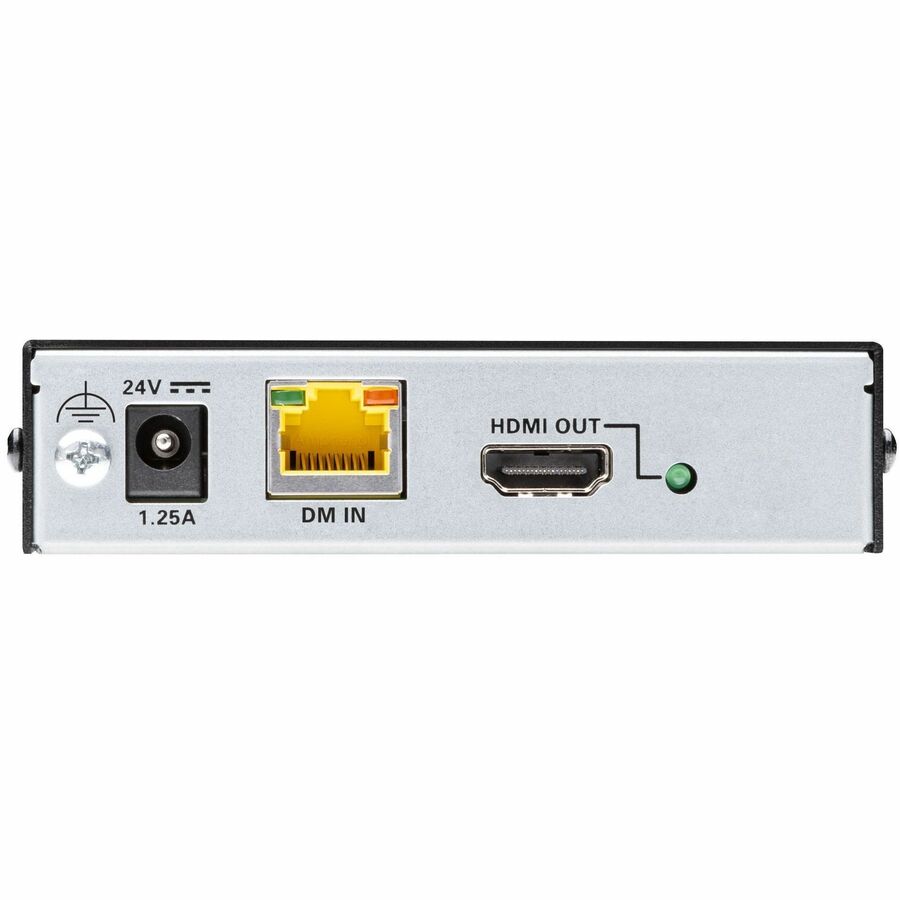

The DM Essentials input port of the HD-RXC-4KZ-101 must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.
The HD-RXC-4KZ-101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101. In addition, control system programming and .AV Framework software support of the HD-RXC-4KZ-101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-RXC-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

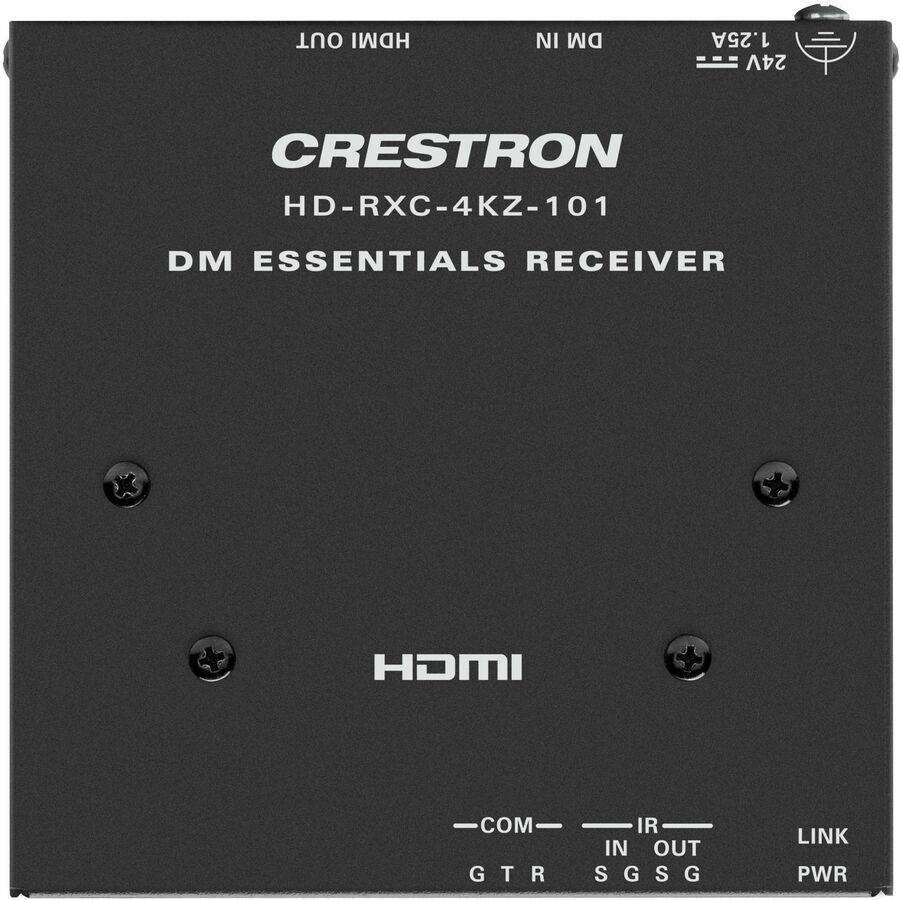

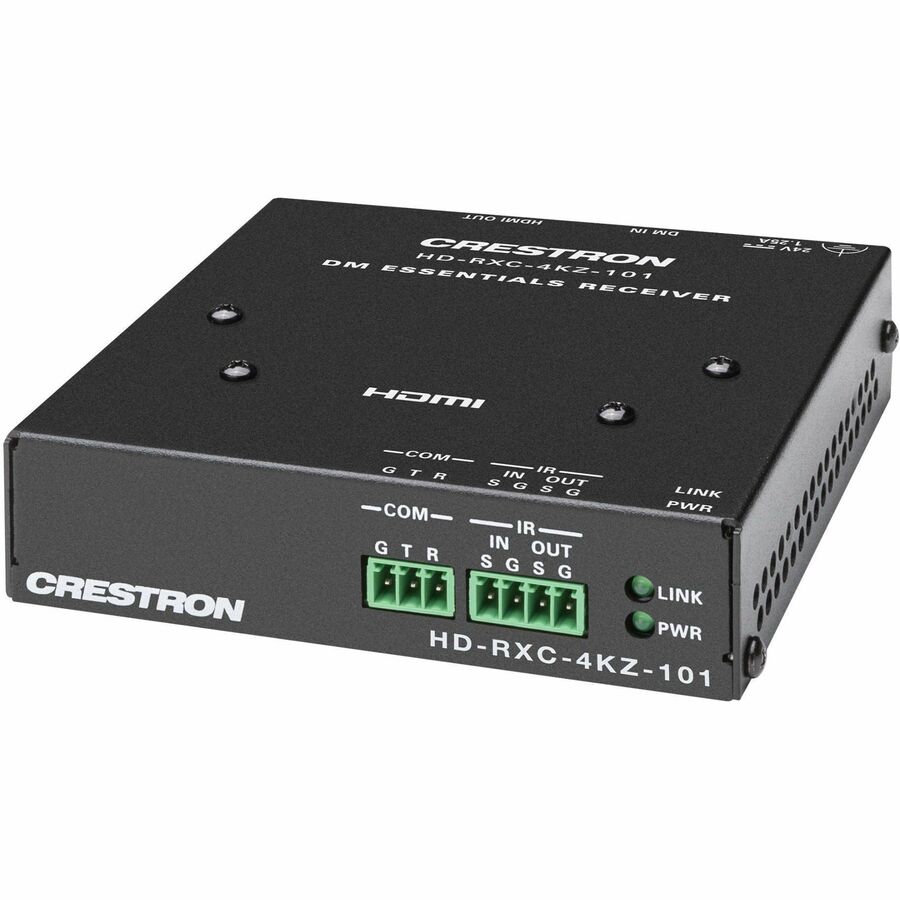

Compact, Surface-Mountable Design
Compact in design, the HD-RXC-4KZ-101 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXC-4KZ-101 can receive power from the included power pack or from the remote DM Essentials transmitter or DMPS Essentials switcher.
Key Features
• Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
• Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability

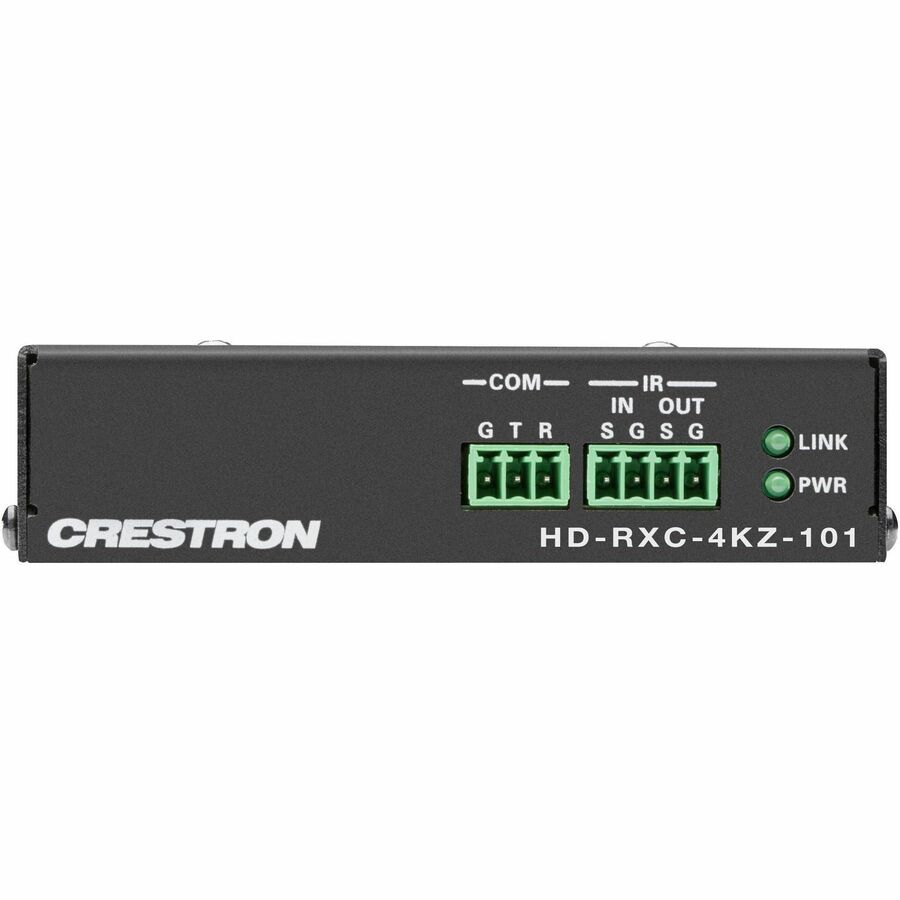

• Bidirectional RS-232 and IR pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Essentials transmitter or DMPS Essentials switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511815 |
| Brand Name | Crestron |
| Product Line | Essentials |
| Product Model | HD-RXC-4KZ-101 |
| Product Name | DM Essentials 4K60 4:4:4 Receiver for HDMI, RS-232, and IR Signal Extension over CATx Cable |
| Product Type | Video Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 4.13" |
| Receiver Width | 4.18" |
| Receiver Depth | 1.08" |
| Form Factor | Surface-mountable, Rack-mountable |
| Receiver Weight (Approximate) | 11.82 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 130 ft |
| Video | |
| Graphics Modes | 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, QWXGA |
| Supported Video Modes | 1080i, 1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Miscellaneous | |
| Application/Usage | Flat Panel Display, Projector |
