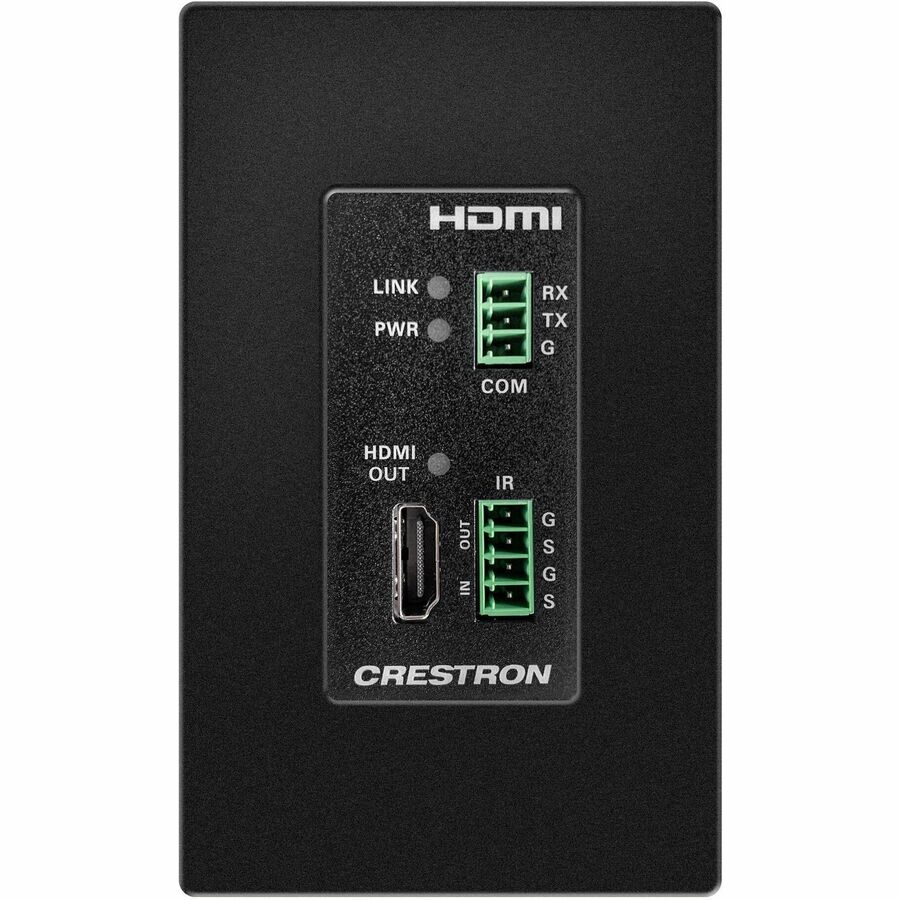

Signal Extension over CATx Cable, Wall Plate, Black
229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 2 x Remote (IR) Input - 2 x Remote (IR) Output - 1080i, 1080p - WQXGA, 4K, 4K UHD, Full HD, UXGA, WQUXGA, WUXGA, QWXGA, 2K - 4096 x 2160 - Category 5e - Gang Box Mount
MSRP$540.00
$364.66
Save 32%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 20 and Dec 25, then process your delivery right after.
Genuine Crestron Electronics through authorized distribution — NDAA §889 screened before checkout.
The HD-RXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-RXC-4KZ-101-1G to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported. 1
The HD-RXC-4KZ-101-1G is available in black (model HD-RXC-4KZ-101-1G-B).
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD-RXC-4KZ-101-1G must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.
The HD-RXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101-1G. In addition, control system programming and .AV Framework software support of the HD-RXC-4KZ-101-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-RXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported. 2
One-Gang Wall Plate Design
The HD-RXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RXC-4KZ-101-1G can receive power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher. 3
Key Features
• Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
• Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• Bidirectional RS-232 and IR pass-through capability
• EDID pass-through capability
• One-gang wall plate design with black finish
• Decorator style faceplate required (FP-G Series sold separately)
• Power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher
| General Information | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511814 |
| Brand Name | Crestron |
| Product Line | Essentials |
| Product Model | HD-RXC-4KZ-101-1G-B |
| Product Name | DM® Essentials 4K60 4:4:4 Receiver for HDMI®, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black |
| Product Type | Video Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Remote (IR) Input | 2 |
| Remote (IR) Output | 2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 4.12" |
| Receiver Width | 1.72" |
| Receiver Depth | 2.19" |
| Form Factor | Gang Box Mount |
| Receiver Weight (Approximate) | 5.40 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229.66 ft |
| Video | |
| Graphics Modes | WQXGA, 4K, 4K UHD, Full HD, UXGA, WQUXGA, WUXGA, QWXGA, 2K |
| Supported Video Modes | 1080i, 1080p |
| Maximum Video Resolution | 4096 x 2160 |
