Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VE811T
Category
Audio & Video Consoles/Extenders
Overview

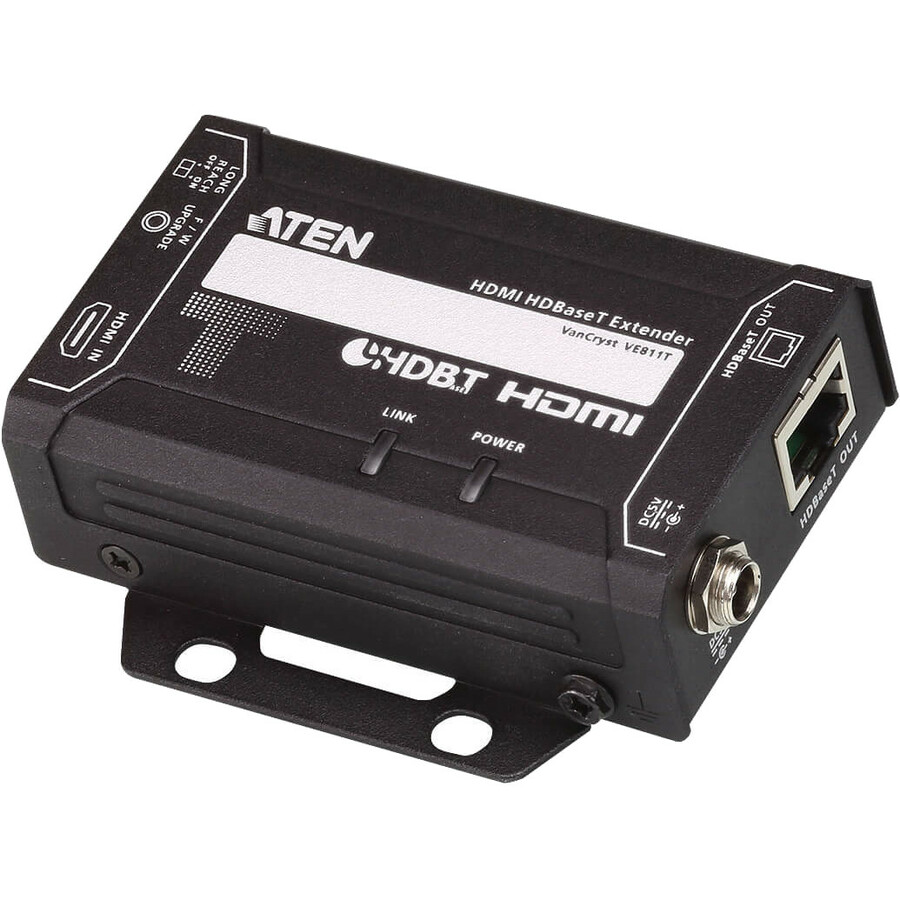

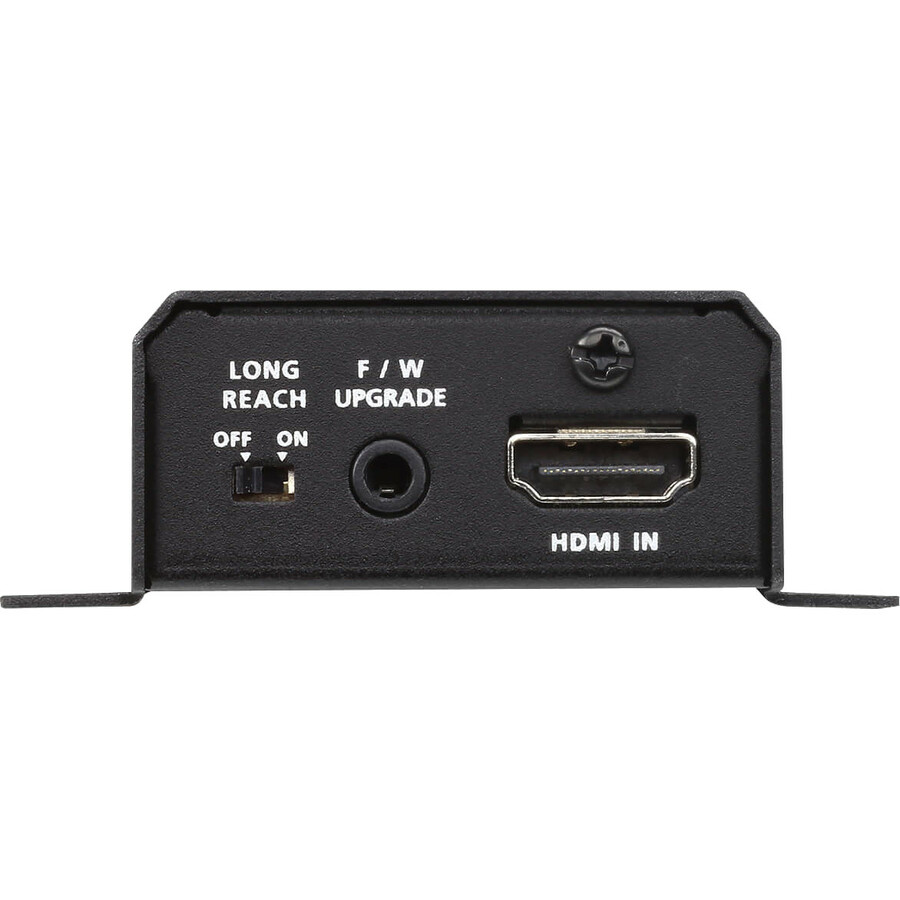

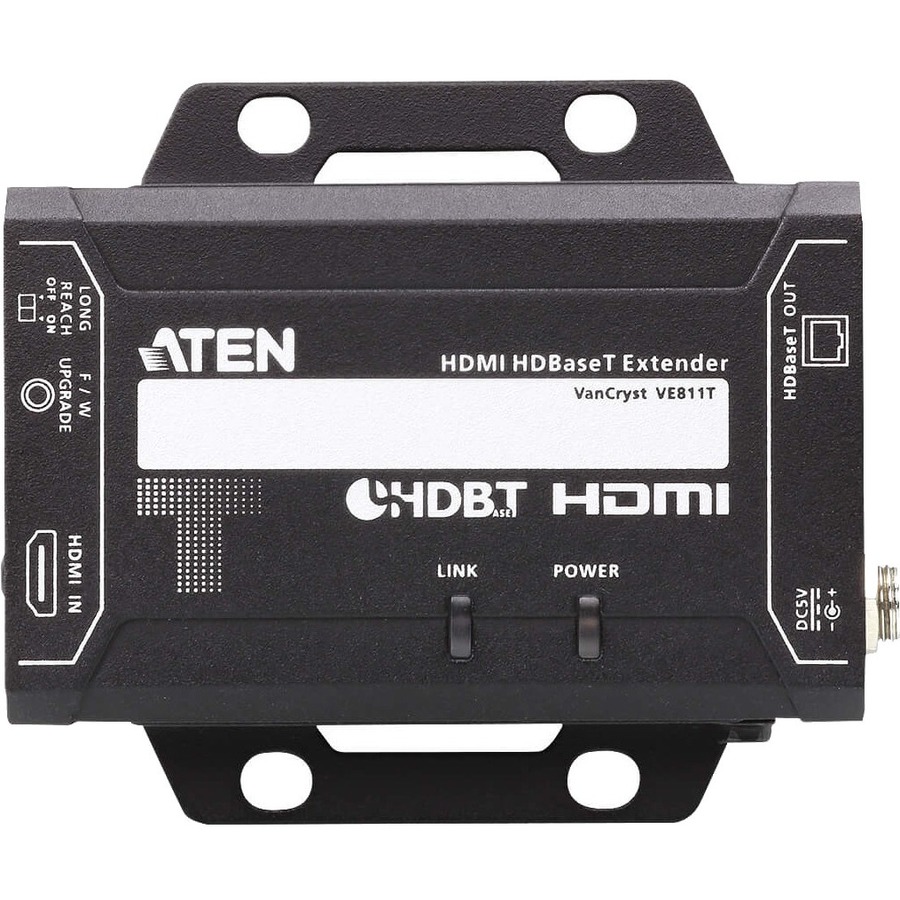

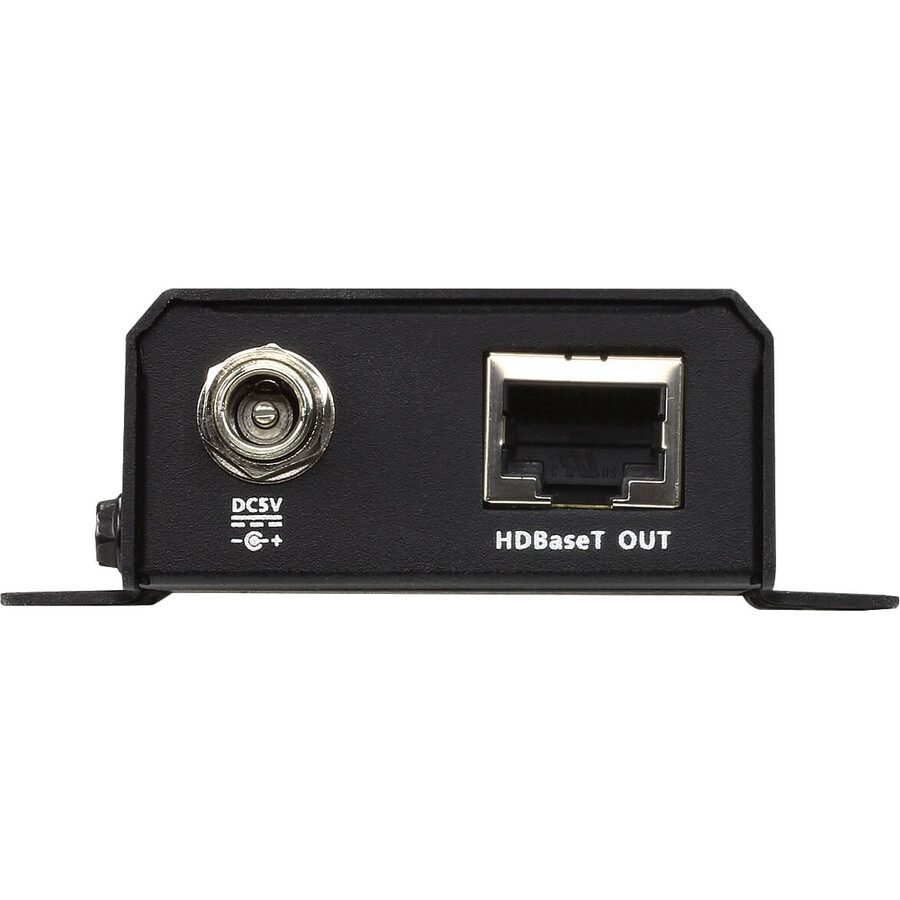

The ATEN VE811T HDMI HDBaseT Transmitter guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811T meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.
Pushing the technology and design to the limit, the compact design makes the VE811T easy to mount in any location. Engineered for today's digital trends, the VE811T is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Highlights
HDBaseT Connectivity - extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports wide screen format
Plug and play - no software required
Built- in 8KV/ 15 KV ESD protection
Rack Mountable
Specifications
Package Contents
VE811T HDMI HDBaseT Transmitter
1 x Power Adapters
1 x User Instructions
Product Type
Video Extender Transmitter
Manufacturer Part Number
VE811T
Limited Warranty
2 Year
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VE811T
Product Name
HDMI HDBaseT Transmitter
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Twisted Pair Cable Standard
Category 6
Maximum Operating Distance
328.08 ft
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of HDMI Inputs
1
HDMI In
Yes
Media Type Supported
Twisted Pair
Number of Input Devices Supported
1
Transmitter Height
0.97"
Transmitter Width
2.87"
Transmitter Depth
3.40"
Transmitter Weight (Approximate)
5.64 oz
Product Color
Black
Color Family
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
