SKU
VE816R
Category
Audio & Video Consoles/Extenders
Overview

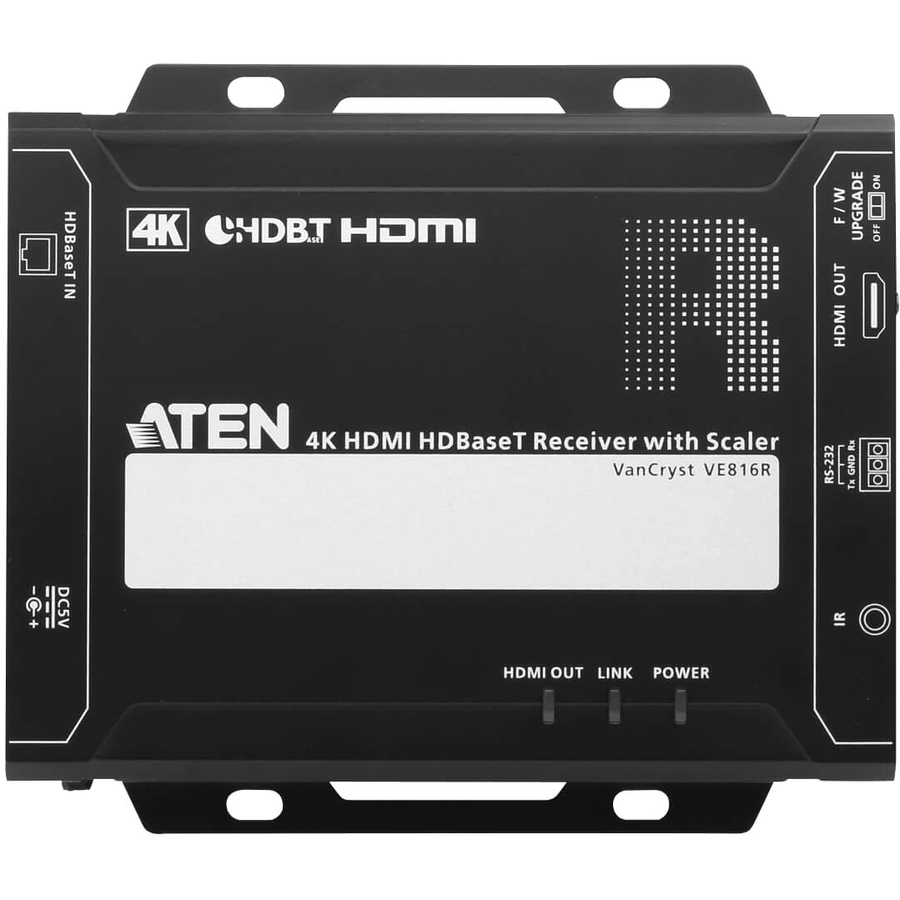

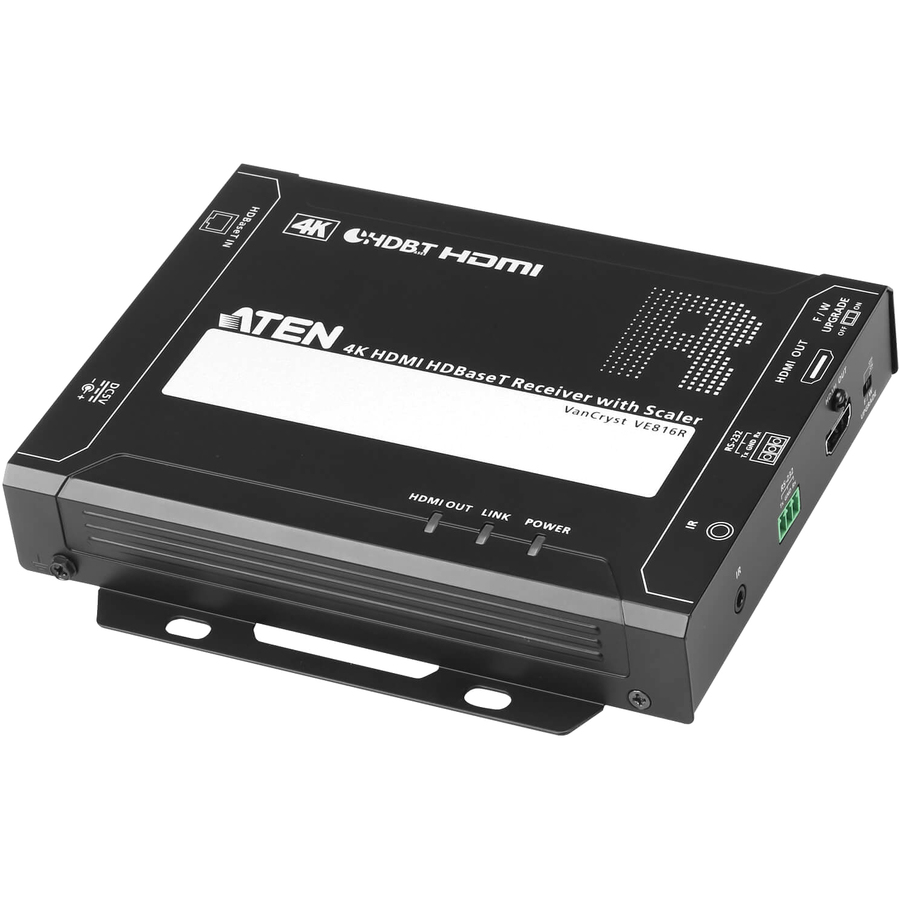

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.

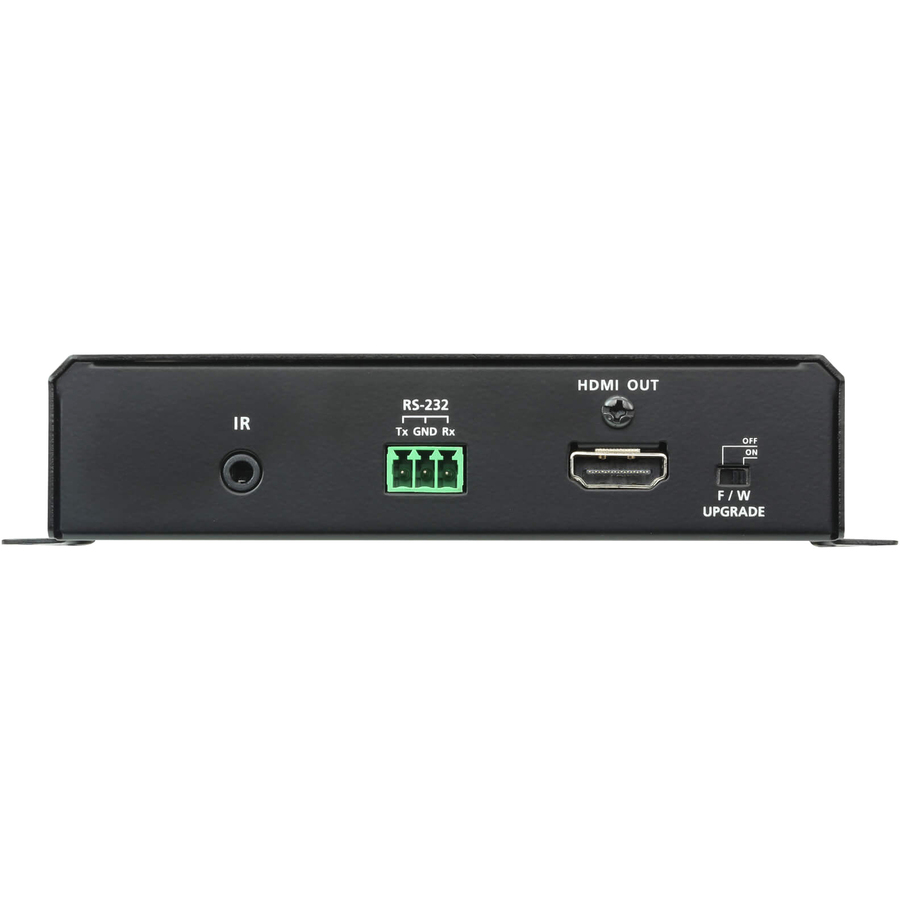

Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN's Seamless Switch ? function, providing users the ultimate A/V experiences.
Highlights
Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDCP 2.2 compatible
Superior video quality:
? 4K up to 100 m
? 1080p up to 150 m
HDBaseT Long Reach Mode - activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
Scaler - scales videos of different resolutions to their optimal output for display and to avoid black screen
Video Wall - features video wall profiles that allows for custom screen layouts via an intuitive web GUI
Seamless Switch? - close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions
Specifications
Package Contents
4K HDMI HDBaseT Receiver with Scaler
1 x IR Transmitter
1 x IR Receiver
1 x Terminal Block
1 x Power Adapter
1 x User Instructions
Product Type
Video Extender Receiver
Manufacturer Part Number
VE816R
Limited Warranty
2 Year
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VE816R
Product Name
4K HDMI HDBaseT Receiver with Scaler
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Twisted Pair Cable Standard
Category 6a
Maximum Operating Distance
492.13 ft
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of HDMI Outputs
1
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Output Devices Supported
1
Receiver Height
1.18"
Receiver Width
5.78"
Receiver Depth
6.61"
Receiver Weight (Approximate)
1.48 lb
Product Color
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
